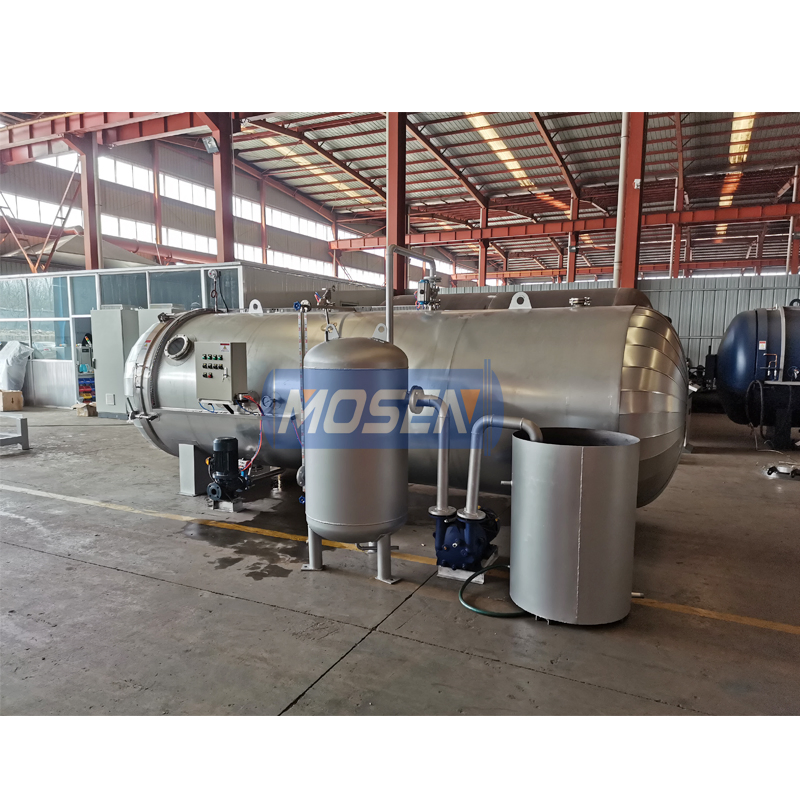

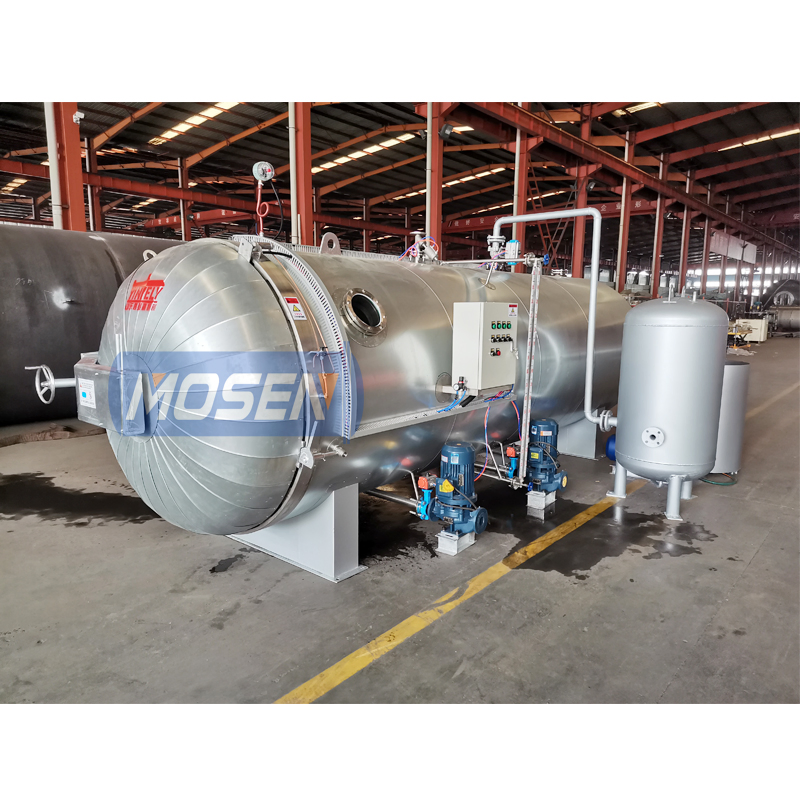

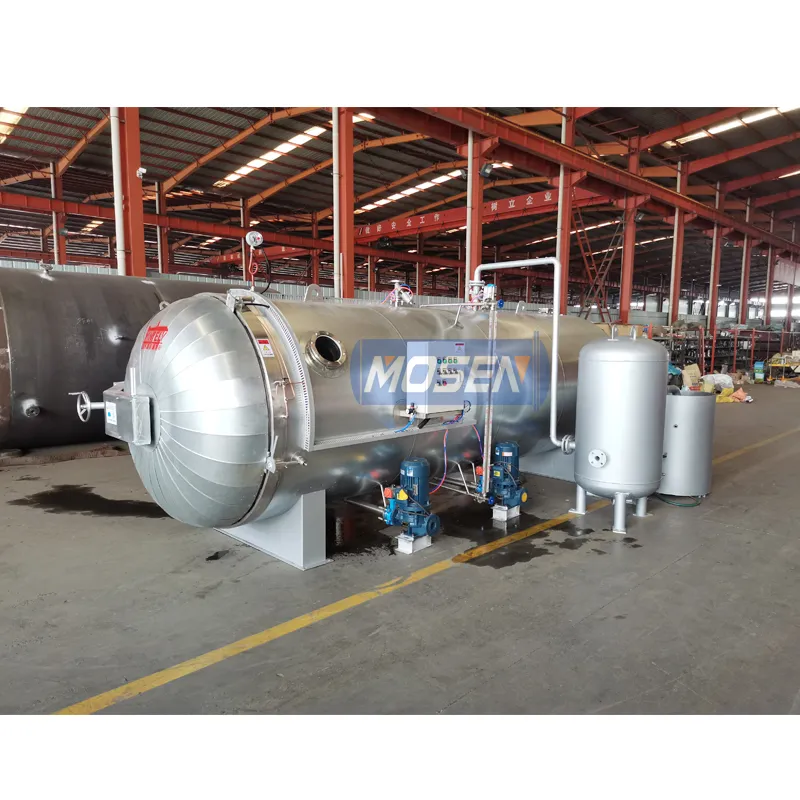

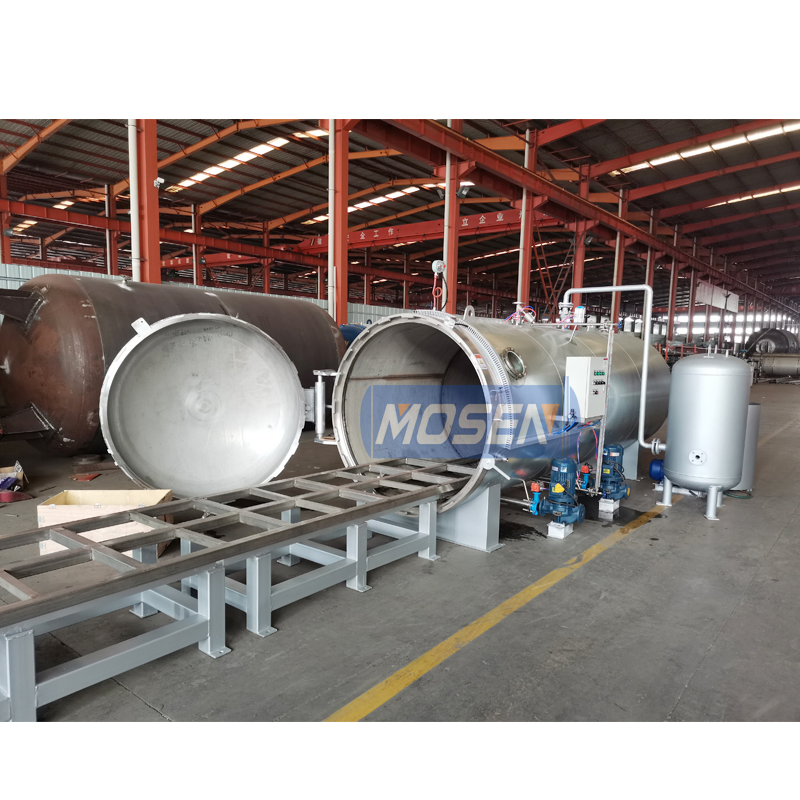

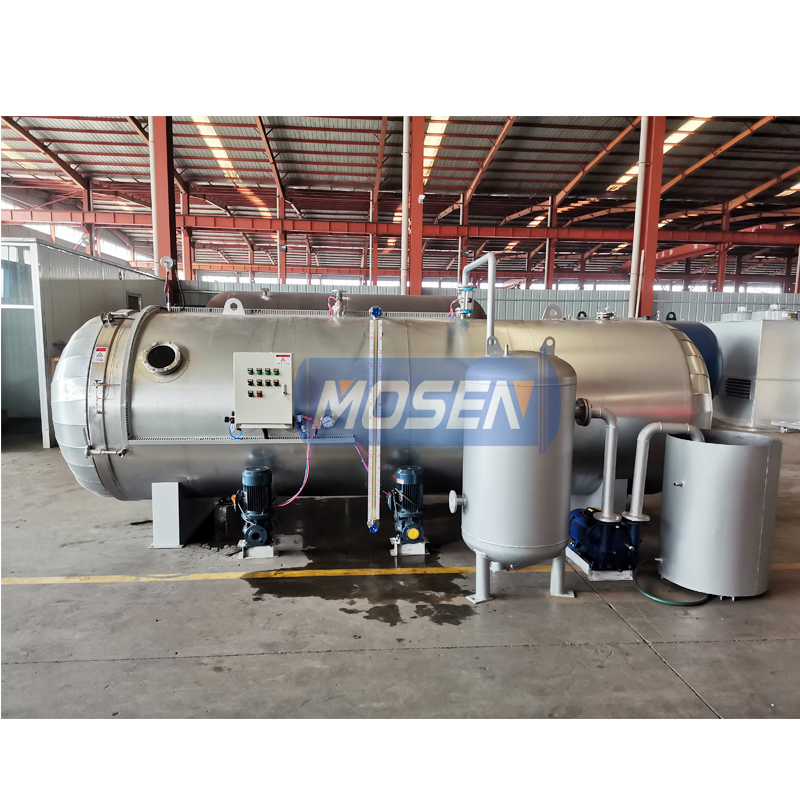

Wood Preservation Impregnation CCA Pressure-Treated Timber Treatment Plant Autoclave
Specializing in Wood Impregnation Preservation Treatment Autoclaves with more than 15 years of experience. Fully customizable designs available.
1 Phase 1: Initial Vacuum
Freest the pores of the wood of air, generating a "vacuum" allowing the wood to breathe. Duration: 30-90 minutes.
2 Phase 2: Filling
The vacuum conveys the treatment solution into the autoclave. Level sensors control the filling phase precisely.
3 Phase 3: Pressure Application
Forcing the solution deep into the wood for long-lasting protection. Duration: 30-180 minutes.
| MODEL | DIAMETER | LENGTH | CAPACITY | PRESSURE | VACUUM | VOLTAGE |
|---|---|---|---|---|---|---|
| DL1080.A | 1000MM | 8000MM | 6.28m³ | 1.4Mpa | -0.098 | 380V |
| DL1580.A | 1500MM | 8000MM | 14.1m³ | 1.4Mpa | -0.098 | 380V |
| DL1780.A | 1700MM | 8000MM | 18.1m³ | 1.4Mpa | -0.098 | 380V |
| DL17120.A | 1700MM | 12000MM | 27.2m³ | 1.4Mpa | -0.098 | 380V |

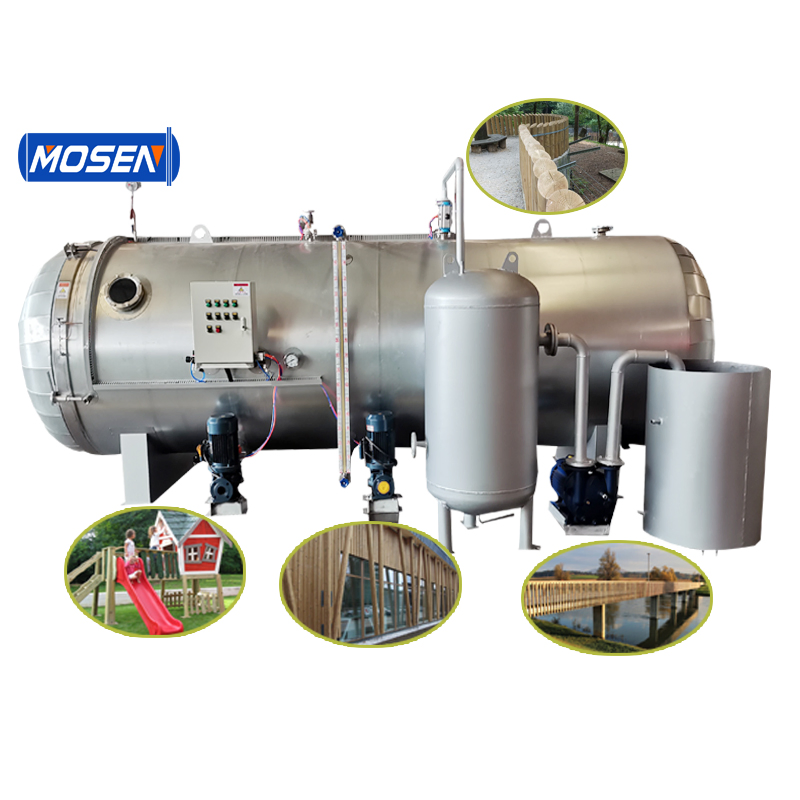

Preservative wood applications range from private courtyards to scenic spots: wooden boardwalks, flower boxes, outdoor floors, and ancient building restoration. It is ideal for bridge construction and environment-friendly house structures.
Delivery via LCL/20'FCL/40'FCL. Professional trial runs are performed before delivery. Equipment is fixed securely with wire ropes to prevent movement during transport.
