Icesta Containerized 40 Ton Industrial Automatic Ice Plant with Rake Ice System for Seafood Preservation

1 / 5

Icesta Containerized 40 Ton Industrial Automatic Ice Plant with Rake Ice System for Seafood Preservation

Customization:	Available
After-sales Service:	Overseas Machinery Service
Warranty:	1year

Send Inquiry

Product Description

Basic Information

Ice Making:

Flowing

Cooling Way:

Water-cooled

Automation:

Automation

Unit Structure:

Split

Machine Size:

Large

Ice Temperature:

-5℃~-10℃

Ice Shape:

Flake Ice

Capacity:

20 Ton/24hours

Type:

Containerized Flake Ice Machine

Certification:

RoHS, UR, ISO, CE, CCC

Product Overview

Flake Ice Advantages

Fastest melting time compared to any other ice.
Shortest mixing time as Flake lce melts rapidly.
Longer lifespan of the Batch plant equipment and cost saving.
The cooling energy is 100% or even higher (Subcooled at -7 degrees).
Dryness allows for accurate cooling input calculations.
Flakes remain crisp, free-flowing, and do not stick together.
Easy to store inside refrigerated Ice Rake Systems.
Transportable via screw conveyors or Blowing Systems.

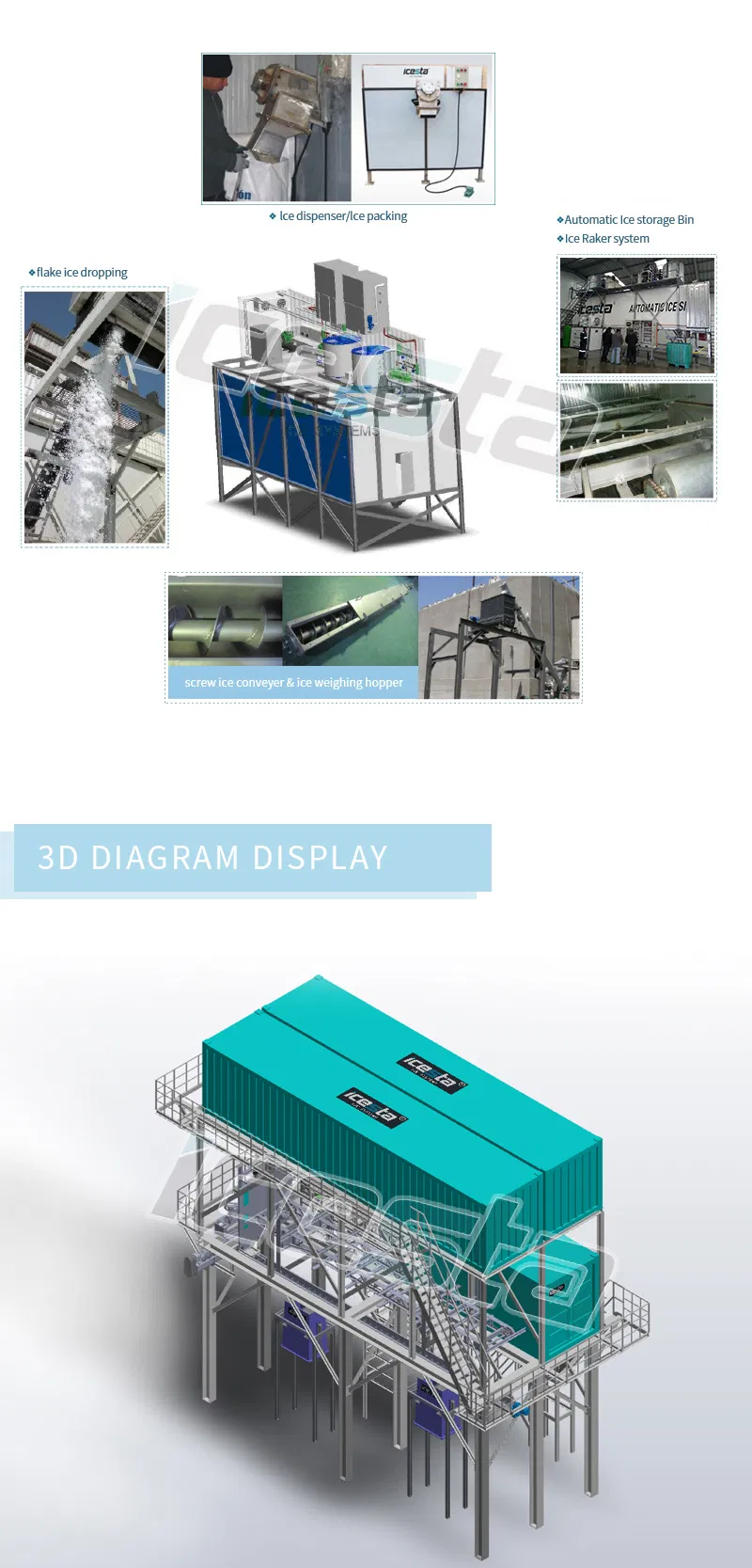

Core Components

Auto Ice Storage & Delivery

• Mobile type, starting from 20 metric tons up to 100 metric tons.

• Robust steel used for ice rake assembly and Hoist System.

• Reliable Sensors and Limit Switches for automatic movement control.

• Efficient Air cooler to keep room temperature down to -10 degrees.

• Dual Screw Design with delivery rates of 25-40T per Hour.

Technical Specifications

Model	IWP110T	IWP130T	IWP150T	IWP180T	IWP200T	IWP250T	IWP320T	IWP400T
Max Concrete (M³/Day)	700	800	930	1100	1340	1530	2000	2450
Ice Water (M³/Day)	110	130	150	180	200	250	320	400
Water Flow (M³/H)	4.6	5.4	6.25	7.5	8.3	10.4	13.4	16.7
Ref. Power (KW)	240	280	320	380	460	525	715	834

Application and Cases

FAQ

What information is needed for a quotation?

We need to know the water source (fresh/seawater), installation location, ambient/inlet water temperatures, power supply specifics, and your preferred cooling mode (water, air, or evaporative).

How is the ice machine installed?

Installation can be done by the customer following our manuals and video guides, or by our engineers who provide on-site supervision for final setup and commissioning.

What is the standard warranty period?

The standard warranty is 1 year from the Bill of Lading date. We provide free spare parts for failures due to our responsibility during this period.

Do you offer technical support for long-term use?

Yes, we provide permanent technical support and consultation throughout the lifespan of the machine, including 24/7 assistance via phone or email.

What are the main applications of flake ice?

It is primarily used in concrete mixing for batch plants, seafood preservation, and various industrial cooling processes requiring rapid temperature reduction.
