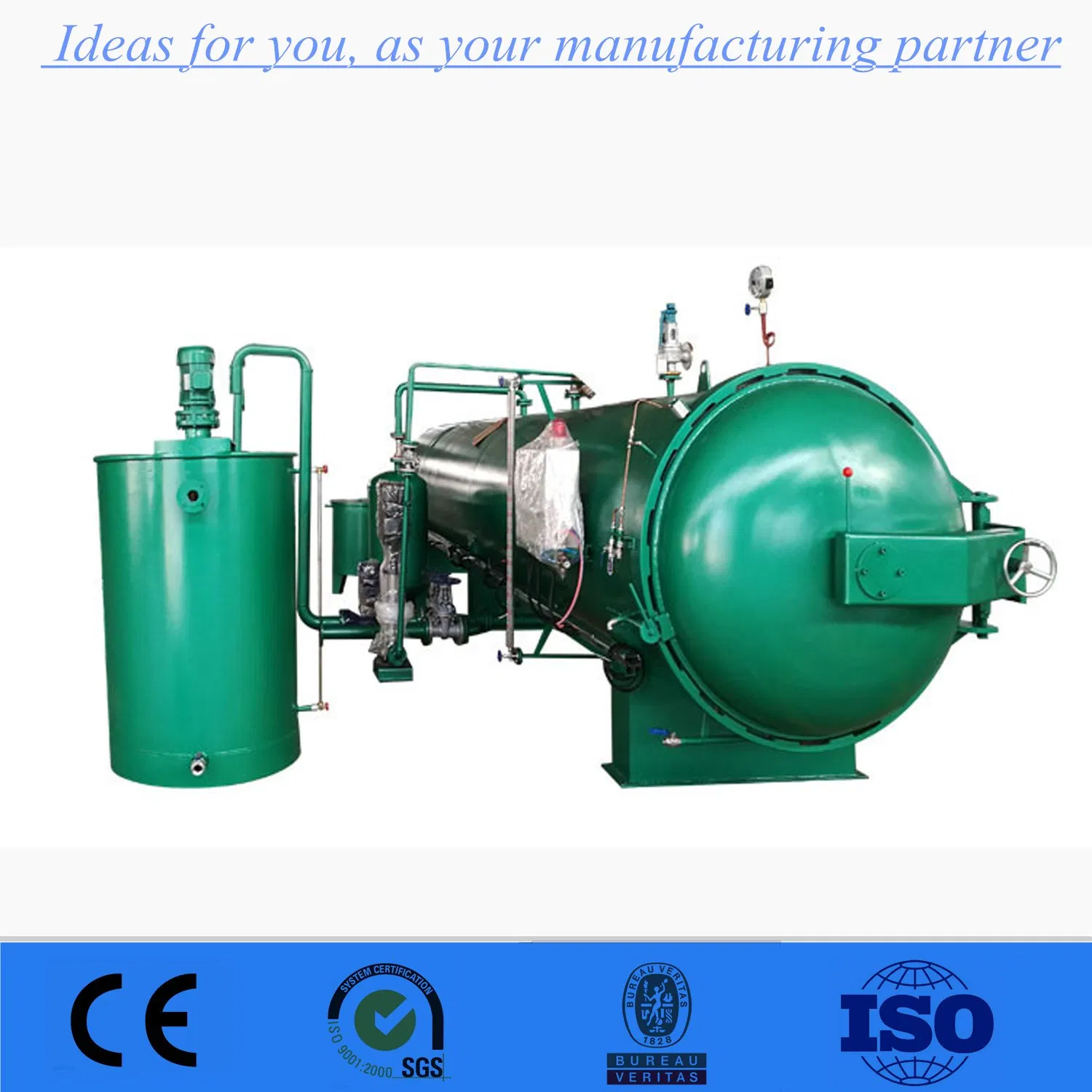

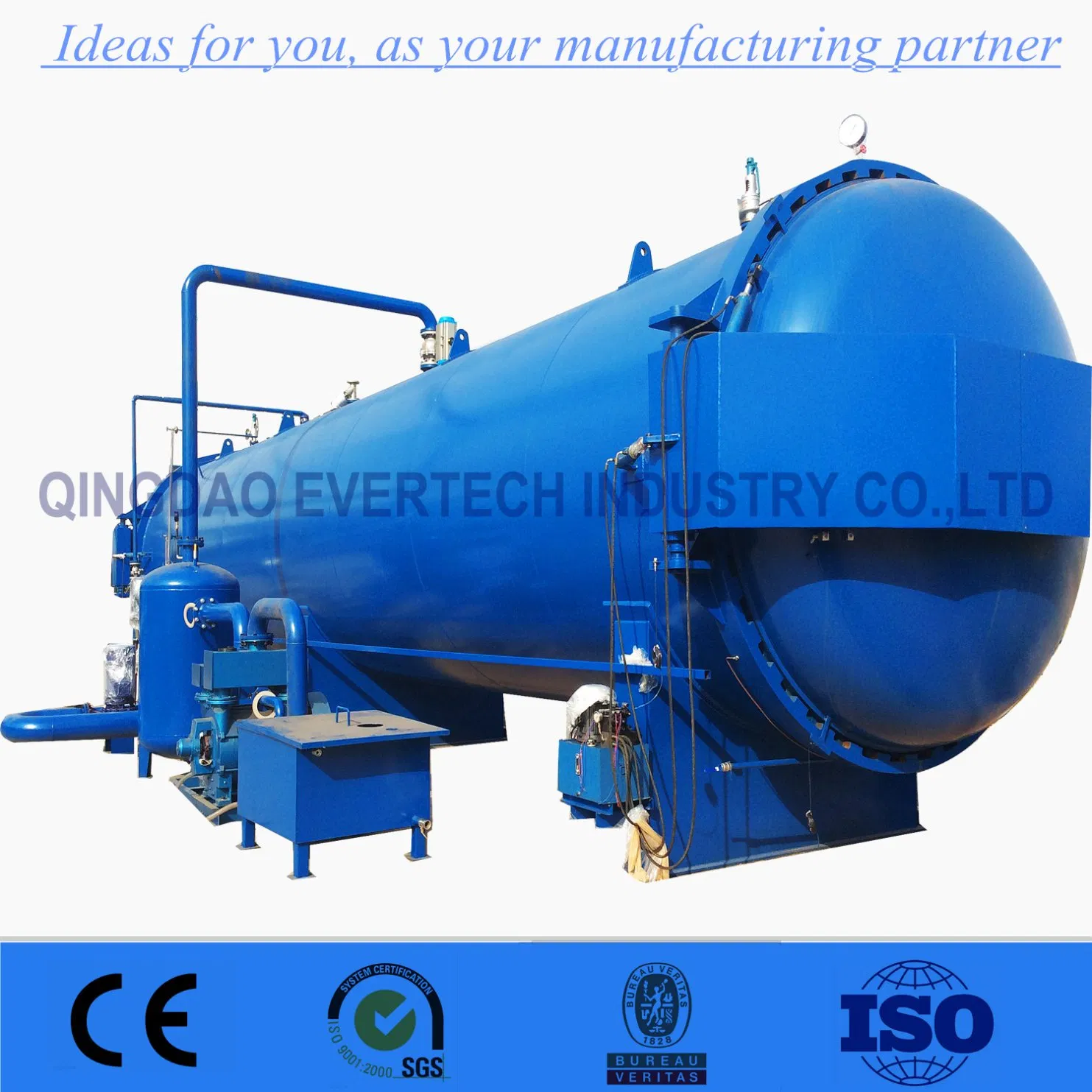

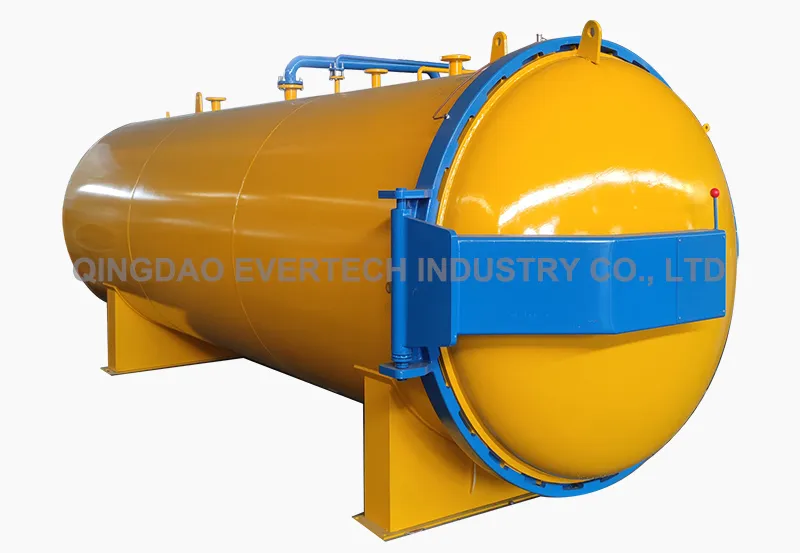

Vacuum Wood Timber Treatment Equipment Plant

Customization: Available
After-sales Service: Video Technical Support, Online Support, Spare PAR
Warranty: 5 Years

Product Description

Basic Specifications
Model NO.ET

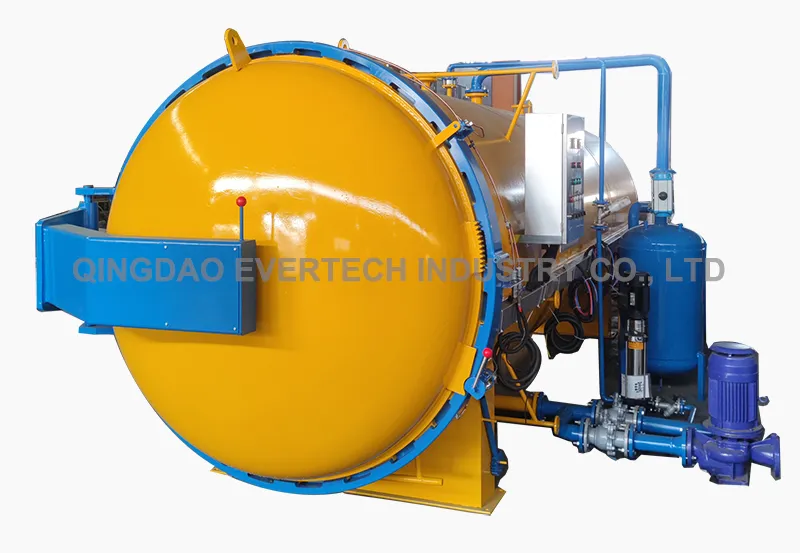

FunctionWood Treatment Autoclave
ApplicationWood Preservation / Impregnation
MaterialCarbon Steel
PressureCustomized
Warranty Period5 Years
Pressure LevelMedium Pressure (1.6MPa≤p<10.0MPa)
Working MediumHot Air, CCA, ACQ
Product Description
🚀 Core Usage

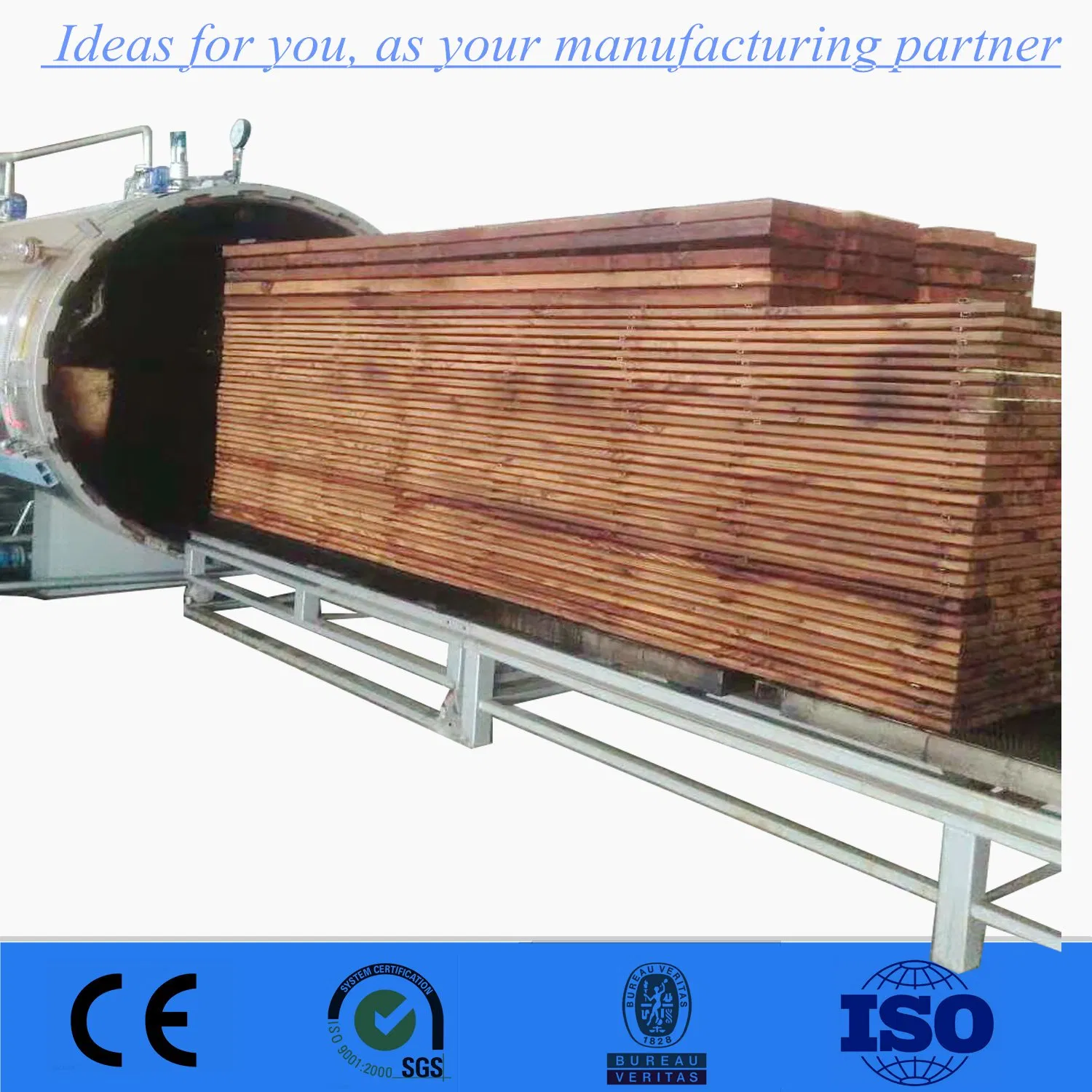

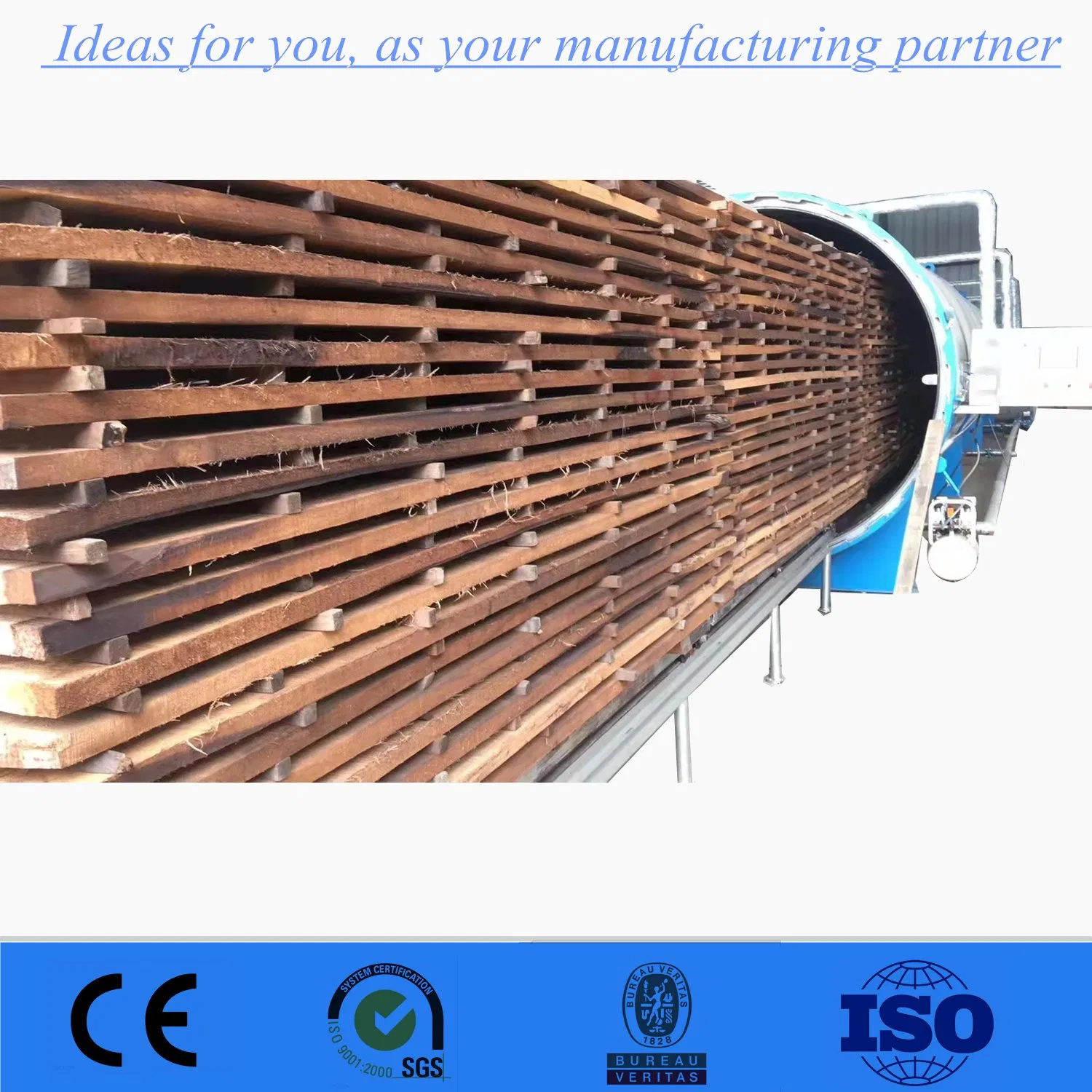

Wood/Timber/Bamboo anticorrosion, impregnation, preservation, and storing.
🌲 Applicative Wood

Species: All species of woods such as pinewood, cedarwood, rosewood, etc.
Shapes: All shapes of woods such as log, timber, wood plate, etc.

⚙️ Key Features

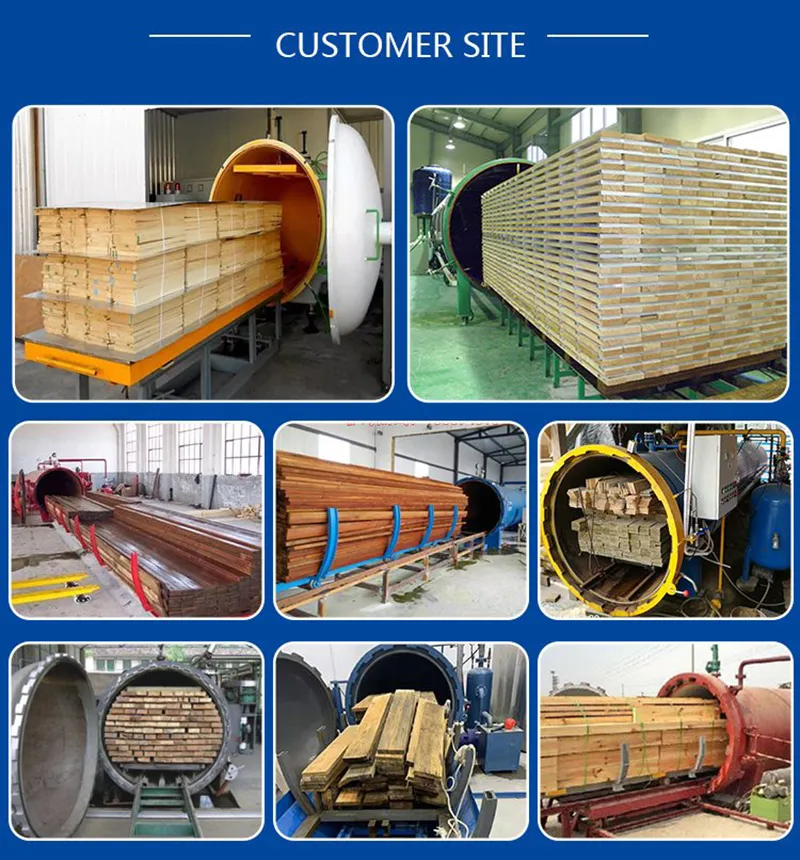

  • Broad Application: Ideal for outdoor wood floors, landscape platforms, and preservative wood pergolas.
  • Advanced Methods: Utilizes vacuum pressure, full-cell, and high-low frequency pressure methods (Preservative level C4).
  • Chemical Compatibility: Optimized for CCA and ACQ preservatives.
  • Intelligent Control: PLC system for easy, safe, and reliable operation with precise absorption calculation.
💡 Working Principle & Process

Combines Vacuum (to remove air from cells) and Pressurizing (to force agent liquid deep into wood cells).

  1. Initial Vacuum: Removes air from tank and wood (0.098MPa).
  2. Agent Adding: Liquid is drawn into the tank under vacuum.
  3. Pressurizing: Pressure pump raises internal pressure to rated levels.
  4. Discharging: Pressure is released and excess liquid is drained.
  5. Final Vacuum: Removes redundant liquid to prevent surface dripping.
📊 Technical Parameters
Model Diameter (mm) Length (mm) Capacity (m³) D.pre (Mpa) D.Temp (ºC) Voltage (V)
ET10/80100080006.281.0-0.098380
ET15/801500800014.11.0-0.098380
ET17/801700800018.11.0-0.098380
ET17/12017001200027.21.0-0.098380

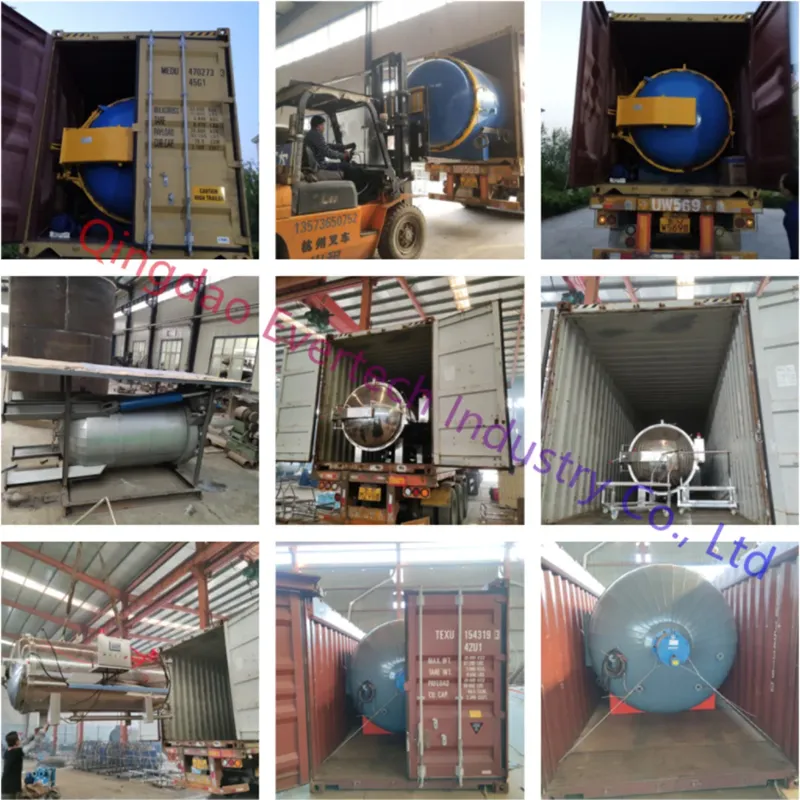

📦 Shipping & After-Sales

Our equipment is packed in standard sea-freight packages to ensure it arrives in perfect condition. We provide a one-year warranty and lifelong technical services/spare parts support.

Frequently Asked Questions
What types of wood can be treated with this equipment?
All species of wood, including pinewood, cedarwood, and rosewood, in various shapes like logs, timbers, and plates, can be treated.
What is the warranty period for the wood autoclave?
The main equipment comes with a 1-year warranty, though basic specifications indicate a general warranty service up to 5 years for specialized parts.
Do you offer customization for pressure and size?
Yes, the length, diameter, and working pressure can be customized to meet specific customer requirements.
Is technical support available for installation?
Yes, we provide both on-site engineer appointments for debugging and repair, as well as comprehensive on-line technical support.
What control system does the machine use?
The machine uses a new intelligent PLC control system, which ensures easy, safe, and accurate operation.
What are the payment terms?
We accept multiple payment methods including T/T, L/C, and irrevocable L/C payable at sight.
