Basic Specifications
Power Supply
380V 50Hz 3phase
Specification
CE; ISO, SGS
Introduction

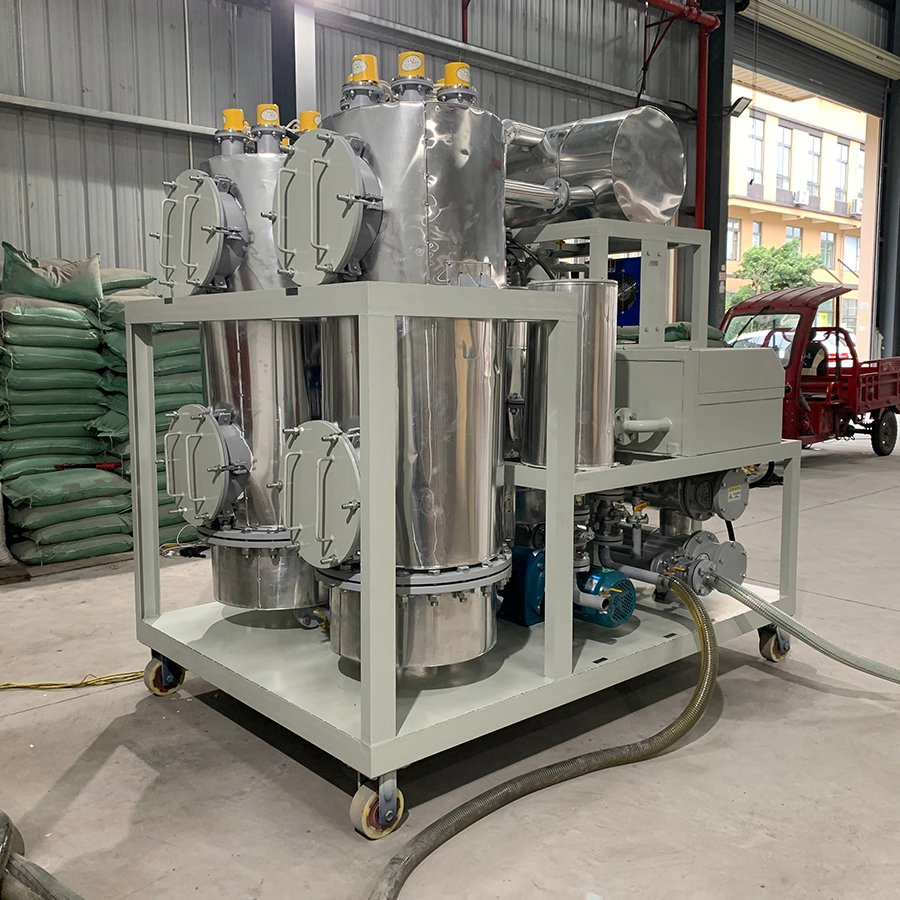

TYR series high vacuum oil decolorization machine can rapidly remove the color, moisture content, impurities (particulate impurities and mechanical impurities) and gases (acetylene, hydrogen, methane etc) and other harmful ingredients. In the whole treatment process, it adopts purely physical treatment without affecting the components and performance of oil. It uses a special natural additive to discolor with high efficiency. It can treat red diesel, hydraulic oil, machinery oil, coolant oil, cooking oil, coconut oil, sunflower oil, and turmeric oil in various industrial fields. The treated oil is very clear and transparent.
Key Features

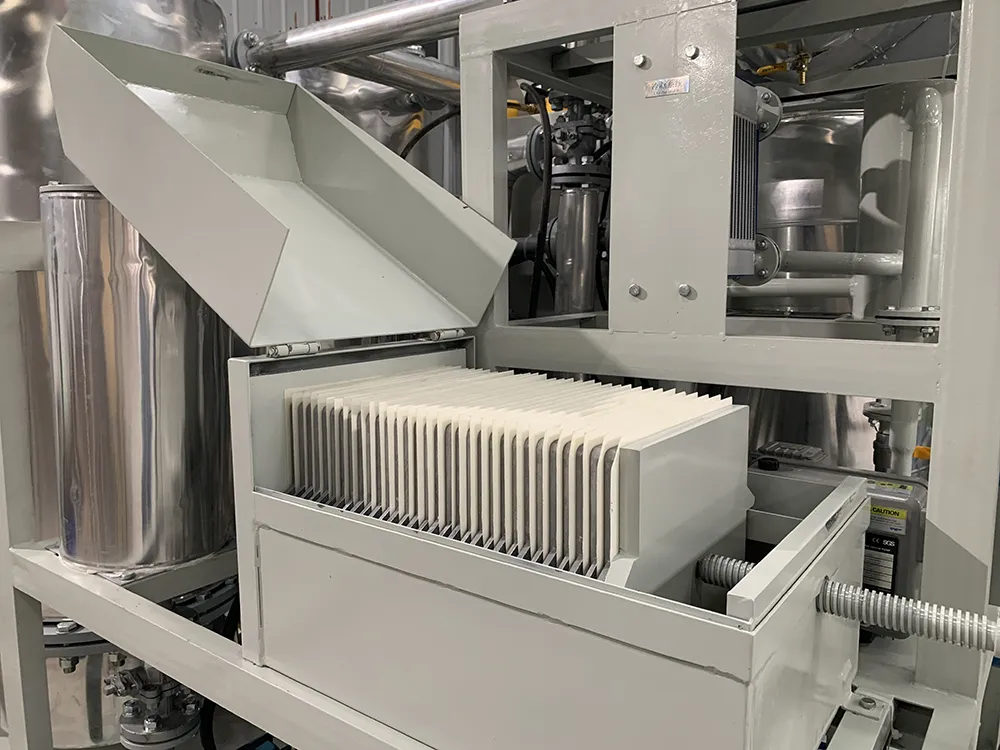

- Strong Purifying Ability: Fine filtration system with large area and deep level for removing fine particles.
- Automatic Back-flushing: Self-cleaning function to purify impurities left after treatment.
- Advanced Cooling: Equipped with a dielectric absorption cooling system.

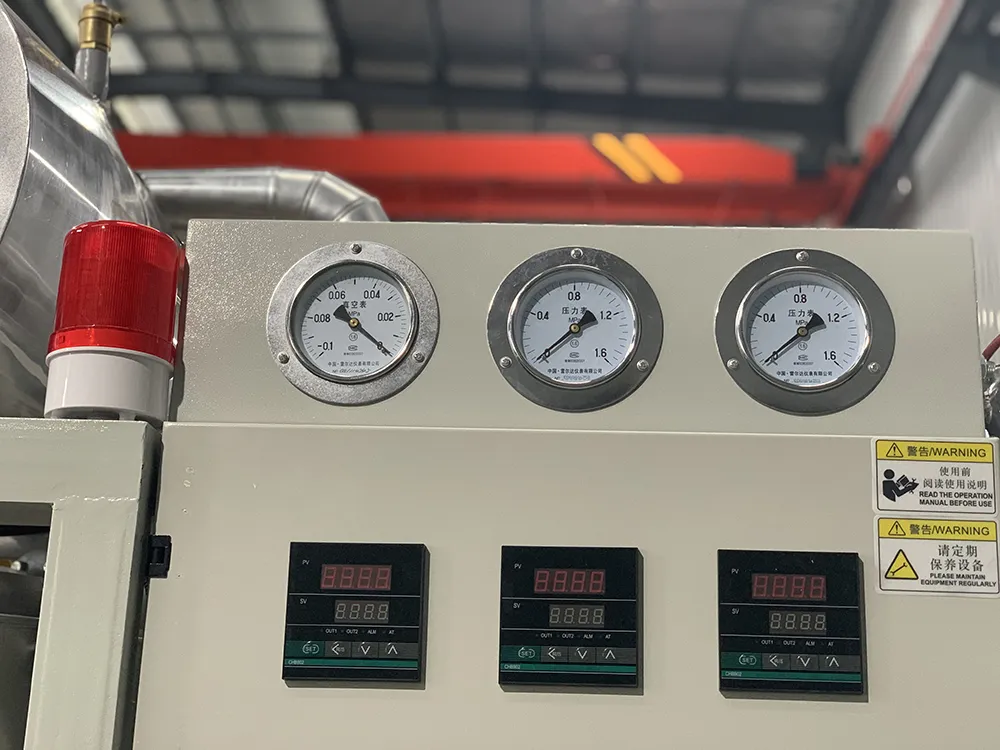

- Safety Protection: Pressure protection, auto heating with temperature control, and auto condensed water separation.
- High-Quality Material: Strong corrosion and heat resistance with high mechanical strength for long service life.

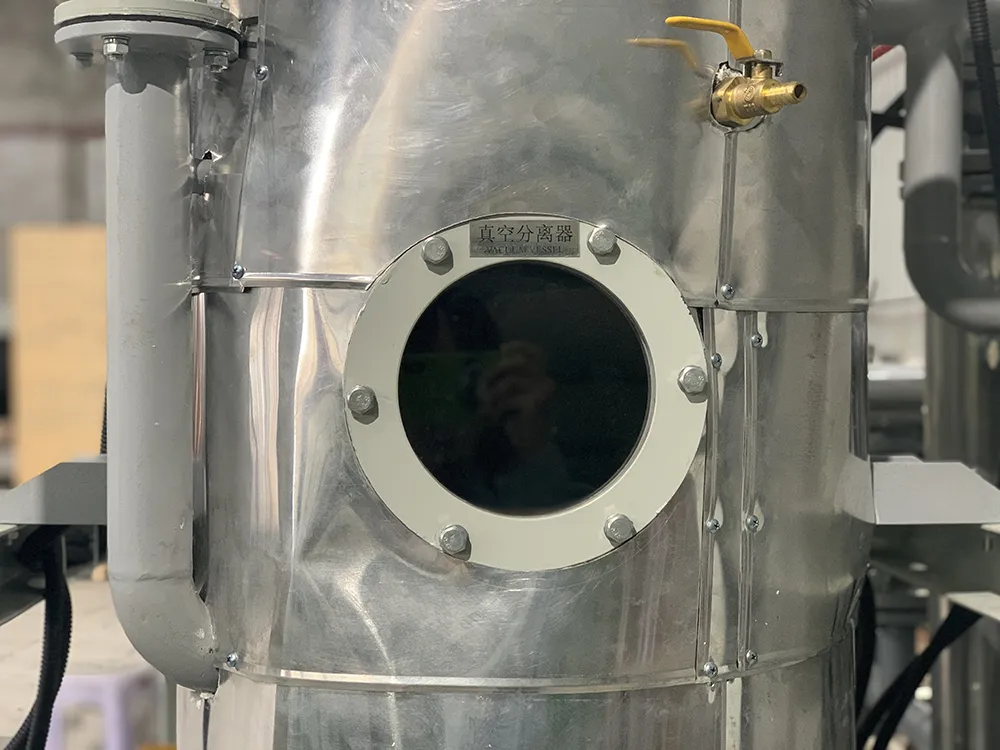

- Vacuum System: Stereoscopic evaporation technology and multilevel oil-water separation.
Technical Parameters
| Item | Unit | TYR-10 |
| Flow rate | Ton/day | 20 |
| Vacuum degree | MPa | -0.06~-0.095 |
| Working pressure | MPa | ≤ 0.4 |
| Temperature degree | ℃ | 0~100 |
| Power supply | - | 380V/50HZ/3Ph |
| Working noise | dB(A) | ≤65~80 |
| Electric heating | kW | 36 |
| Weight | kg | 350 |
| Size | mm | 1500*1000*1600 |
| Moisture content | PPM | ≤50 |
| Color | L | ≤2 |

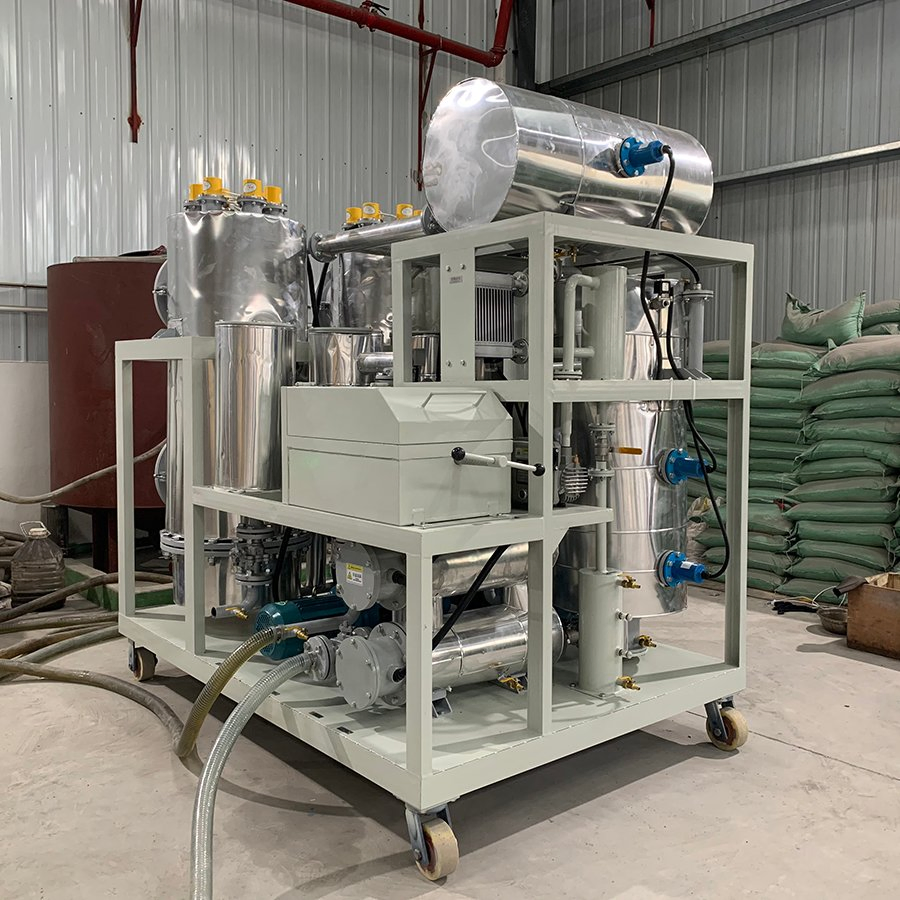

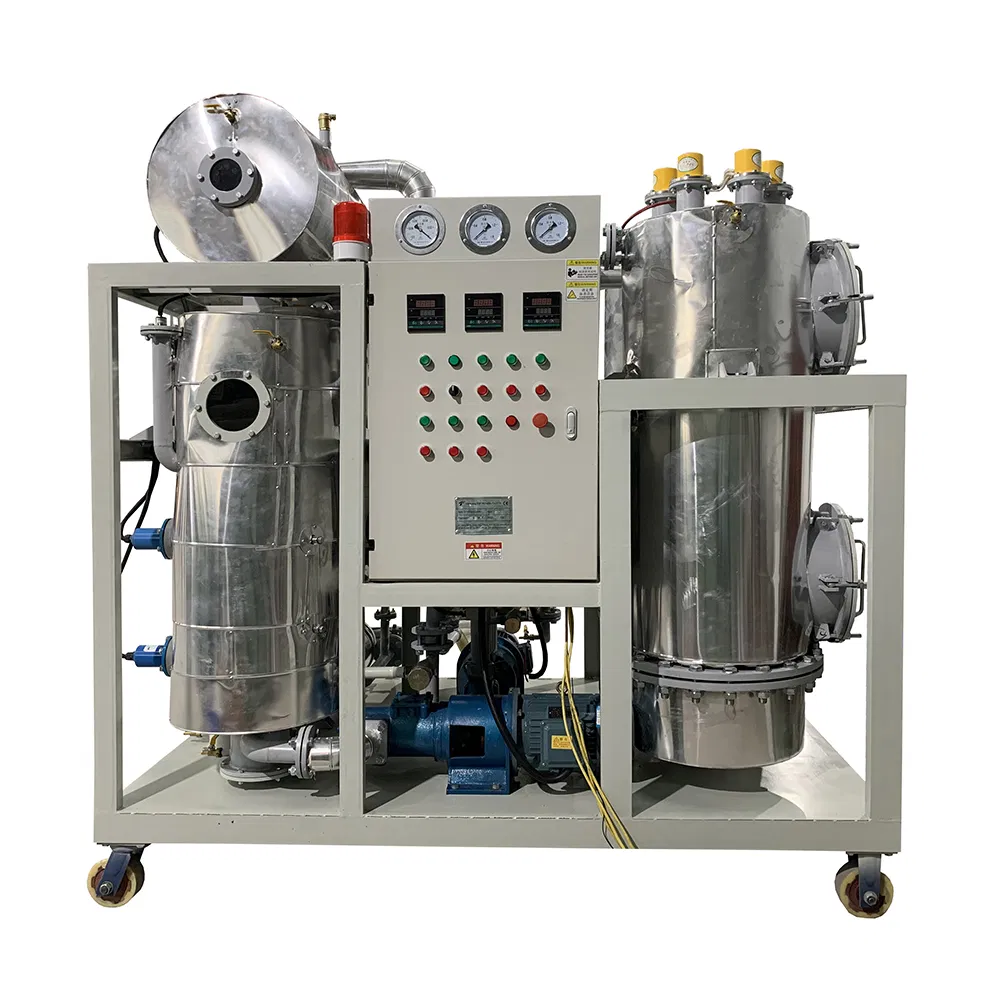

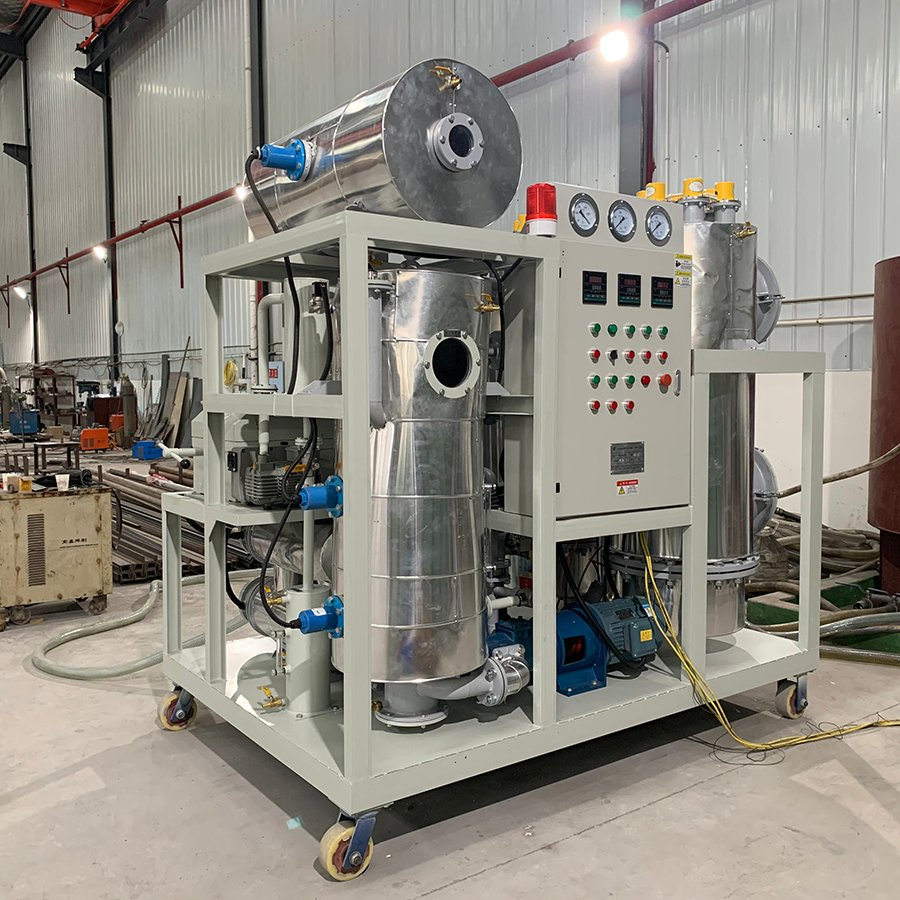

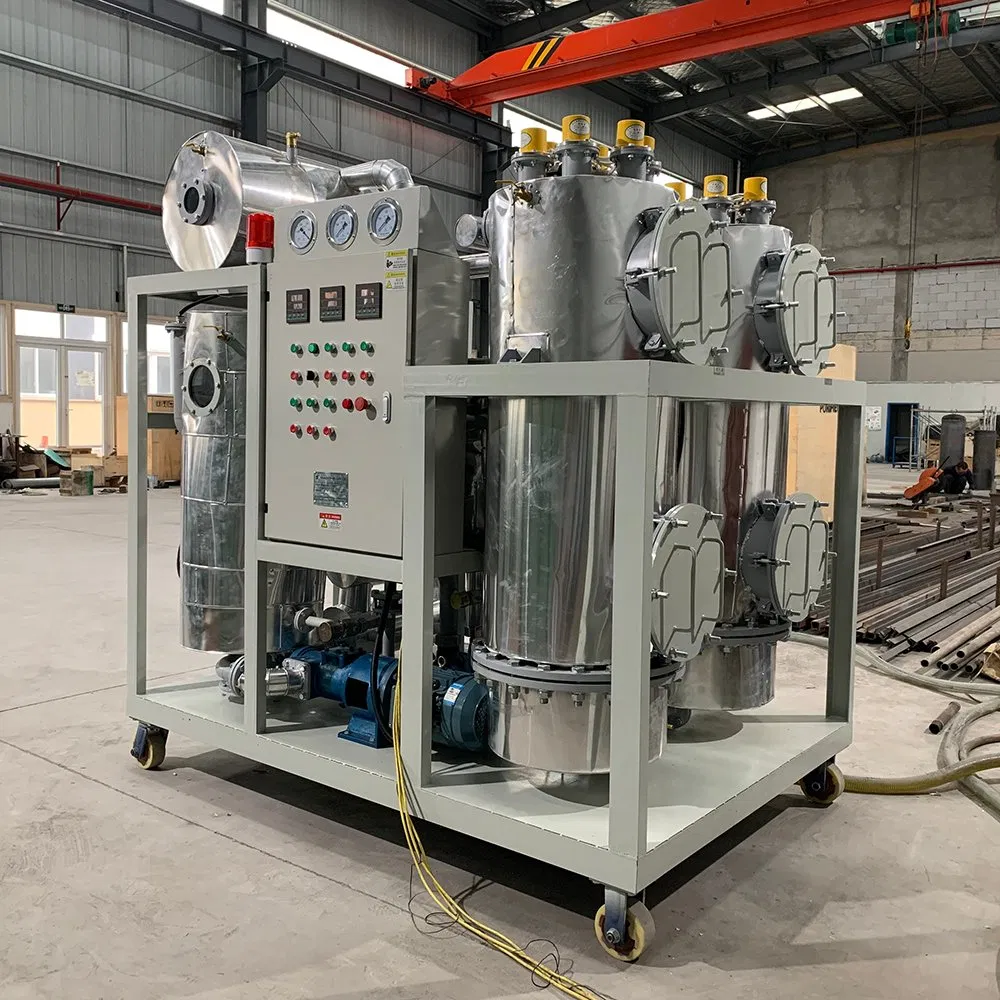

Product Display
Industrial Solutions
Our comprehensive range include: Single-Stage and Double High Vacuum Transformer Oil Purifiers, Lubricating/Hydraulic oil purification units, Portable Fuel oil machines, Vacuum dehydrators, and specialized Cooking oil purification systems. We also provide a full suite of Petroleum Products General Testers such as Water Content Testers, Viscosity Testers, and Flash Point Testers.
Frequently Asked Questions
Q1: What types of oil can the TYR series treat?
It can effectively treat red diesel, hydraulic oil, machinery oil, coolant oil, and various vegetable oils like coconut and sunflower oil.
Q2: Does the decolorization process affect the oil's performance?
No, the machine uses a purely physical treatment process with natural additives, ensuring the original components and performance of the oil remain intact.
Q3: How does the automatic back-flushing function work?
The system is designed to automatically clean and remove accumulated impurities from the filters, ensuring consistent high-efficiency operation.
Q4: Can this machine be integrated with other equipment?
Yes, it can be equipped with waste oil distillation plants to significantly improve the color of dark oil following the distillation process.
Q5: What are the main impurities removed by this system?
It removes moisture content, fine particulate matter, mechanical impurities, and harmful gases like acetylene, hydrogen, and methane.
Q6: Is the machine easy to operate for online processes?
Absolutely. It features auto-temperature control and auto-drainage systems designed for reliable and safe online operation.
