| Model | Nitrogen Purity | Production (Nm³/h) | Air Consumption (Nm³/min) |
|---|---|---|---|
| NZN | 99.5% | 3 to 2500 | 0.25 to 115.62 |
| NZN97 | 97% | 10 to 2500 | 0.4 to 99.99 |
| NZN99 | 99% | 10 to 2500 | 0.45 to 101.52 |
| NZN39 | 99.9% | 3 to 1500 | 0.4 to 98 |
| NZN49 | 99.99% | 3 to 1000 | 0.5 to 91.30 |
| NZN59 | 99.999% | 3 to 300 | 0.78 to 49.32 |

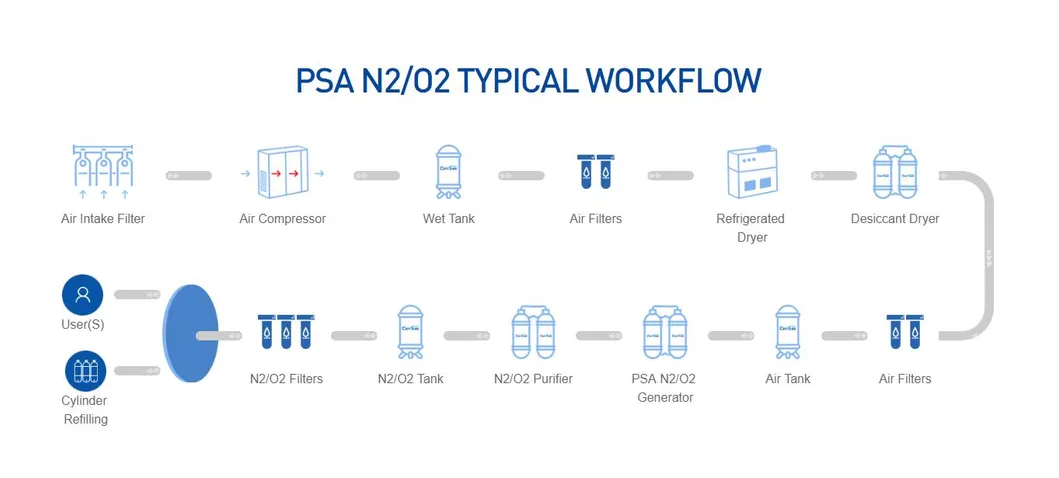

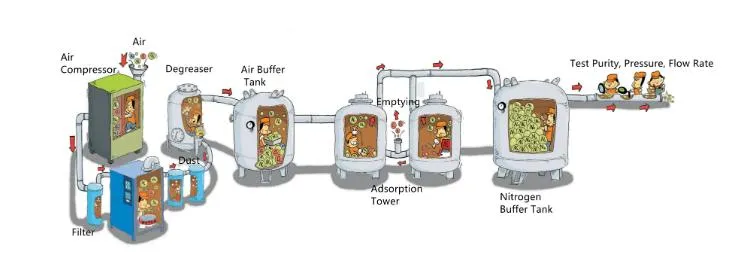

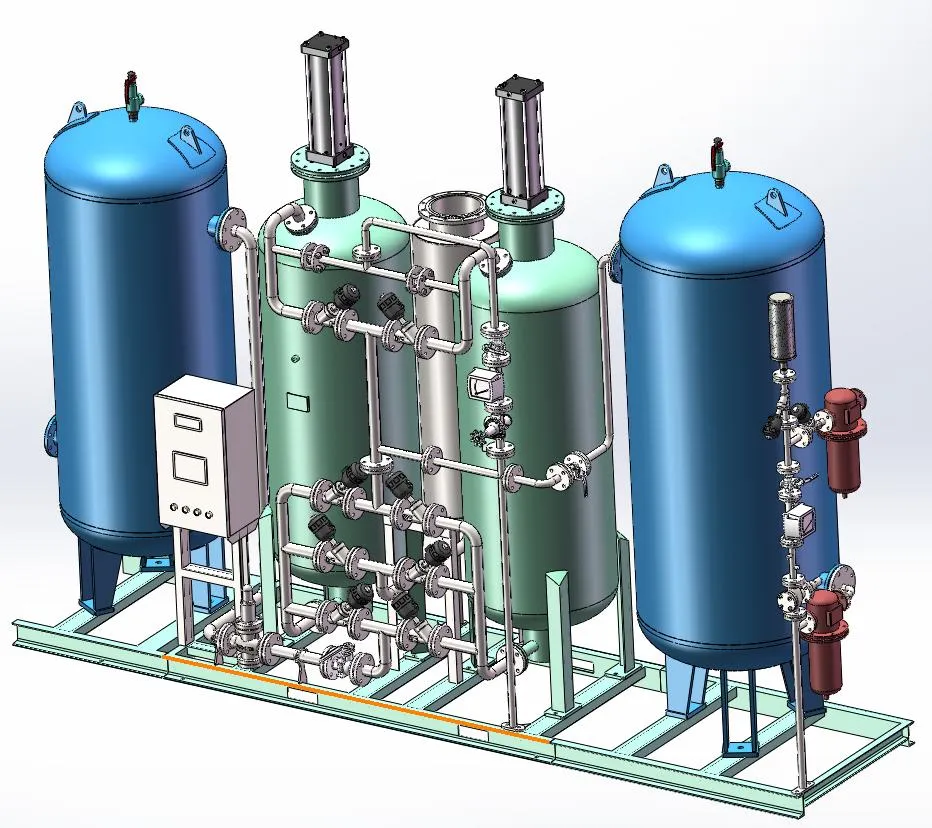

Following the principle of pressure swing adsorption, high-quality carbon molecular sieve is used as the adsorbent. Under certain pressure, oxygen molecules are adsorbed by the carbon molecular sieve in large quantities, while nitrogen molecules are enriched in the gas phase to achieve separation. Reducing pressure regenerates the molecular sieve for reuse.
1) Metallurgy & Metal Processing: Metal heat treatment, powder metallurgy, galvanized wire, and semiconductor fields.
2) Chemical & New Materials: Rubber, plastic, tire, polyurethane, and float glass production.
3) Food & Pharmaceutical: Food packaging/preservation, medical nitrogen-filled packaging, and Western medicine injection.
4) Electronics Industry: Shielding gas for wave soldering, reflow soldering, and battery production.
5) Other Fields: Coal, petroleum, and oil transportation.
