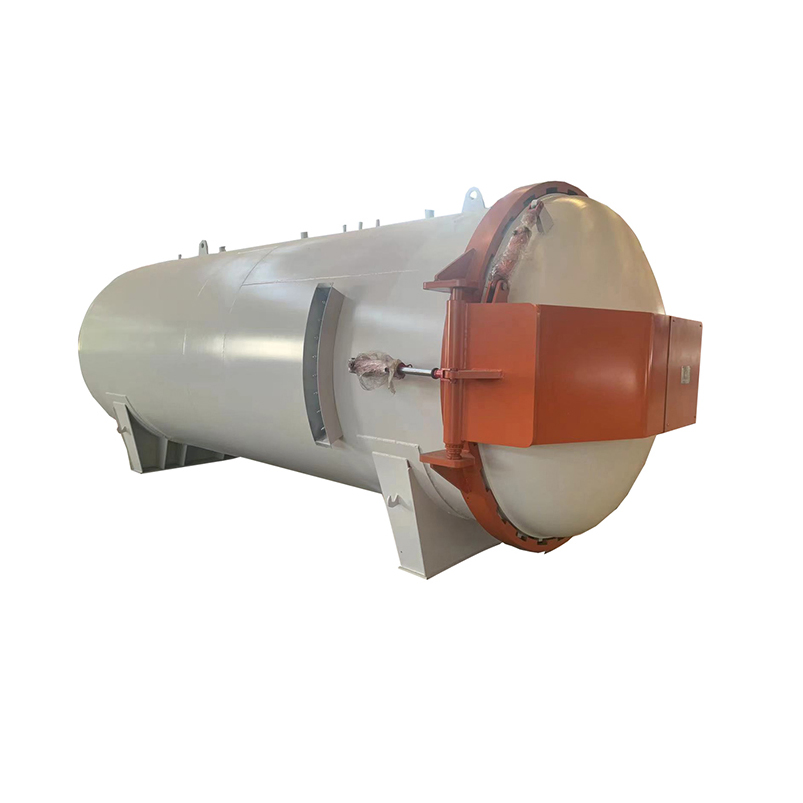

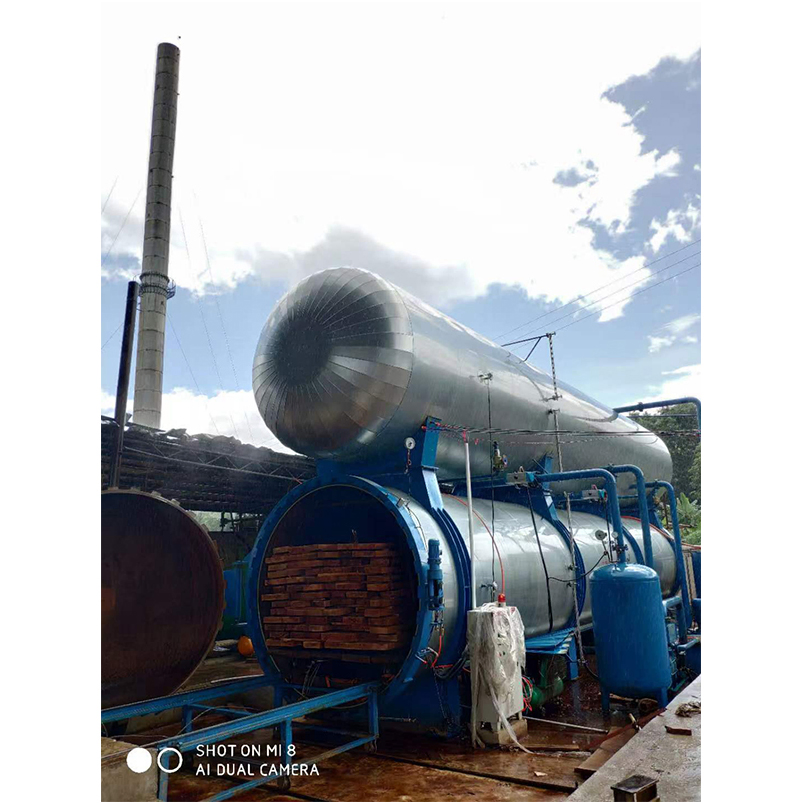

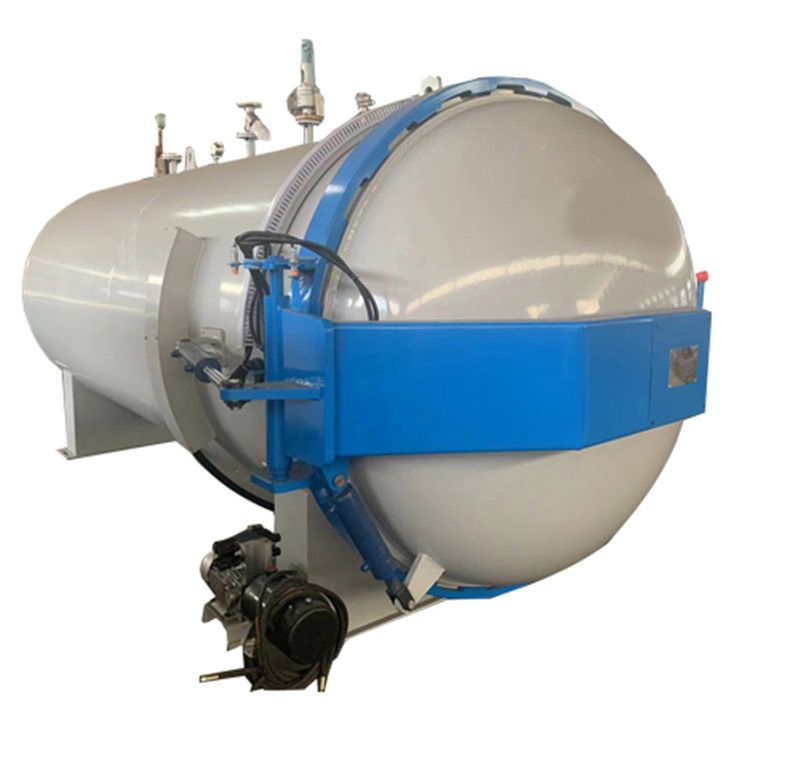

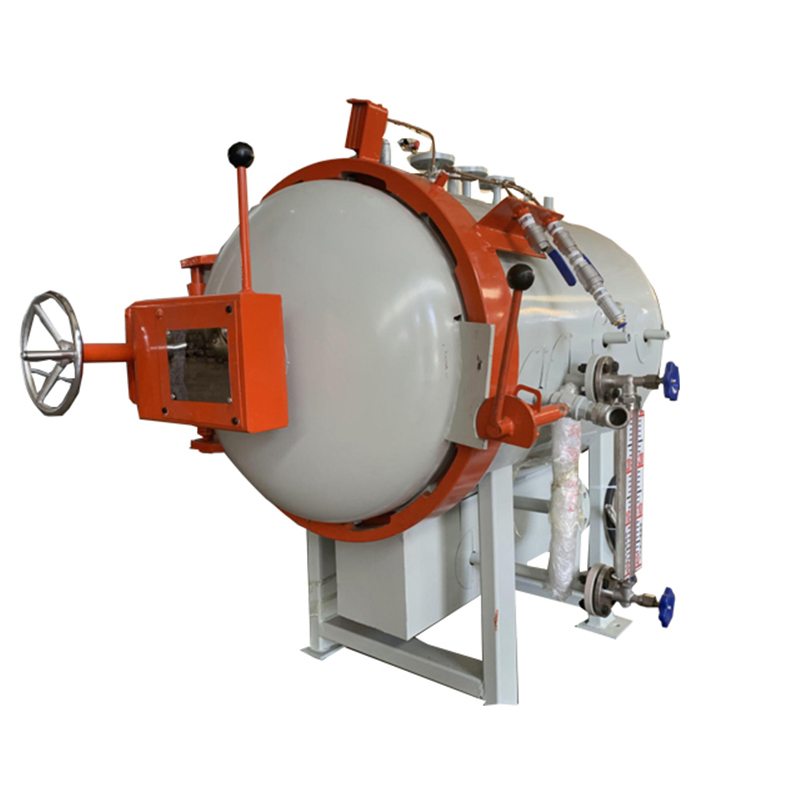

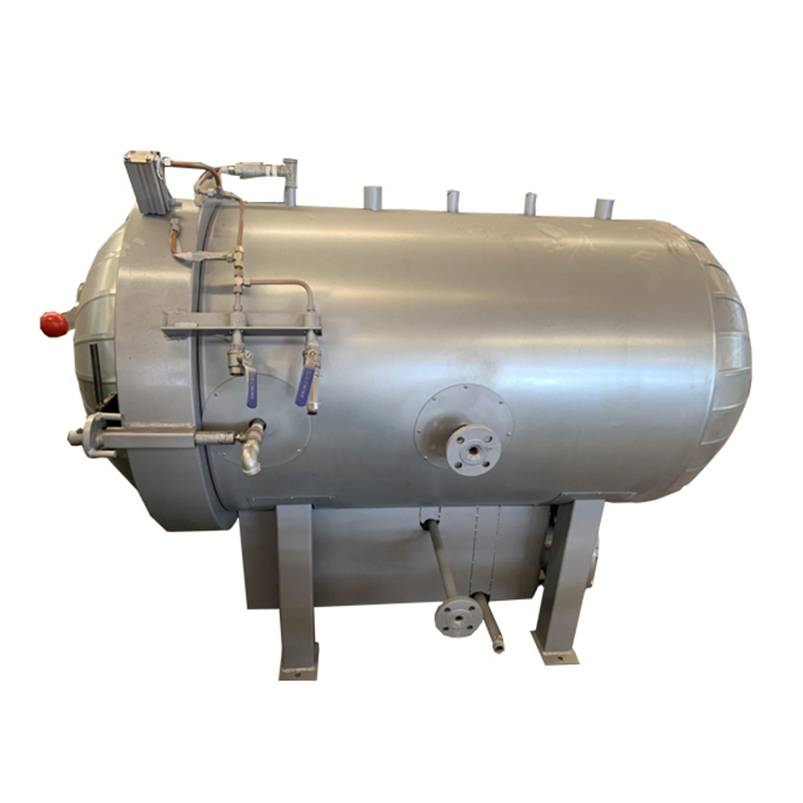

Impregnation Plant Industrial Wood Preservation Autoclave for Wood Wooden Poles Pine Plywood
Impregnation Plant Industrial Wood Preservation Autoclave for Wood Wooden Poles Pine Plywood
Impregnation Plant Industrial Wood Preservation Autoclave for Wood Wooden Poles Pine Plywood
Impregnation Plant Industrial Wood Preservation Autoclave for Wood Wooden Poles Pine Plywood
Impregnation Plant Industrial Wood Preservation Autoclave for Wood Wooden Poles Pine Plywood
1 / 5
Impregnation Plant Industrial Wood Preservation Autoclave for Wood Wooden Poles Pine Plywood
Impregnation Plant Industrial Wood Preservation Autoclave for Wood Wooden Poles Pine Plywood
Impregnation Plant Industrial Wood Preservation Autoclave for Wood Wooden Poles Pine Plywood
Impregnation Plant Industrial Wood Preservation Autoclave for Wood Wooden Poles Pine Plywood
Impregnation Plant Industrial Wood Preservation Autoclave for Wood Wooden Poles Pine Plywood

Impregnation Plant Industrial Wood Preservation Autoclave for Wood Wooden Poles Pine Plywood

Customization: Available
After-sales Service: 1 Year
Warranty: 2years
Send Inquiry

Product Description

Basic Information
Function:
Heat Pressure Vessel
Application:
Woodworking Process
Material:
Carbon Steel
Pressure:
0.8-1.4MPa
Vacuum Degree:
-0.098MPa
Working Temperature:
0-180ºC
Key Selling Points:
Easy to Operate
Weight:
6000 Kg
Power:
30 Kw
Production Capacity:
5000 Set One Year
Wood Preservation Autoclave
Industrial Wood Treatment

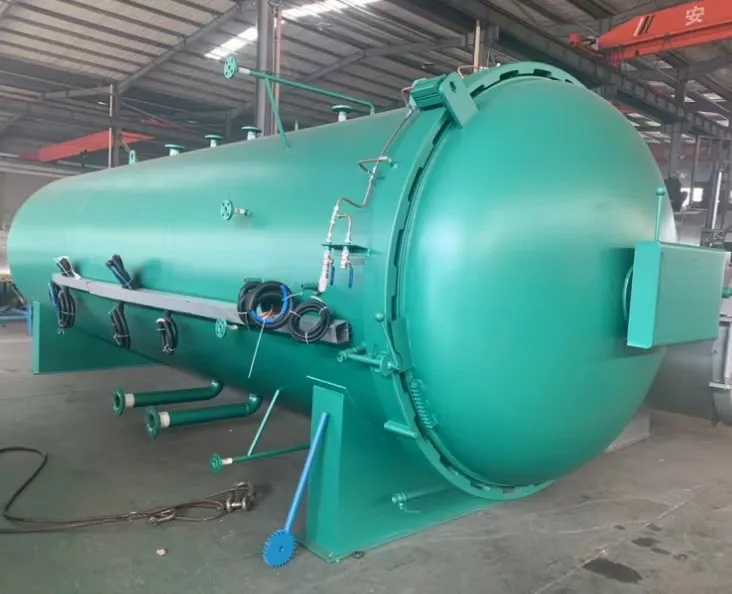

Impregnation Plant
Product Features
Application: Wood preservation, wood dyeing, and wood fire retardant treatment.
Customizable length: Available in 2m, 3m, 4m, 6m, 8m, 12m, 14m, 15m, 18m, or 30m.
Automation: Automatically manages vacuum, pressure, and chemical discharge.
Safety: Double safety interlock prevents opening the door if internal pressure exists.
Loading System: Options for manual or automatic loading.
Control Systems: Semi-automatic or full-automatic with real-time display of pressure, vacuum, and chemical levels.
Compatibility: Suitable for water-soluble chemicals (CCA, ACA, Tanalith E), organic solvents, flame retardants, and boric acid.
Technical Specifications
MODEL VOLUME TREATED VOL. WORKING PRESSURE VACUUM DEGREE
1200*4000mm4.6m³3.0m³1.0-4.0Mpa0.098Mpa
1200*6000mm6.9m³4.0m³1.0-4.1Mpa0.099Mpa
1500*6000mm11m³7m³1.0-4.4Mpa0.102Mpa
1800*8000mm20.5m³12m³1.0-4.10Mpa0.108Mpa
2000*10000mm33m³16m³1.0-4.13Mpa0.111Mpa
2000*24000mm75.36m³50m³1.0-4.16Mpa0.114Mpa
Custom sizes available upon request
Our Experience & Capabilities

With over 15 years of experience in pressure vessel manufacturing, our facility covers 5,300 m² and is an enterprise integrating design, manufacture, and sales. Our main products include wood impregnation equipment, creosote treatment plants, rubber curing autoclaves, and composite autoclaves.

Our equipment holds ISO, CE-PED, and CU-TR certificates. We support customization with pressures ranging from 0.1-5.0Mpa, lengths up to 60m, and diameters from 0.6m to 5m.

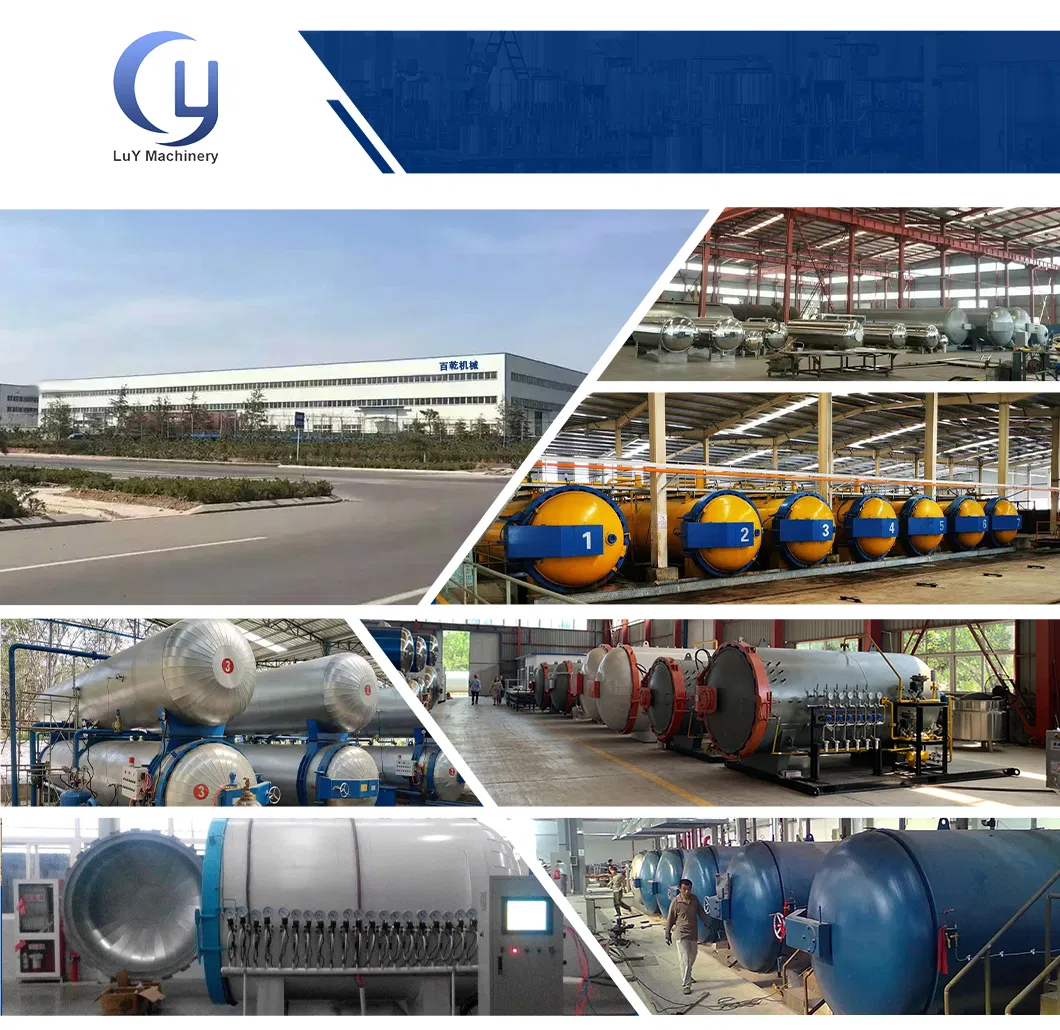

Factory Overview
Equipment Detail
Production Process
Vessel Quality
Loading System
Certification Line
Frequently Asked Questions
How do I choose the most suitable equipment?
Tell us your product size and technological requirements (such as treatment type), and we will design a solution tailored to your needs.
What information is needed for a price quote?
Please provide the product name, required working pressure, working temperature, vacuum demand, and cooling demand.
What is the maximum equipment size you can manufacture?
We can produce diameters up to 4.5m (limited by transportation) and lengths up to 100m, with working pressures from 0.1-5.0Mpa.
How is the equipment installed?
Small equipment is designed for immediate assembly. For large equipment, we provide assembly/layout drawings and offer online or overseas installation services.
What the warranty period for your products?
The standard warranty is one year. Depending on specific demands, we can extend this to 2-3 years.
Do you provide technical drawings?
Yes, after the deposit is confirmed, we supply comprehensive general drawings and site layout drawings for your facility.
