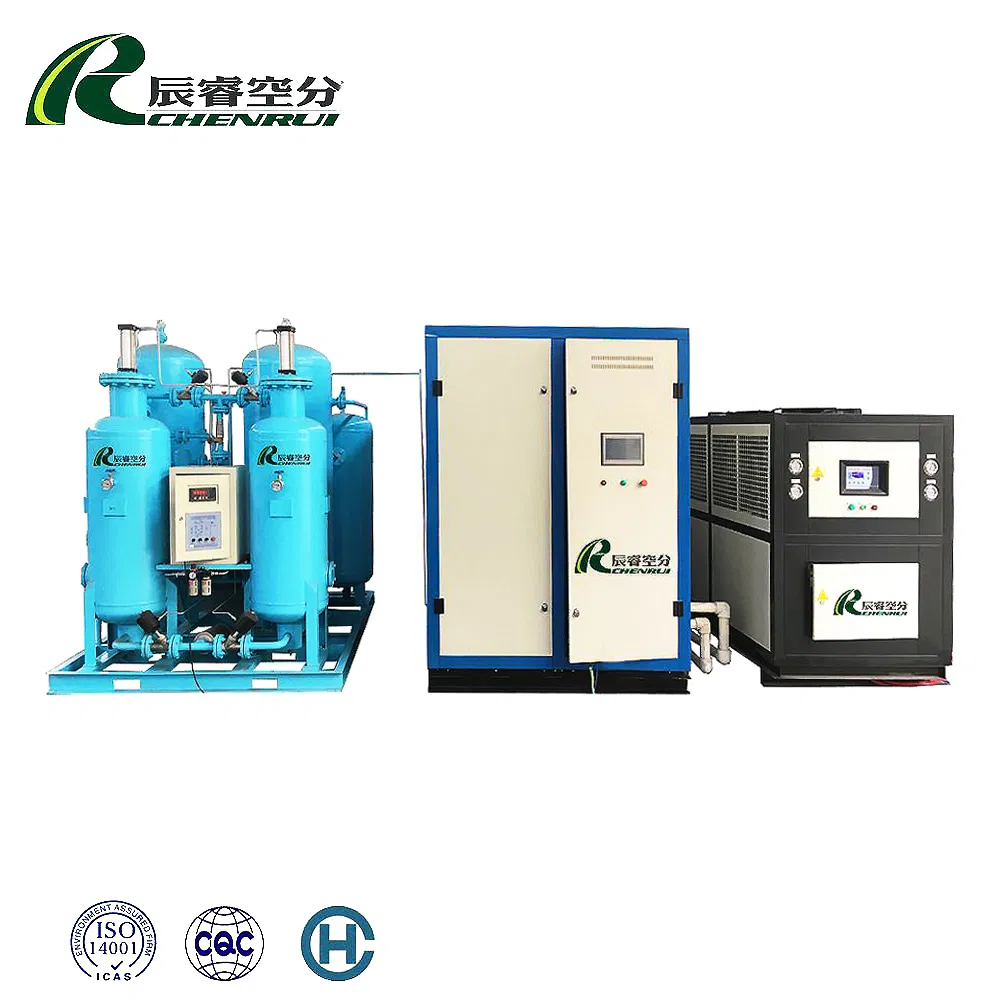

Gas to liquid plant for liquid nitrogen cost liquid nitrogen for specimen preservation

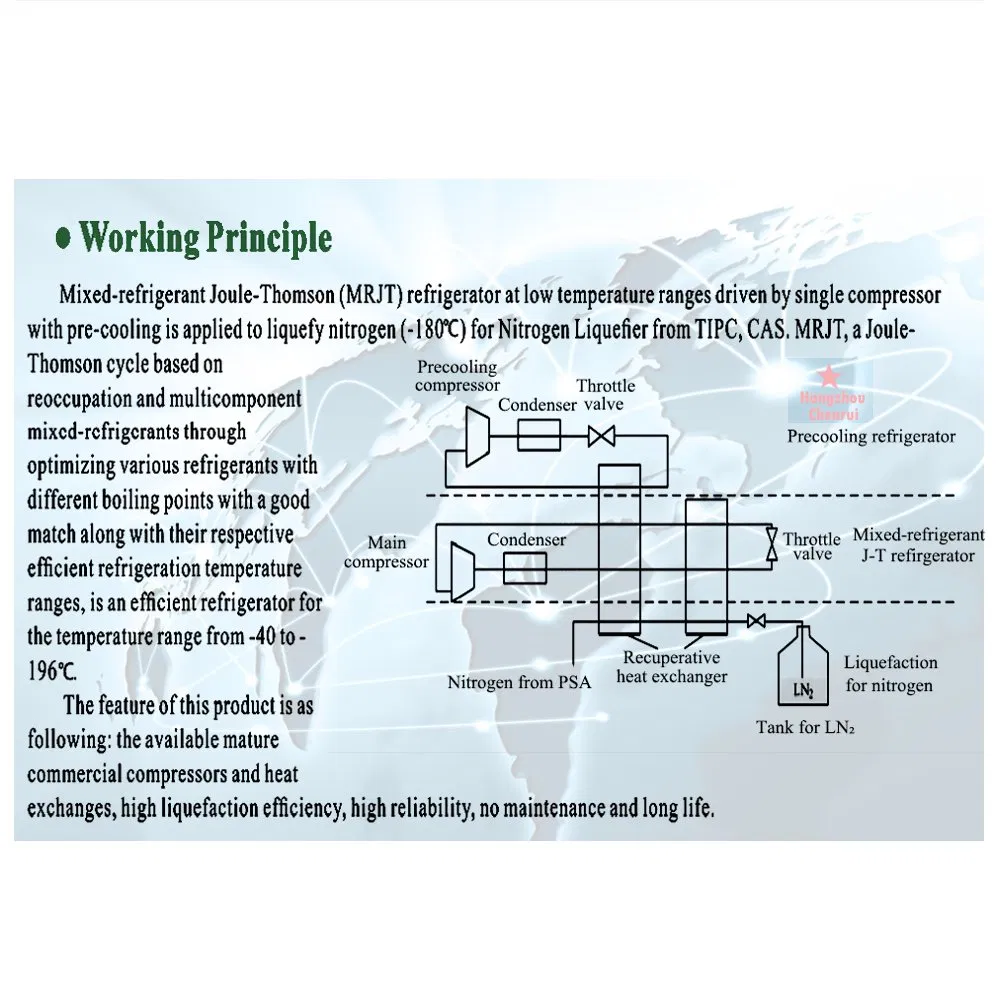

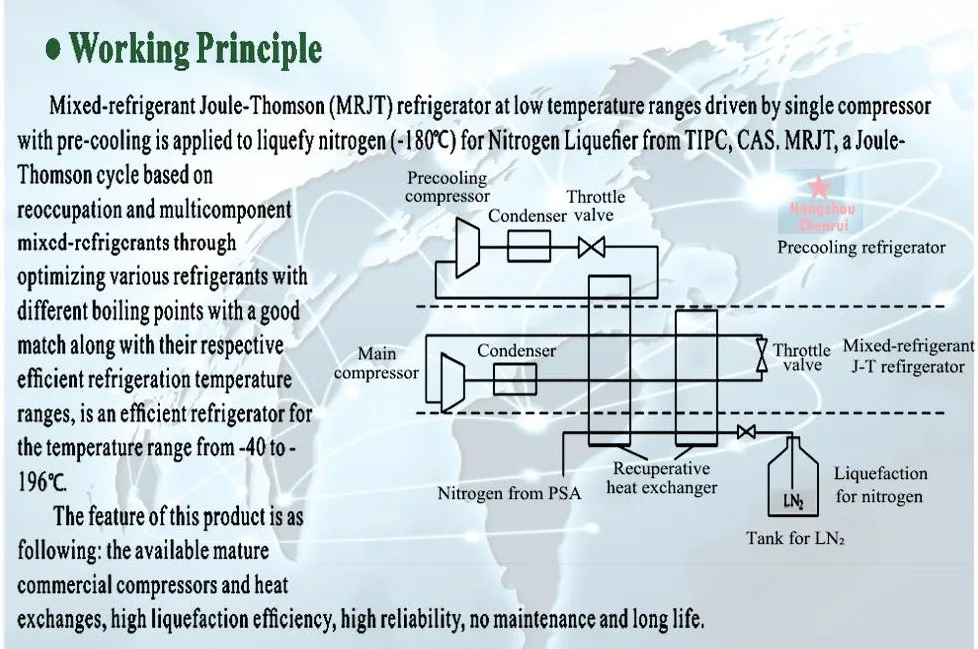

Mixed-refrigerant Joule-Thomson (MRJT) refrigerator at low temperature ranges driven by single compressor with precooling is applied to liquefy nitrogen (-180ºC). MRJT is a Joule-Thomson cycle based on reoccupation and multicomponent mixed-refrigerants, matching boiling points with efficient refrigeration temperature ranges. It features mature commercial compressors, high liquefaction efficiency, high reliability, and long life with no maintenance.

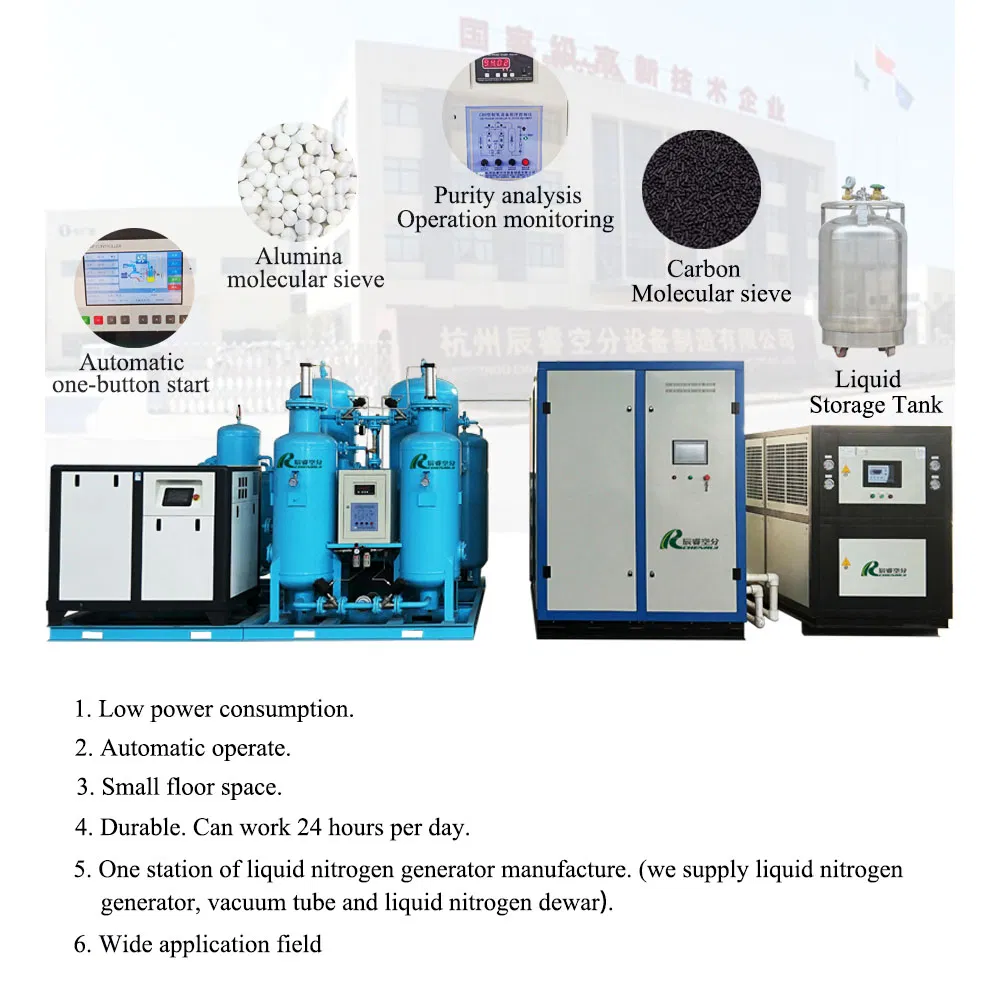

Main Advantages:

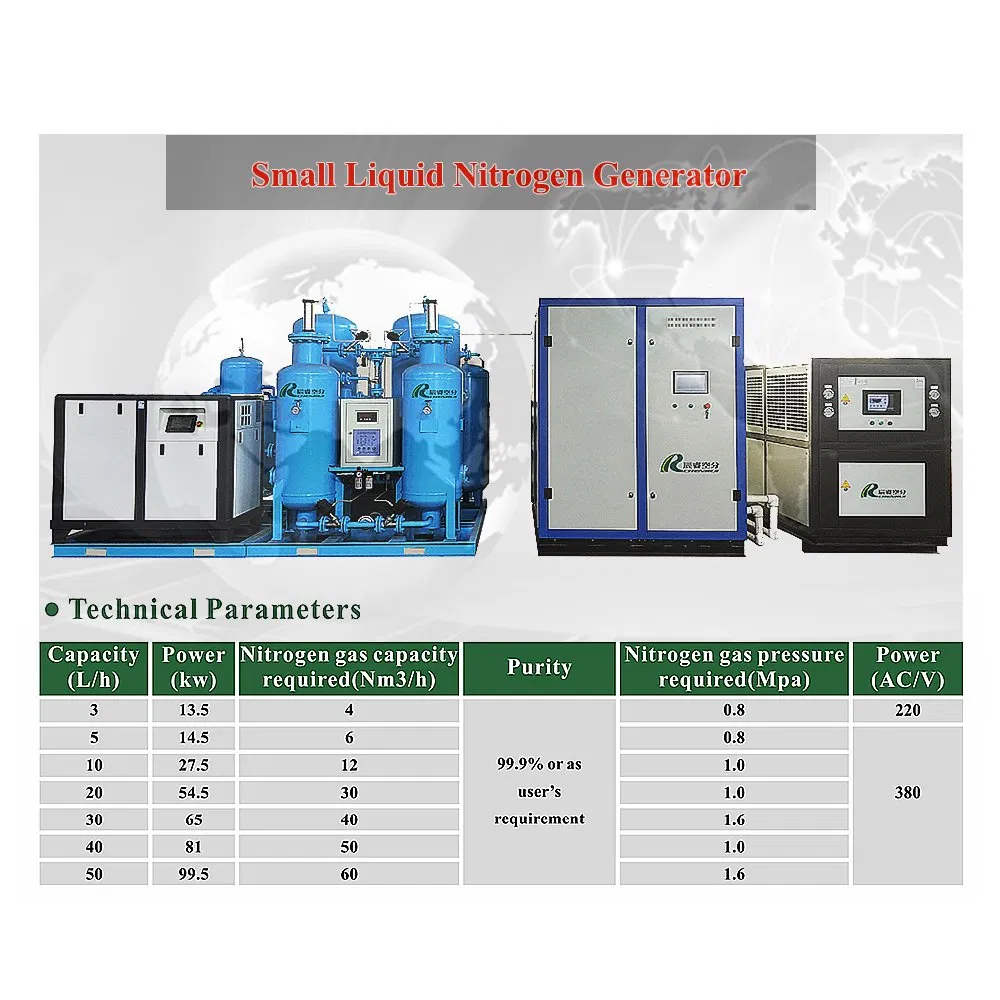

| Capacity (L/h) | Power (Kw) | Nitrogen Gas Capacity (Nm3/h) | Purity | Pressure (Mpa) | Power (AC/V) |
|---|---|---|---|---|---|
| 3 | 13.5 | 4 | 99.9% | 0.8 | 220 |
| 5 | 14.5 | 6 | 0.8 | 380 | |
| 10 | 27.5 | 12 | 1.0 | 380 | |
| 50 | 99.5 | 60 | 1.6 | 380 |
