Indoor Ap Ceiling Mounted Design Support 802.11kvr Seamless Roaming Support Wpa3 and 802.1X Advance Encryption with 48V Poe Adapter

Basic Info

Model NO.KS-AP627

Transmission Rate3000Mbps

VoltagePoe 48V

Antenna Gain5dBi

Wi-Fi StandardIEEE 802.11b/G/N/AC/Ax

Wi-Fi Frequency2.4GHz+5.8GHz Dual Band

ChipsetMt7981, Arm CPU

Operation ModeAp+Router, Customize Mesh

Product Description

Indoor AP Ceiling Mounted Design

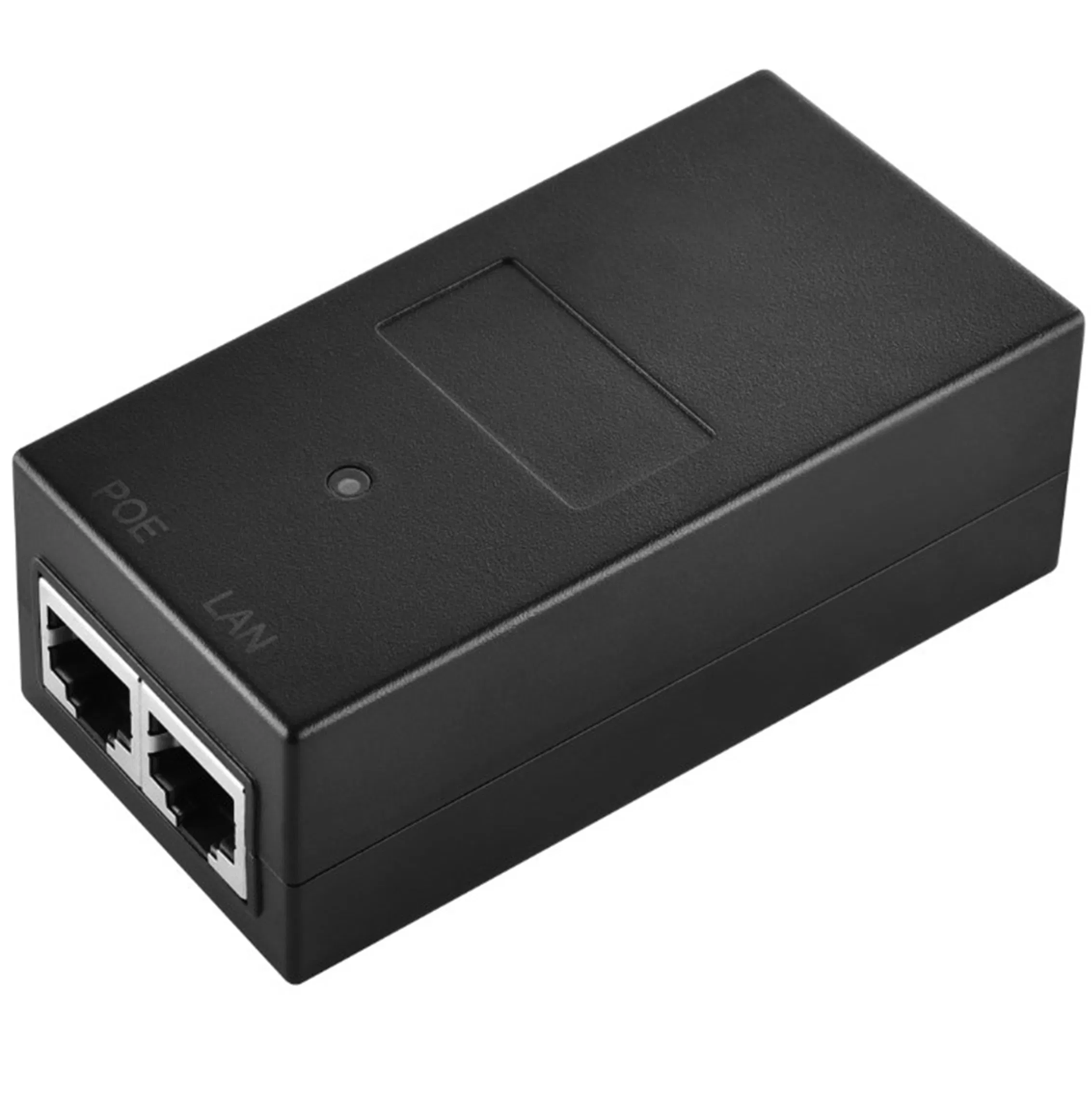

Indoor AP Ceiling mounted design Support 802.11kvr seamless roaming Support WPA3 and 802.1x advance encryption with 48V POE adapter.

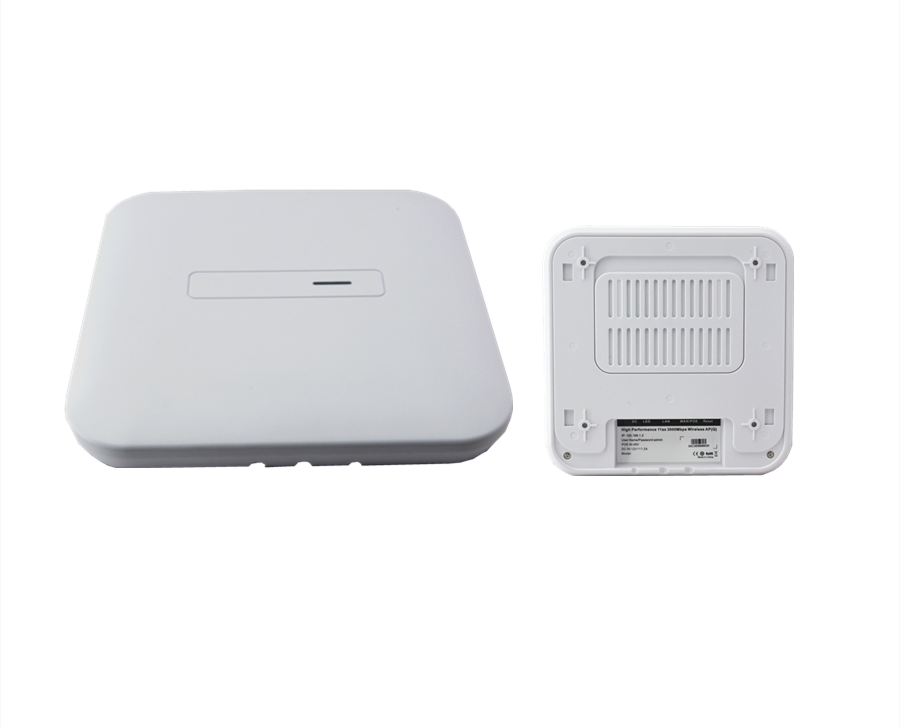

KS-AP627 is high speed, high performance Wi-Fi6 ceiling wireless access point. Equipped with MediaTek MT7981 chipset, it is 2.4G+5.8G dual band, 160MHz bandwidth, up to 3000Mbps data rate, support 802.1kvr seamless roaming, up to 100 users access and enjoy high speed Ethernet.

Main Features

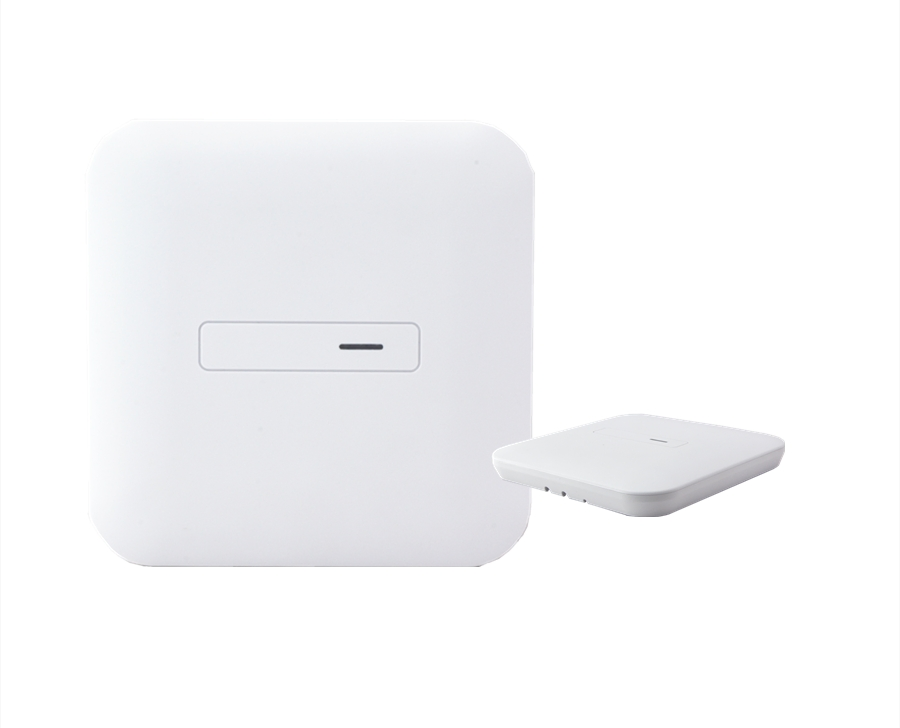

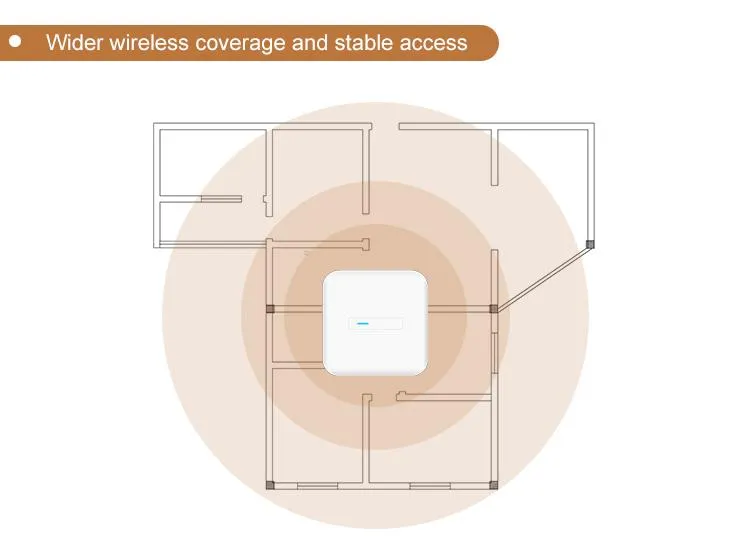

Ceiling mounted design, high gain 5dBi antenna, unobstructed signal for stable wireless connections.

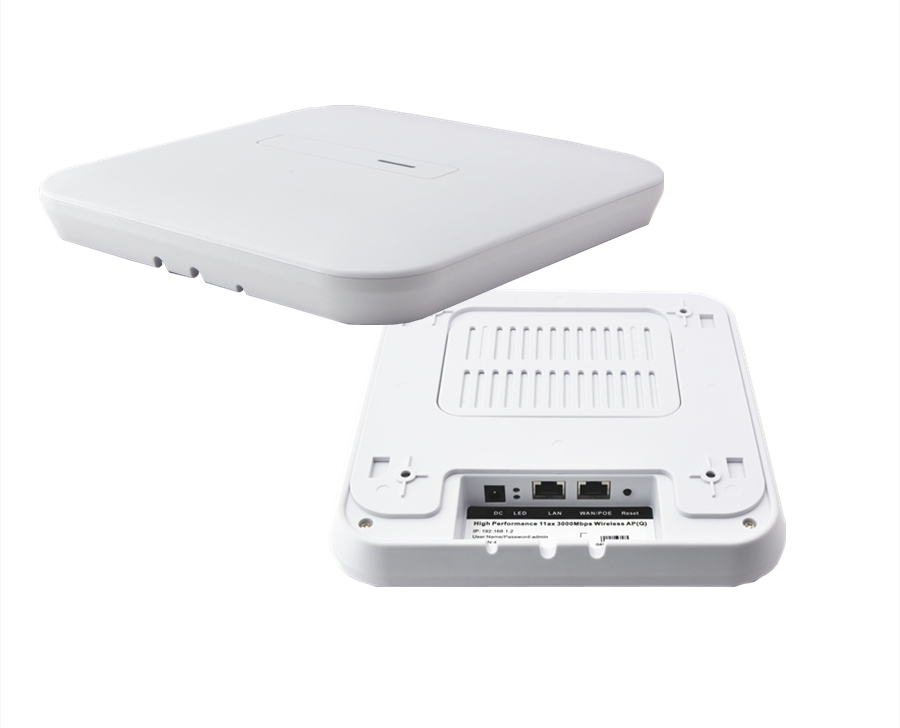

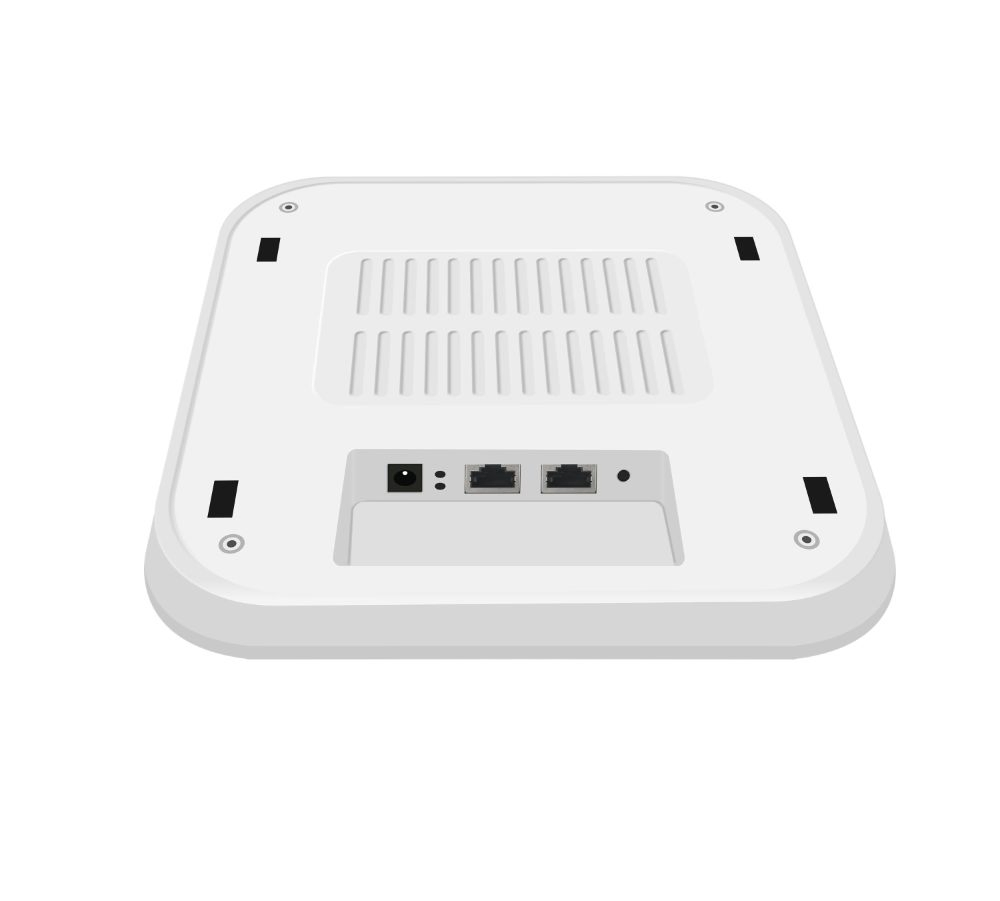

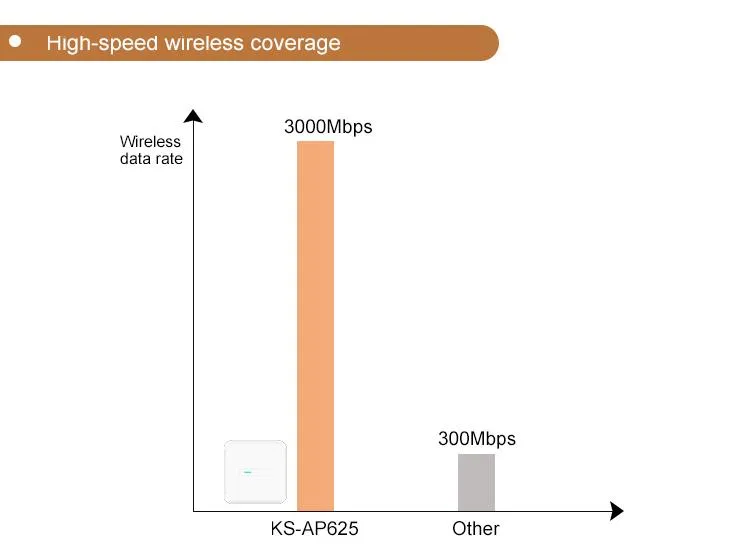

Wireless data rate up to 3000Mbps, 2*10/100/1000Mbps Ethernet ports, support 48V active PoE.

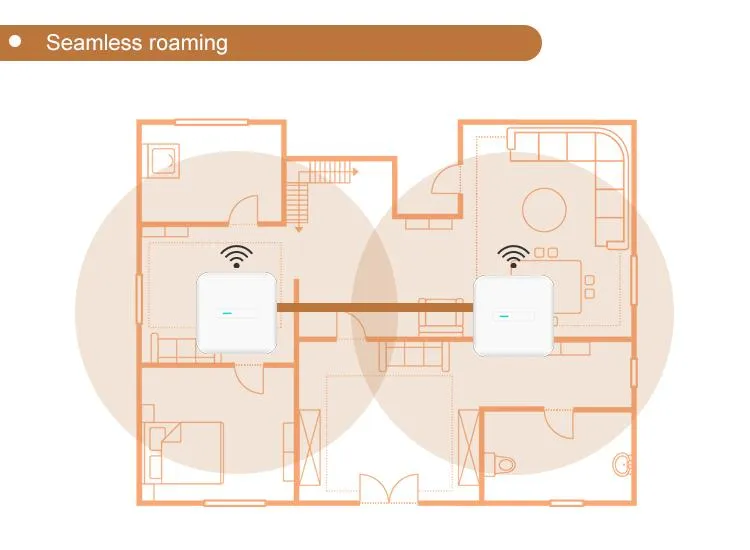

Support 802.11kvr seamless roaming for uninterrupted Wi-Fi switching.
Support WPA3 and 802.1x advance encryption, guarding network security.

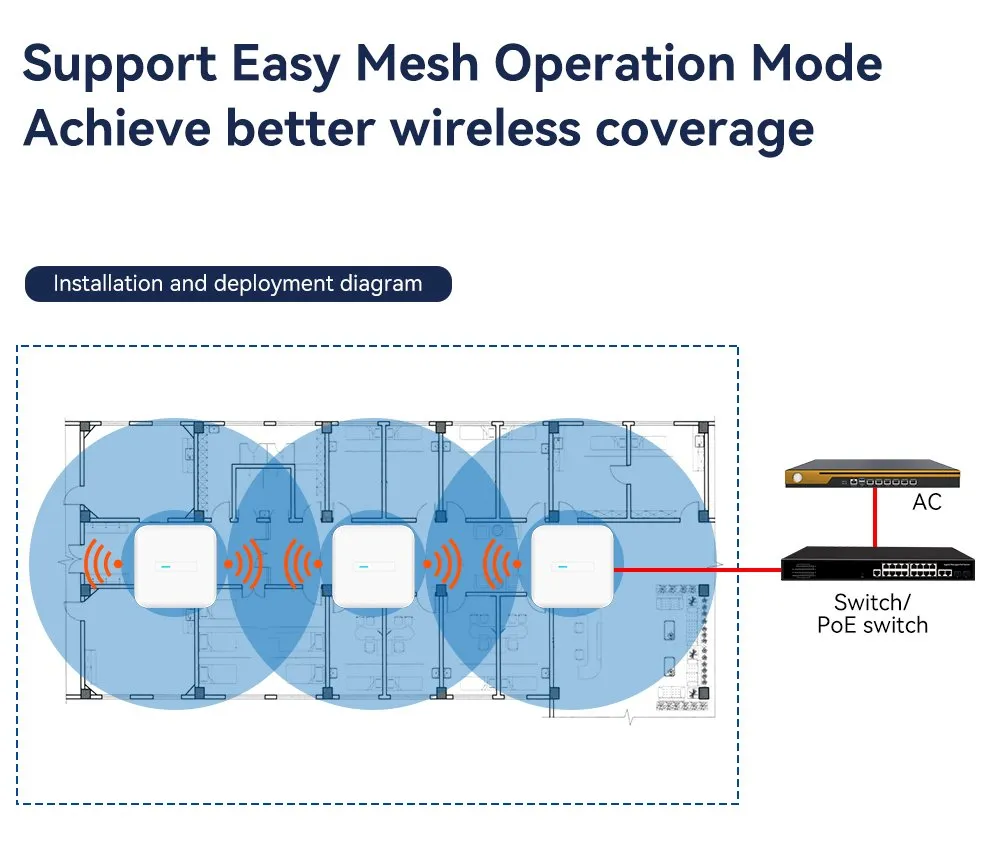

Easy Mesh support for expanded wireless network coverage.

Detailed Photos

Technical Specifications

Hardware Spec
Model	KS-AP627
WiFi Standard	IEEE 802.11b/g/n/ac/ax
CPU	MT7981+MT7976C+MT7531AE
Data Rate	600Mbps @ 2.4GHz; 2400Mbps @ 5.8GHz
Access Users	100+ Clients
Ethernet	110/100/1000Mbps WAN (PoE Input); 110/100/1000Mbps LAN
Antenna	Build in 5dBi MIMO Antenna
Dimensions	195x195x30mm
Firmware Features
Operation Mode	AP, Router
Security	Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, 802.1x, WPA3

Logistics & Service

📦 Packaging

23PCS/CTN, 17KGS/CTN
CTN size: 59*50*23cm
Gift box + Carton box

🛠 After Sales Service

2 Years warranty
7*12 hours technical support
Component availability for repairs

Frequently Asked Questions

Q1. What's kind of operation mode it support? A: It supports AP, mesh, and router modes, allowing use in any environment to provide a stable wireless signal.

Q2. Can it work with an AP controller? A: Yes, it works with AP controllers using the MQTT protocol. It supports central management, group management, and multiple authentications like SMS, email, and Radius.

Q3. Does it support cloud management? A: Yes, it works with cloud management for remote configuration of AP settings, locations, and groups. SDN support is also available.

Q4. Is out-of-China production (SKD/CKD) supported? A: Yes, we support SKD and CKD. We provide the SOP for assembly and finished product testing, along with technical support documents.

Q5. What OEM and ODM services are provided? A: OEM services include adding your logo to products, firmware, and packaging. ODM services include customized PCBA, housing, and firmware development (open source drivers available).

Q6. What is the max capacity for wireless access? A: The KS-AP627 can support over 100+ concurrent clients efficiently due to its Wi-Fi 6 technology and high-performance chipset.
