Fiberglass Materials Indoor Decoration Panel Acoustic Ceiling Designs

Still deciding? Get samples of $ !
Order Sample

Product Description

🔍 Overview - Basic Info
Model NO.
HM Suspended Ceiling
Material
Fiberglass
Fire Resistance
Class A / A1
NRC
0.9
Eco-Friendly
E0 / E1
Thickness
30mm - 70mm
Acoustic Panel Type
Wool Acoustic Panels
Function
Sound-Absorption, Fireproof, Moistureproof
📦 Product Description

1. Acoustic ceiling clouds - Square shape

Square acoustic ceiling clouds is 1200x1200x40mm size with a weight of 7kg/pcs. The clouds is manufactured from high density glass wool, with fiberglass felt on all sides. Edges are straight cut and wrapped by fiberglass felt.

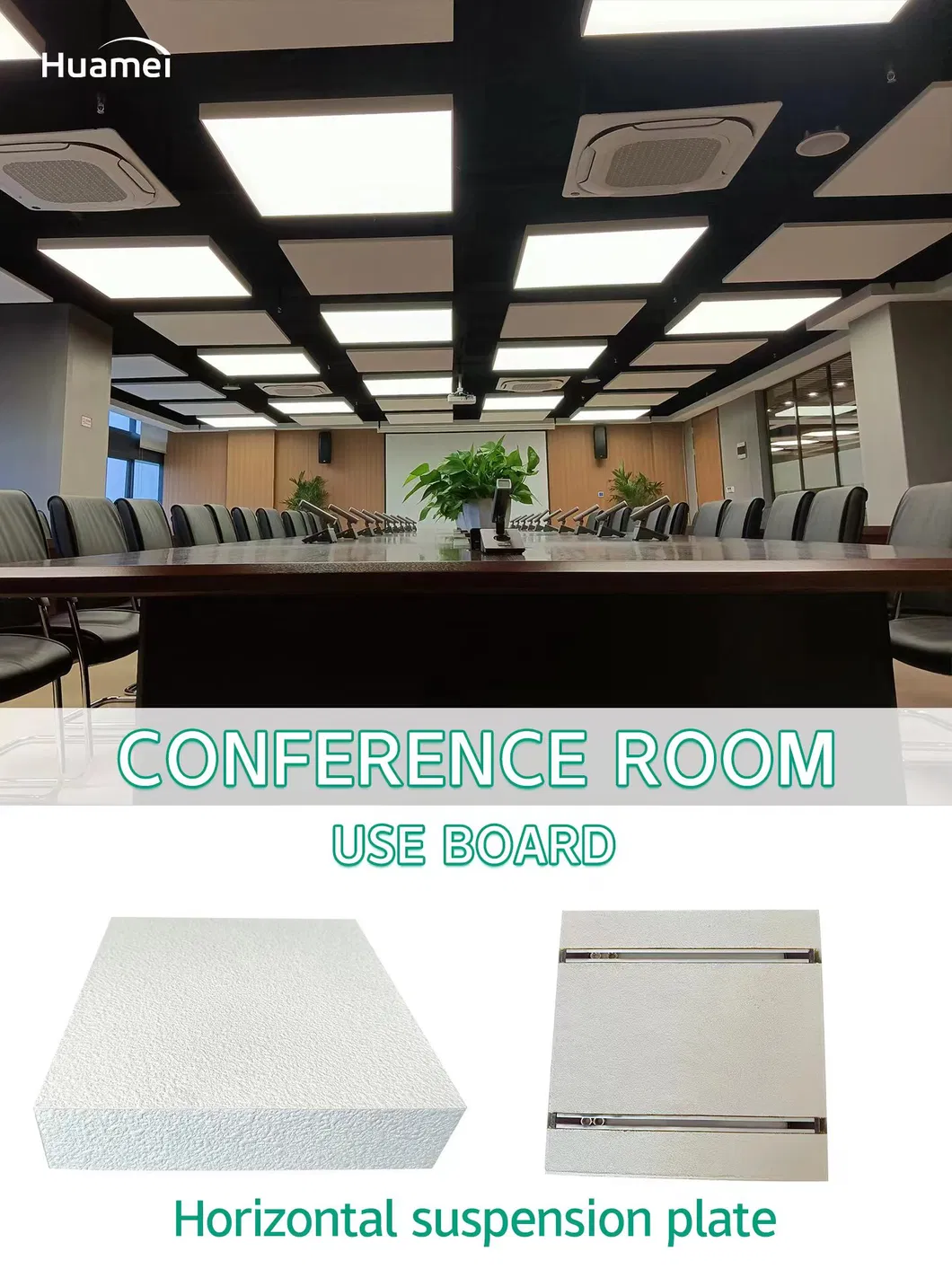

Square Acoustic Ceiling

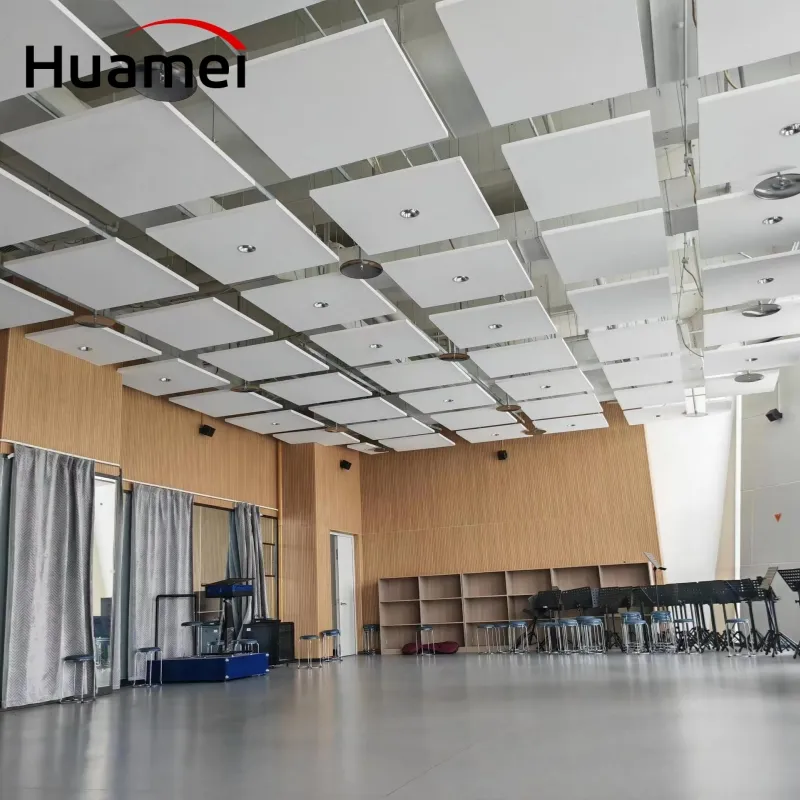

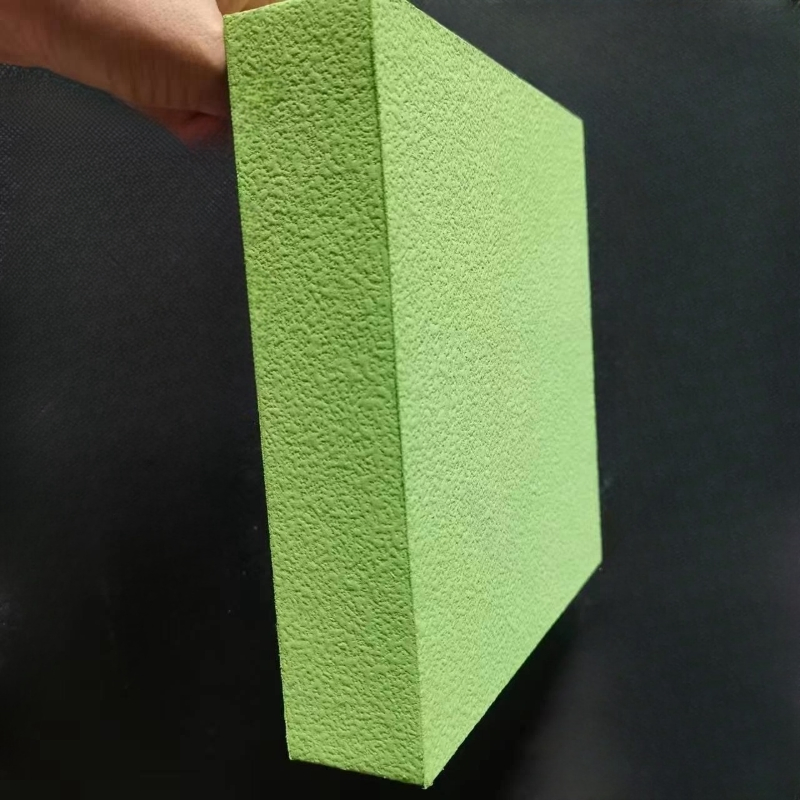

Acoustic Panel Detail

2. Acoustic ceiling clouds - Round shape

Round acoustic ceiling clouds is Φ1200x40mm size with a weight of 5.5kg/pcs. These clouds provide a tasteful option for reducing reverberations and improving intelligibility in any space.

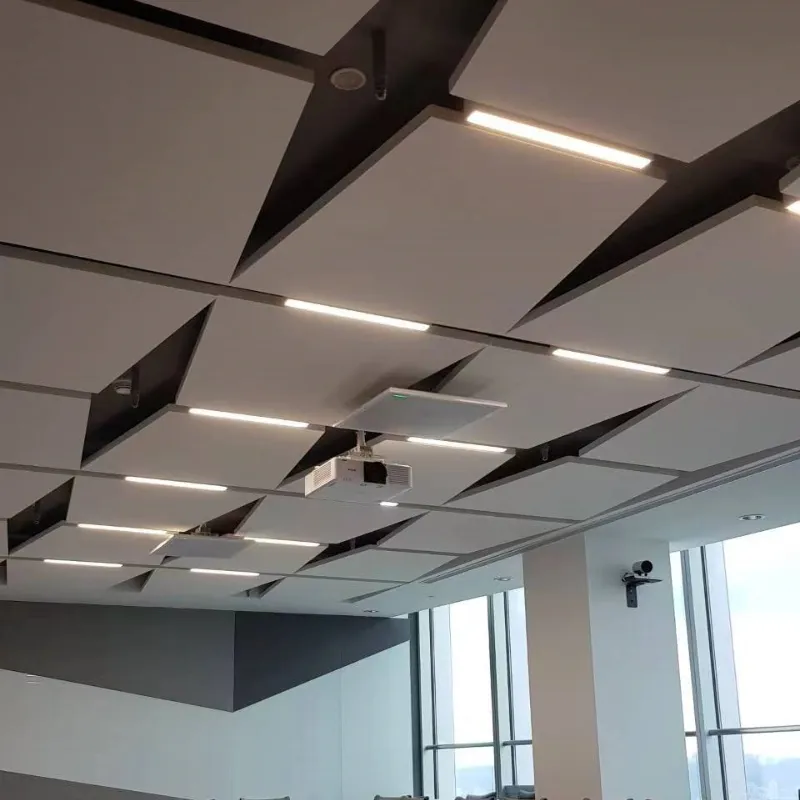

Round Acoustic Ceiling

3. Acoustic ceiling clouds - Hexagon shape

Hexagon acoustic ceiling clouds is Φ1200x40mm size with a weight of 4.5kg/pcs. Laboratory tested for acoustic performance (NRC 0.9) and fire safety.

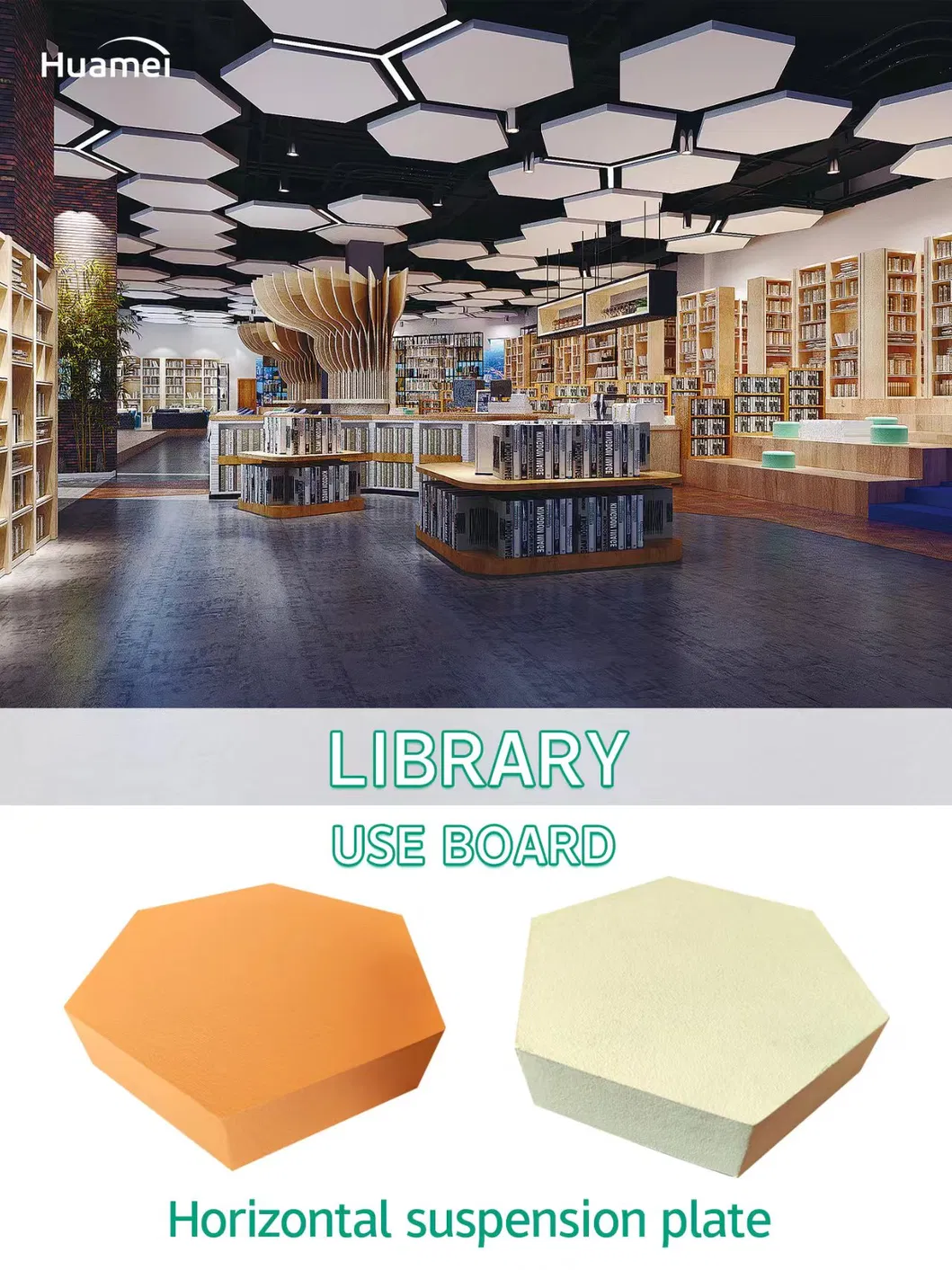

Hexagon Ceiling Panel

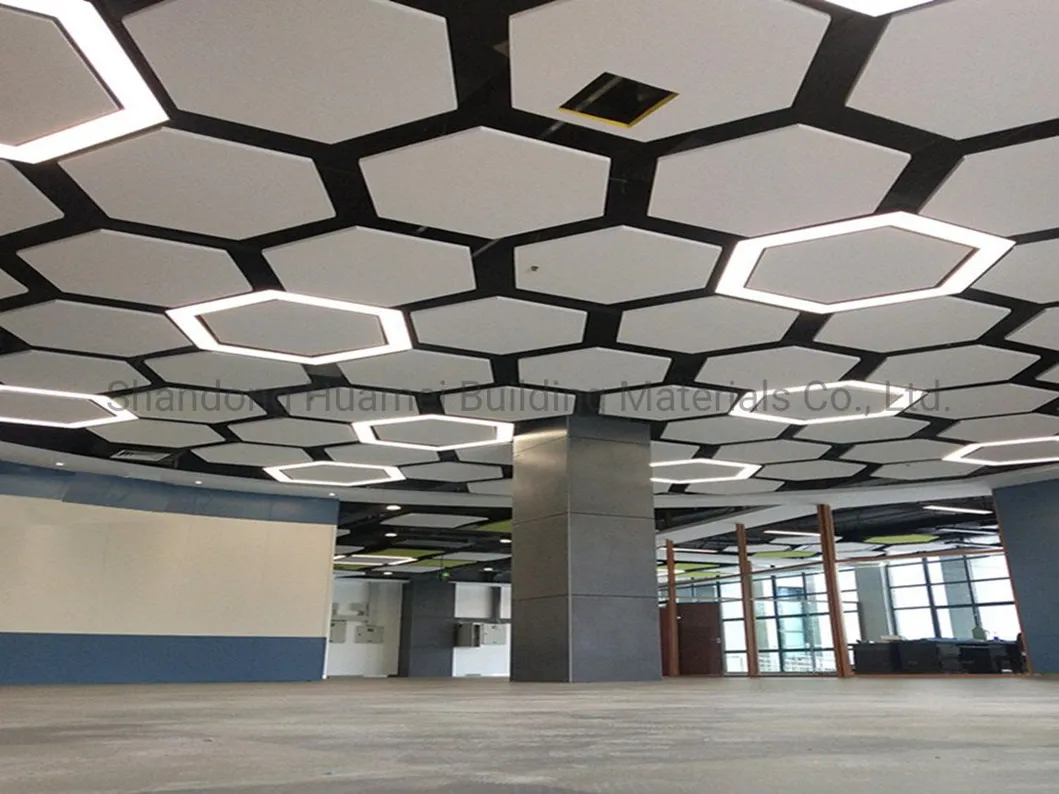

Hexagon Installation

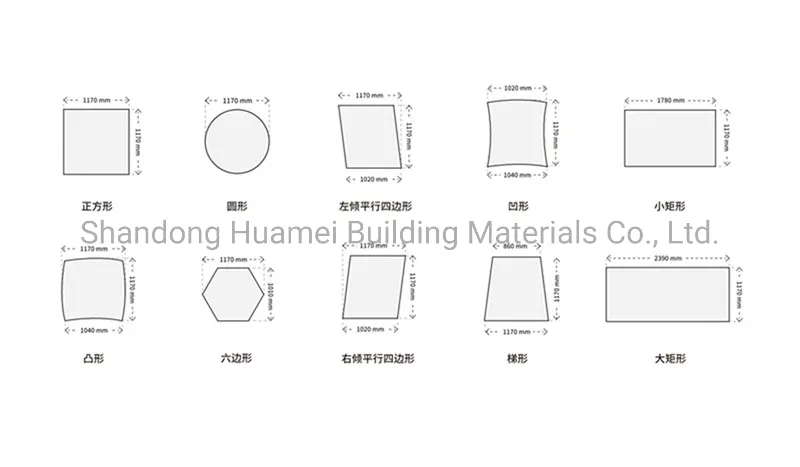

4. Available Shapes

Acoustic Shapes
🛠️ Installation & Colors

The suspension accessories are composed of spiral spring, 2m cable and adjusting hook. Simple drop ceiling method for efficient acoustic treatment.

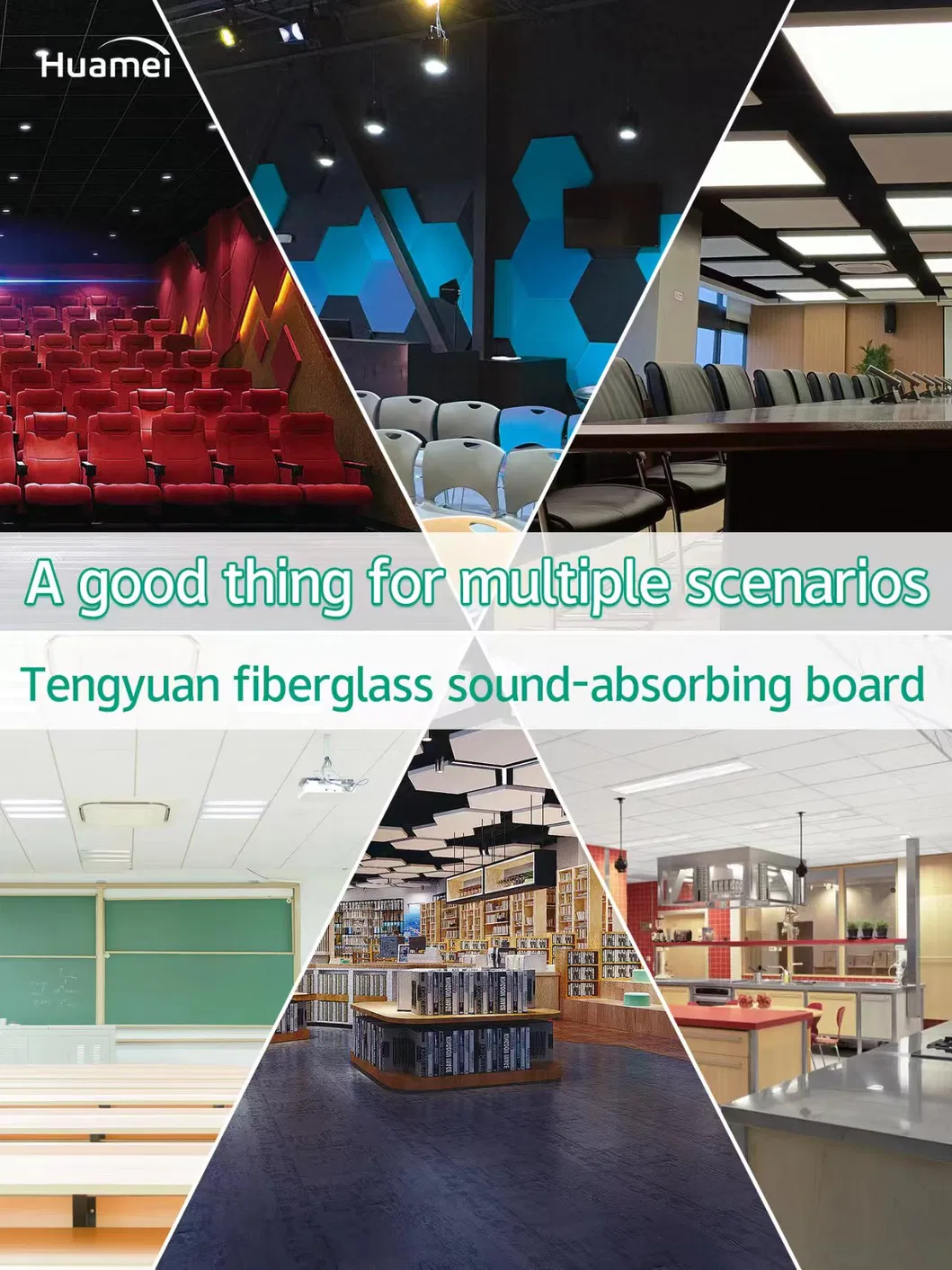

Installation Instructions
Color Options
📊 Technical Parameters
Main MaterialsHigh density glasswool and fiberglass tissue
Surface FinishingSpecial painted laminated with decorative fiberglass tissue
NRC0.8-0.9 (Tested by SGS)
Fire-ResistantClass A (EN13501-1)
HumidityStable with RH up to 95% at 40°C
Light Reflectivity0.85
Density120-130kg/cbm

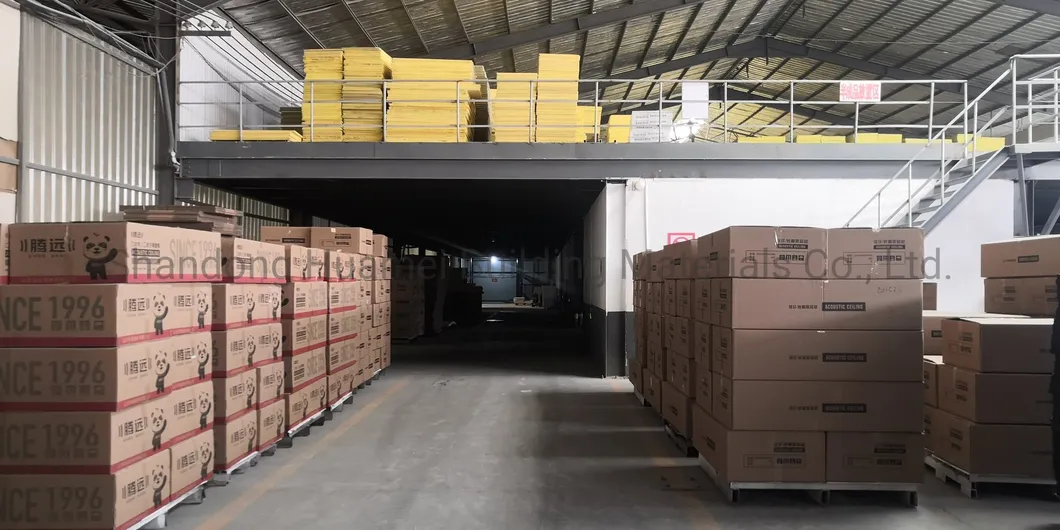

Production Factory
📜 Certifications & Customers
Certificates
Global Customers
❓ Frequently Asked Questions
What are the primary materials used in these acoustic clouds?
The clouds are manufactured from high-density glass wool with a decorative fiberglass tissue surface finishing.
How effective is the sound absorption (NRC)?
The panels have an NRC rating of 0.8 to 0.9, which is laboratory tested by SGS, making them highly effective at reducing noise.
Are these ceiling panels fire-resistant?
Yes, they achieve a Class A/A1 fire rating according to SGS and EN standards, ensuring safety for all types of indoor installations.
Do you offer different shapes and colors?
Yes, we offer Square, Circle, Hexagon, Triangle, and Rectangle shapes in various colors including white, black, and other custom painted options.
What is the humidity resistance of these panels?
They are dimensionally stable in environments with relative humidity (RH) up to 95% at 40°C, preventing sagging or warping.
How are the acoustic clouds installed?
They are installed using suspension accessories including spiral springs, 2m cables, and adjusting hooks for a secure drop ceiling setup.
