📊 Basic Information
Certification
CE, ISO13485, FCC
Production Capacity
500/Month
⚙️ Product Parameters
| System Parameters |
| Input Interface | 1080P |

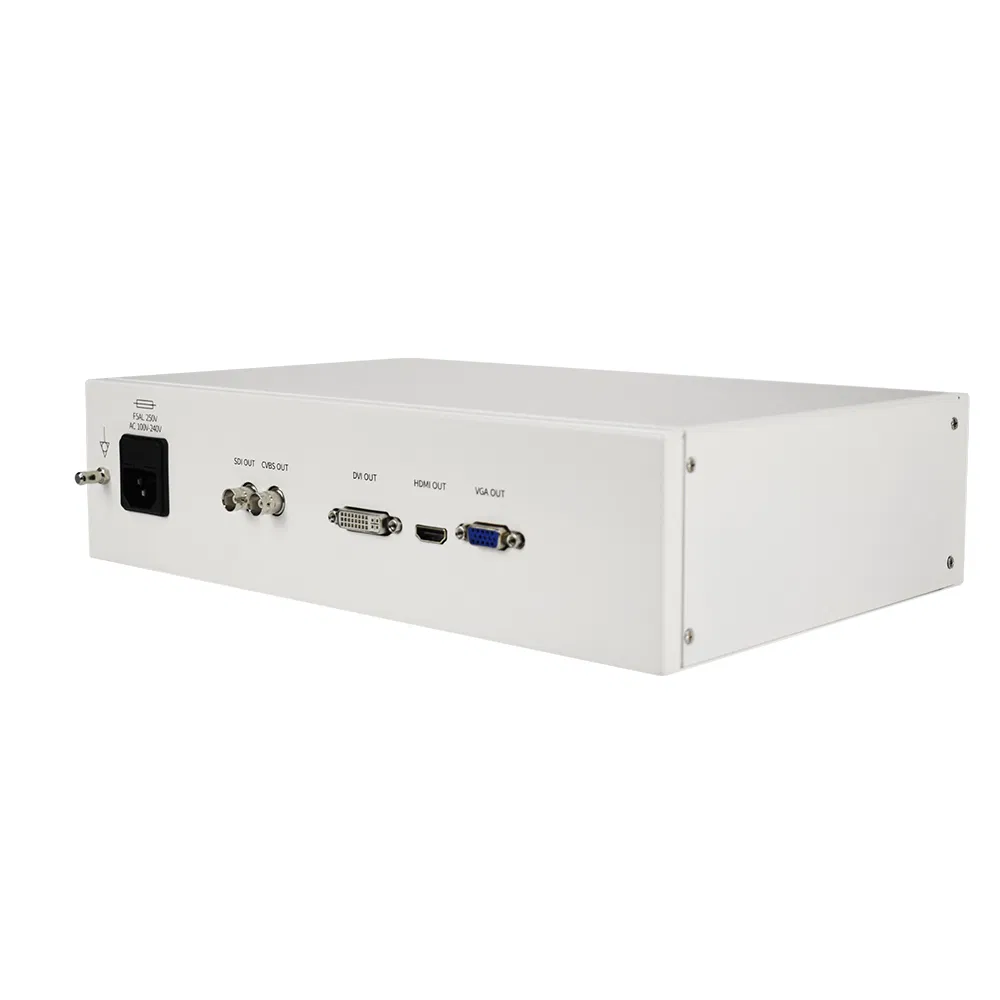

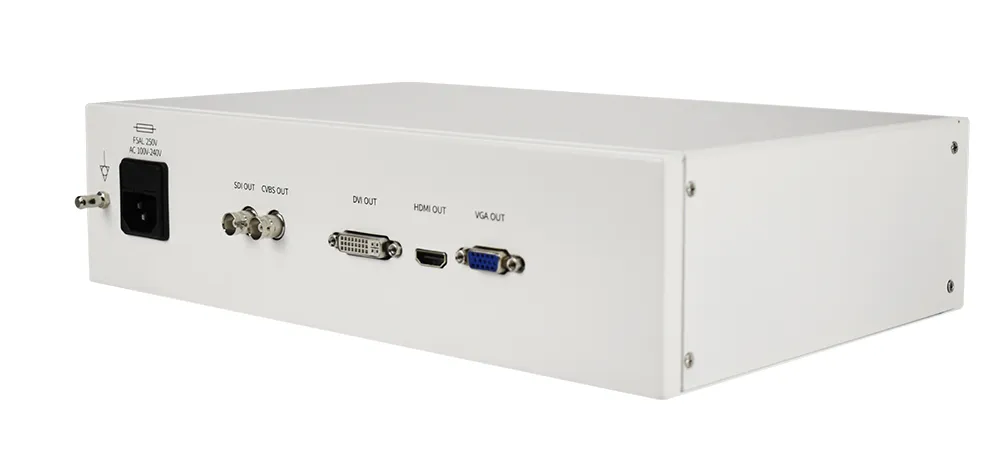

| Output Interface | HDMI+DVI+VGA+SDI+CVBS |
| Keypad Control | Control the motherboard menu and shortcut keys through RX/TX |
| Power | AC110V~240V |
| U Disk | USB2.0+USB3.0 (up to 32GB) to record and take photos |
| Shortcut Key Function | Freeze/white balance/video/photograph/digital zoom |
| SNR | <45db |
| Product Size | L336*W330*H116mm |
| Camera Parameters |
| Image Sensor | 1/1.8" SONY CMOS |
| Effective Pixels | 1845(H) × 1097(V) Approx. 2.13M pixels |
| Resolution | SDI 1080P |
| D-ZOOM | 0-8x |
| Lens Mode | Laparoscope/Fiber/Arthroscope/Cystoscope/Hystero/E.N.T |
| Working Current | 140mA±10mA |
📝 Product Description
Product Composition:

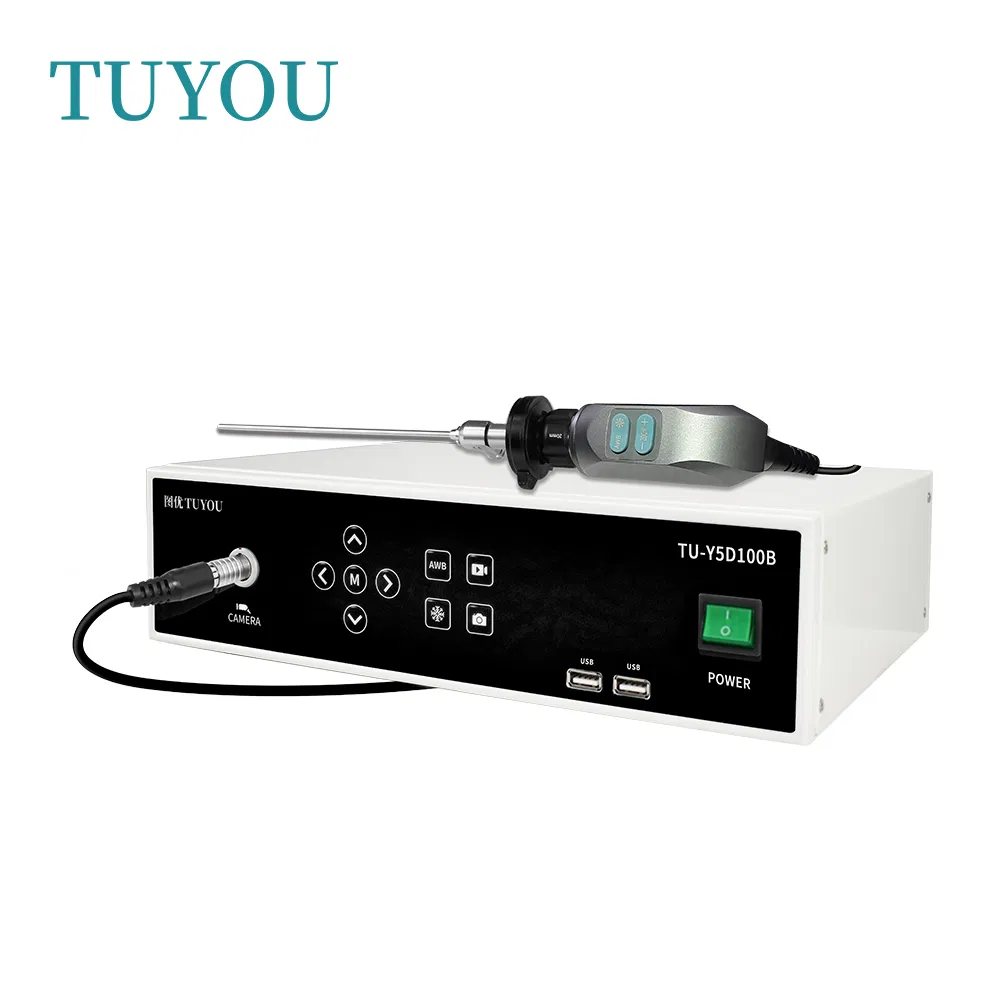

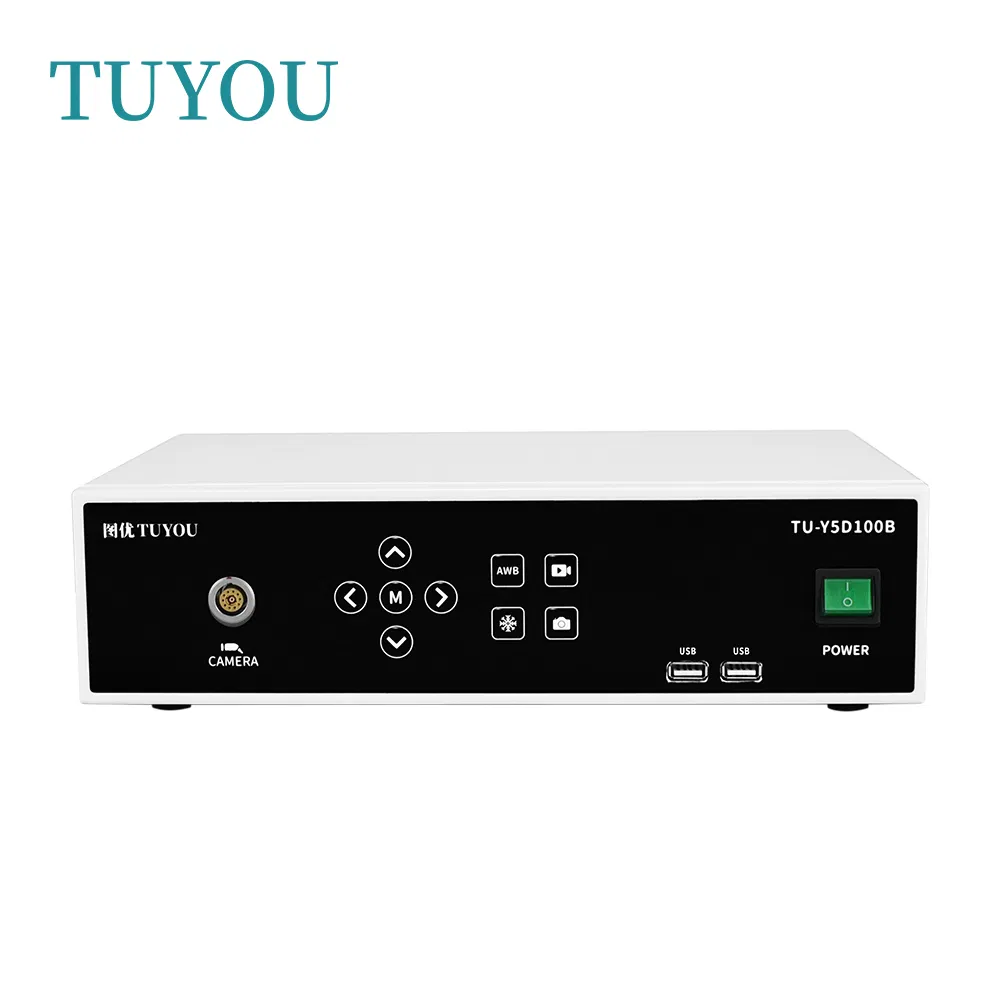

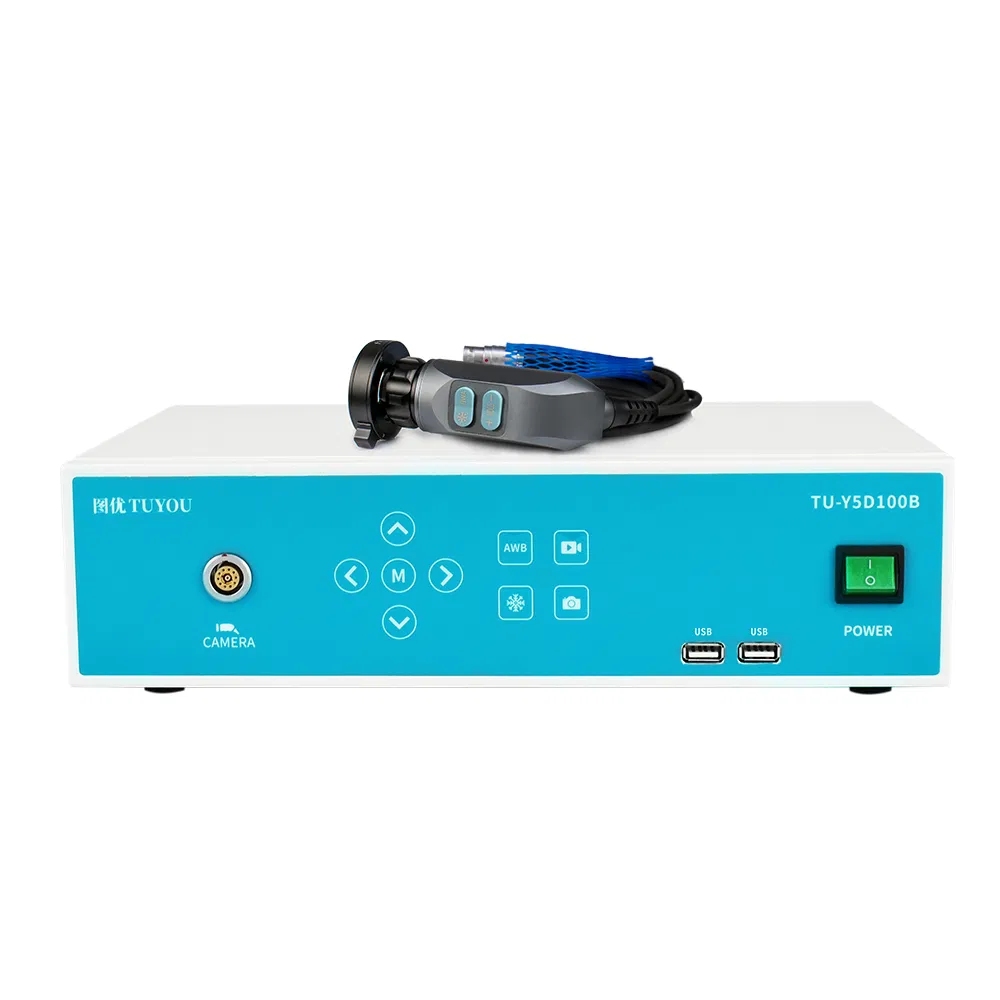

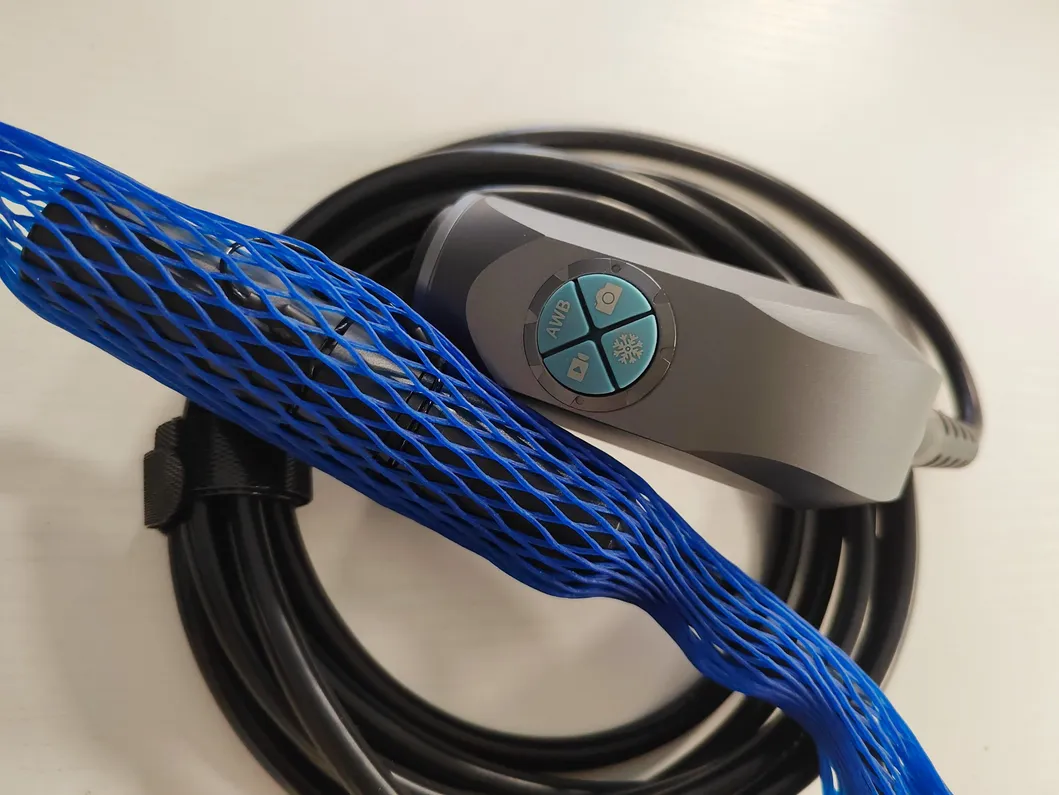

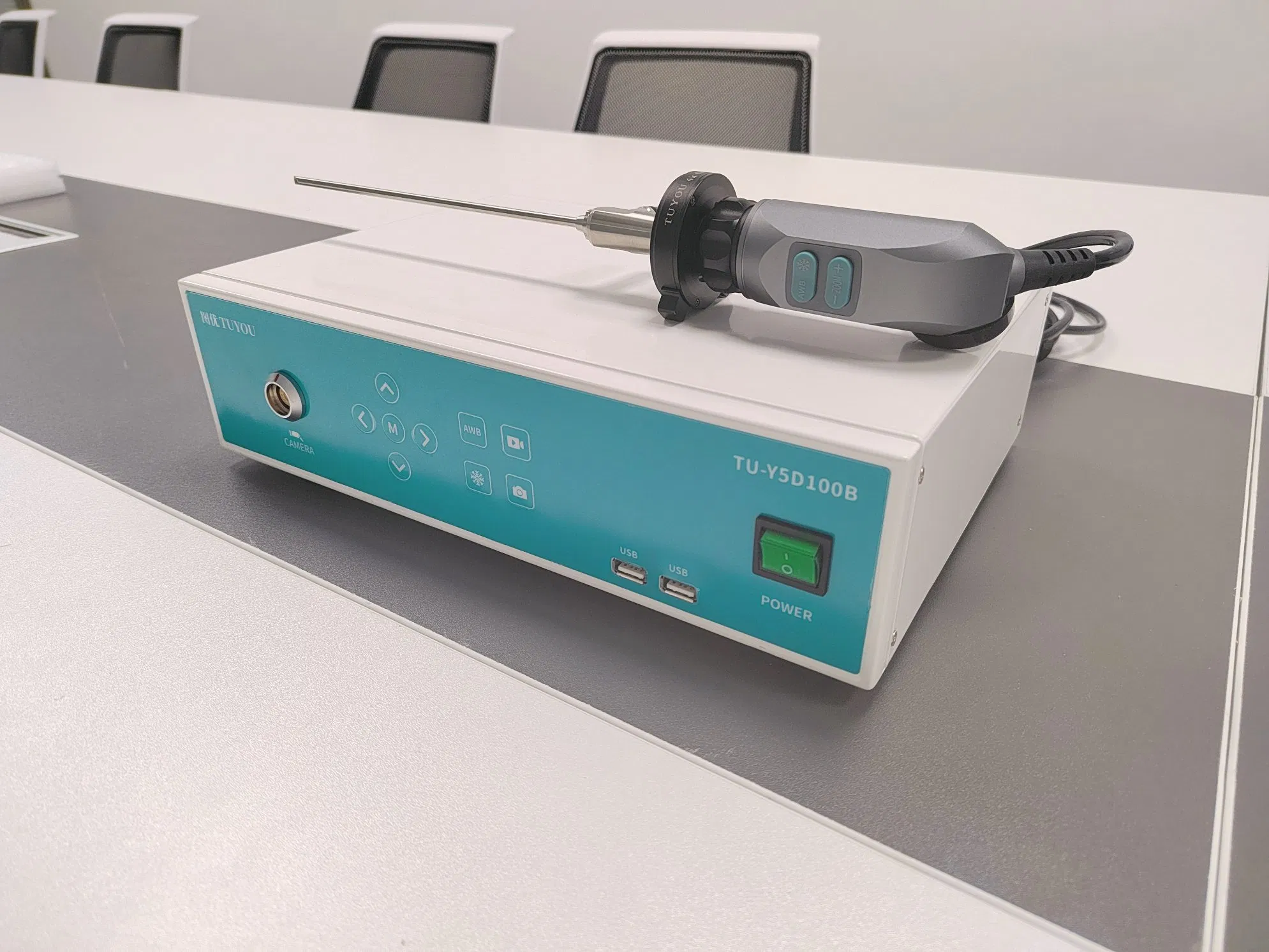

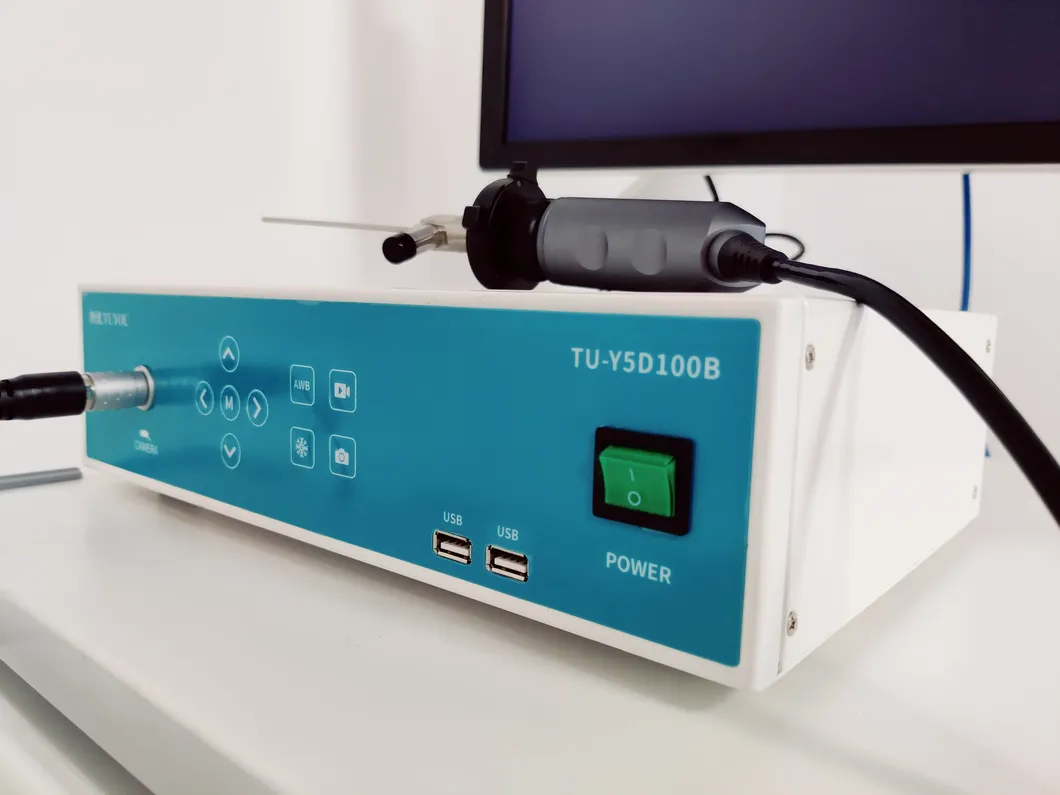

Endoscope imaging system consists of camera control system, handle camera and optical adapter (Adapter is OPTIONAL parts).
- High Definition Performance: Real field of view for better observation of regular pathology and vascular.
- Universal Compatibility: Adaptable to laparoscopy, hysteroscopy, cysteroscopy, arthroscopes, and sinuscopes.
- Advanced Recording: Built-in USB full high-definition image storage for photo capture and video recording.

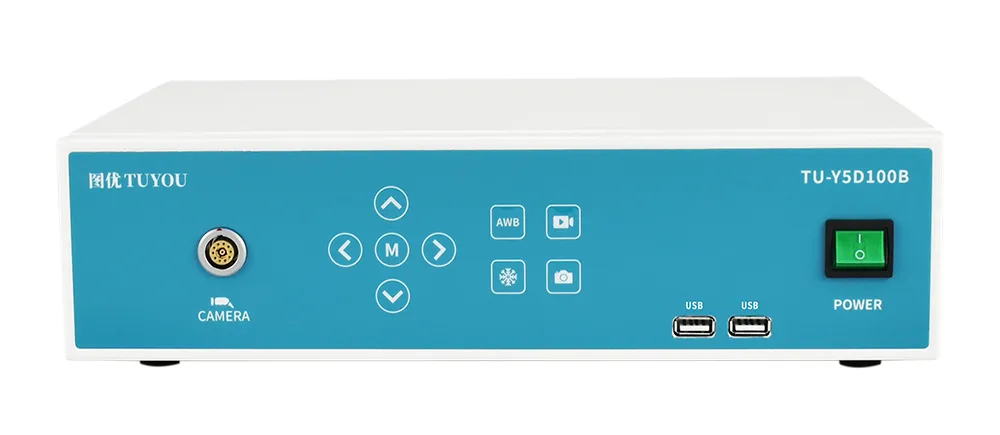

- Simplified Operation: OSD menu design with one-click single image freeze and white balance control.
📦 Accessories List
| No. |
Name |
Quantity |
| 1 | Endoscope imaging system host | 1 |
| 2 | Power cord | 1 |
| 3 | Camera | 1 |
| 8 | Optical adapter (optional) | 1 |
| 9 | Optical lens (optional) | 1 |
🏢 Production & Quality
❓ Frequently Asked Questions
Are you a factory or a trading company?
We are a Chinese medical imaging instruments manufacturer. All products are manufactured by our professional team.
Can you accept OEM services?
Yes, we provide professional OEM/ODM services to meet specialized requirements.
What is your delivery time?
Standard orders are typically delivered within 7 working days upon payment.
What is the warranty period for this system?
The system comes with a free two-year warranty. We repair or replace faulty assemblies free of charge during this period.
What imaging resolutions does the system support?
Our system supports Full HD 1080P resolution, providing high-definition diagnostic imaging for various endoscopic applications.
What payment methods are accepted?
We accept T/T Bank Transfer, Western Union, Money Gram, Paypal, L/C, and Cash.
