📋 Basic Information
Model NO.BK-EL10A
Measurement ChannelVertical 8 Optical Channels
Plate Type96-Well Microplate
Wavelength Range400 ~ 750nm
Reading Range0.000-3.000ABS
Resolution0.0001ABS
RepeatabilityCV<=1.0%
Instrument Size450*320*300mm
Net/Gross Weight13/15kg
Production Capacity1000 units/Month
🔬 Product Description

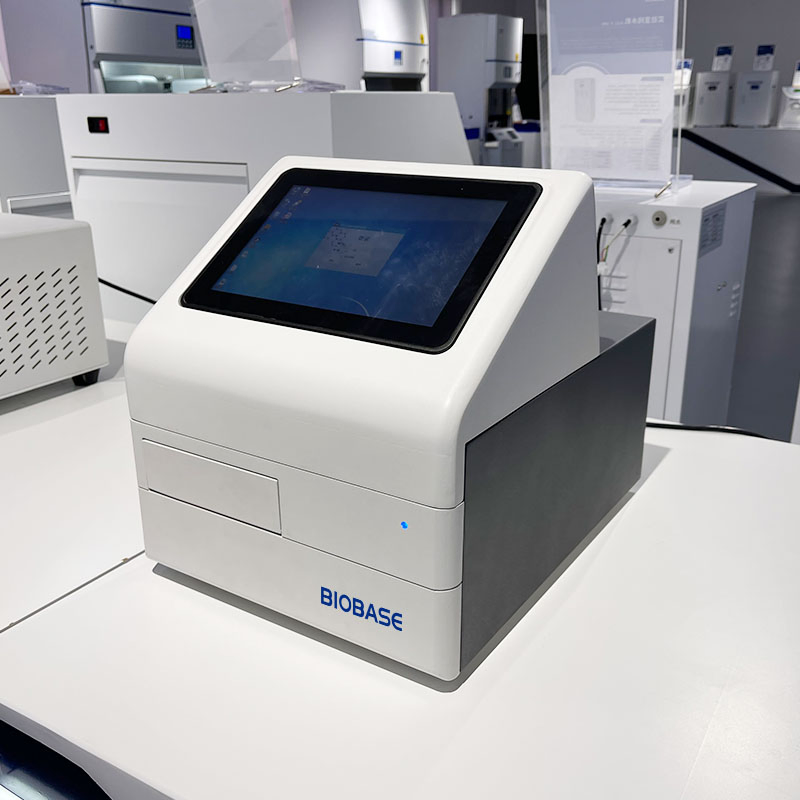

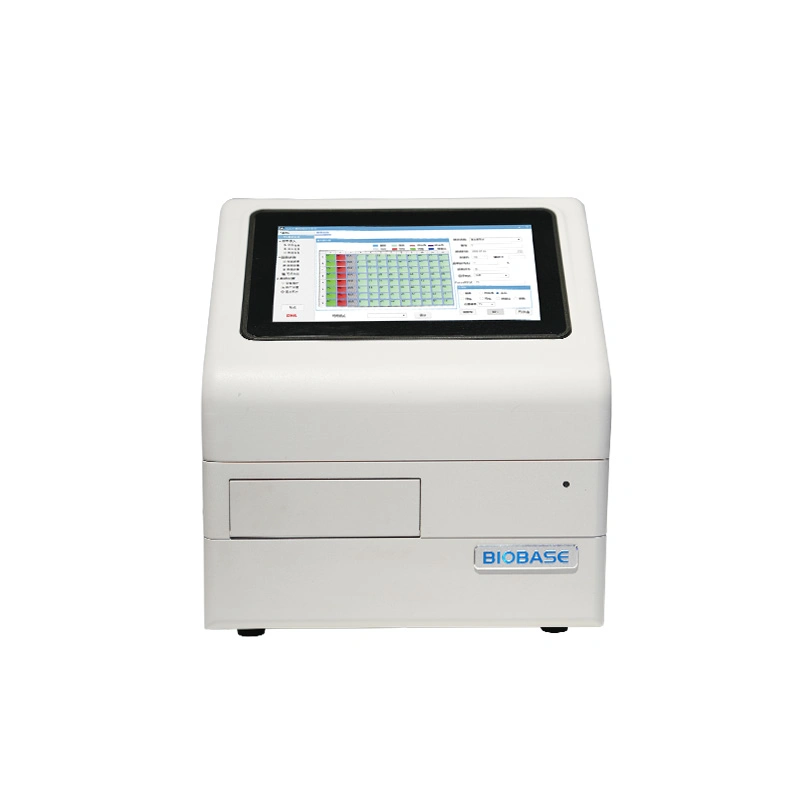

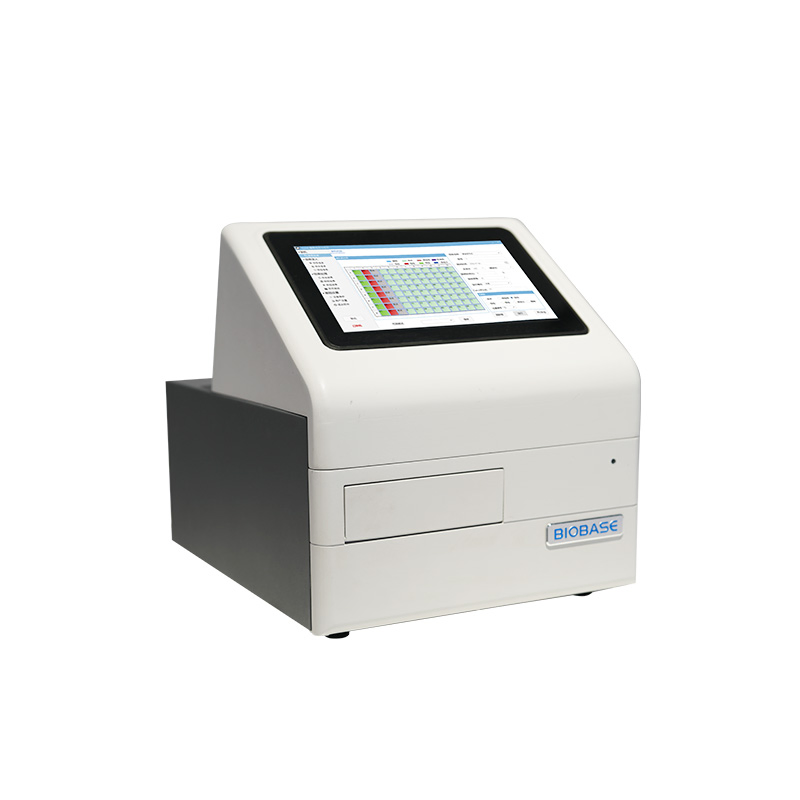

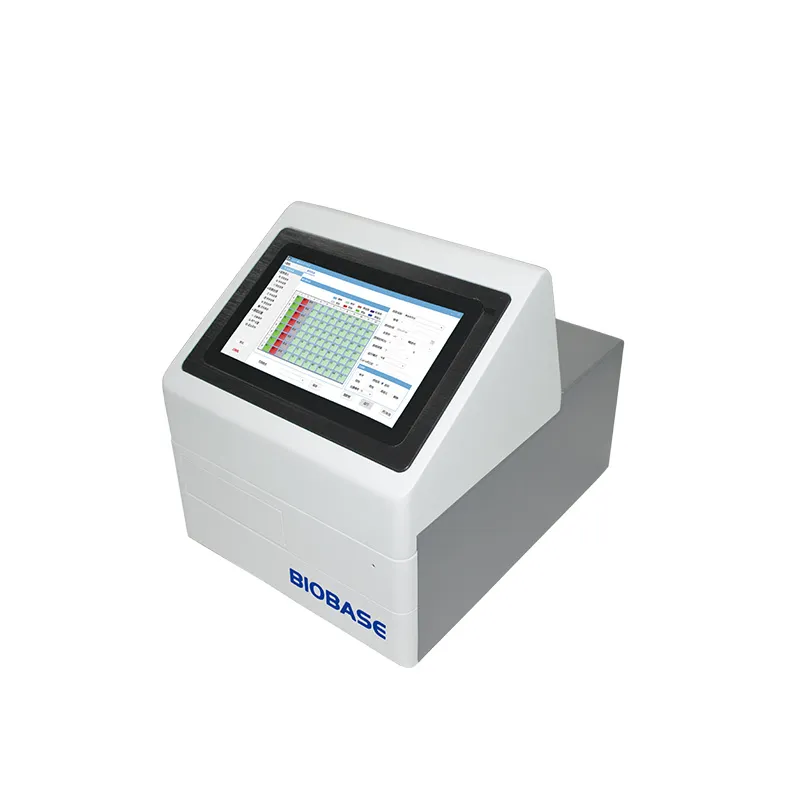

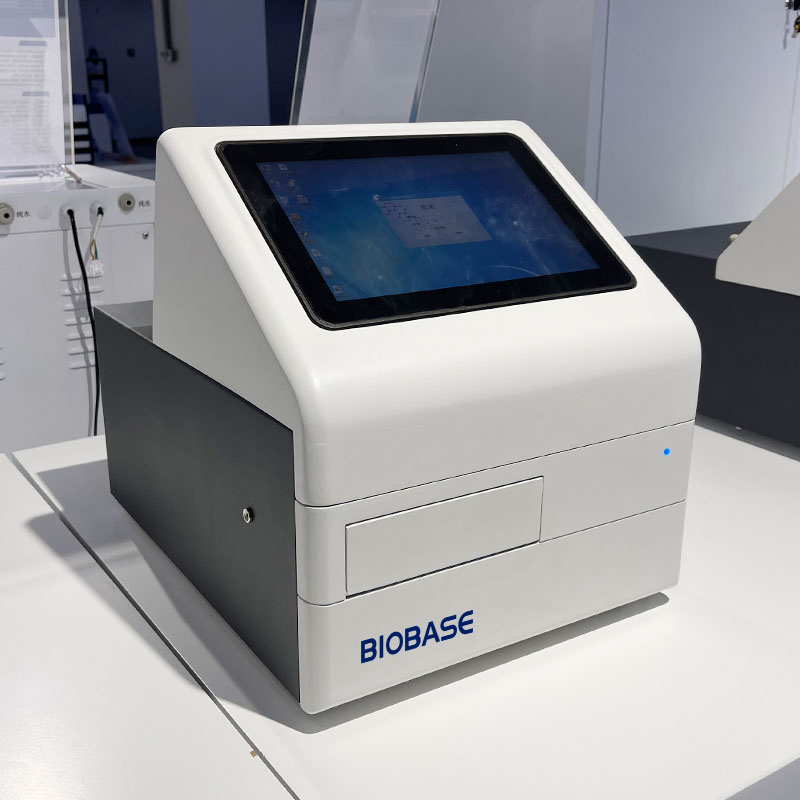

Introduction of Elisa Microplate Reader
The ELISA reader with large-screen LCD has excellent performance of accuracy and stability. It is widely used in hospital clinical diagnosis, immune pathology testing, microbial antigen and antibody detection, parasitic diseases diagnosis, and endocrine disorder measurement.
Key Features
- 10.1-inch large touch screen operation (Except BK-EL10B).
- High precision and accurate results.
- Software supports Single wavelength and double wavelengths detection methods.
- Built-in incubation and vibration plate functions.
| Model |
BK-EL10A |
BK-EL10B |
BK-EL10C |
BK-EL10D |
| Wavelength Range |
400 ~ 750nm |
340 ~ 850nm |
| Reading Range |
0.000 -3.000Abs |
0.000 ~ 4.000Abs |
0.000 -4.500Abs |
| Stability |
≤±0.005Abs |
≤±0.003Abs |
| Incubation |
0~60min |
RT +4℃~50℃ |
🏢 Company Profile & Products
Focusing on scientific equipment, covering biomedical, intelligent manufacturing, and In Vitro Diagnosis (IVD). With global branches and 25+ workshops, we specimen in medical and laboratory equipment with over 200 high-tech products.
Our Services
- Pre-Sales: Inquiry support, quick detailed quotations, and factory viewing.
- After-Sales: 1-year warranty, installation training, and overseas engineer service.
❓ Frequently Asked Questions
Q1: What is the wavelength range for the BK-EL10 series?
The standard models range from 400 to 750nm, while the BK-EL10D model extends from 340 to 850nm.
Q2: Does the device support incubation?
Yes, it features an incubation function with a time range of 0 to 60 minutes. The BK-EL10D specifically supports temperature ranges up to 50°C.
Q3: How many optical channels does the reader use?
The instrument utilizes vertical 8 optical channels for precise measurement.
Q4: What type of plates is the reader compatible with?
It is designed for standard 96-well microplates.
Q5: What software features are included?
The software supports both single and double wavelength detection methods with high precision results.
Q6: What is the typical lead time and capacity?
We have a production capacity of approximately 1000 units per month for ELISA microplate readers.
