Magnetic grid is composed of a series of parallel magnetic bars, magnetic bars spaced from each other and firmly fixed to the grid bracket or frame. Magnetic grid can be designed into a variety of shapes, such as square, circular, drawer, wing, rotary and so on, to match the different shapes of hoppers, chutes, pipes, openings and so on.
Magnetic separation grids are flexible and efficient magnetic separation devices designed to remove ferromagnetic impurities, weak magnetic iron contaminants, and others in free-flowing materials (such as pellets and powders). This effectively purifies the material, improves quality, and protects downstream equipment from ferrous damage.
Industrial Applications: Medicine, food, chemicals, plastics, ceramics, tobacco, glass and other industries.
Optional Features:
1. Surface Material: SUS304, SUS316L
2. Magnetic Strength: 2000-12000 Gauss
3. Working Temperature: 80℃ to 350℃
4. Cleaning Method: Regular type and Easy cleaning type.
| Model | Diameter | Bars QTY | Bar Diameter | Layers | Gauss |
|---|---|---|---|---|---|
| TXR-110 | D110MM | 3 bars | D25MM | 2 | 2000-12000 Gs |
| TXR-150 | D150MM | 5 bars | D25MM | 2 | 2000-12000 Gs |
| TXR-220 | D220MM | 9 bars | D25MM | 2 | 2000-12000 Gs |
| TXR-300 | D300MM | 11 bars | D25MM | 2 | 2000-12000 Gs |
| Model | Size (mm) | Bars QTY | Bar Diameter | Layers | Gauss |
|---|---|---|---|---|---|
| TXS-300 | L300*300 | 5 bars | D25MM | 1 | 2000-12000 Gs |
| TXS-500 | L500*400 | 9 bars | D25MM | 1 | 2000-12000 Gs |

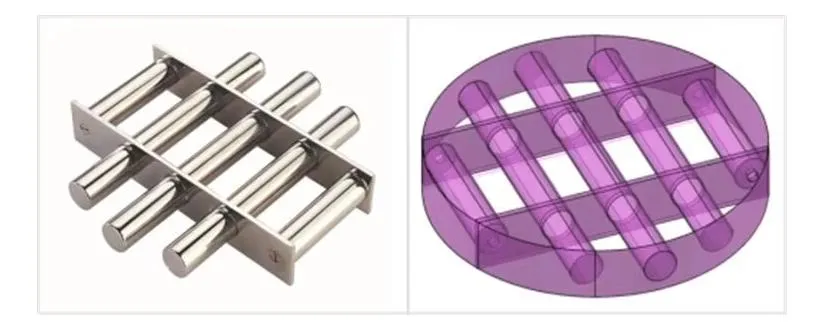

Grate Magnet for Circular Hopper

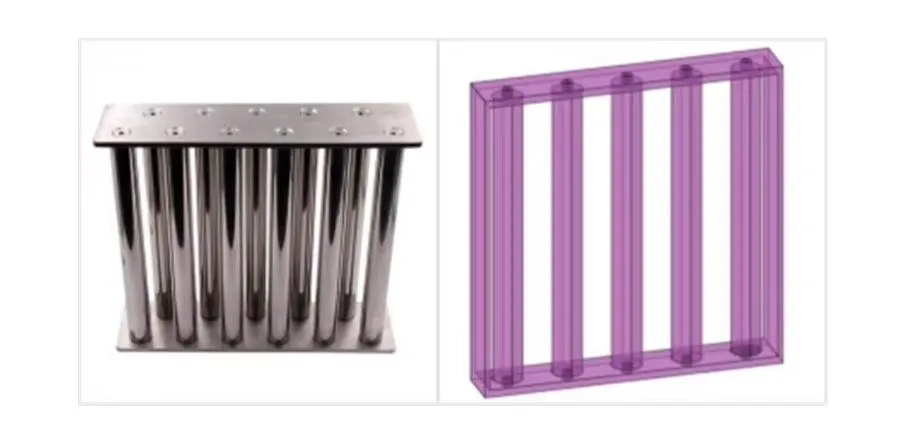

Square Grate Magnet
Magnet with Stainless Steel Rod Baffles
Easy-Cleaning Grate Magnet
