📋 Basic Information
Usage
Ceramics, Glass, Metals
Application
Machinery, Hardware, Art
Specification
1830*2800*1650mm
🚀 Product Introduction

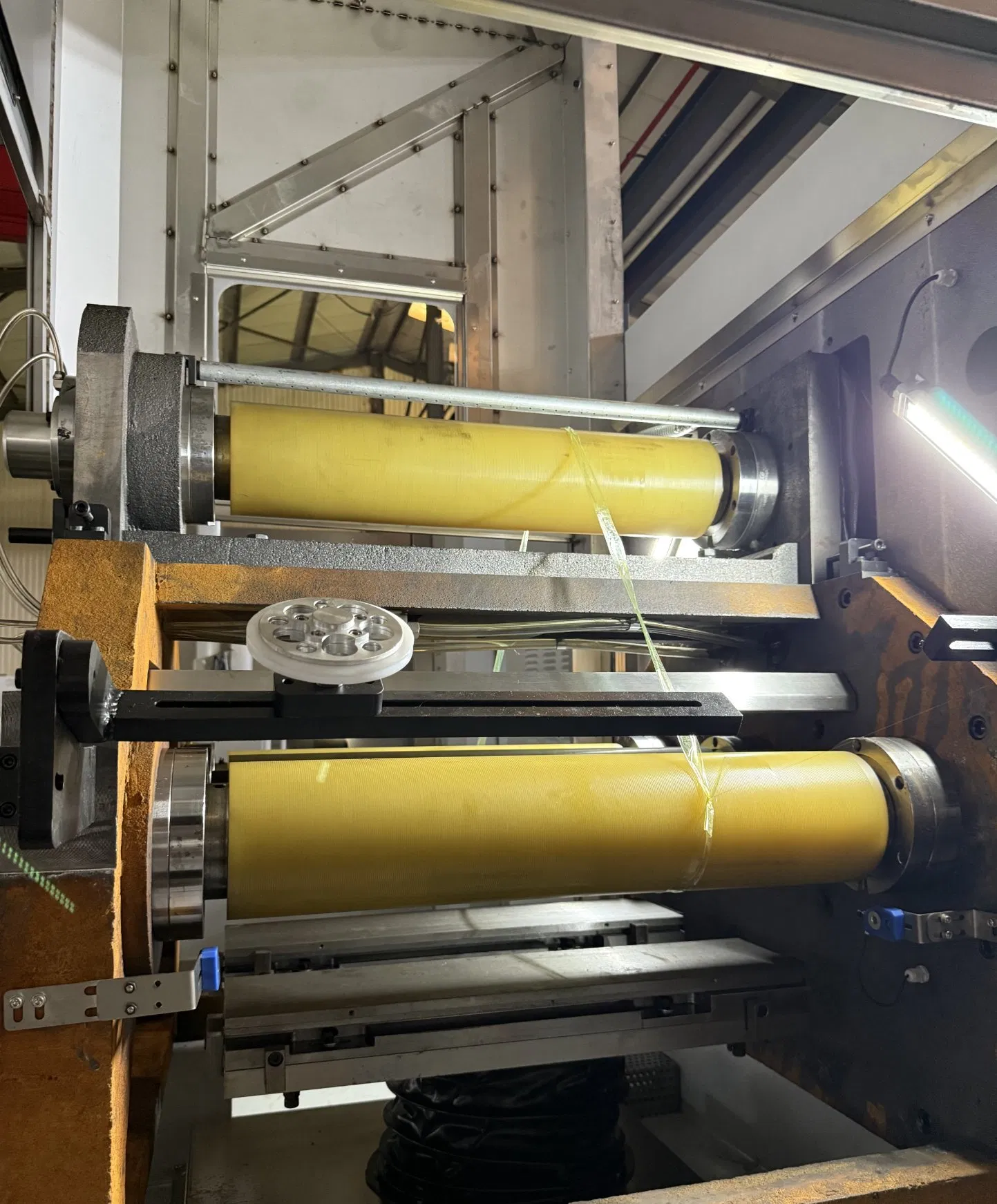

The CHT-690FG Diamond Multi-Blade Saw is a cutting-edge solution featuring two working platforms, engineered for maximum efficiency and cost reduction. With a line speed of up to 2400m/min, it handles products 0.5mm or thicker without roller changes.
| Feature |
Unit |
Parameter |
| Maximum Worksize | mm | 145/170*690*160*2 |
| Cutting Thickness | mm | 0.5--6.5 |
| Running Speed | m/min | 0~2400 |
| Table Lift Stroke | mm | 220 |
| Diamond Wire Diameter | mm | φ0.01~φ0.35 axle |
| Machine Weight | Kg | ≈10000 |
⚙️ Main Functions & Technology

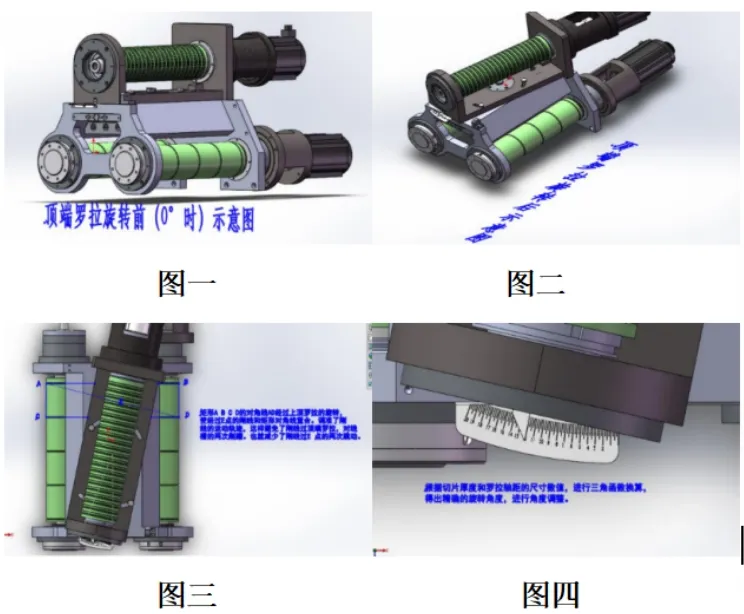

Rotating Knife Frame Function: Patented technology that improves cutting accuracy and extends roller service life by reducing wire scraping.
🌟 Technical Advantages
- Dual Workstation Design: Higher efficiency and lower processing costs.
- Dust-proof Main Shaft: Energy-saving design that operates without an air compressor.

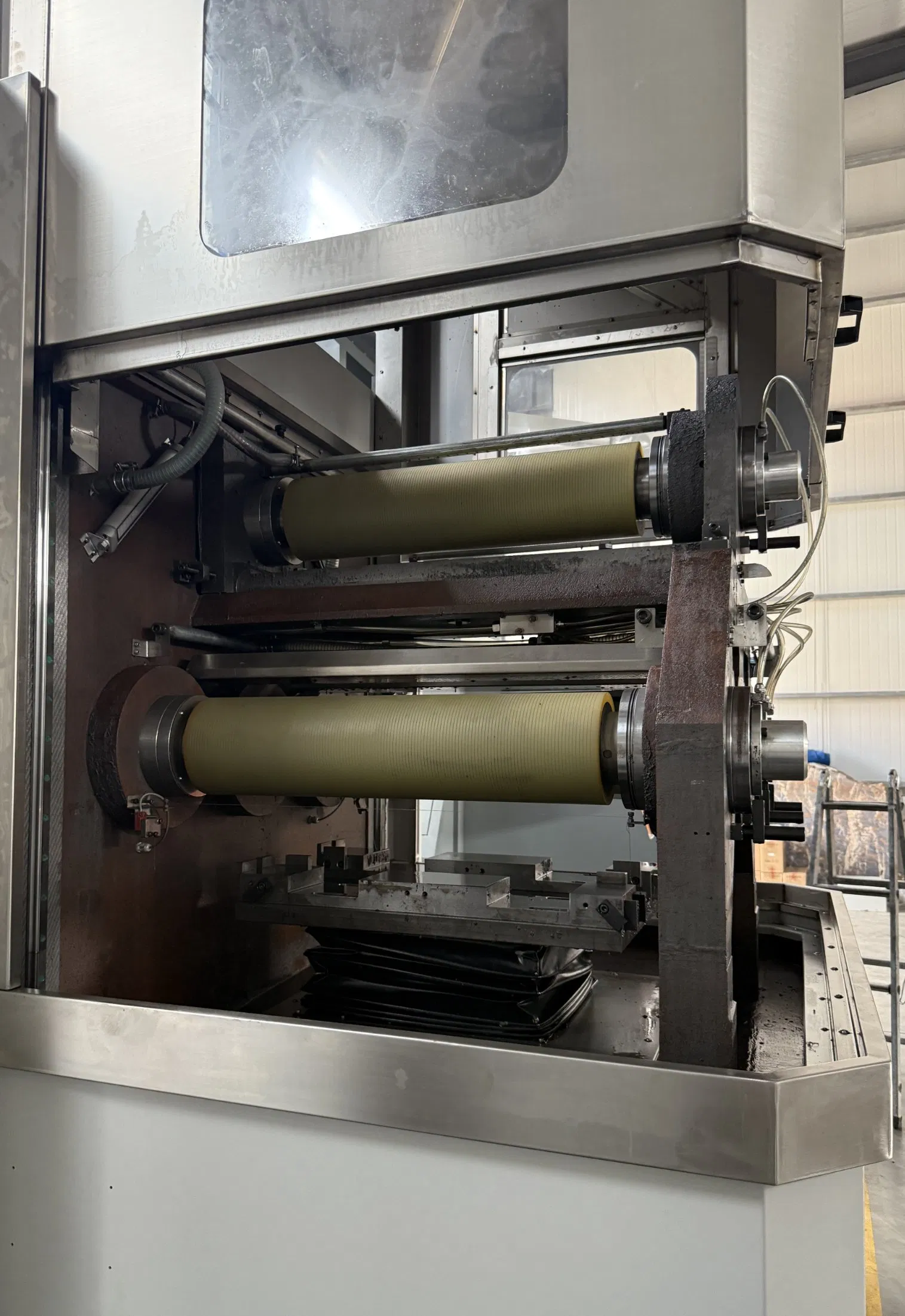

- Independent Motor Drive: Four motors drive four rollers independently to reduce wire wear.

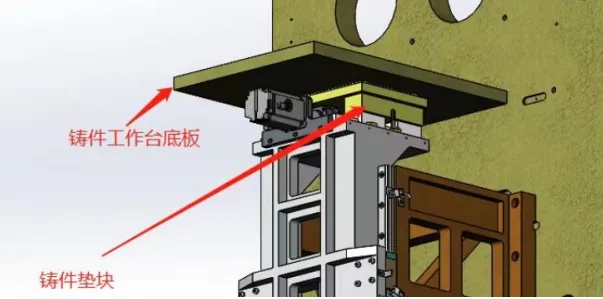

- High-Speed Stability: Integral casting processed in one go to minimize assembly errors.
- Automatic Cleaning: Built-in system to remove impurities during the cutting process.
🏭 Manufacturing & Support

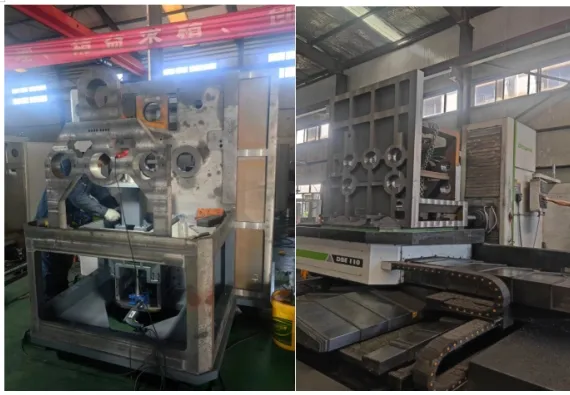

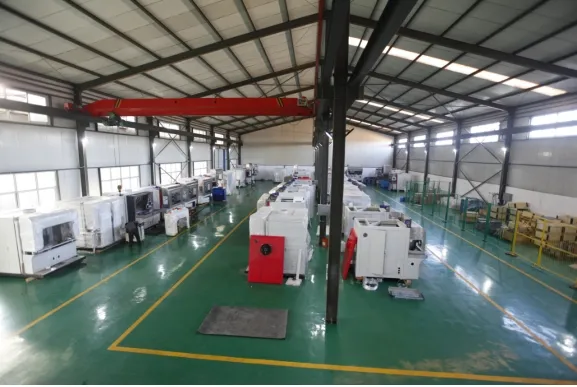

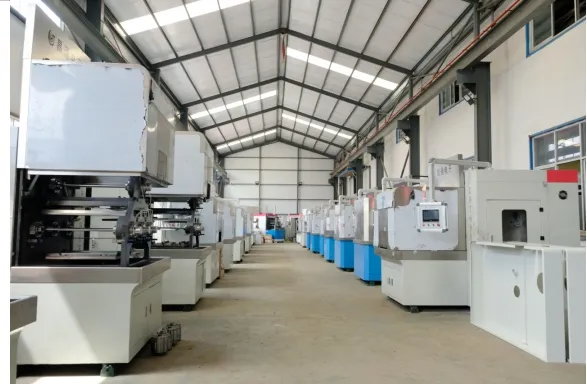

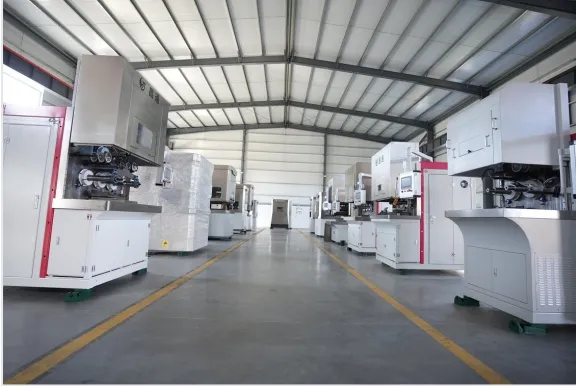

Our facilities are equipped with 5-axis machining centers and high-precision boring machines, ensuring top-tier equipment consistency and reliability.
❓ FAQ - Frequently Asked Questions
Q1: What materials can the CHT-690FG cut?

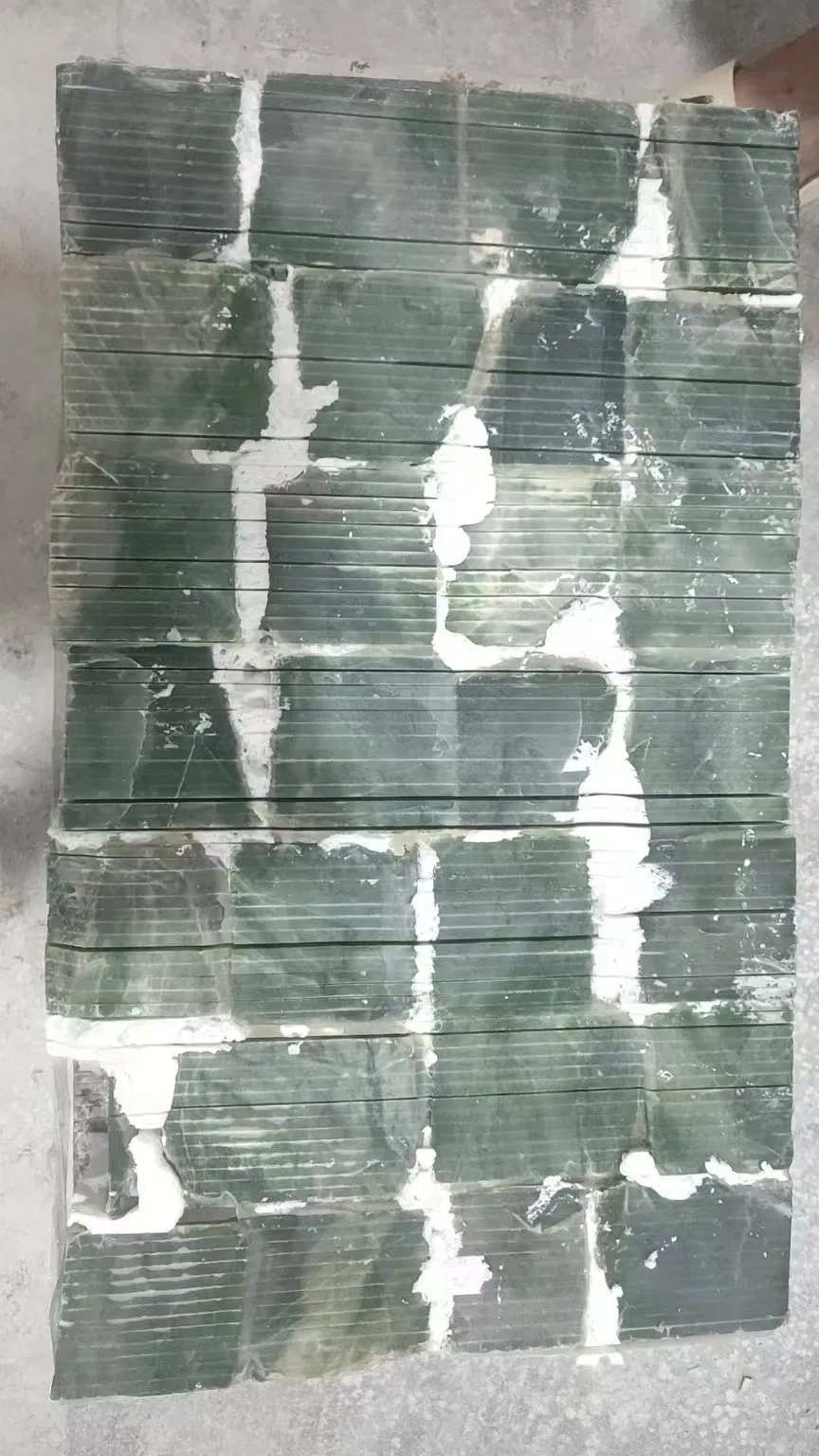

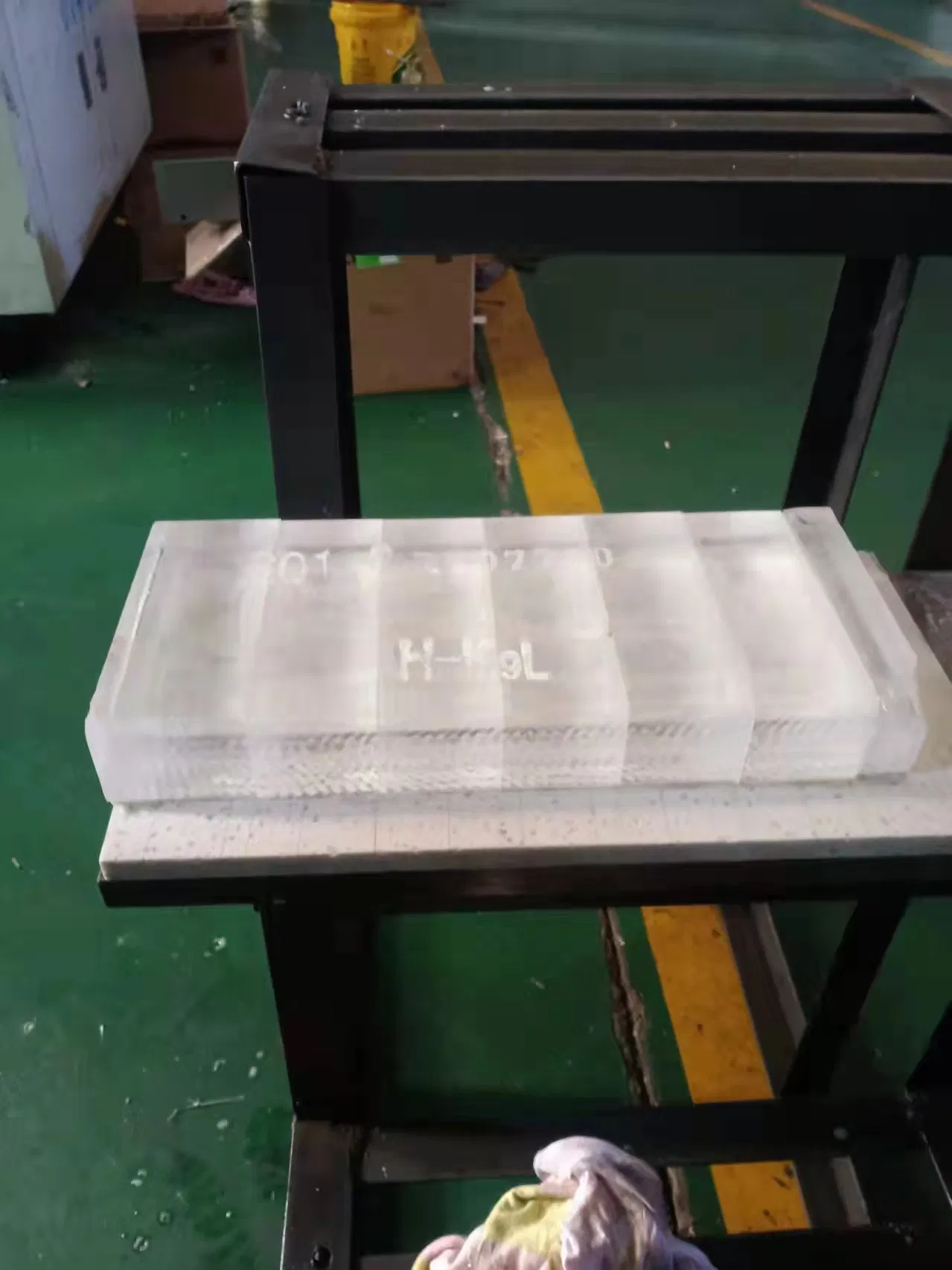

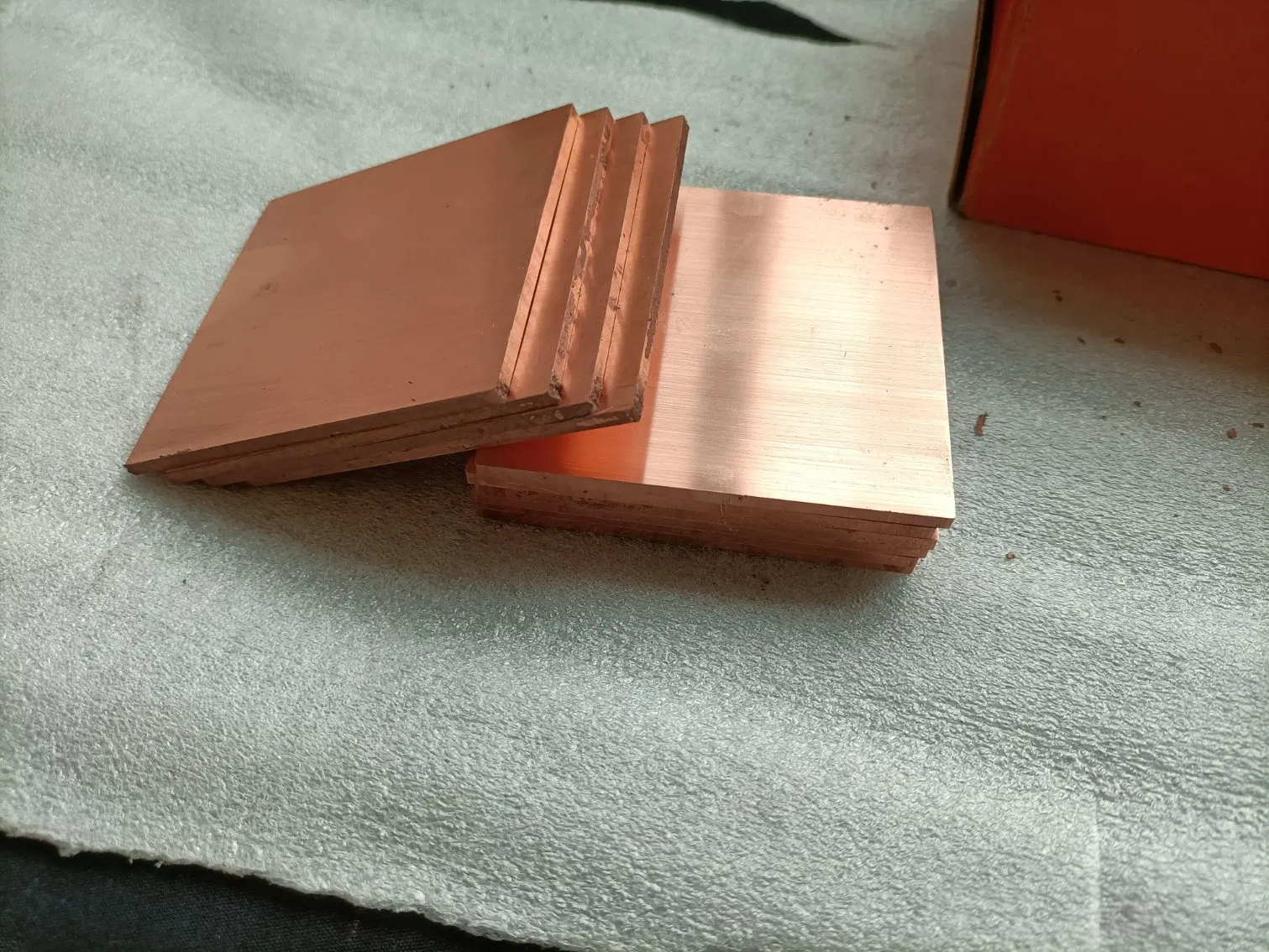

It is designed for cutting ceramic, glass, rare earth permanent magnets, and various metals with high precision.
Q2: Do I need to change rollers for different cutting thicknesses?
No, the Z-axis movement function allows you to cut products of various thicknesses (0.5mm and above) without changing the rollers.
Q3: What happens if the diamond wire breaks during operation?
The machine is equipped with independently developed technology that stops the equipment immediately upon wire breakage to prevent damage to the rollers.
Q4: Is specialized training required to operate this machine?
The interface is designed for simplicity. We provide comprehensive training covering machine operation, daily maintenance, and cutting process guidance.
Q5: What is the benefit of the rotating knife frame?

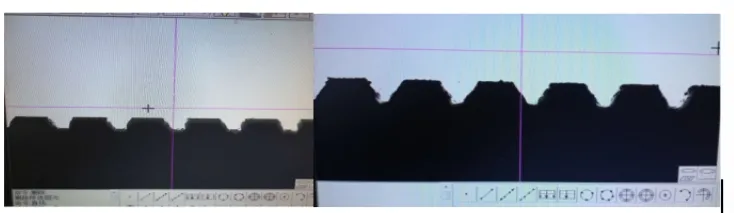

It reduces wire friction against roller grooves, extending the roller's lifespan by up to 70% and significantly improving cutting accuracy.
Q6: What kind of after-sales support is provided?
We offer a one-year maintenance service, lifetime software upgrades, and free technical consultations regarding the cutting process.
