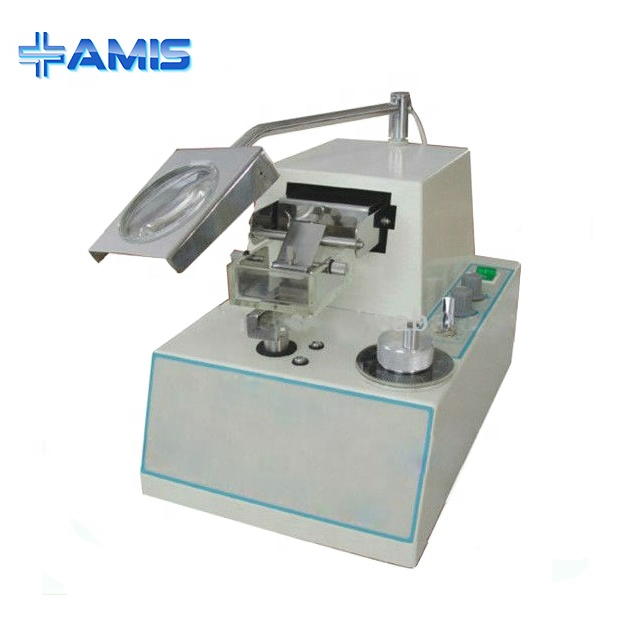

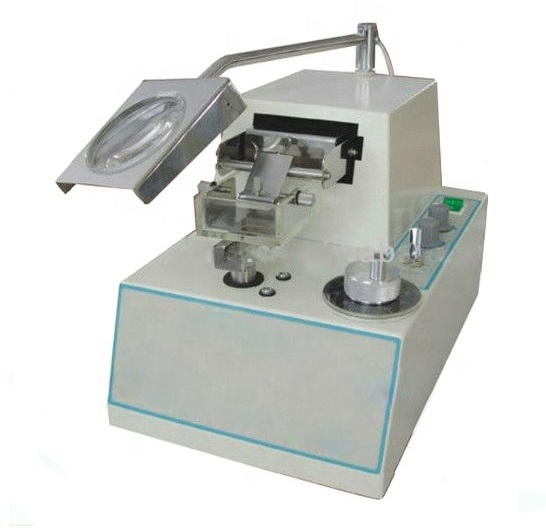

Pathology Lab Equipment Automatic Rotary Microtome Vibrating Microtome Am-1205

Customization: Available
Classification: Biological Diagnostics
Type: Microtome

Product Description

Basic Specifications

Model NO.:AM-1205
Certification:CE, ISO13485
Group:All
Transport Package:Carton
Specification:CE, ISO
Trademark:AMISMED
Origin:China
HS Code:9031809090

Product Overview

This model is specially developed according to market demand, introducing advanced technics from overseas. It is widely used in biological teaching, scientific institute research, and more. It is designed to cut fresh or specific specimens from animals or plants without the need for embedding or cooling processes. Consequently, specimens remain intact, and cells stay active and well-preserved.

It provides excellent conditions for immunocytochemistry research and neurobiology related to spinal and cerebrum disorders. This model is an ideal choice for fields including electron microscopy, dissection, cyemology, physiology, and general biological scientific research.

Note: Research indicates a 10μm minimum section setting range for brain or spinal cord specimens, and 30μm for fresh brain, heart, and kidney specimens.

Technical Specifications

Speed of Specimen Sectioning: 0-1.3 mm/s (adjustable)
Vibrating range: 0~1mm
Specimen table lifting range: 9mm
Section thickness setting range: >10um
Minimum setting value: 1um
Angle of blade: 15 degrees
Working Voltage: AC220V 50Hz / AC110V 60Hz
Power Draw: 200VA
Dimension: 400x220x300mm
Net Weight: 12kg

Package Information

Dimensions: 400×300×220mm
Weight: 20 kgs

Frequently Asked Questions

● What are the primary applications for the AM-1205 Microtome?
It is primarily used in biological teaching and scientific research for cutting fresh specimens from animals or plants without embedding.
● Does the specimen require cooling or embedding before sectioning?
No, this vibrating microtome allows for immediate sectioning without any embedding or cooling process, preserving cell activity.
● What is the minimum section thickness setting for this model?
The minimum setting value is 1um, with a section thickness setting range generally starting above 10um.
● Is the sectioning speed adjustable?
Yes, the speed of specimen sectioning is fully adjustable between 0 and 1.3 mm/s.
● What voltage requirements does the AM-1205 support?
The device is compatible with both AC220V 50Hz and AC110V 60Hz power supplies.
● What is the weight and portability of the unit?
The net weight of the microtome is 12kg, making it suitable for desktop laboratory use, while the shipping weight is 20kg.
