Quick-Deploy Vertical Lift Solutions for Peak Season Efficiency

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

We stand as the embodiment of groundbreaking innovation, continually reshaping the arena of intelligent solutions with our exceptional technological prowess. Our steadfast mission is to seamlessly meet the dynamic demands of contemporary storage and warehousing with unparalleled precision and expertise. Our offerings exemplify operational brilliance, establishing an extraordinary benchmark that others strive to reach.

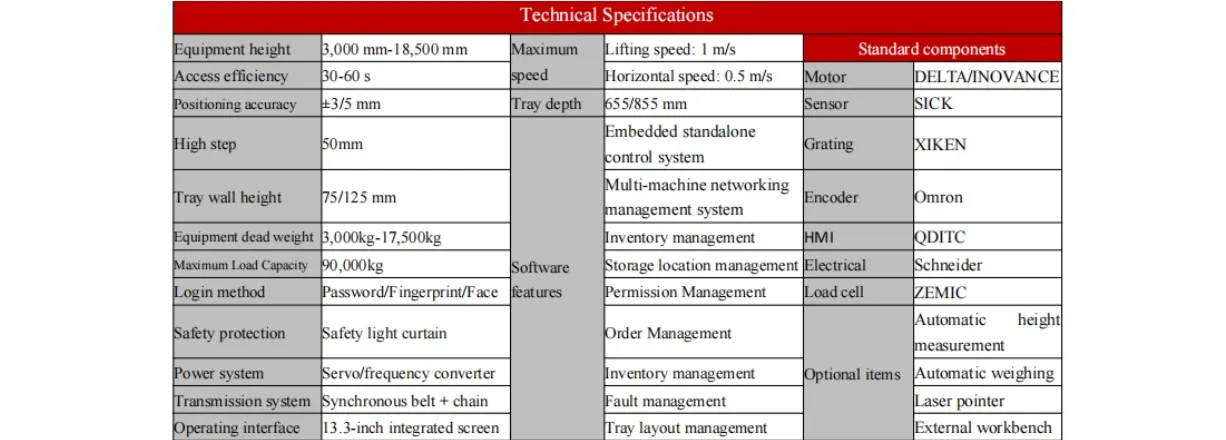

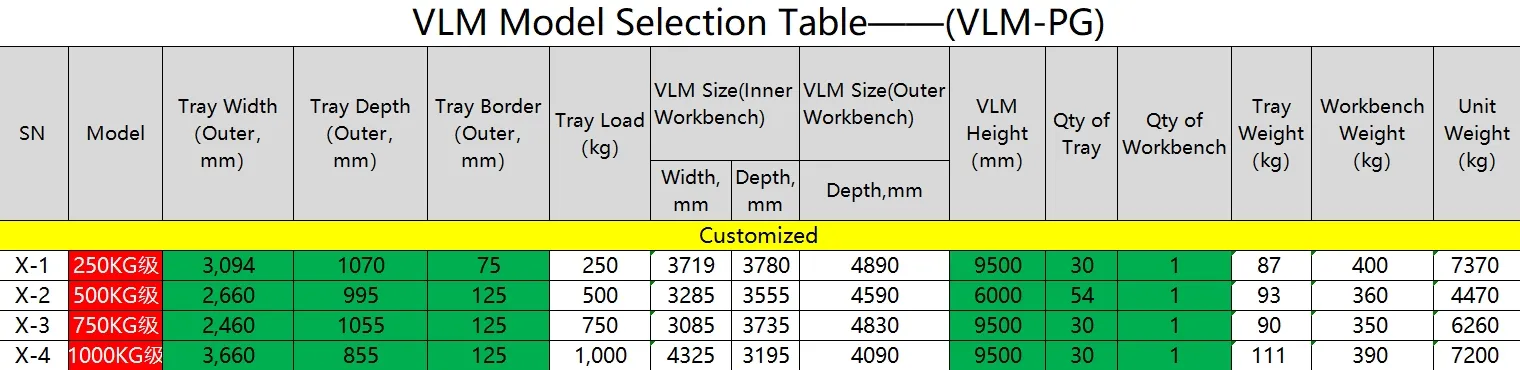

Technical Specifications

Model NO.PG1510M

Machine NameGoods Sorting

Tray Load1000kg Level

Tray SizeW1520mm*D855mm*H125mm

Quantity of Tray30

Weight (Kg)3980

Core ComponentsPLC, Bearing, Gearbox, Motor

SpecificationW2145mm*D4030mm*H9000mm

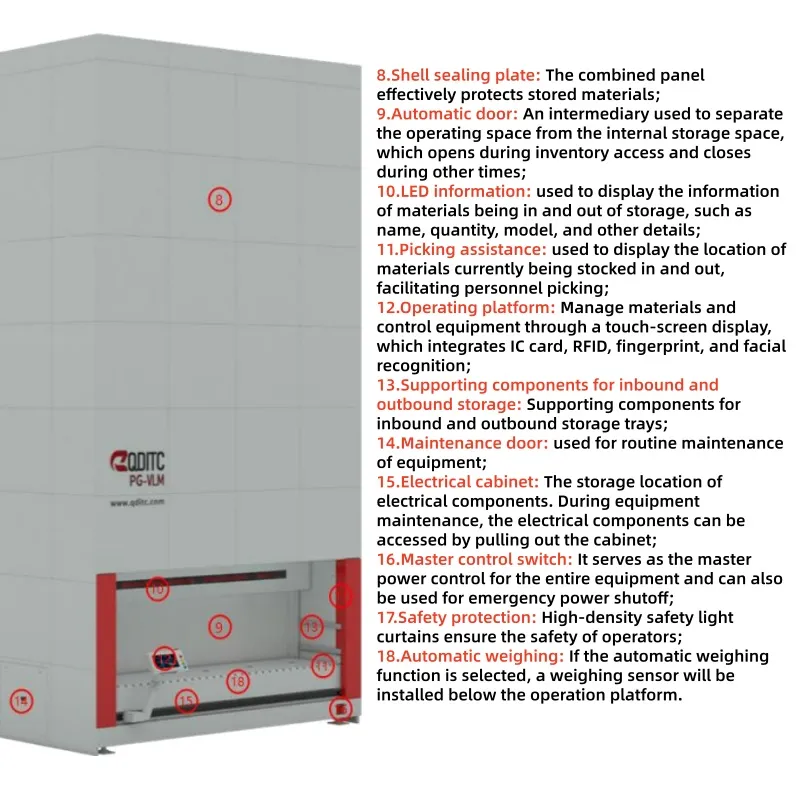

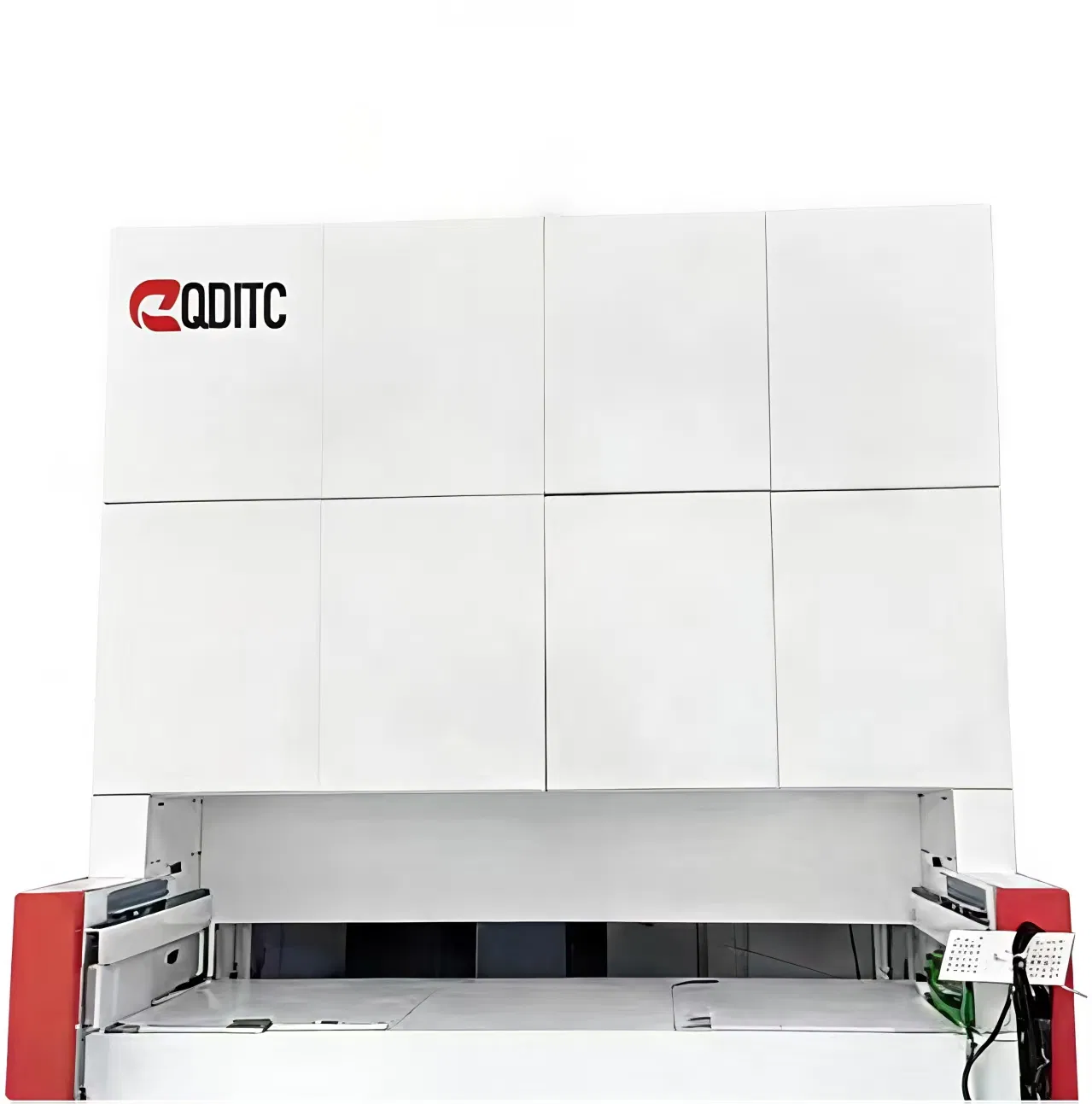

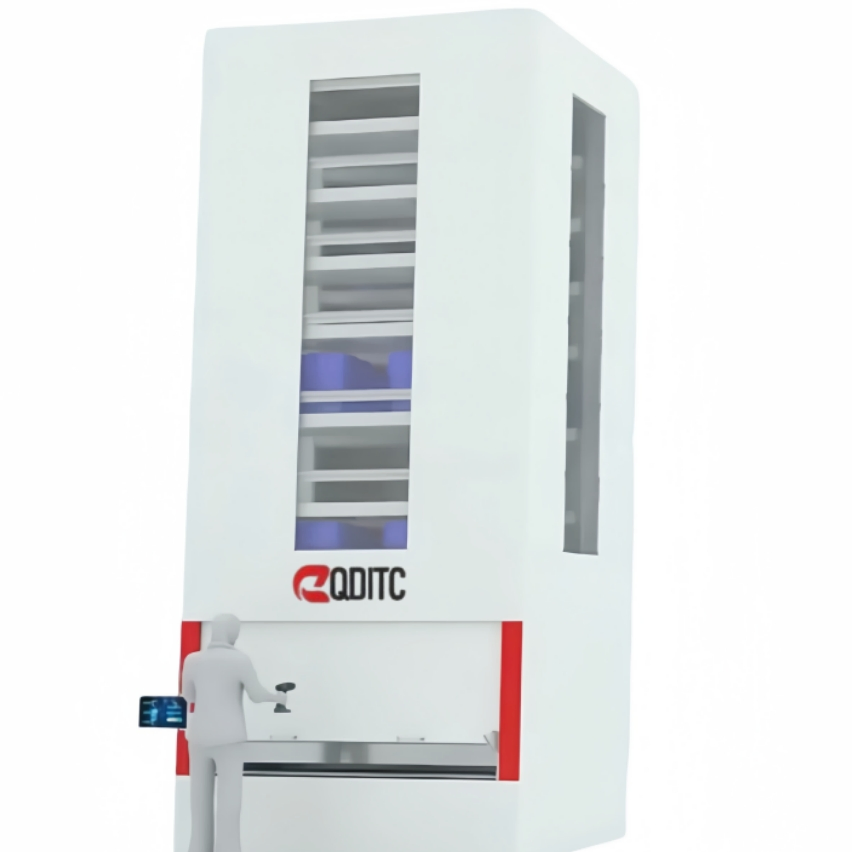

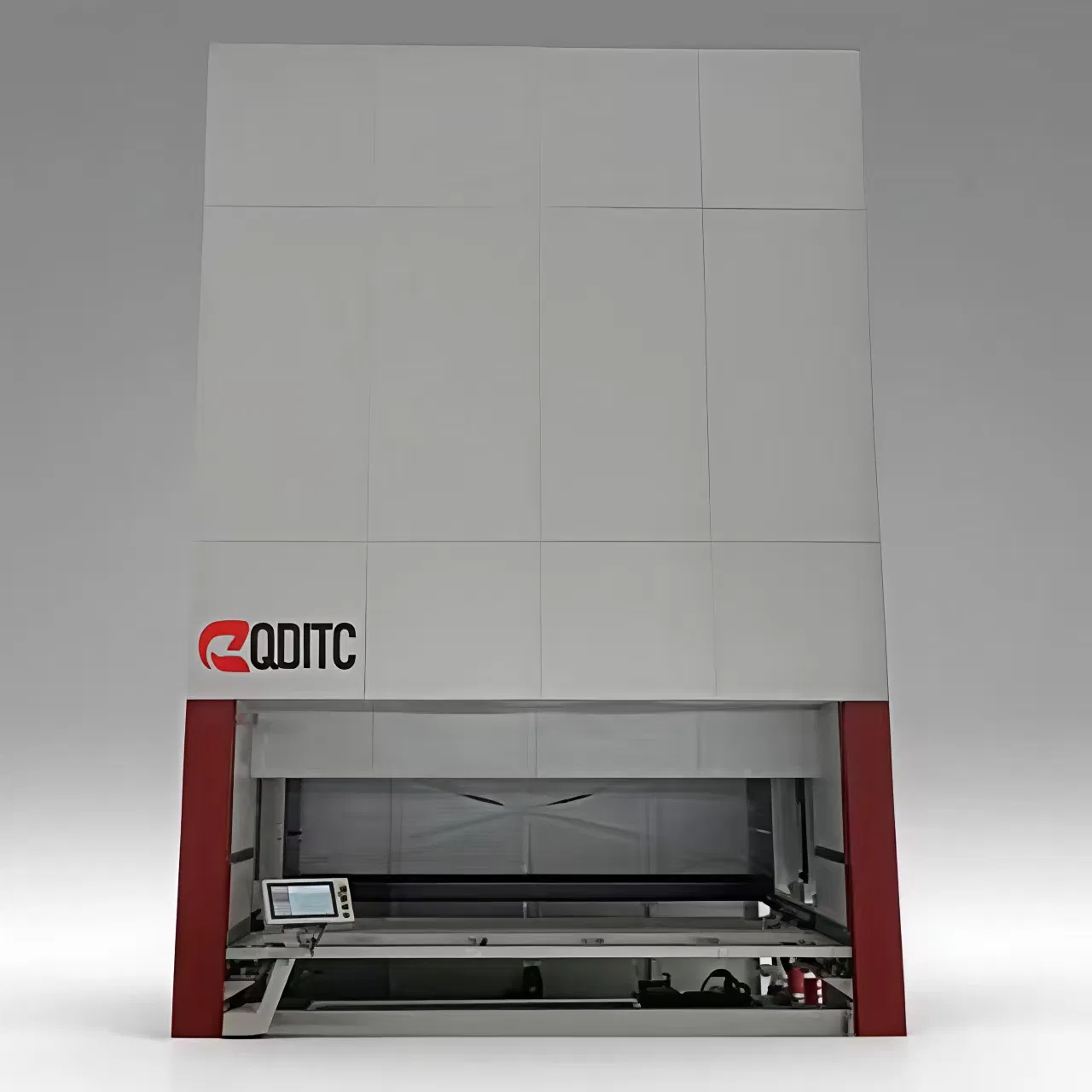

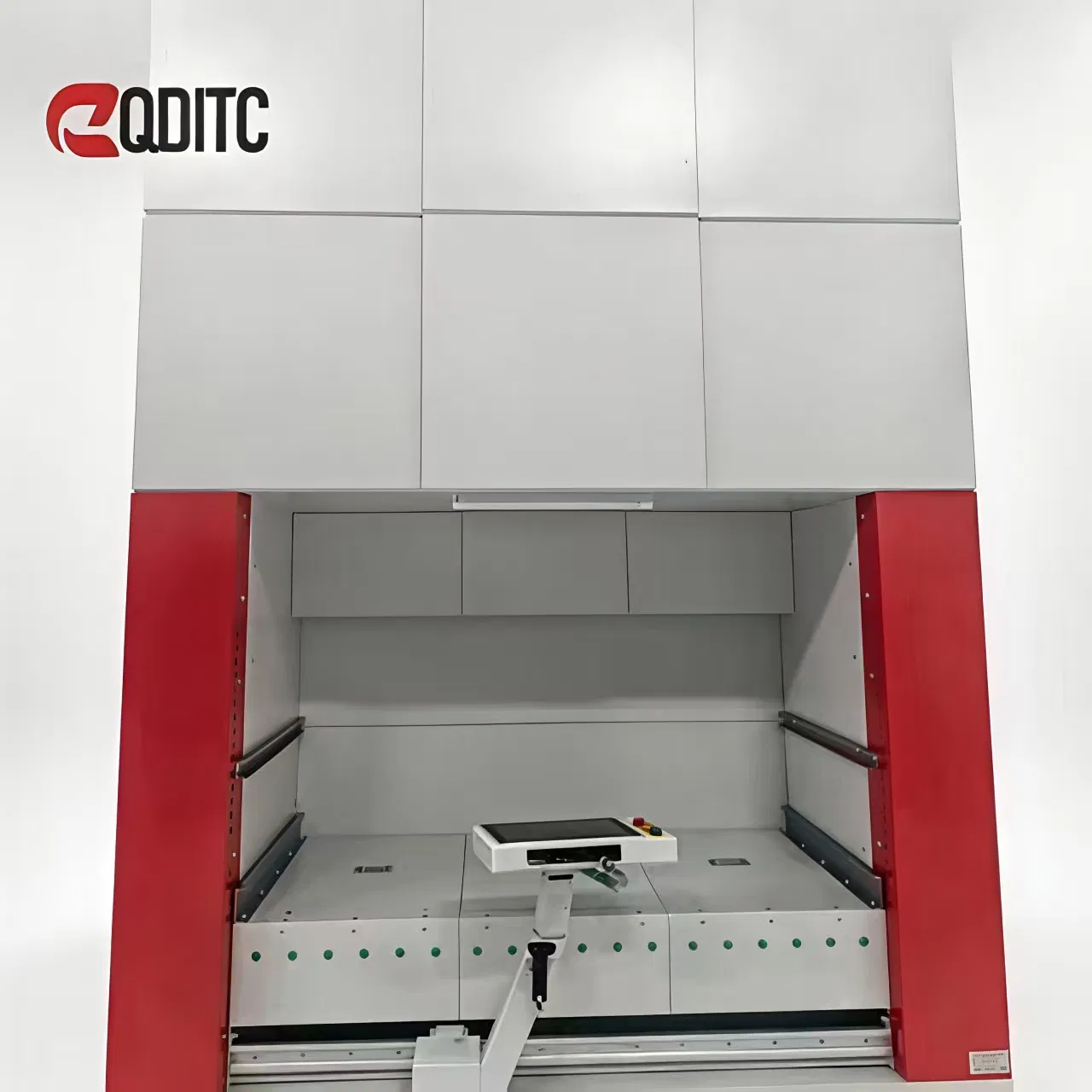

PG-VLM Vertical Lift Module

Managed by a professional material information system, the industry-agnostic Vertical Lifting System enables intelligent storage and retrieval of diverse materials. Its core applications cover tooling, spare parts, electronic components, pharmaceutical products, and semiconductor materials. Effectively meeting special material storage needs via FFU and constant temperature machines.

Key Features:

Modular wall panel design: Standardized and compact.
High-speed operation: Reaches entrance/exit rapidly.
Massive capacity: Single Tray supports up to 1000kg.
Advanced Safety: Multiple designs for stable, reliable operation.

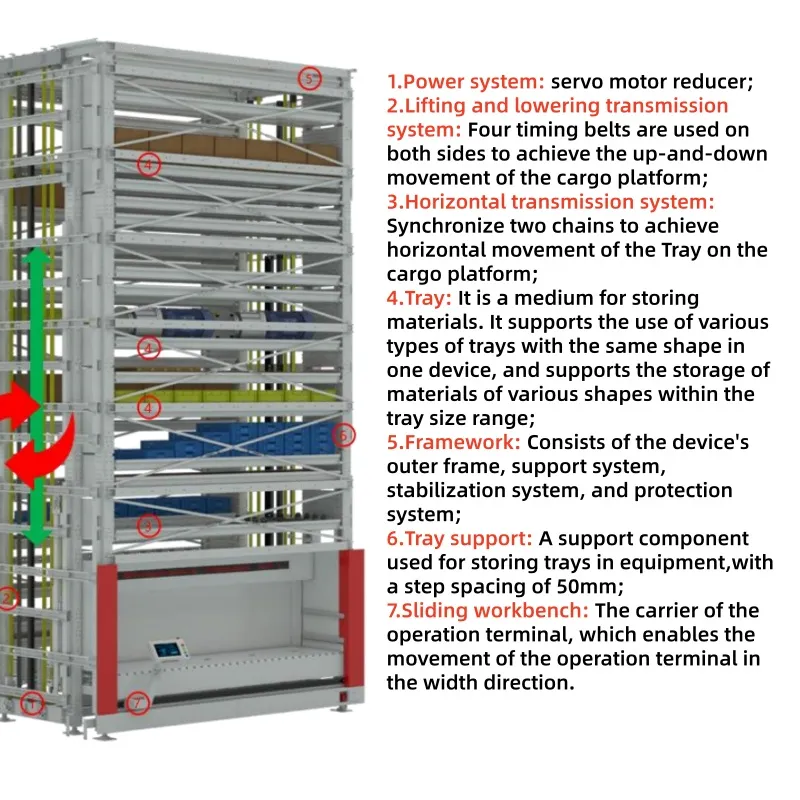

Working Principle

The Vertical Lifting Container adopts a standardized modular design to plan vertical space efficiently. Featuring an integrated tray bracket installed on the column side, it increases material storage by over 90%. Equipment height can reach 18.5 meters, supporting a load capacity of over 90 tons.

Frequently Asked Questions

● What core systems do you provide?

We offer integration for automated warehouse systems including VLM (Vertical Lift Machine), VCM (Vertical Carousel), VSM (Vertical Sorting), AGV/RGV, and Intelligent Smart Stacking AS/RS.

● What materials can be stored in the VLM?

It is ideal for tools, industrial spare parts, electronic components, medical drugs, aerospace materials, and important documents or magnetic media.

● What industries benefit from this technology?

Mainly used in aerospace, machinery, petrochemical, pharmaceutical, electronics, archives, automotive, and logistics industries.

● What is the standard lead time for orders?

Small quantities generally take 60 days. Larger quantities or custom items require approximately 90 days, depending on stock availability.

● Do you handle international shipping?

Yes, our logistics partners have extensive experience in global transportation, ensuring smooth delivery to various countries.

● What are the payment terms?

Standard terms are 50% advance payment, 45% pre-shipment payment, and 5% acceptance payment within 10 days of installation.
