| Model | B1 |
| Exhaust Type | Forced Exhaust |
| Energy Grade | Grade One |
| Material | Copper Interior |
| Installation | Indoor Standard / Packaged Boiler |
| Fuel Type | Gas-Fired |
| Certification | ISO9001, CCC |
| Specification | 20KW / 24KW / 28KW / 36KW |
| Water Pressure | 0.03-0.7MPa |
| Expansion Tank | 8L / 1bar Pre-charge |

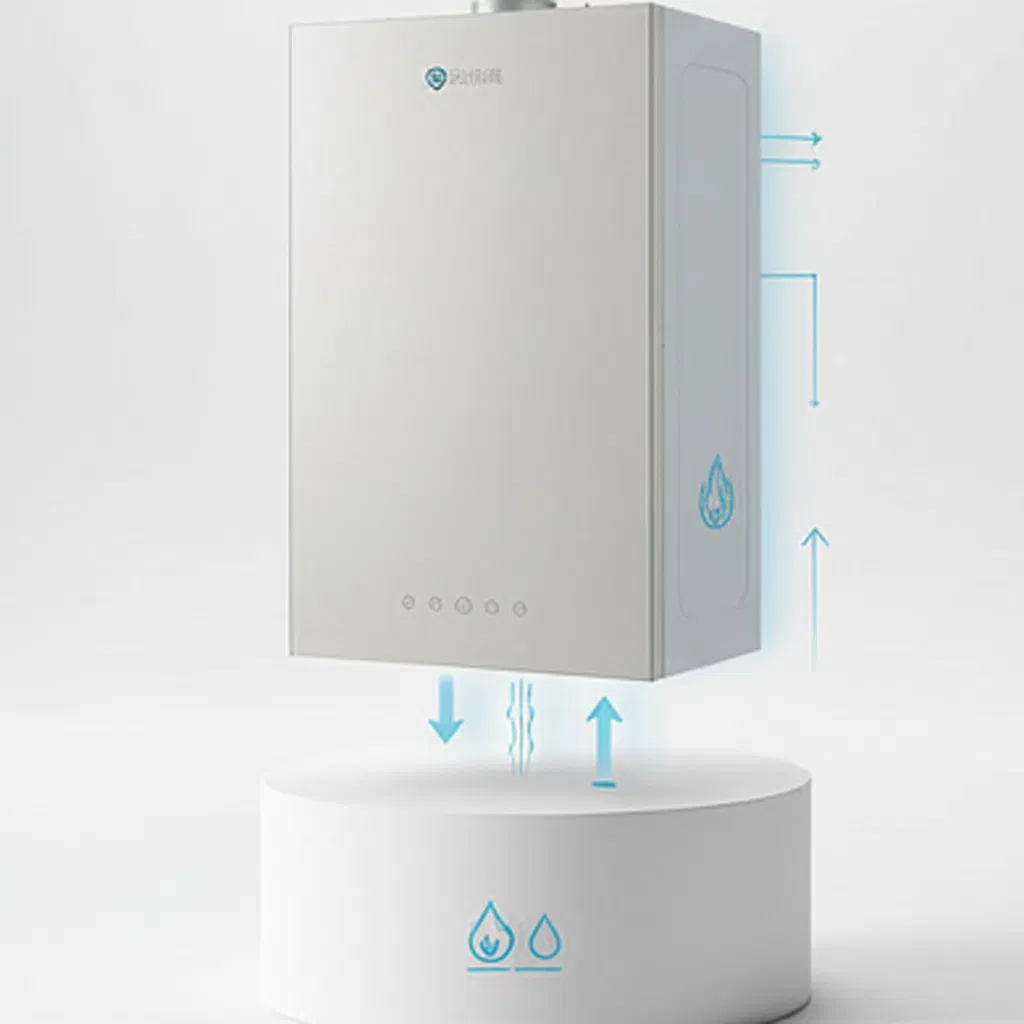

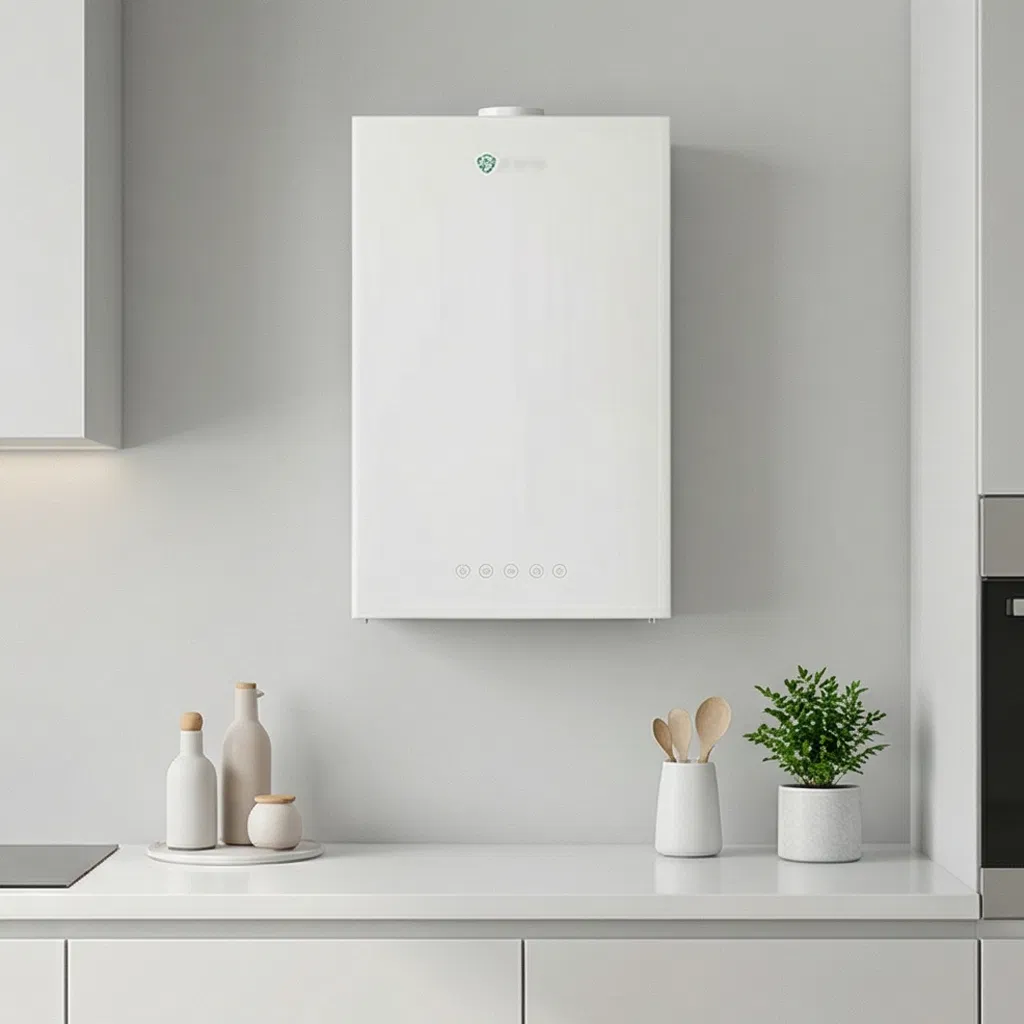

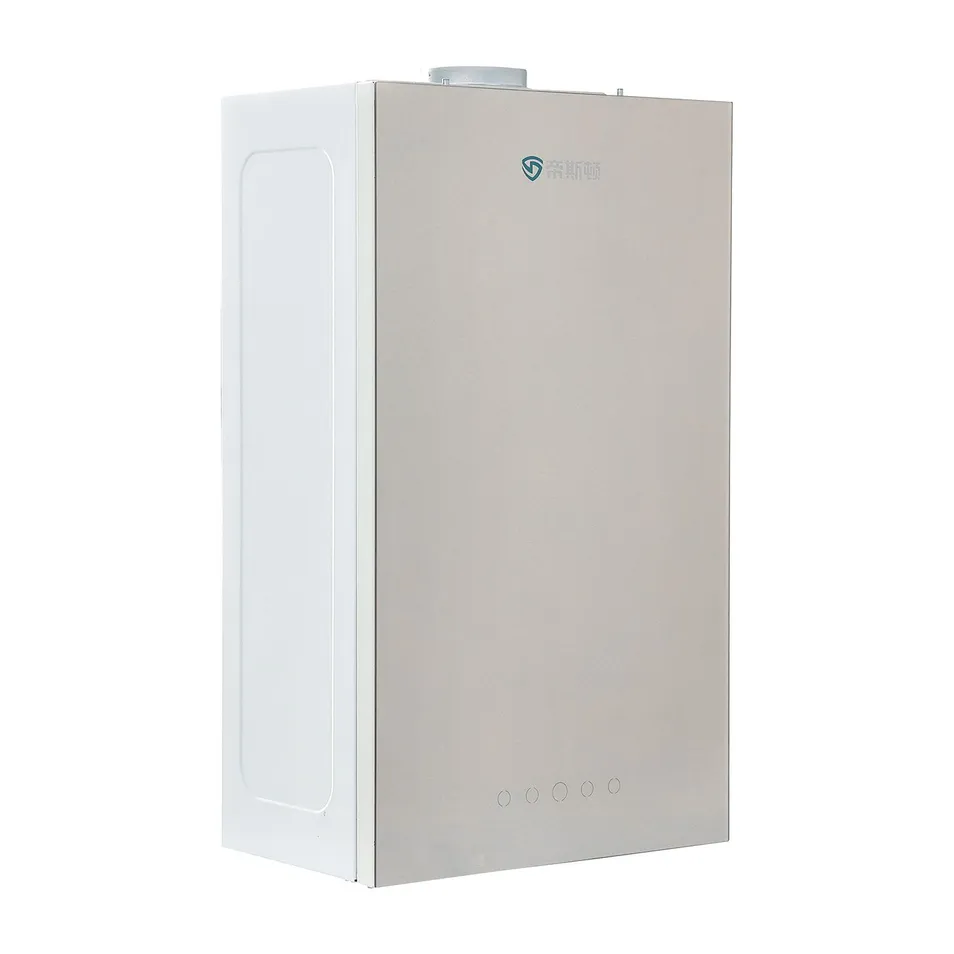

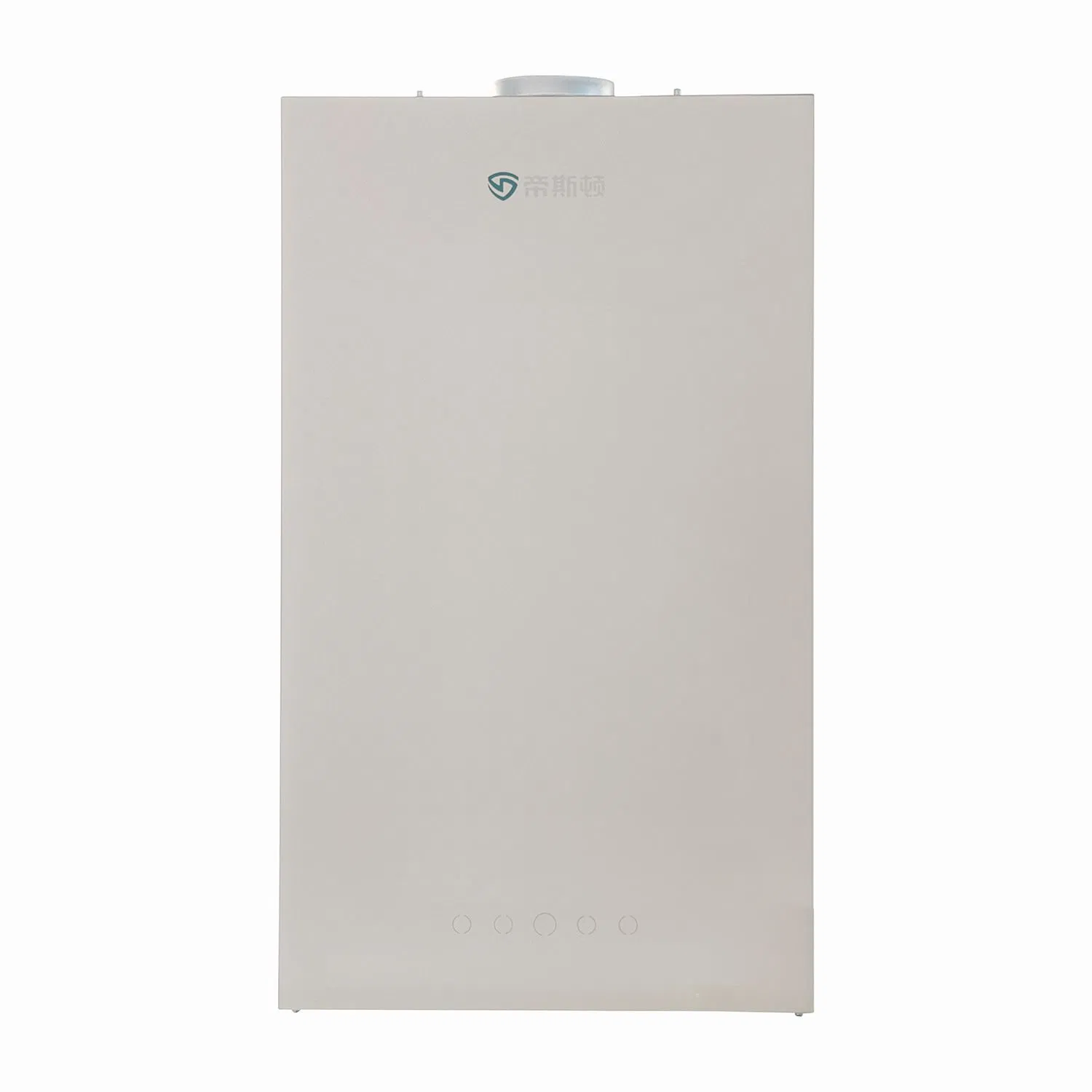

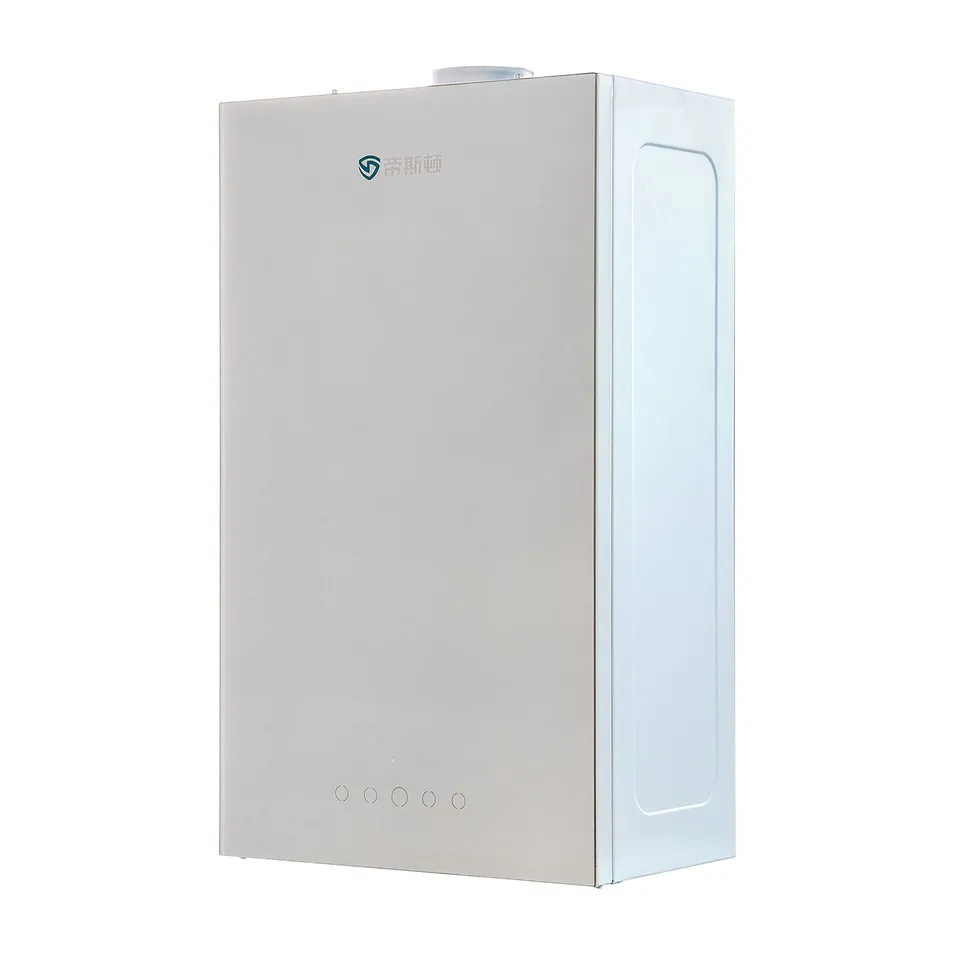

The WSQ2 Gas Heating Hot Water Stove showcases a sophisticated, contemporary design that merges elegance with practicality. Its main body features a large, frosted glass panel in a soft, muted beige tone, which adds a high-end, minimalist aesthetic while resisting fingerprints and scratches. The integrated digital control area includes a bright LED display showing temperature and an intuitive interface with touch-sensitive buttons.
Core Functions:
As a dual-purpose appliance, it delivers central heating (30–80°C for radiators) and stable domestic hot water (35–60°C). The gas proportional valve eliminated sudden temperature fluctuations, ensuring a comfortable shower experience.
Key Advantages:

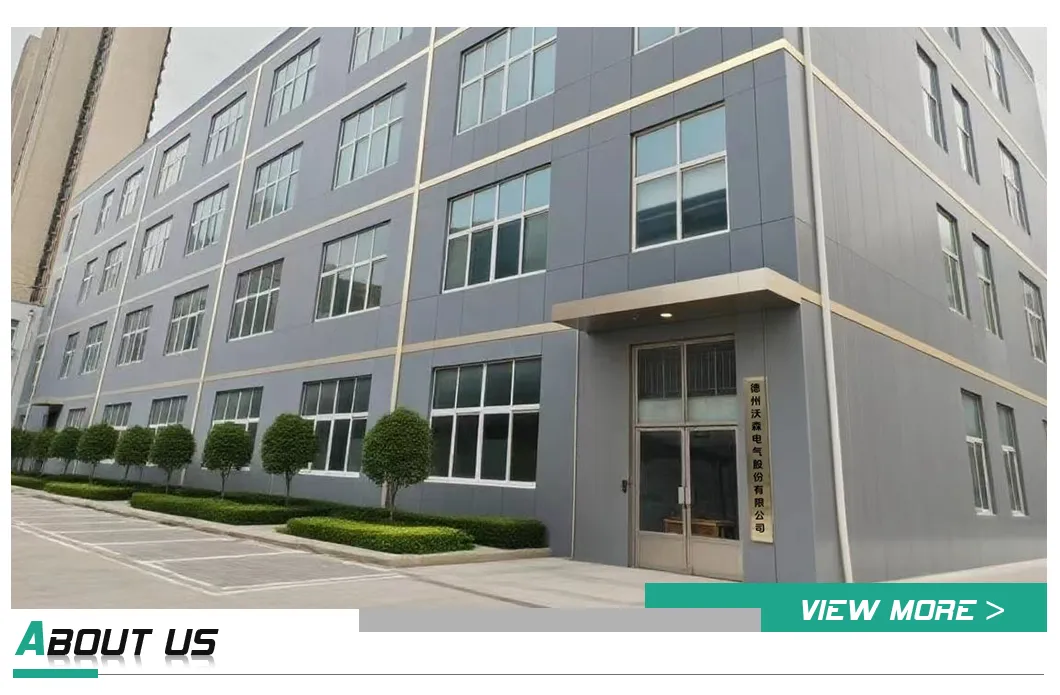

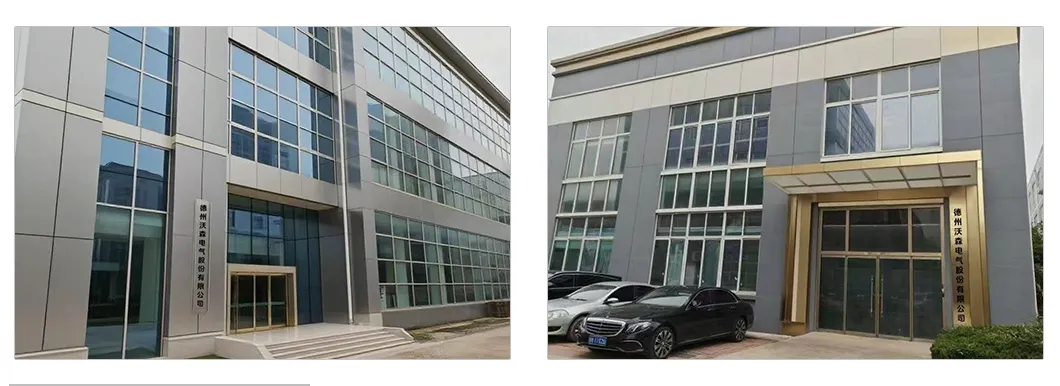

A high-tech joint-stock enterprise integrating R&D, production, sales, and service of thermal energy equipment. Since 2011, the company has pursued technological innovation to provide safe, energy-saving, and environmentally friendly heating products, including domestic gas furnaces and commercial condensing water heaters.
| Model WS/B1 | Unit | 20kW | 24KW |
|---|---|---|---|
| Max Heat Load (Heating) | kW | 20.0 | 24.0 |
| Thermal Efficiency | % | >90 | |
| Natural Gas Consumption | m³/h | 2.15 | 2.5 |
| Effective Heating Area | m² | <100 | <150 |
| Expansion Tank Capacity | L | 6 | 6 |
| Rated Power | W | 120 | 120 |
| Protection Rating | - | IPX4 / Class I | |
A: For 80-150m², 24KW is ideal for one kitchen and twin bathrooms. For 150m²+ or villas, choose 28KW or above. In colder regions or homes with multiple bathrooms, consider increasing power by 20-30%.
A: No, it prioritizes hot water. When a faucet is opened, it automatically switches to hot water mode and resumes heating once the faucet is closed.
A: These are typically condensing units with >107% thermal efficiency, saving 15-20% on gas compared to standard boilers, which quickly covers the initial cost difference.
A: Domestic hot water will stop, but the heating system (a closed loop) will continue to operate normally as it does not require real-time water refills.
A: For short trips, use the anti-freezing mode (keep power/gas on). For long absences, turn off utilities and drain all water from the machine and pipes.
A: No. Components like fans and pumps use only 100-200W/h and run intermittently. Total monthly consumption is comparable to a standard refrigerator.
