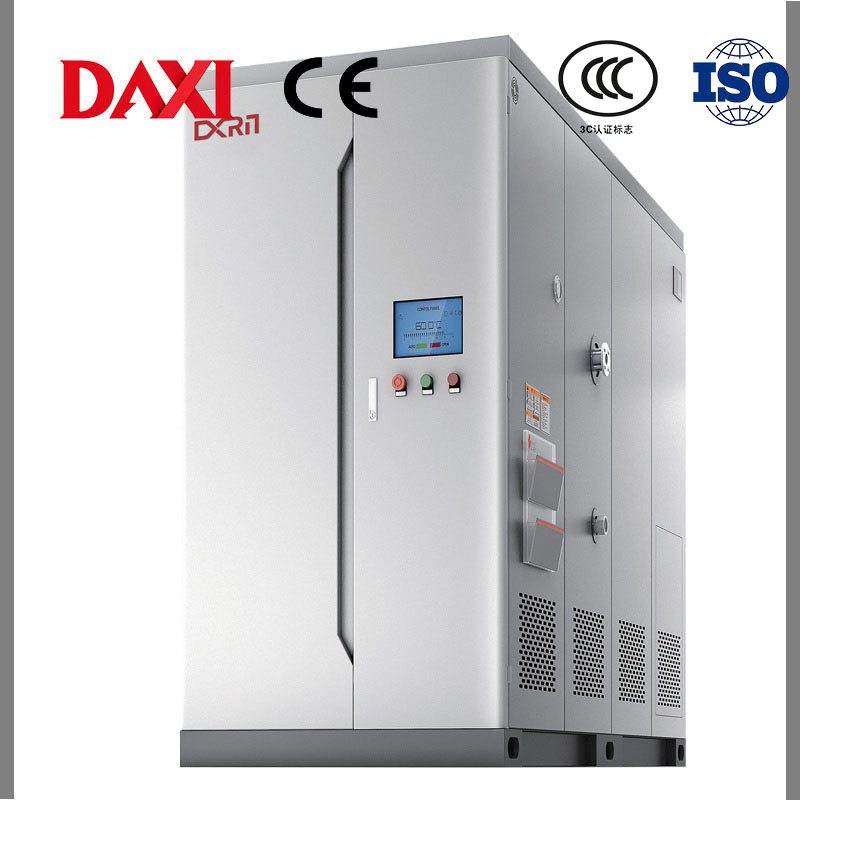

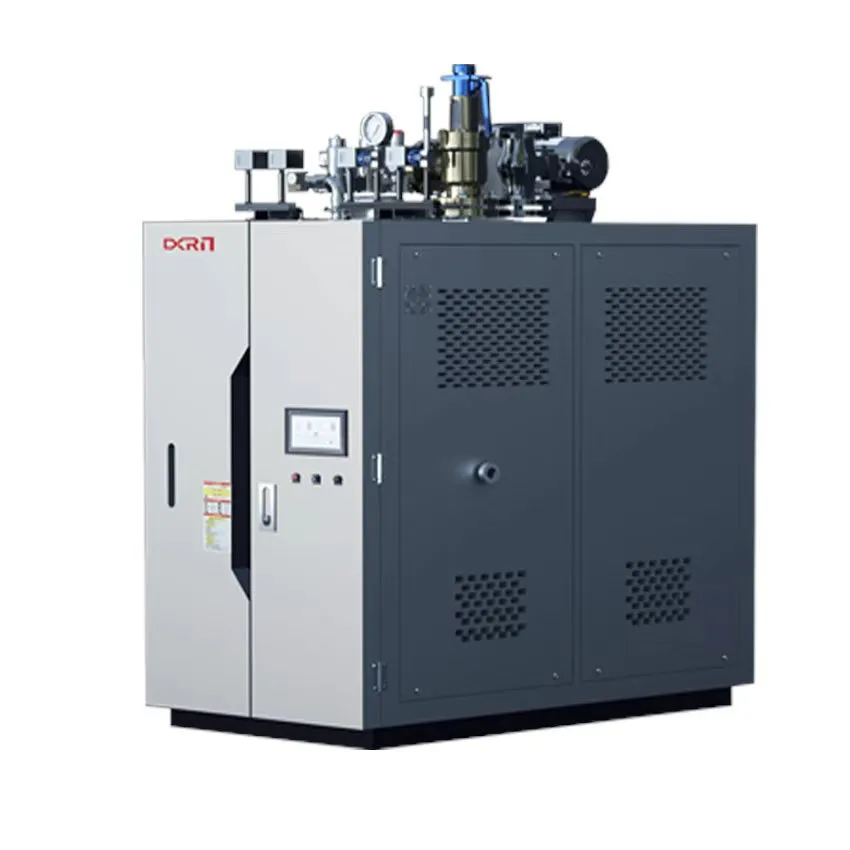

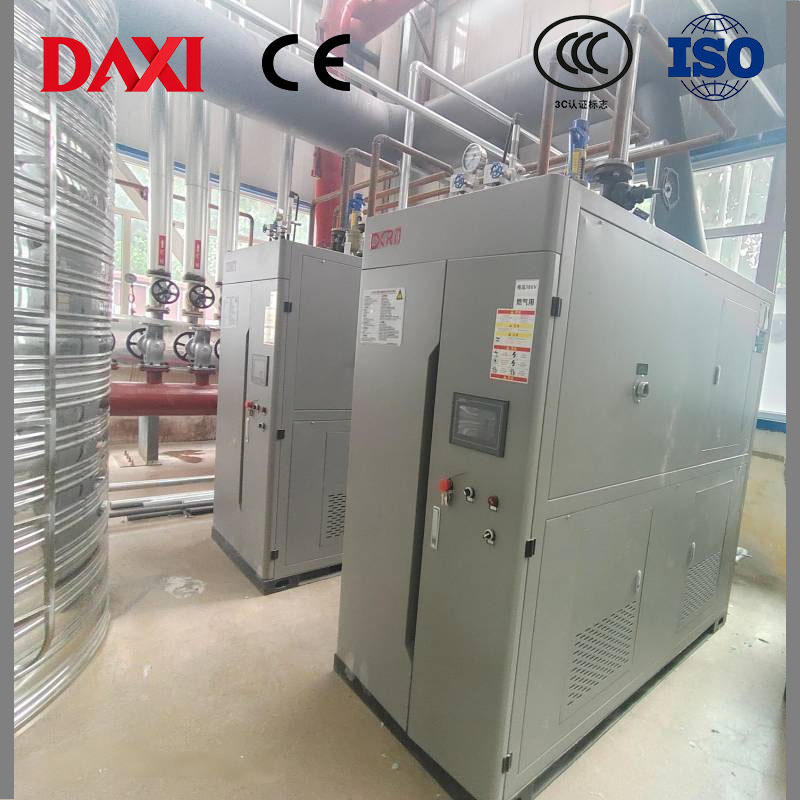

Steam Generators: The Steam Generator employs premixed combustion tech with finned tubes for efficiency and low nitrogen emissions. Safety features include anti-dry, anti-overheat, and anti-overpressure. Optional waste heat recovery optimizes energy.
No preheat, steam in 15s, 24h gas supply, efficient production. Thermal efficiency 102%, 74.4 m3 gas/ton steam, saves 30% vs traditional boilers, lowers yearly equipment costs. Multiple protections, expert maintenance, one-click start, smart operation, mobile monitoring, energy-efficient and safe.
| Model | Rated Evaporation (t/h) | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|
| LSS0.5-1.0-Q | 0.5 | 1780 | 850 | 2140 |
| LSS0.6-1.0-Q | 0.6 | 1780 | 850 | 2140 |
| LSS1.0-1.0-Q | 1.0 | 1880 | 850 | 2150 |
| LSS1.2-1.0-Q | 1.2 | 2180 | 950 | 2160 |
| LSS1.5-1.0-Q | 1.5 | 2180 | 950 | 2160 |
| LSS2.0-1.0-Q | 2.0 | 2270 | 980 | 2390 |
Right Elevation

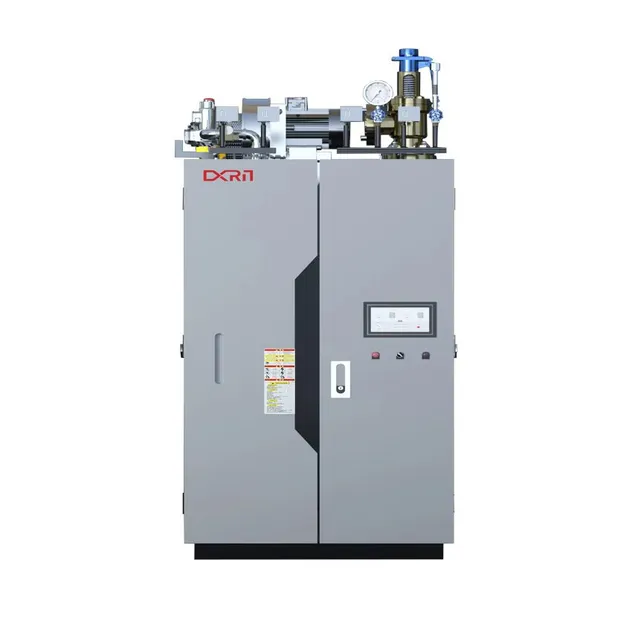

Front Elevation

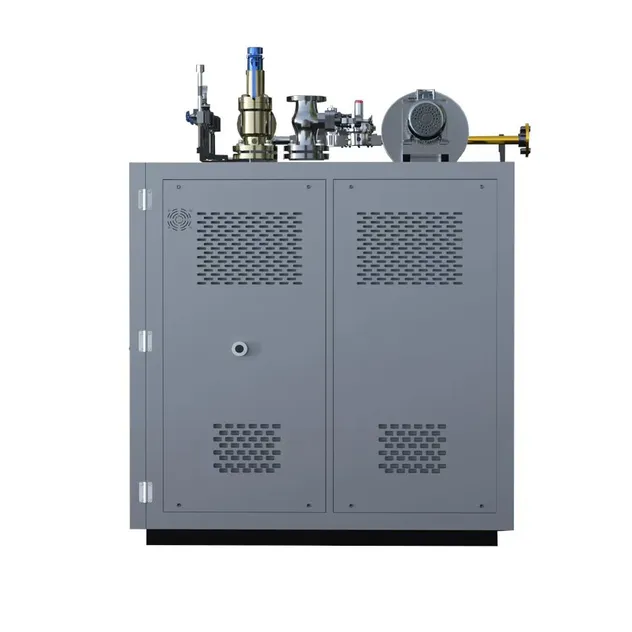

Left Elevation

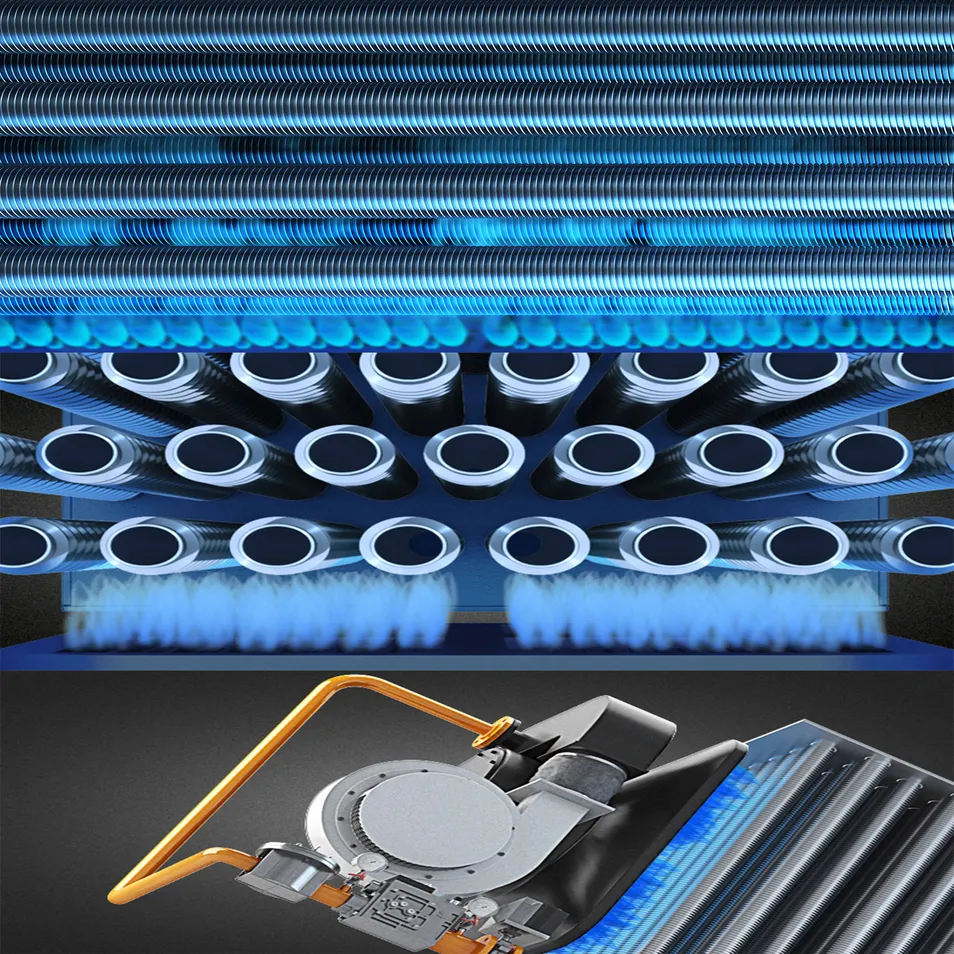

The thermal conductivity is 15 times that of ordinary bare tubes and 7.8 times that of high-frequency welded finned tubes, featuring high thermal conductivity and a large heating surface area. GB5310 steel tubes are selected. With an initial wall thickness of 8mm, they are heated to 1050°C via high-frequency heating.
