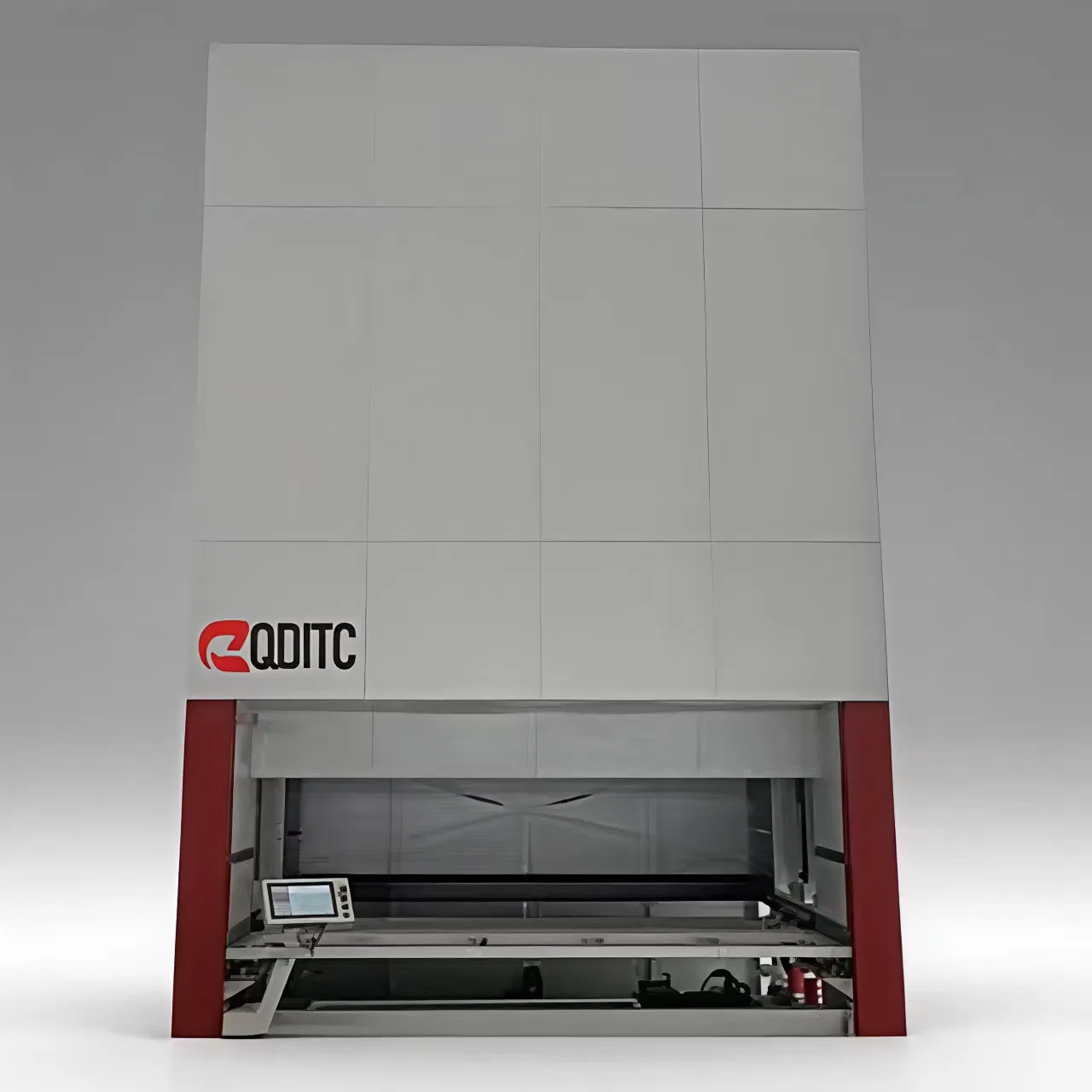

Next Gen Vertical Lift Module Solutions for Smart Inventory Handling

1 / 5

Next Gen Vertical Lift Module Solutions for Smart Inventory Handling

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

We stand as the embodiment of groundbreaking innovation, continually reshaping the arena of intelligent solutions with our exceptional technological prowess. Our mission is to seamlessly meet the dynamic demands of contemporary storage and warehousing with unparalleled precision and expertise. By perpetually pushing the boundaries of technology and enhancing strategic efficiencies, we ensure our cutting-edge solutions lead the industry.

Basic Specifications

Model NO.

PG2550S

Unit Weight (Kg)

4520

Condition

New

Machine Name

Goods Sorting

Tray Size

W2560mm*D655mm*H125mm

Quantity of Tray

Core Components

PLC, Bearing, Gearbox, Motor

Tray Load

500kg Level

Specification

W3185mm*D3290mm*H9000mm

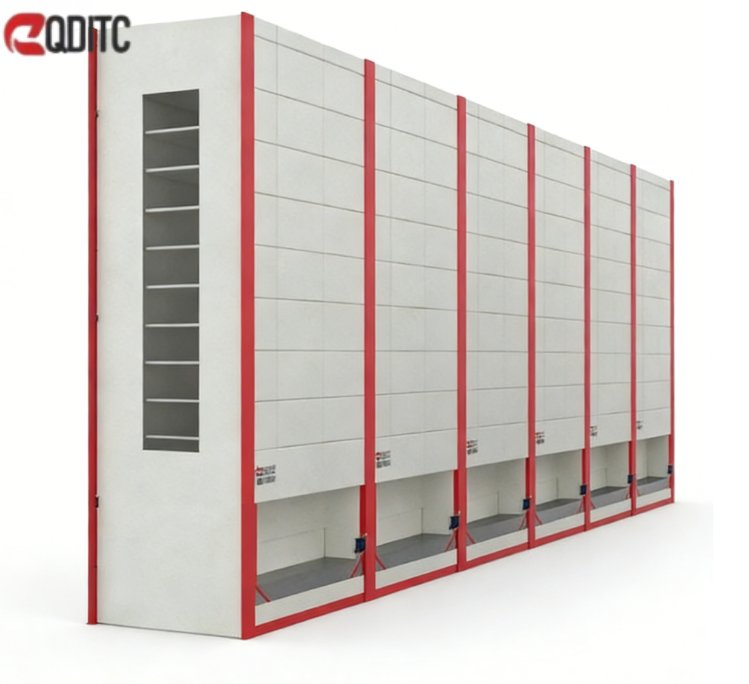

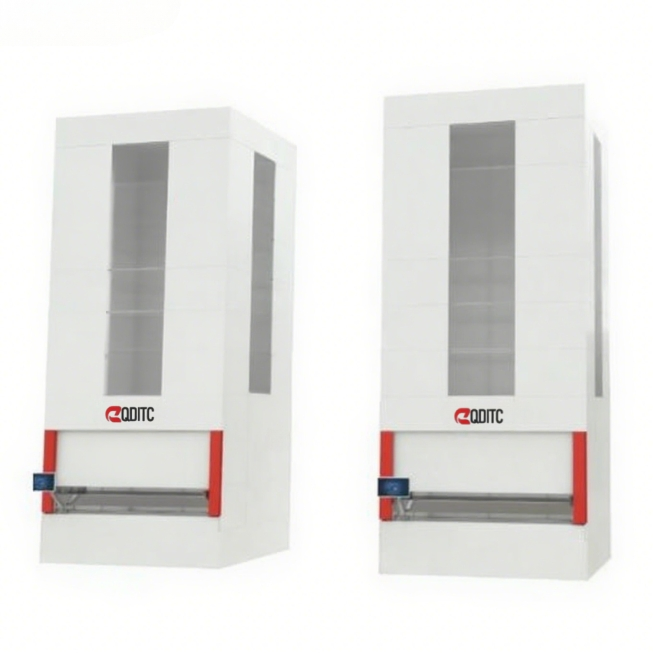

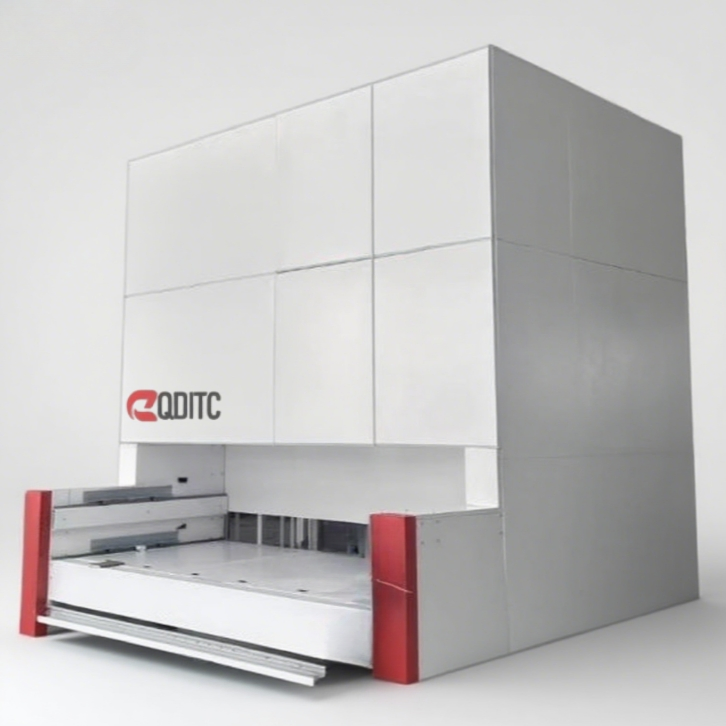

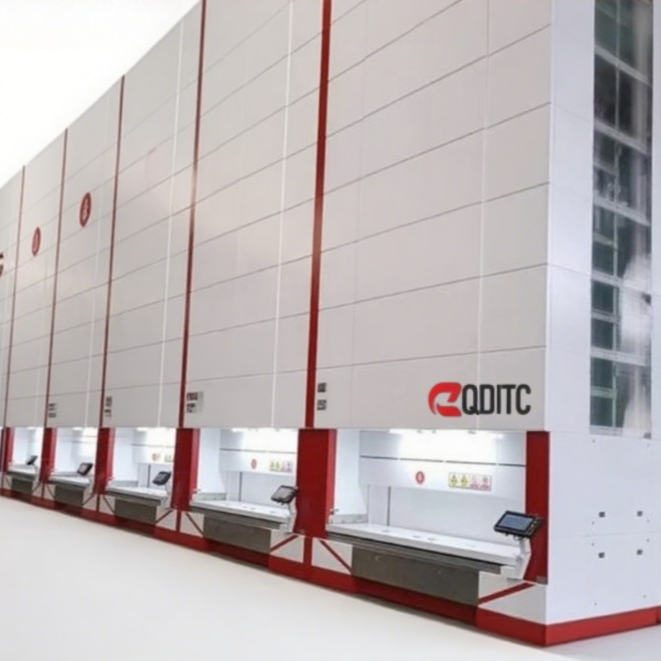

PG-VLM: Vertical Lift Module

Tailored to application scenarios and stored item features with optimal dimensions, our products are managed by a professional material information system. The industry-agnostic Vertical Lifting System enables intelligent storage and retrieval of diverse materials, supporting multi-spec and multi-attribute material management.

Modular Design: Standardized and compact modular wall panels.

High-Speed Operation: Quickly reaching the entrance and exit of the warehouse.

Astonishing Capacity: Single tray load up to 1000kg.

Auxiliary Platform: Efficient picking and storage for heavy materials.

Enhanced Safety: Multiple stable and reliable safety designs.

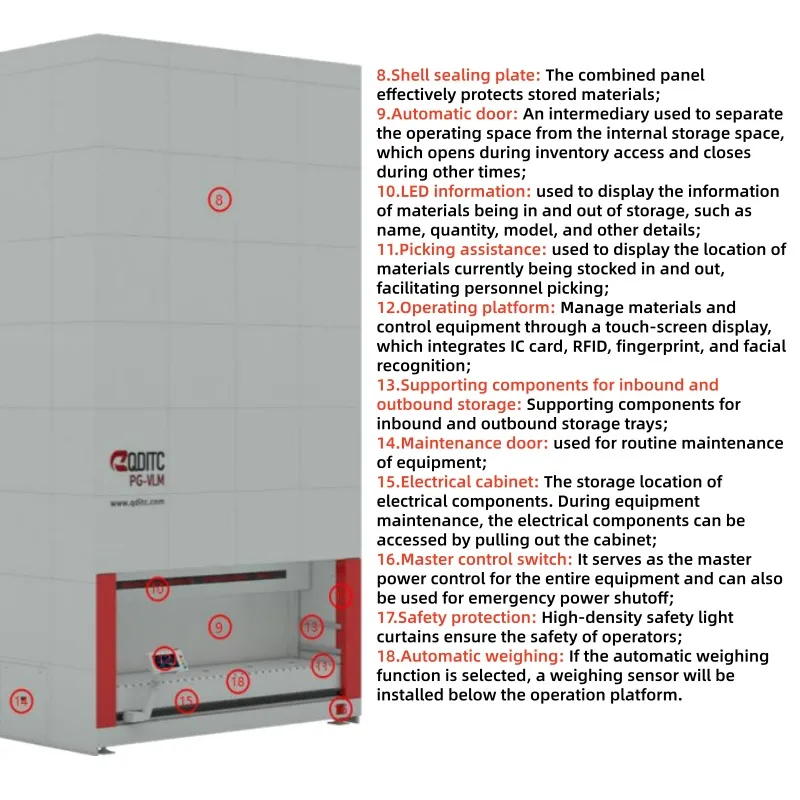

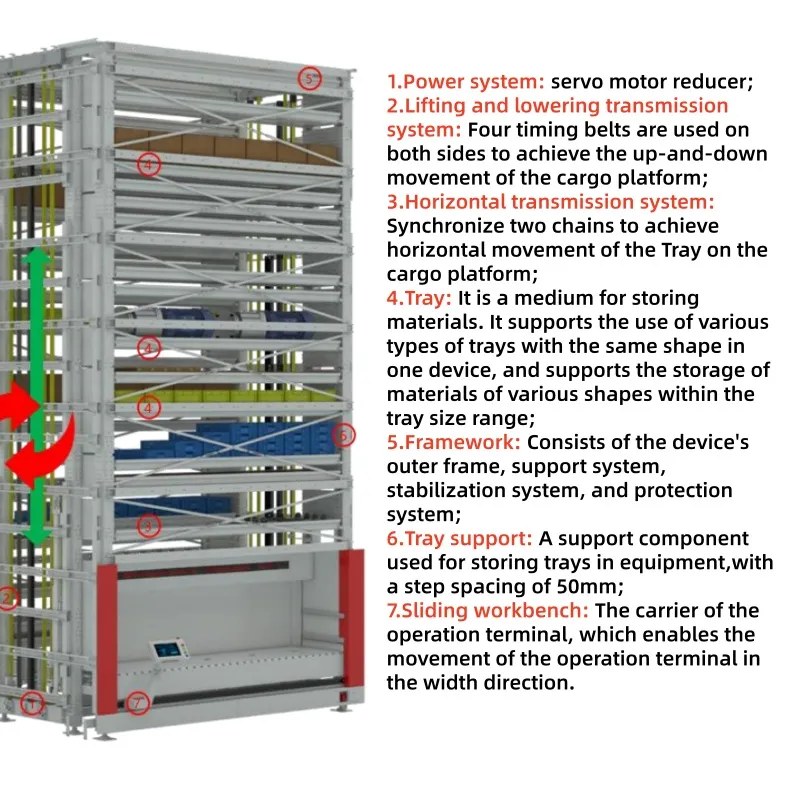

Working Principle

The Vertical Lifting Container adopts standardized planning for vertical space. An integrated tray bracket precisely supports trays, increasing material storage capacity by over 90%. Systems can reach heights of 18.5 meters with a 90-ton load capacity.

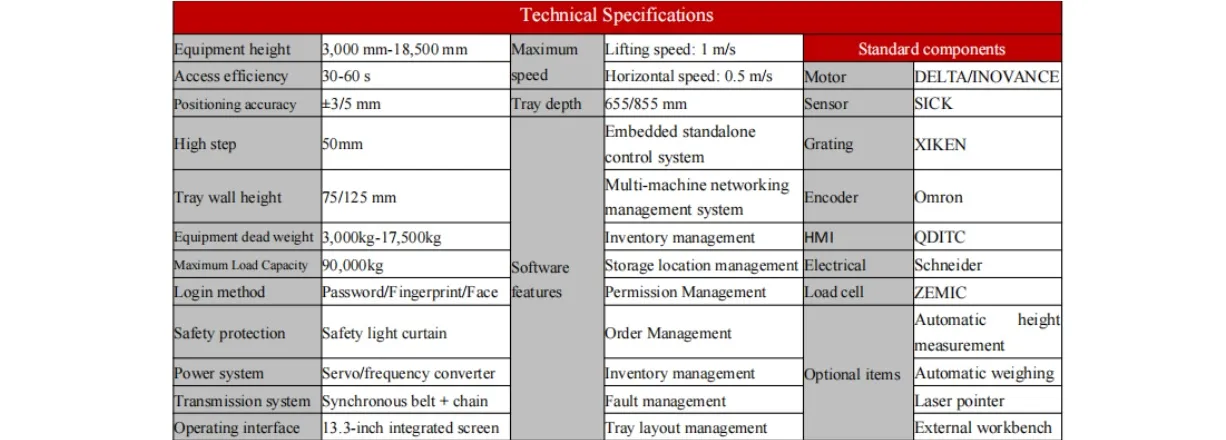

Technical Specs & Dimensions

Tip: Green sections denote dimensions and specifications that can be modified to requirements.

Frequently Asked Questions

Q1: What are your primary automated systems?

We integrate systems including VLM (Vertical Lift Machine), VCM (Vertical Carousel Machine), VSM (Vertical Sorting Machine), Intelligent Horizontal Sorting, Smart AS/RS, and AGV/RGV.

Q2: What materials are these modules mainly used for?

It is ideal for storing tools, industrial spare parts, electronic components, pharmaceutical drugs, and important documents across aerospace, medicine, and automotive industries.

Q3: What is the typical lead time for orders?

Small quantities generally take 60 days. Larger or new production runs may require 90 days. We confirm precise delivery times at the moment of order.

Q4: Do you have experience with international shipping?

Yes! Our logistics partners have extensive experience shipping to various countries, ensuring a smooth transportation process.

Q5: What are the standard payment terms?

Terms are 50% advance payment, 45% pre-shipment payment, and 5% acceptance payment within 10 days of installation.

Q6: Can the storage dimensions be customized?

Yes, the system supports 25mm and 50mm steps to accommodate various material heights and maximize space utilization.
