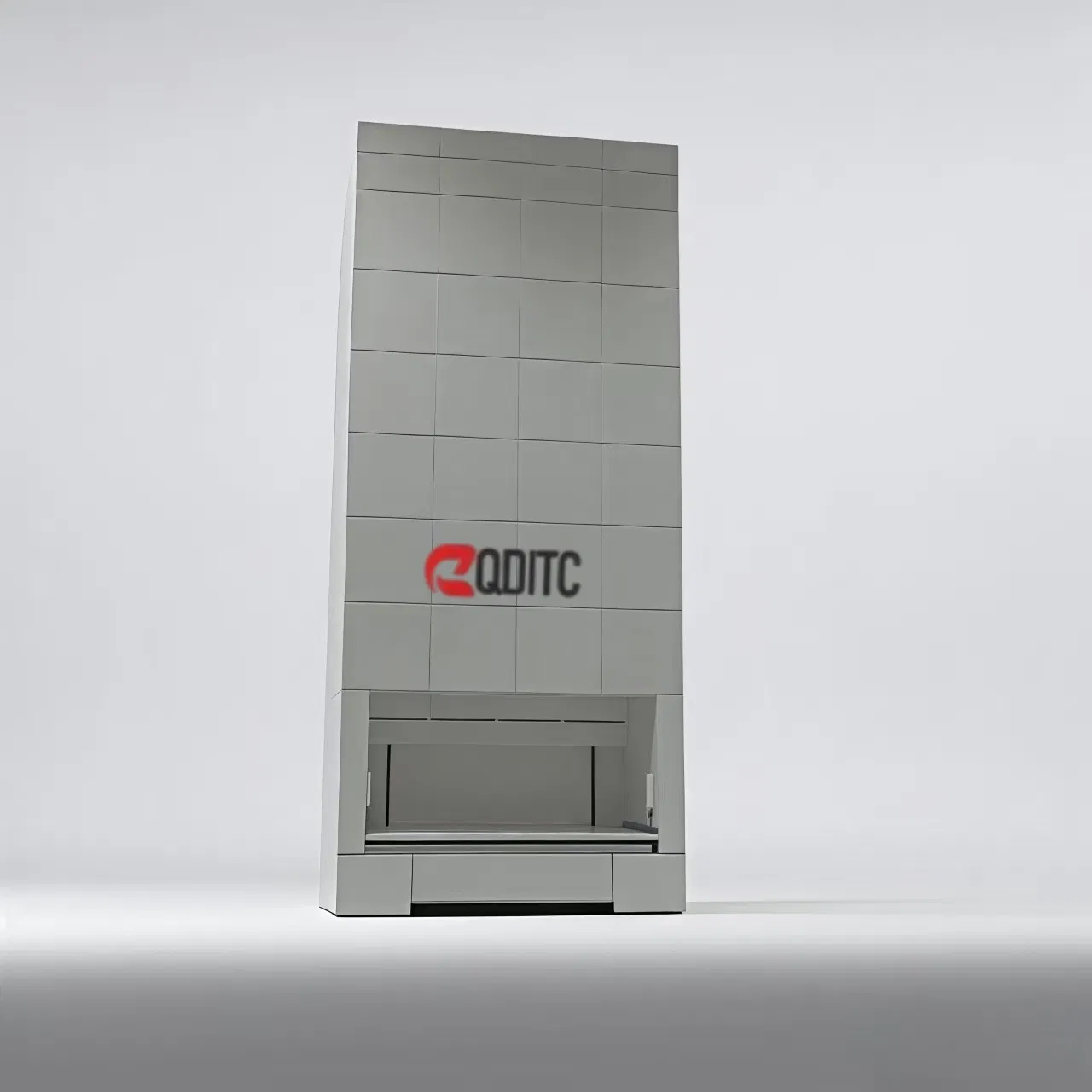

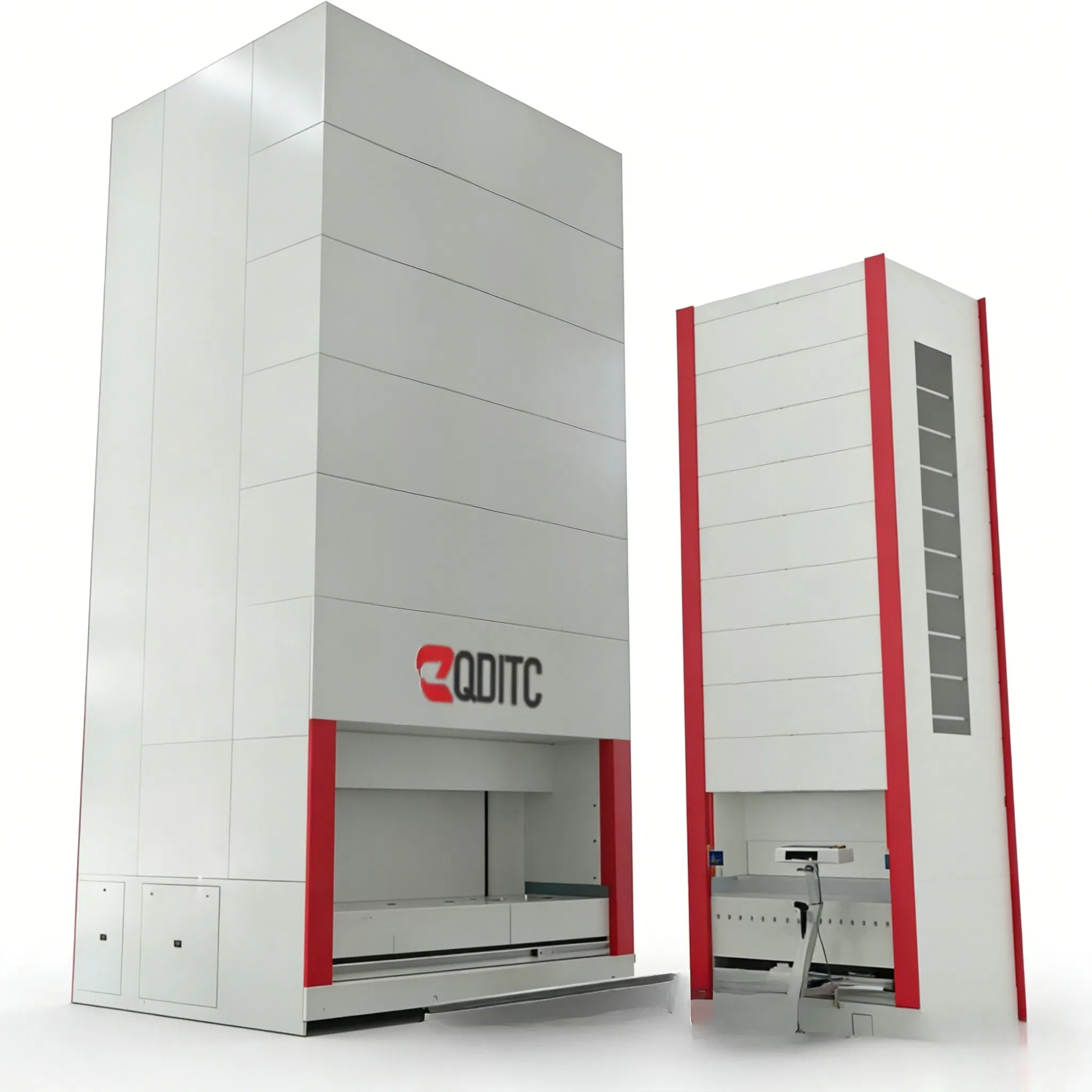

Modular-Scalable Vertical Lift Module Solutions for Growing Operations

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Basic Specifications

Model NO.:

PG2550S

Unit Weight (Kg):

4520

Condition:

New

Machine Name:

Goods Sorting

Tray Size:

W2560mm*D655mm*H125mm

Quantity of Tray:

30

Core Components:

PLC, Bearing, Gearbox, Motor

Tray Load:

500kg Level

Specification:

W3185mm*D3290mm*H9000mm

At our facility, we stand as the embodiment of groundbreaking innovation, continually reshaping the arena of intelligent solutions with our exceptional technological prowess. Our steadfast mission is to seamlessly meet the dynamic demands of contemporary storage and warehousing with unparalleled precision and expertise.

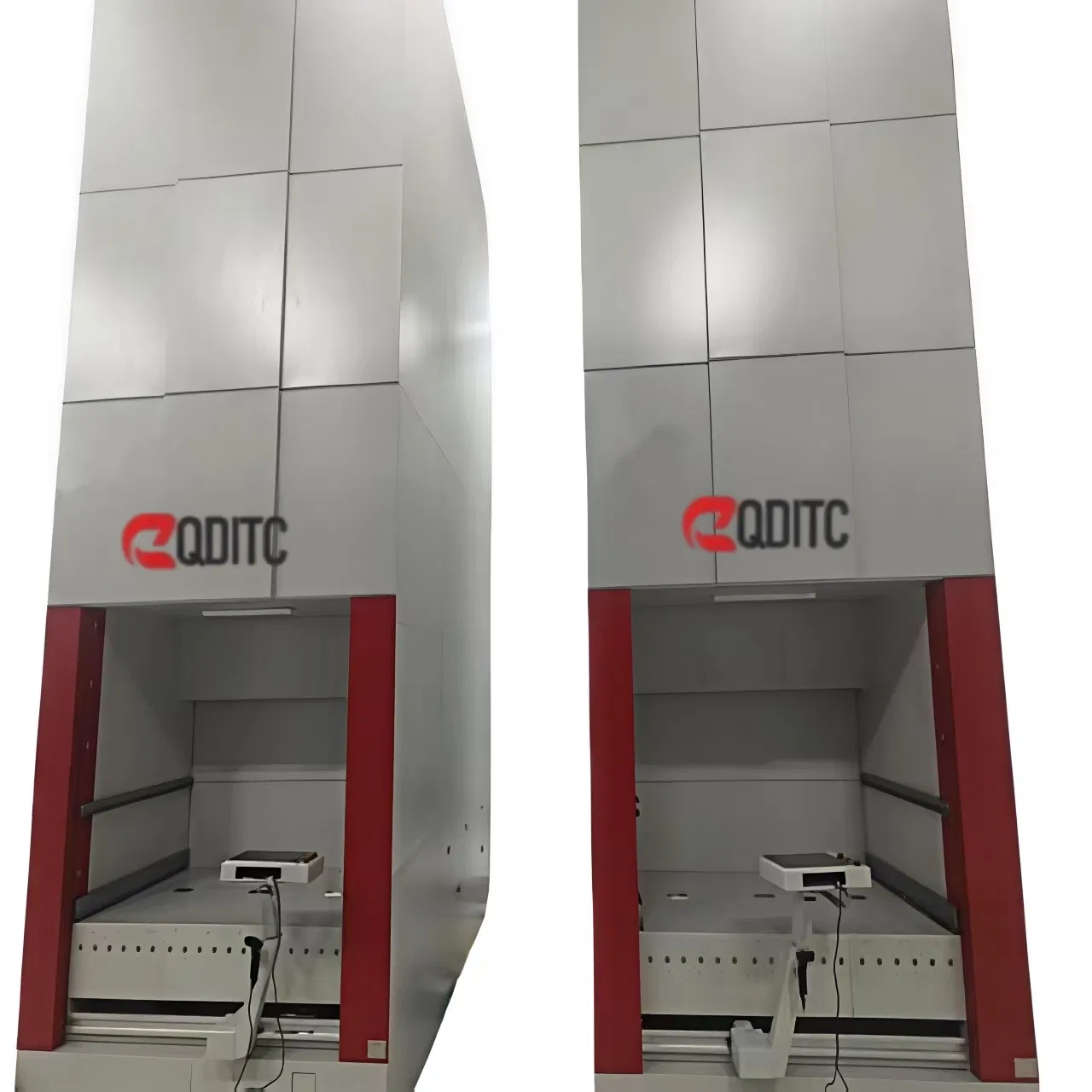

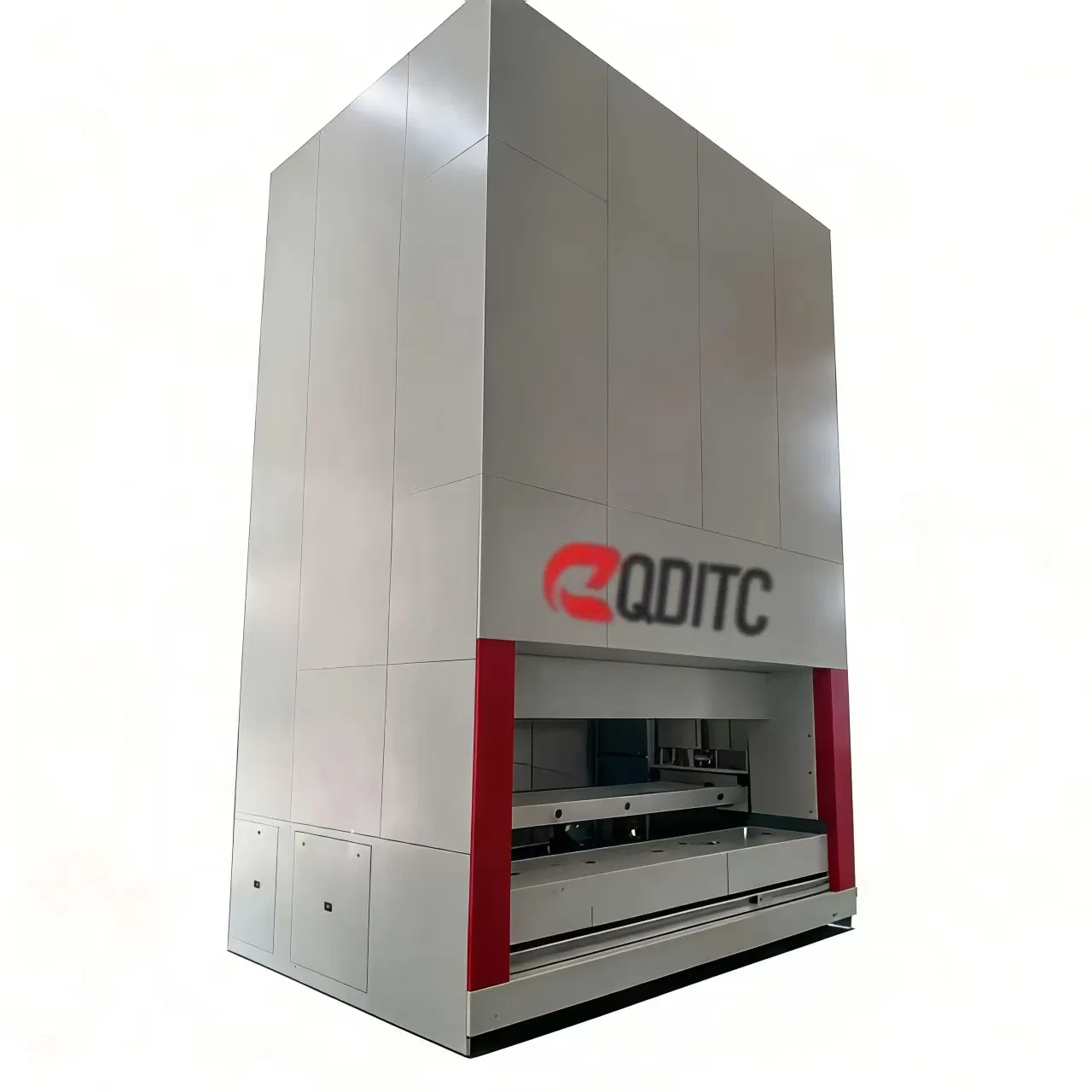

PG-VLM: Vertical Lift Module

Based on the application scenarios and the characteristics of stored items, products are designed according to the most suitable dimensions and managed through a professional material information system. It is suitable for the storage and picking of ultra-long and ultra-wide materials, molds, tools, raw materials, and heavy auxiliary materials.

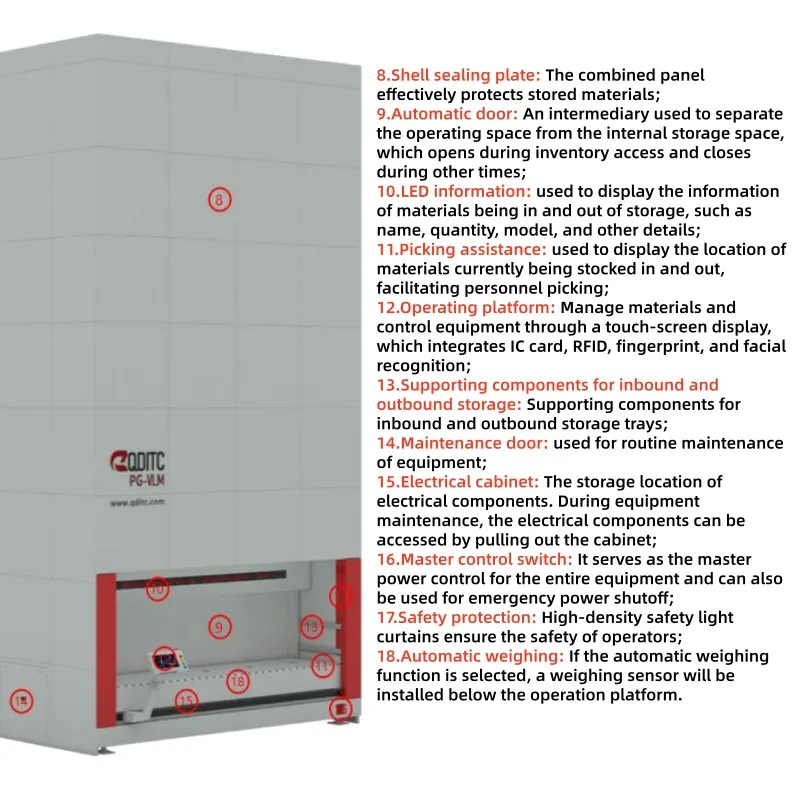

Key Features

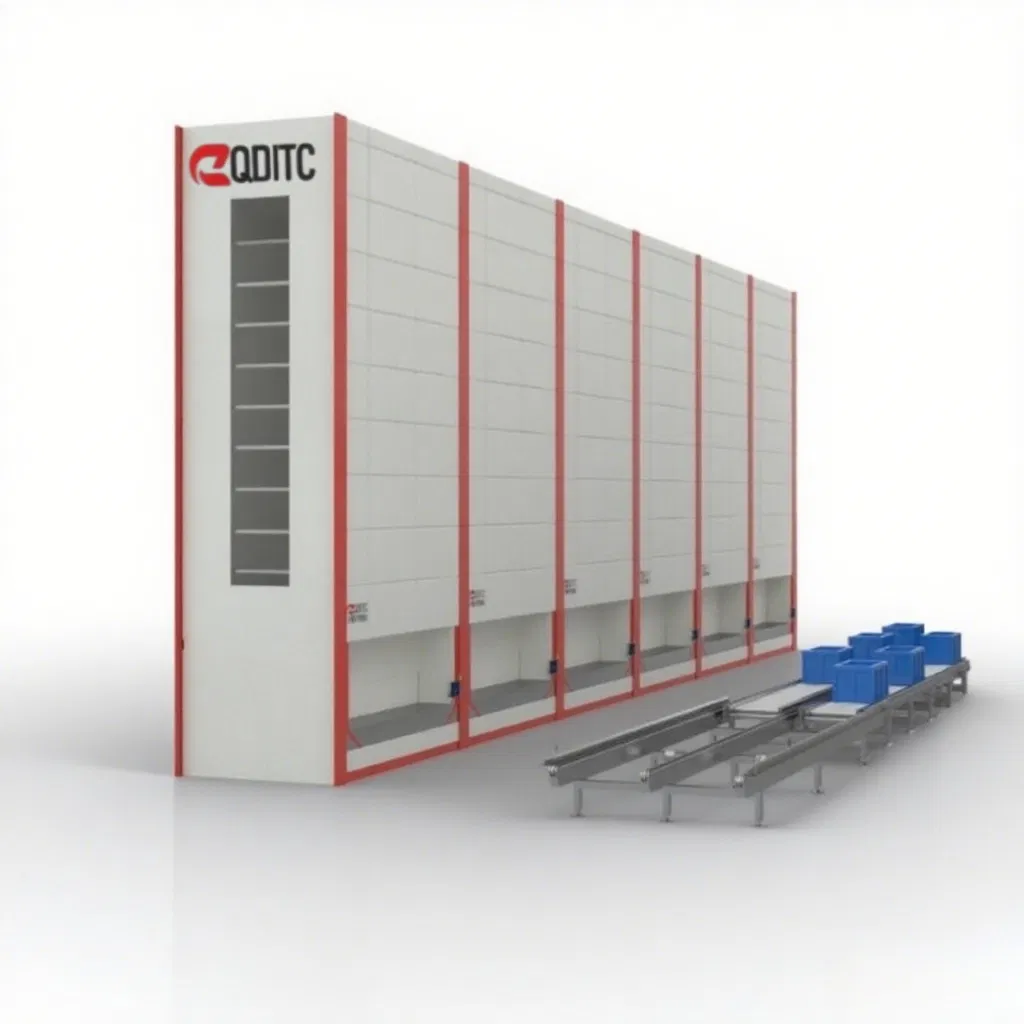

Modular wall panel design is standard and compact
High-speed operation for quick warehouse access
Astonishing single Tray capacity, up to 1000kg per piece
Auxiliary material picking platform for heavy items
Advanced safety designs for stable and reliable operation

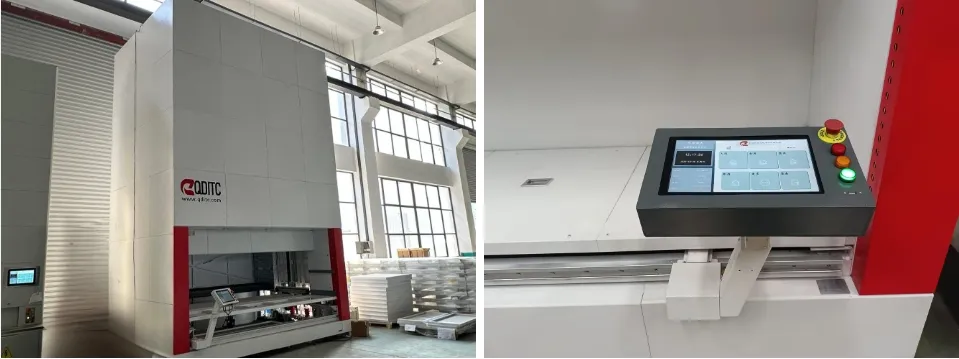

Working Principle

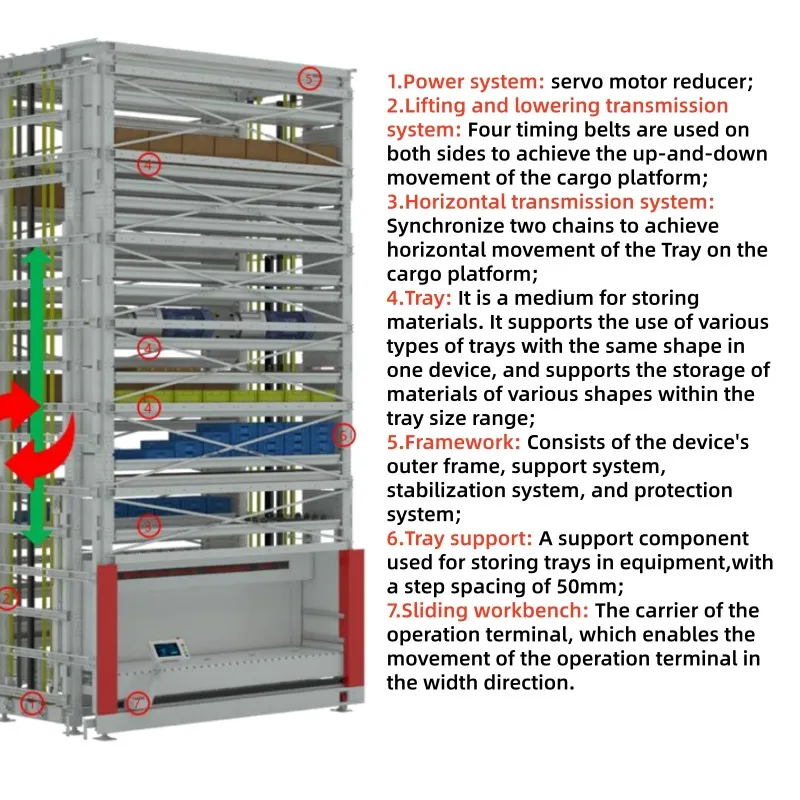

Utilizing standardized and modular design, the space is planned cleverly in the vertical direction. Features an integrated tray bracket that precisely supports trays, maximizing storage capacity and increasing material storage by over 90%.

The equipment can reach a height of 18.5 meters, achieving a load capacity of over 90 tons and supporting various material types including irregular storage items.

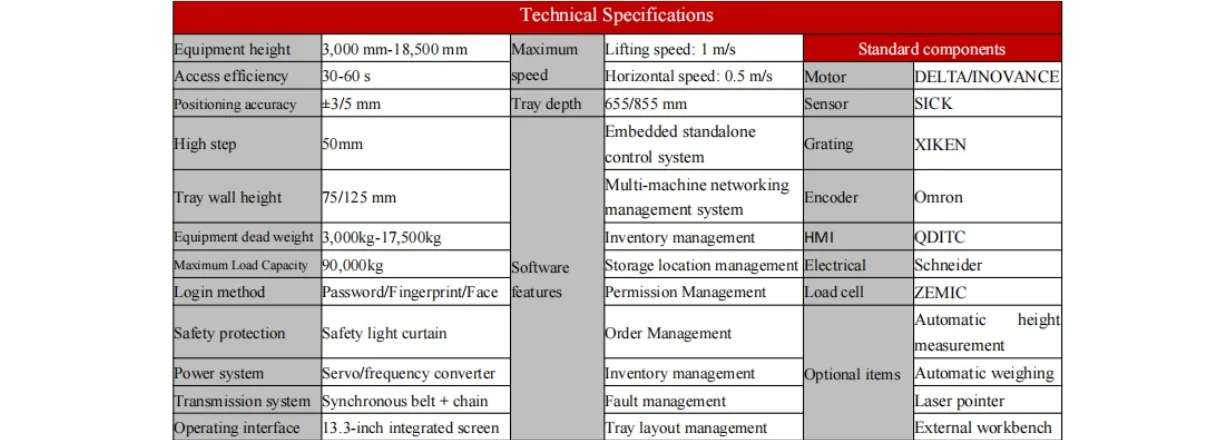

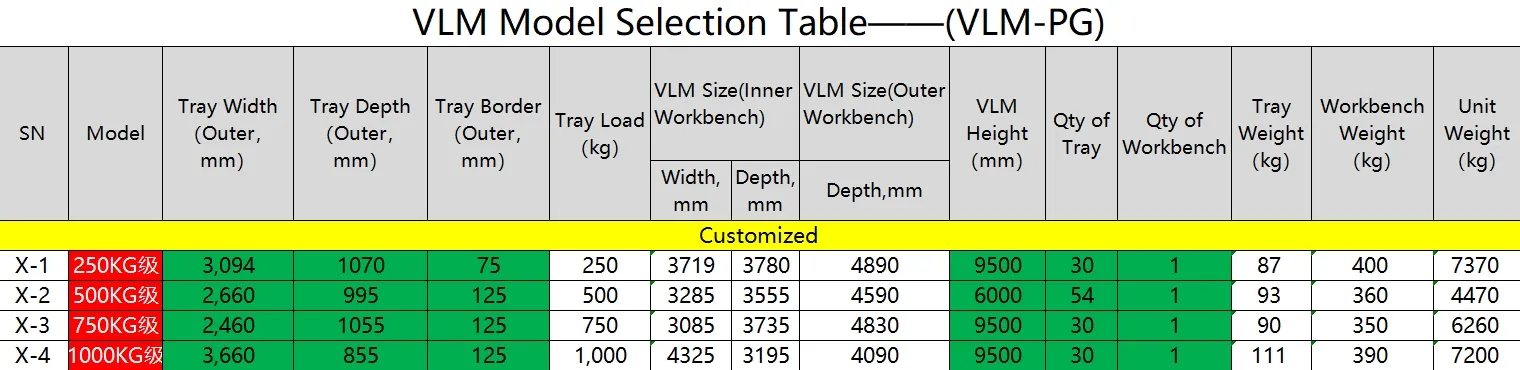

Tip: Green sections denote the dimensions and specifications that can be modified to your requirements.

Frequently Asked Questions

What is our core business and expertise?

We specialize in automated warehouse system integration, including VLM (Vertical Lift Machines), VCM (Vertical Carousel Machines), VSM (Vertical Sorting), Smart AS/RS, and AGV/RGV solutions.

What are the primary applications for these systems?

Mainly used for storing industrial spare parts, tools, electronic components, pharmaceutical drugs, and valuable documents. It serves industries like aerospace, automotive, electronics, and petrochemicals.

What is the standard lead time for orders?

Small quantities typically require 60 days. For larger quantities or custom builds, the lead time is approximately 90 days depending on stock availability.

Do you handle international shipping?

Yes, we have extensive experience shipping to various countries. Our logistics partners are well-versed in international freight and handling requirements.

What are the standard payment terms?

We operate on a 50% advance payment to activate the contract, 45% pre-shipment payment, and a final 5% acceptance payment after on-site installation.

Can the machine dimensions be customized?

Yes, height, tray width, and storage density can be modified based on specific facility requirements and material characteristics.
