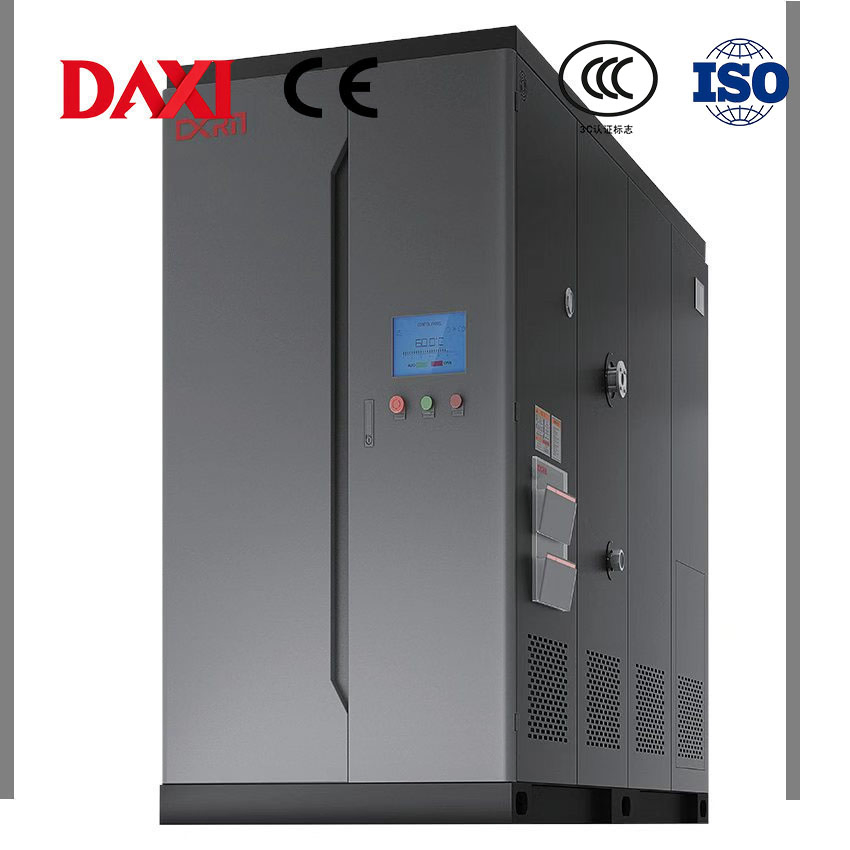

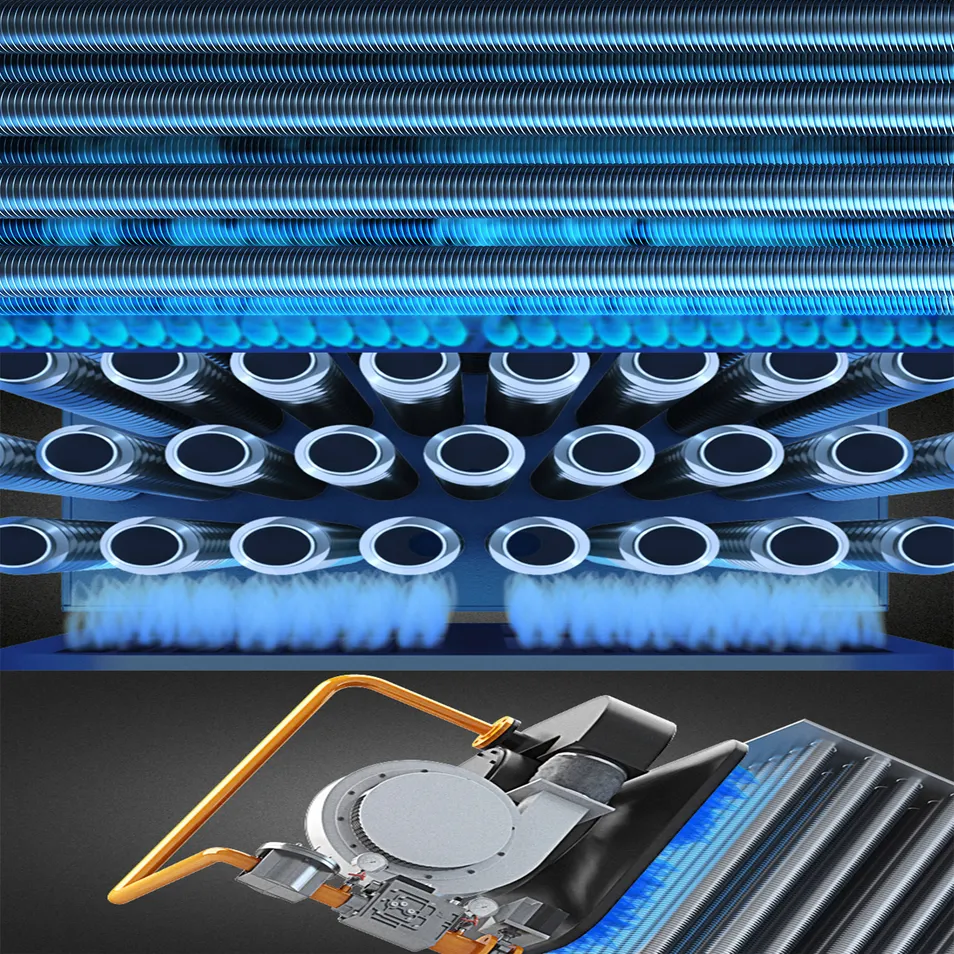

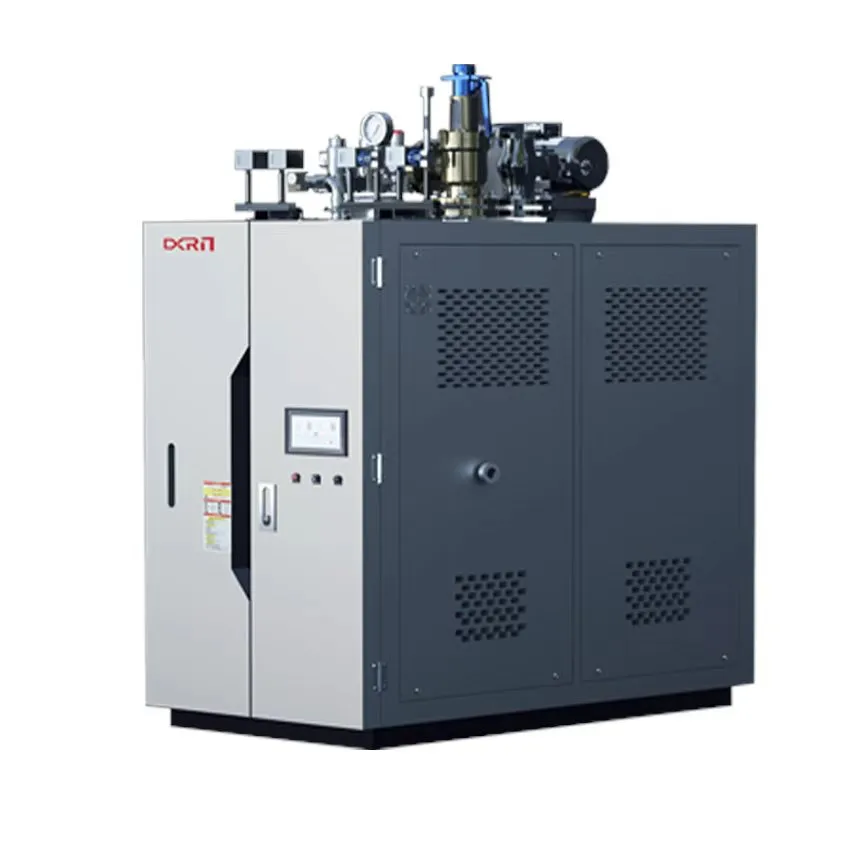

The Steam Generator employs premixed combustion technology and finned tubes for maximum efficiency and low nitrogen emissions. Safety features include anti-dry, anti-overheat, and anti-overpressure systems, with optional waste heat recovery for energy optimization.
Speed & Efficiency: No preheat required, steam generated in 15 seconds. 24h gas supply with high efficiency. Thermal efficiency reaches 102%, saving 30% compared to traditional boilers.
Smart Operation: One-click start, smart operation, and mobile monitoring. Professional maintenance and safety protection systems ensured.
Main Applications:
Main Configuration:
| Model | Rated Evaporation (t/h) | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|
| LSS0.5-1.0-Q | 0.5 | 1780 | 850 | 2140 |
| LSS1.0-1.0-Q | 1.0 | 1880 | 850 | 2150 |
| LSS2.0-1.0-Q | 2.0 | 2270 | 980 | 2390 |
Right Elevation

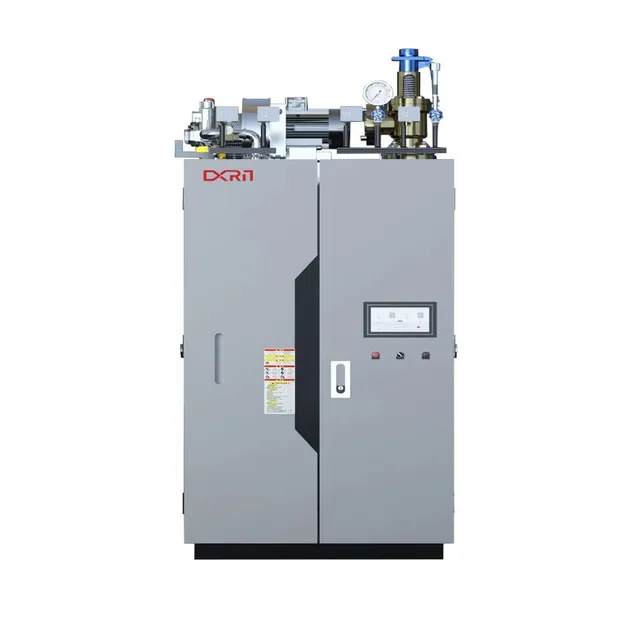

Front Elevation

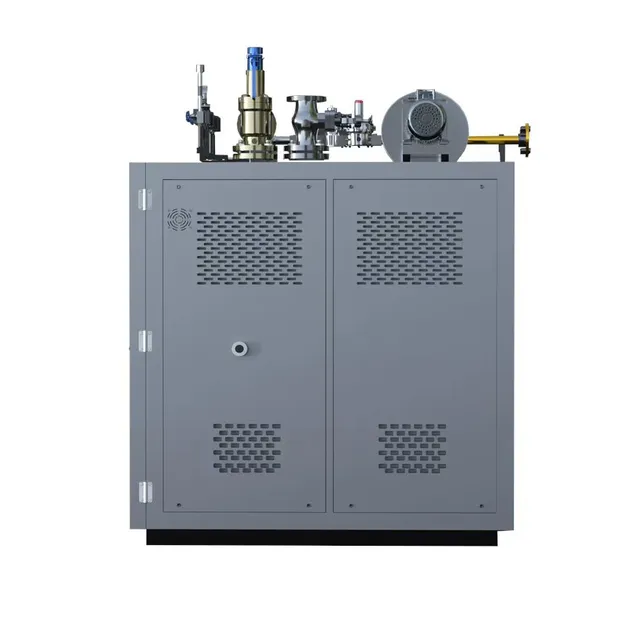

Left Elevation
Featuring high thermal conductivity and a large heating surface area. We select GB5310 steel tubes. Using specialized hot-rolling equipment, trapezoidal fins are rolled onto the surface (approx. 3,800 pieces per boiler), significantly improving efficiency and ensuring a long service life.
