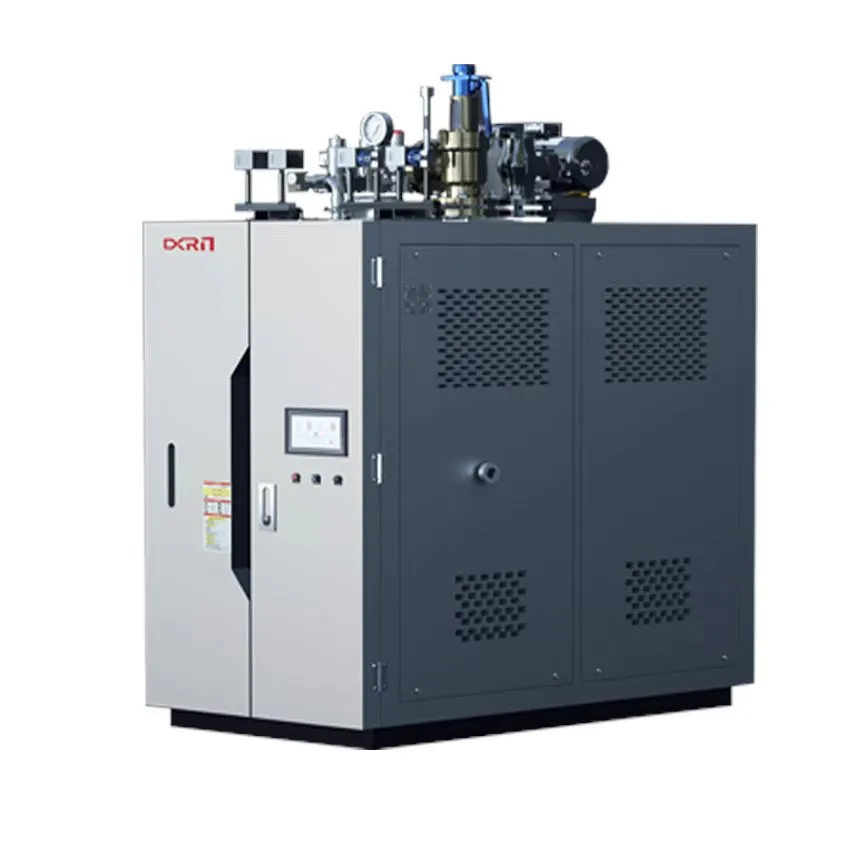

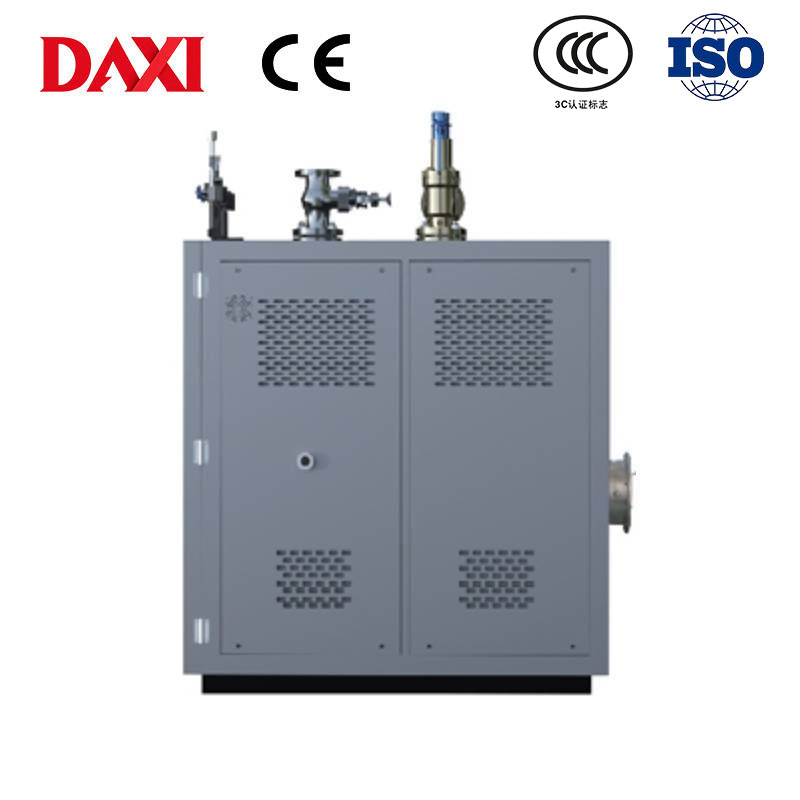

Steam Generators: Boasts fully premixed combustion tech and finned tubes for efficiency and low nitrogen emission. Safety features include anti-dry, anti-overheat, and anti-overpressure, with optional waste heat recovery for energy optimization.
Right Elevation

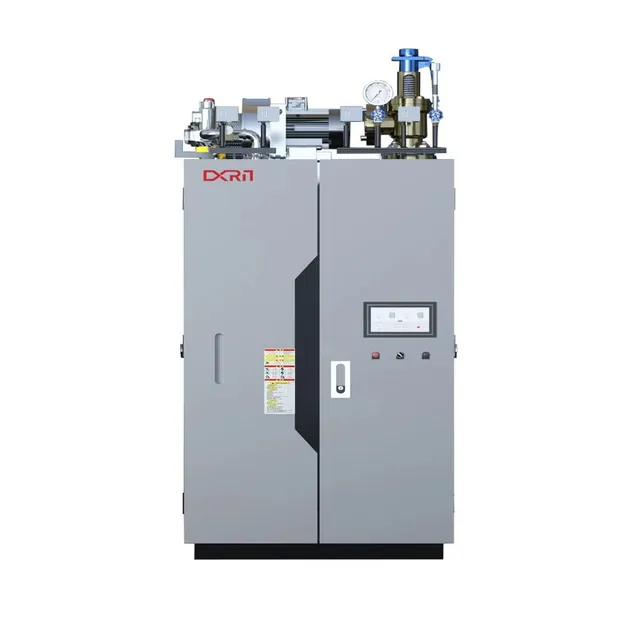

Front Elevation

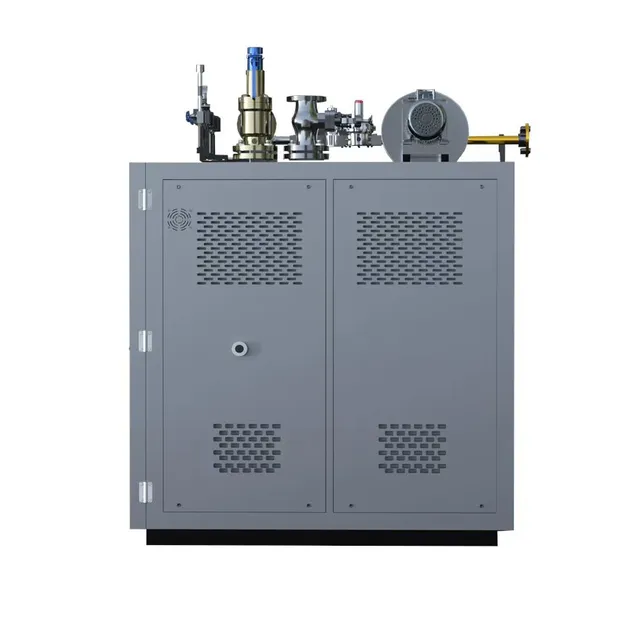

Left Elevation
| Model | Rated Evaporation (t/h) | Length (mm) | Wide (mm) | High (mm) |
|---|---|---|---|---|
| LSS0.5-1.0-Q | 0.5 | 1780 | 850 | 2140 |
| LSS1.0-1.0-Q | 1.0 | 1880 | 850 | 2150 |
| LSS1.5-1.0-Q | 1.5 | 2180 | 950 | 2160 |
| LSS2.0-1.0-Q | 2.0 | 2270 | 980 | 2390 |

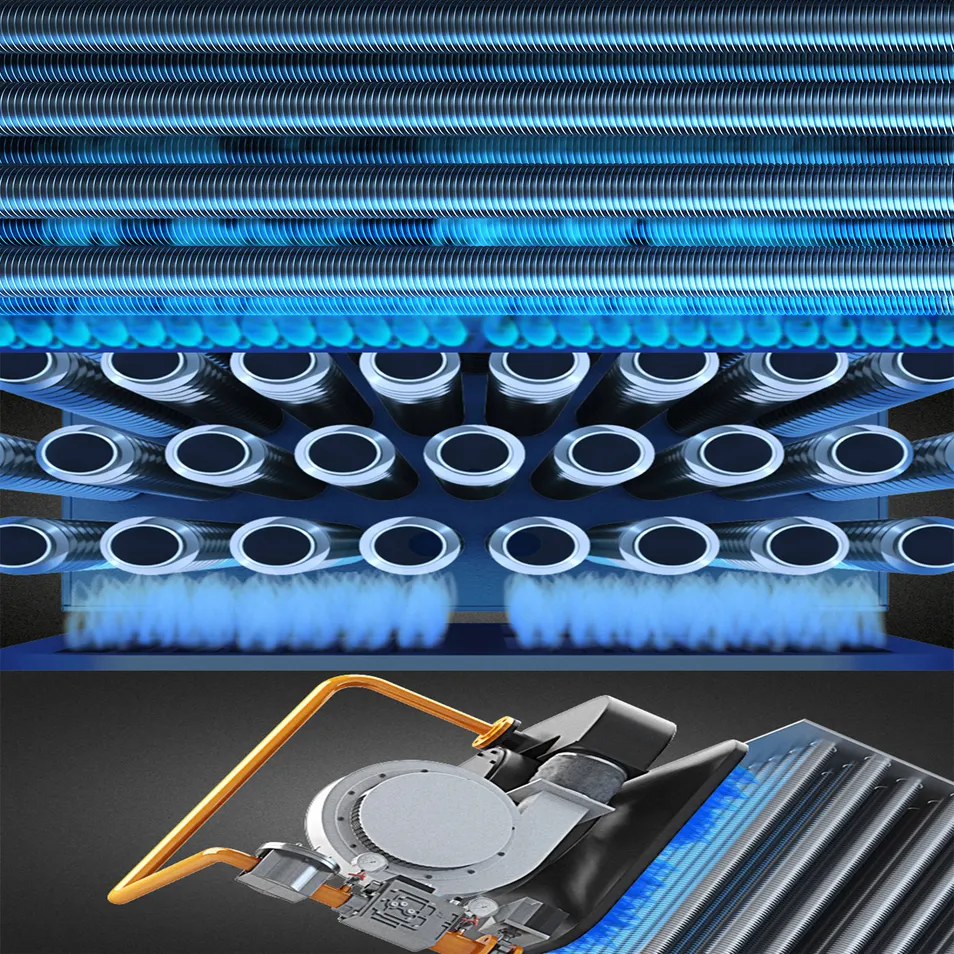

Flat Flame Combustion: Features high thermal conductivity (15x ordinary tubes). Seamless steel tubes (GB5310) are hot-rolled with trapezoidal fins (approx. 3,800 pieces per boiler) to maximize heating surface area and extend service life.
Using premium components: German Siemens proportional control valves, German Dings Valve Assemblies, and Italian gas filters.
