Durable Segmented Gas Heating Solutions for Compact Hot Water Systems

Basic Information

Model NO.	B1
Type	Forced Exhaust
Energy Efficiency Grade	One
Interior Material	Copper
Installation	Indoor Standard Installation
Control Mode	Mechanical Edition
Usage	Bathroom, Kitchen, Industrial, Home
Fuel	Gas-Fired
Structure	Water Tube
Water Circulation	Forced Circulation
Package Size	100.00cm * 100.00cm * 160.00cm
Gross Weight	260.000kg

Product Introduction

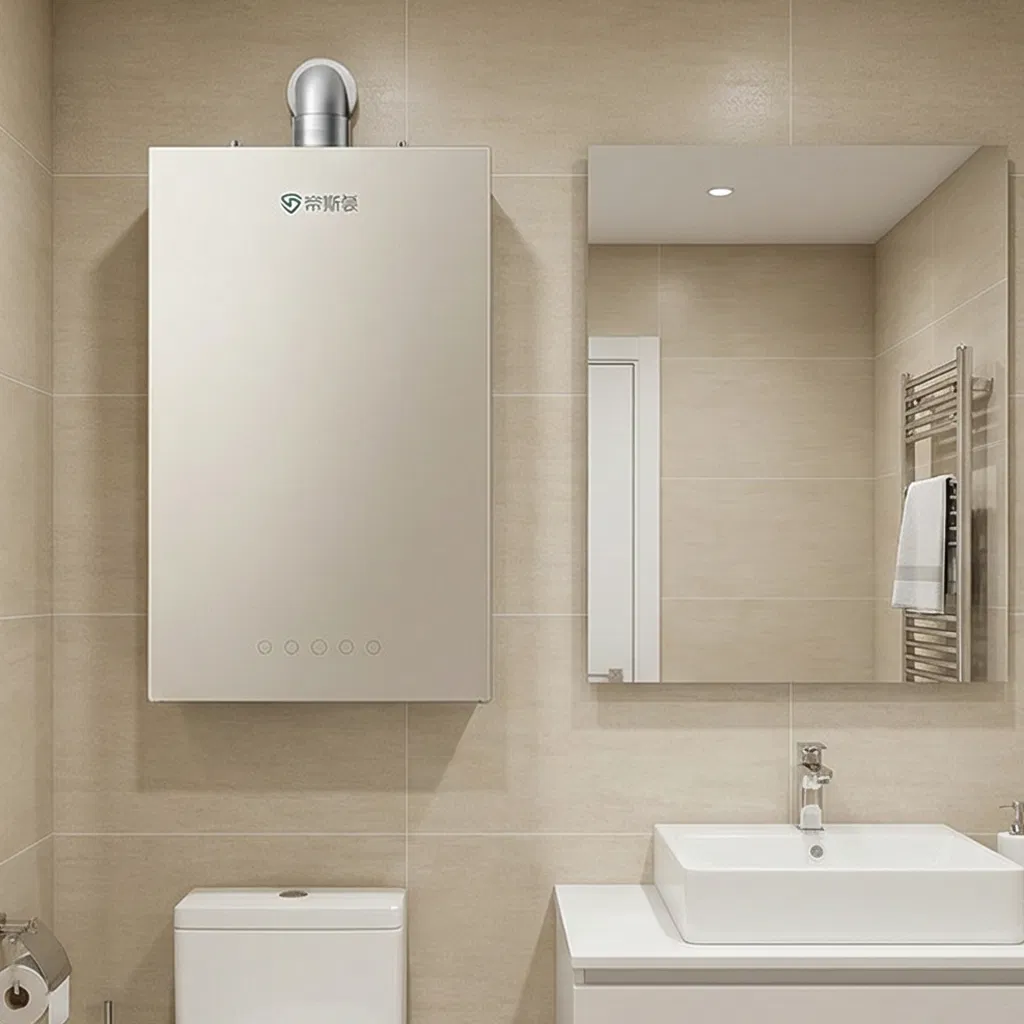

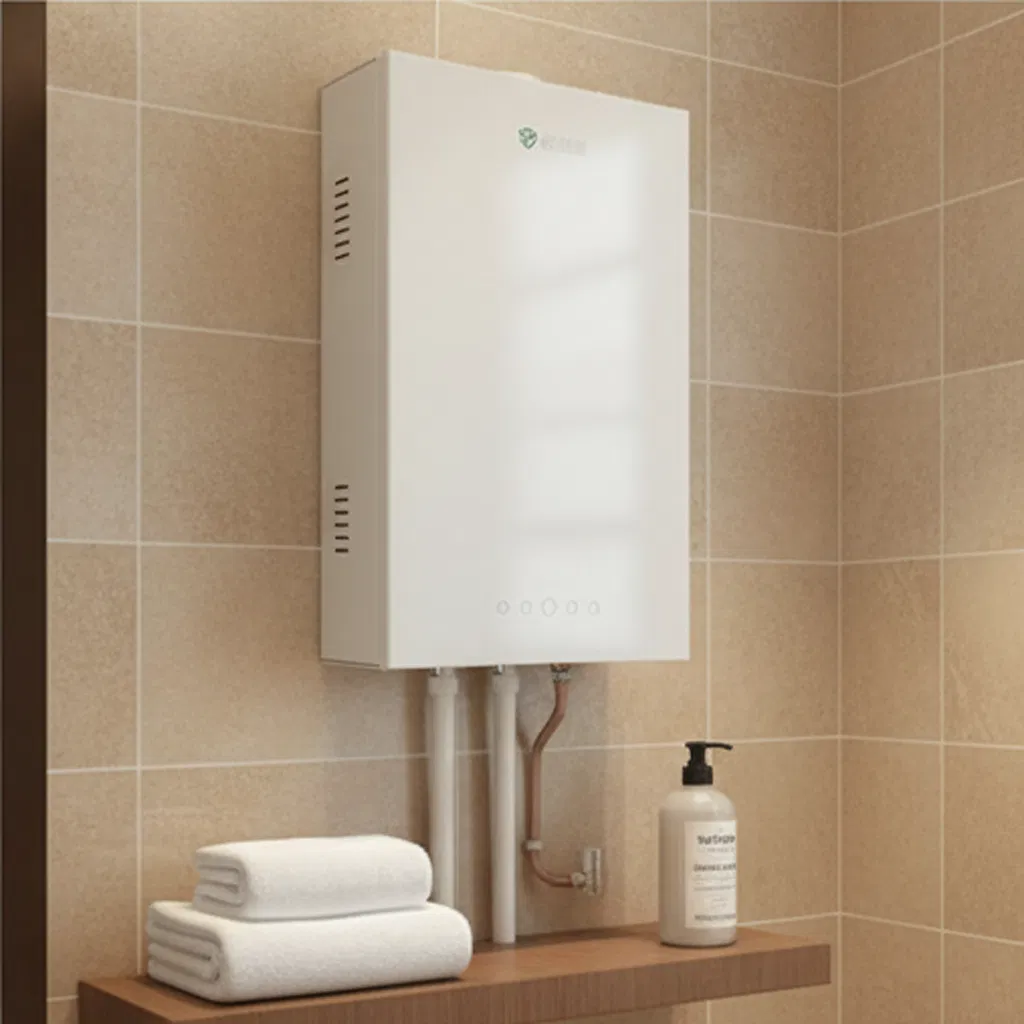

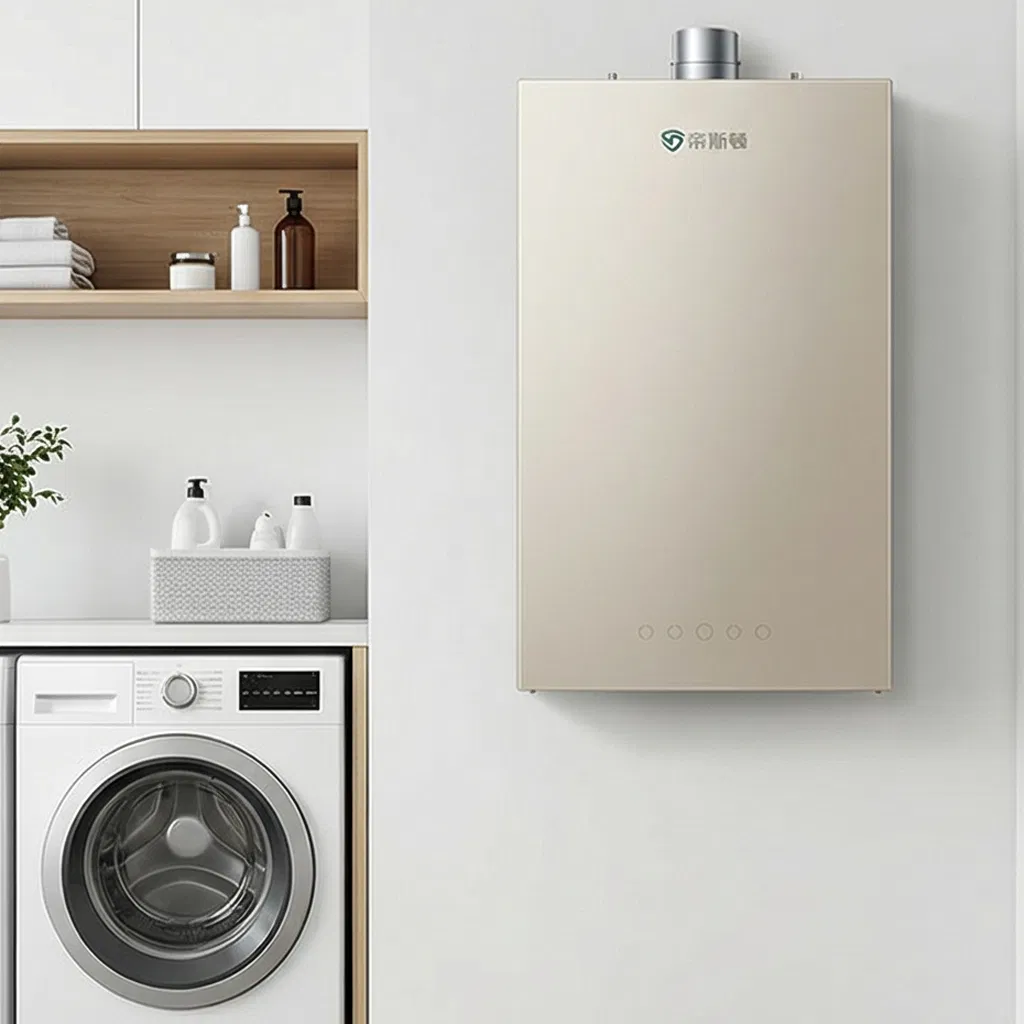

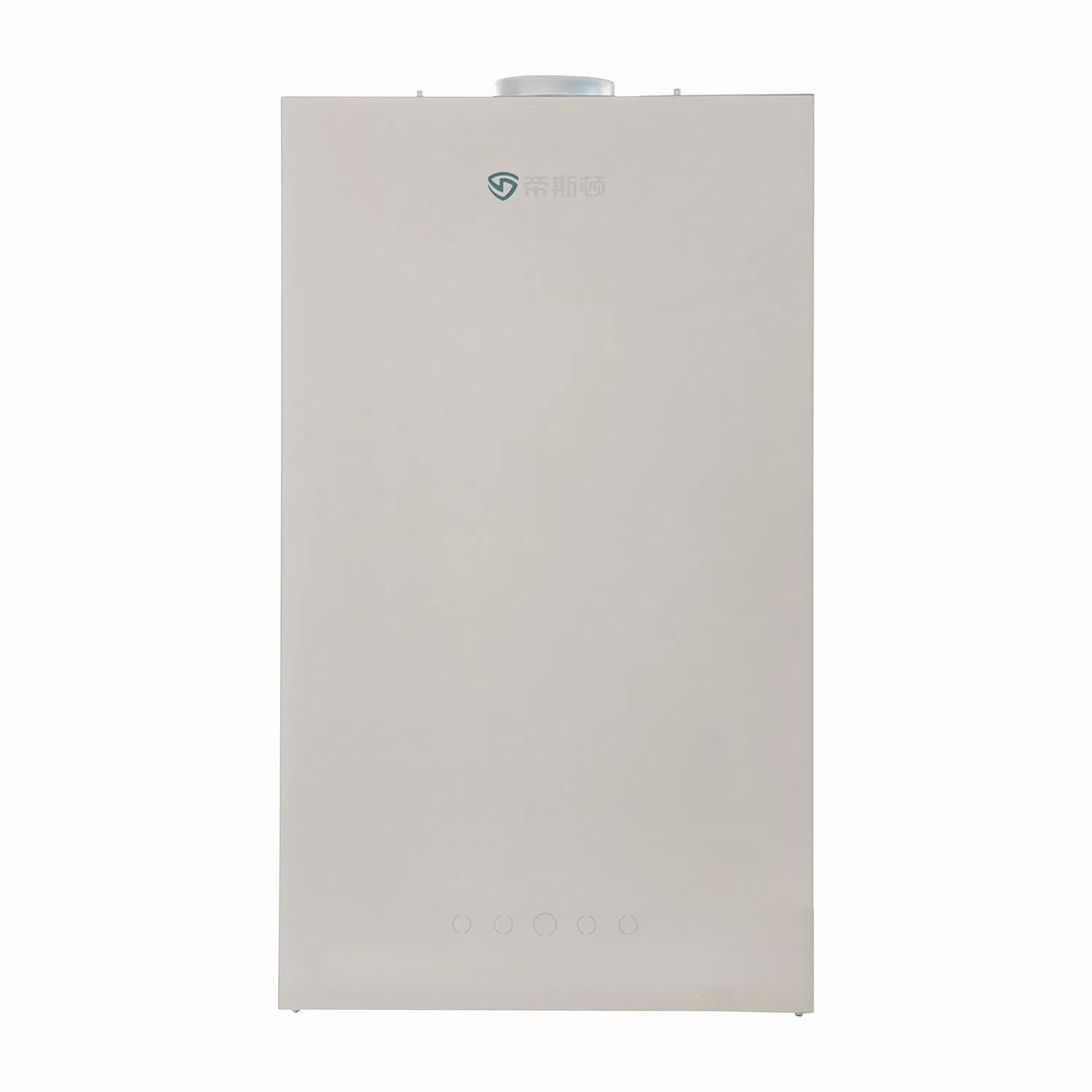

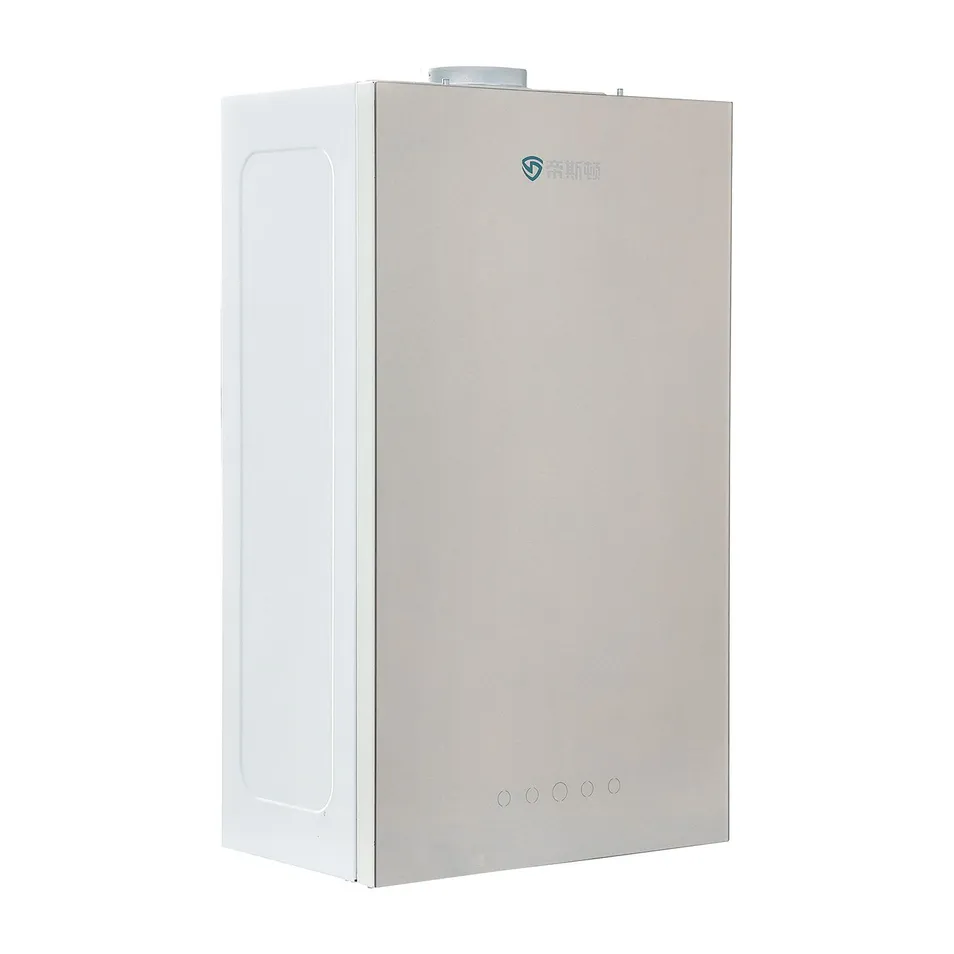

The WSQ2 Gas Heating Hot Water Stove showcases a sophisticated, contemporary design that merges elegance with practicality. Its main body features a large, frosted glass panel in a soft, muted beige tone, resisting fingerprints and scratches. The integrated digital control area features a bright LED display showing real-time water temperature and touch-sensitive buttons for an intuitive interface.

★ Versatile Functionality

Delivers central heating (radiators or underfloor) and domestic hot water. Supports temperature ranges of 30–80°C for radiators and precise 35–60°C for stable hot water supply using a gas proportional valve.

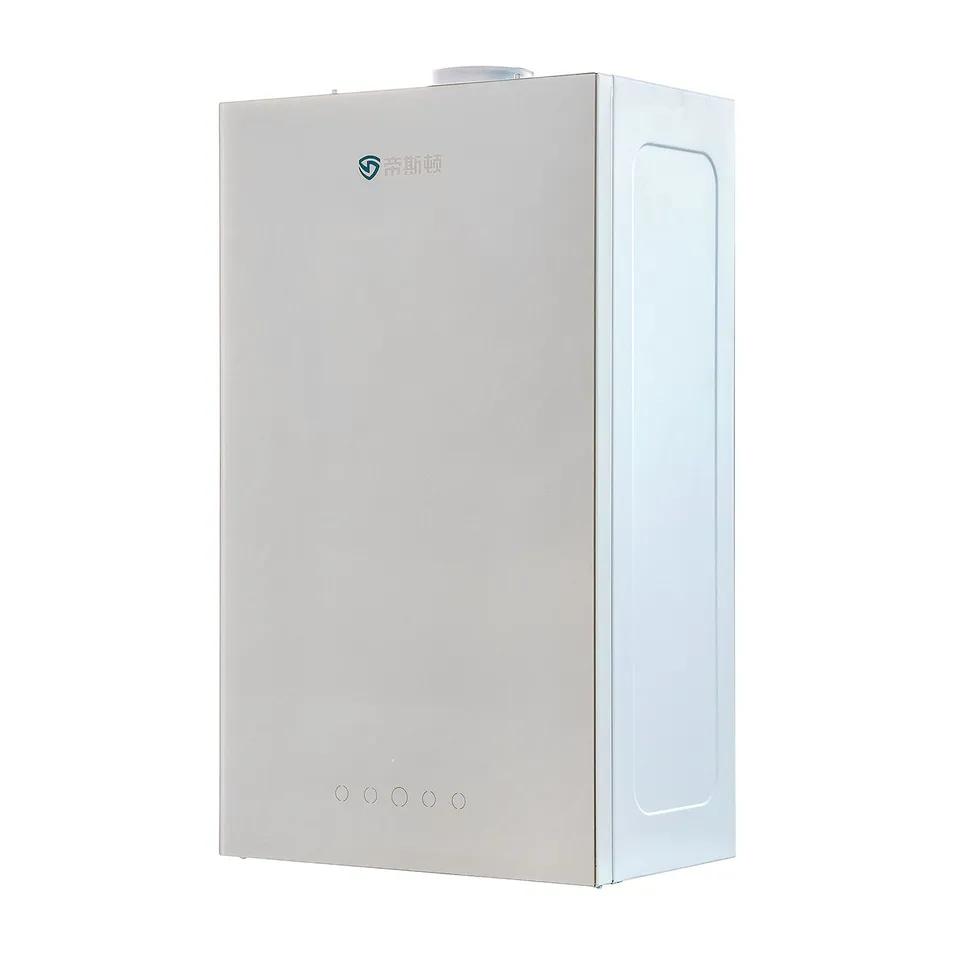

Key Advantages

High Thermal Efficiency: Dynamic adjustment of power and wind speed for full fuel utilization.
Silent Operation: DC inverter fan and quiet water pump ensure low-noise performance.
Oxygen-Free Copper Heat Exchanger: Resists corrosion and enhances heat transfer.
Safety First: System self-inspection and 3C mandatory certification.

Technical Specifications

Model Specification	20kW Unit	24kW Unit
Max Heat Output	17.8 kW	21.4 kW
Thermal Efficiency	>90%	>90%
Effective Heating Area	<100 m²	<150 m²
Hot Water Output (Δt=25K)	10.0 kg/min	12.0 kg/min
Rated Voltage	220V~/50Hz	220V~/50Hz
Standby Power	3W	3W

Our Manufacturing Strength

Integrating R&D, production, and sales of thermal energy equipment since 2011, we focus on safe, energy-saving, and environmentally friendly heating products. Our facility utilizes advanced production lines and testing equipment, operating under ISO9001 and ISO14001 management systems.

Frequently Asked Questions

1. How do I choose the right power for my home?

For 80-150m², 24KW is sufficient for one kitchen and two bathrooms. For units over 150m² or villas, 28KW or above is recommended. Southern homes without insulation should consider 20-30% more power.

2. Can it provide heating and hot water simultaneously?

The system prioritizes hot water. If you turn on the tap while heating, the machine temporarily suspends heating to provide hot water and resumes heating once the tap is closed.

3. Is a condensing boiler worth the extra cost?

Yes. Condensing boilers have thermal efficiency over 107%, saving 15-20% on gas compared to standard models. Long-term usage easily covers the initial price difference.

4. Can I install this in an old house without pre-installed pipes?

Absolutely. You can opt for an open-air radiator system which doesn't require wall damage and has a quick construction period.

5. How does the anti-freezing mode work in winter?

Kept powered and connected to gas, the unit maintains a low temperature automatically to prevent freezing while you are away briefly. For long absences, it is best to drain the system.

6. Does the wall-mounted boiler consume much electricity?

No. Power is only used for the fan and pump (100-200W). Since they don't run continuously, monthly consumption is similar to a household refrigerator.
