| Model NO. | CLW-FTC |
| Fuel | Diesel |
| Certification | ISO9000, CCC, TS16949, CE, etc. |
| Emission Standard | Euro 5/Euro 6 |
| Condition | New |
| Transmission | Manual 6 Gears |
| Dimensions | 6300×2230×3240mm |
| Capacity | 50000 PCS/Year |

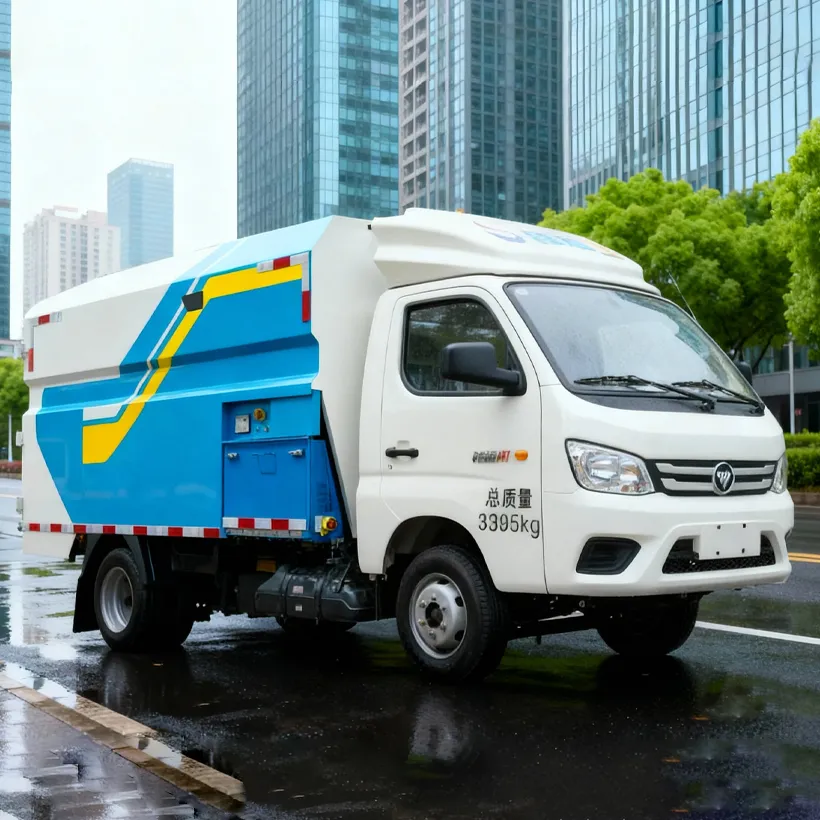

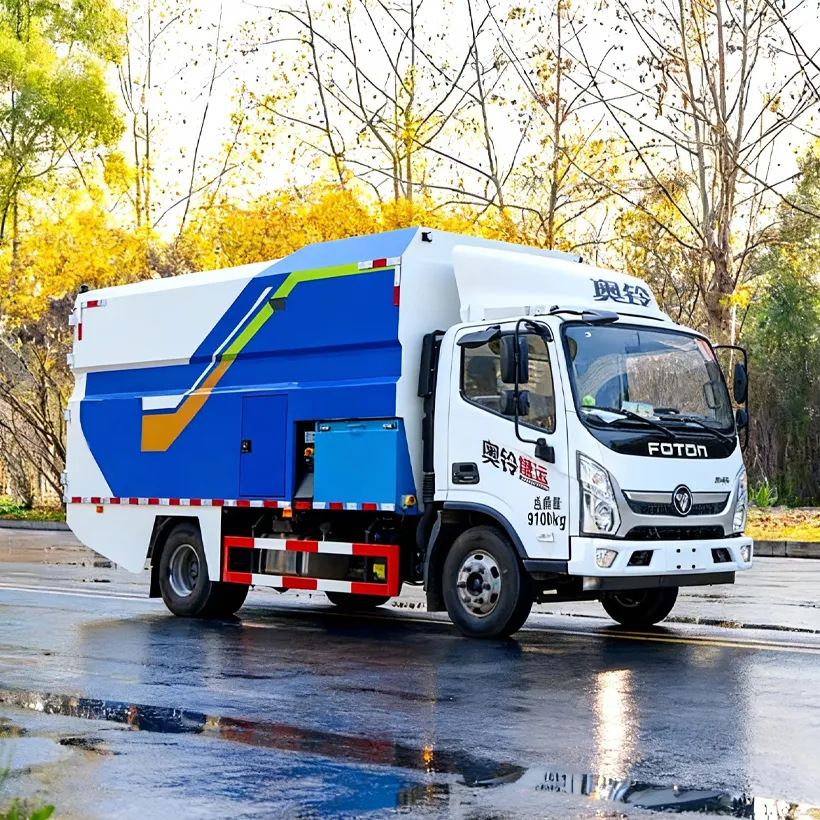

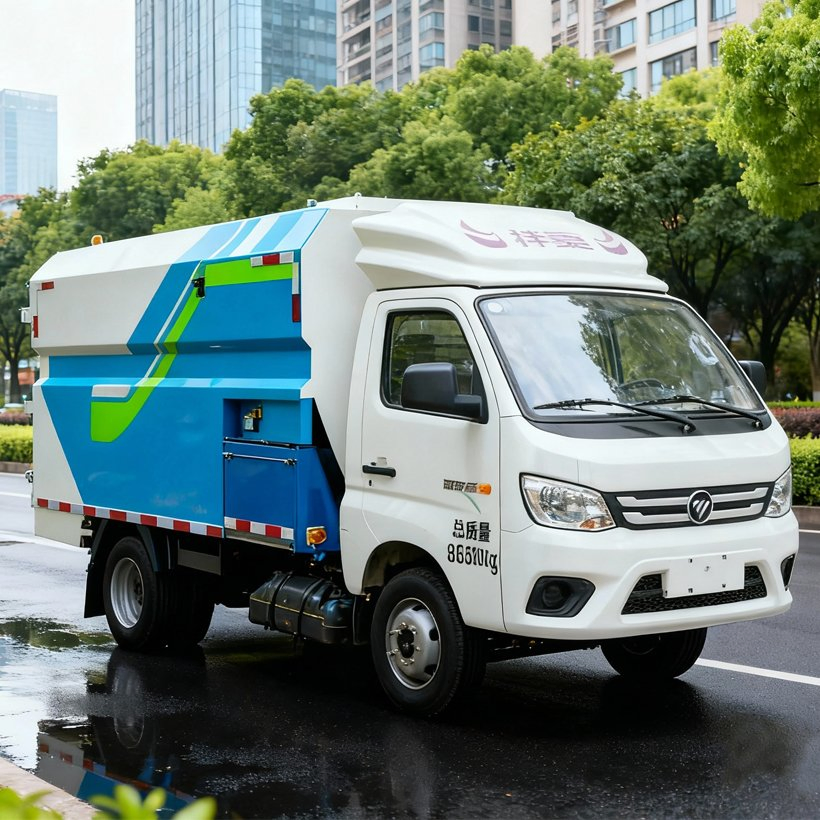

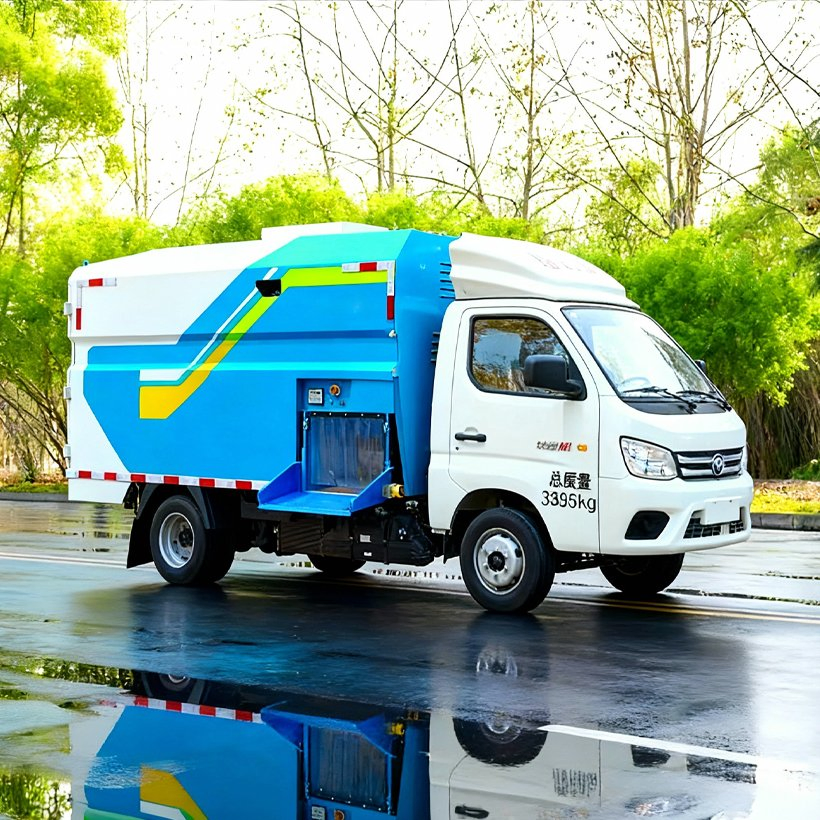

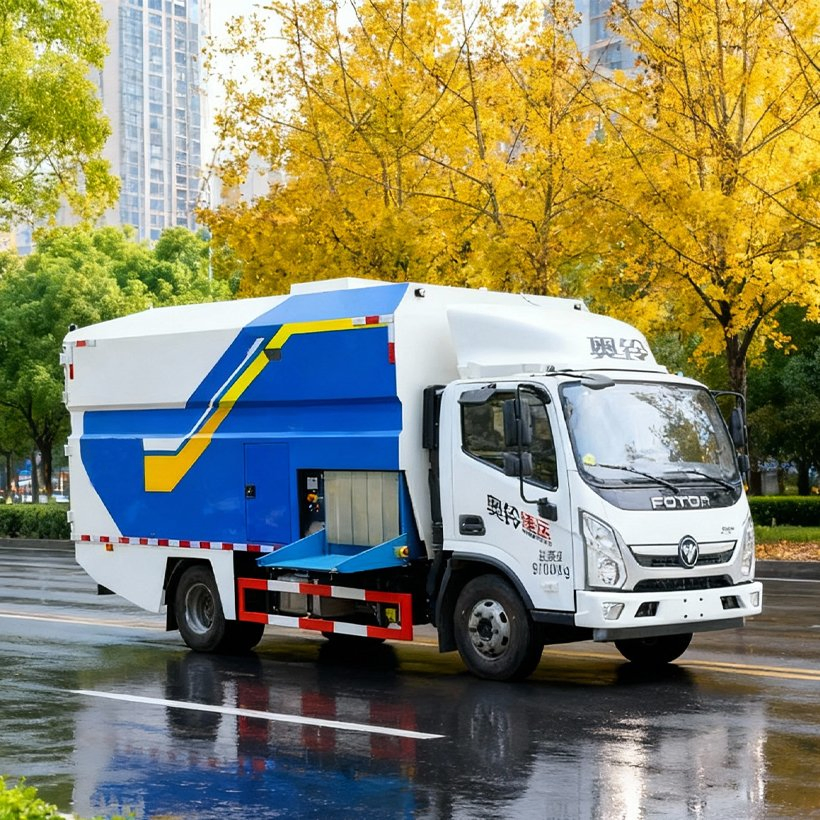

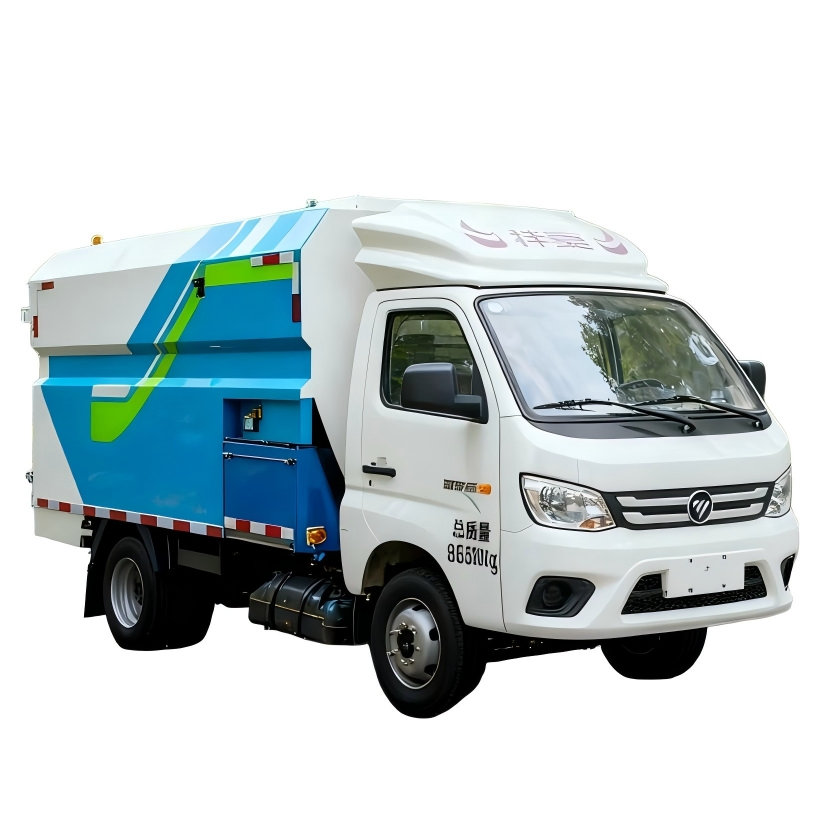

What are Material Crushing/Shredder Trucks?
The material crushing truck integrates the functions of shredding, pruning, and transporting garden waste. Primarily used for municipal greening, scenic parks, and highway maintenance, it can shred branches with diameters up to 30cm.
The crusher is driven by a transfer case mounted on the chassis, eliminating the need for an auxiliary engine. The vehicle's electronic control system accurately displays speed and intelligently controls the feeding rate to prevent jamming. Waste branches are shredded into small pieces, which can be recycled as organic fertilizer or biomass fuel.
• One-button unloading: convenient and fast.
• Noise reduction: Enclosed structure keeps operating noise below 95 decibels.
• Environmental support: Dust collector suppresses dust by over 80%.
| Project | Sub-item | Data |
|---|---|---|
| Quality | Curb Weight | 4700 kg |
| Total Mass | 9100 kg | |
| Dimensions | Overall Size | 6300×2230×3240 mm |
| Feed Throat | 400×400 mm | |
| Performance | Rated Power | 50 kW |
| Bin Volume | 14 m³ | |
| Feeding Speed | 0-32 m/min |
Chassis Selection → Design Drawings → Welding & Pipeline Installation → Internal/External Assembly → Painting → Line & Oil Circuit Debugging → Linkage Debugging → Quality Acceptance.
