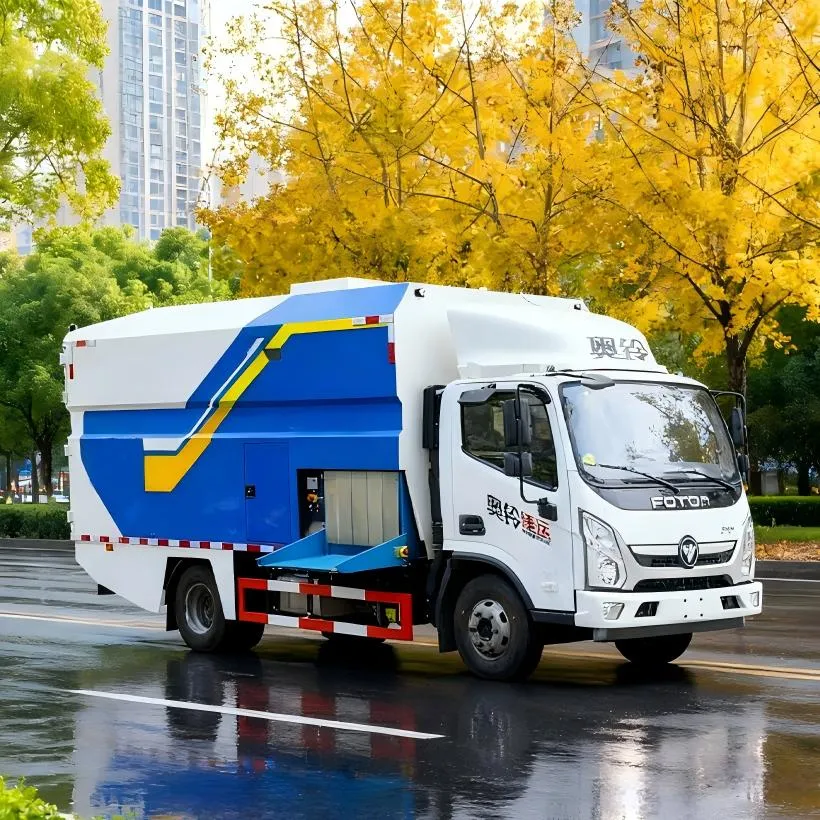

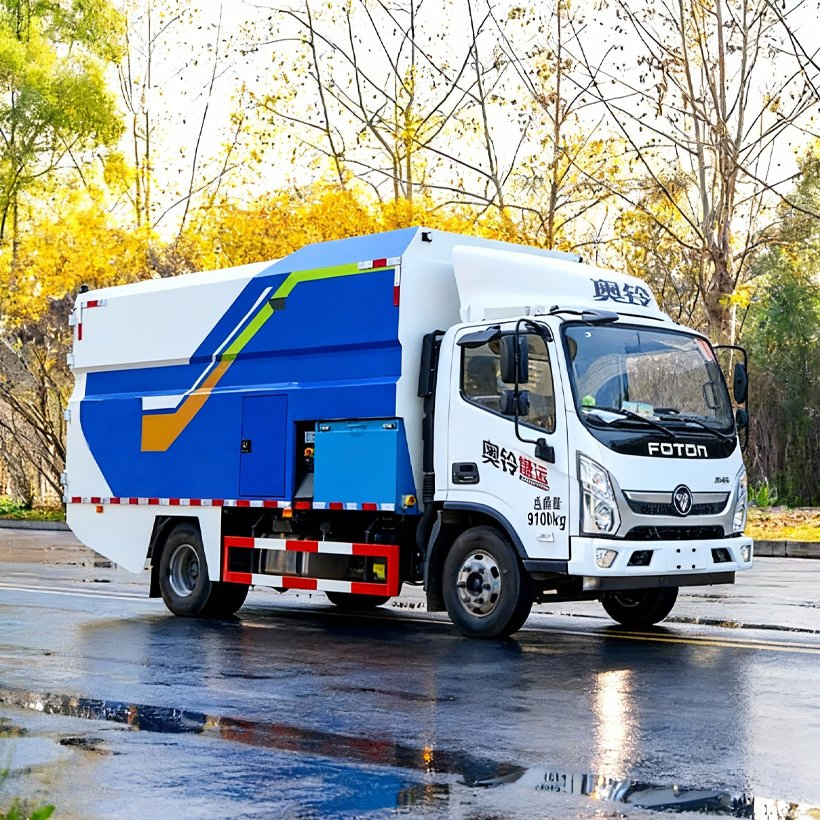

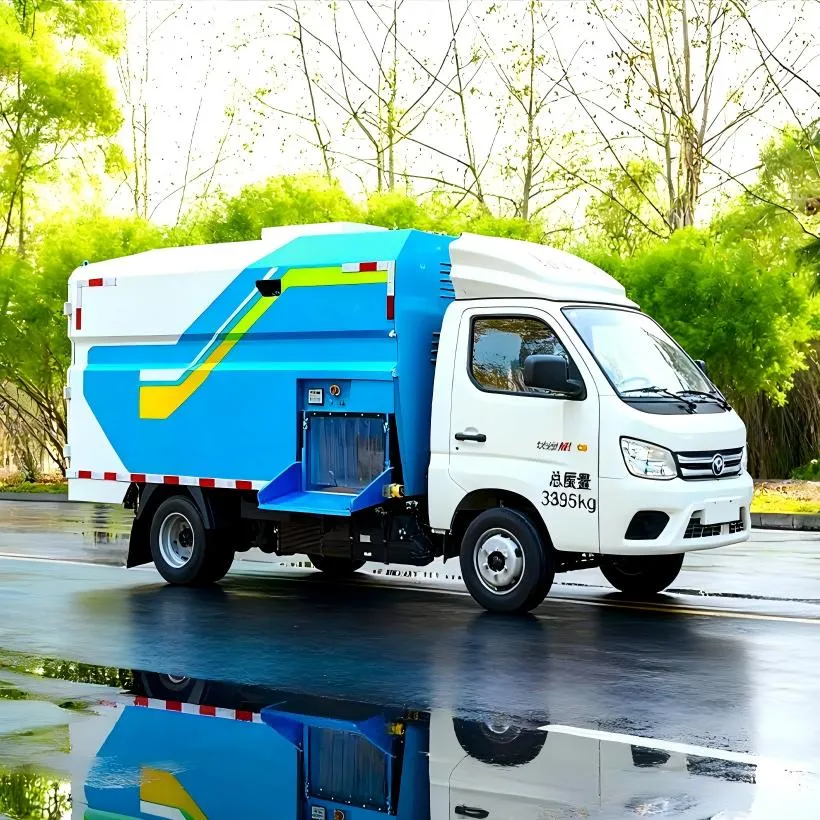

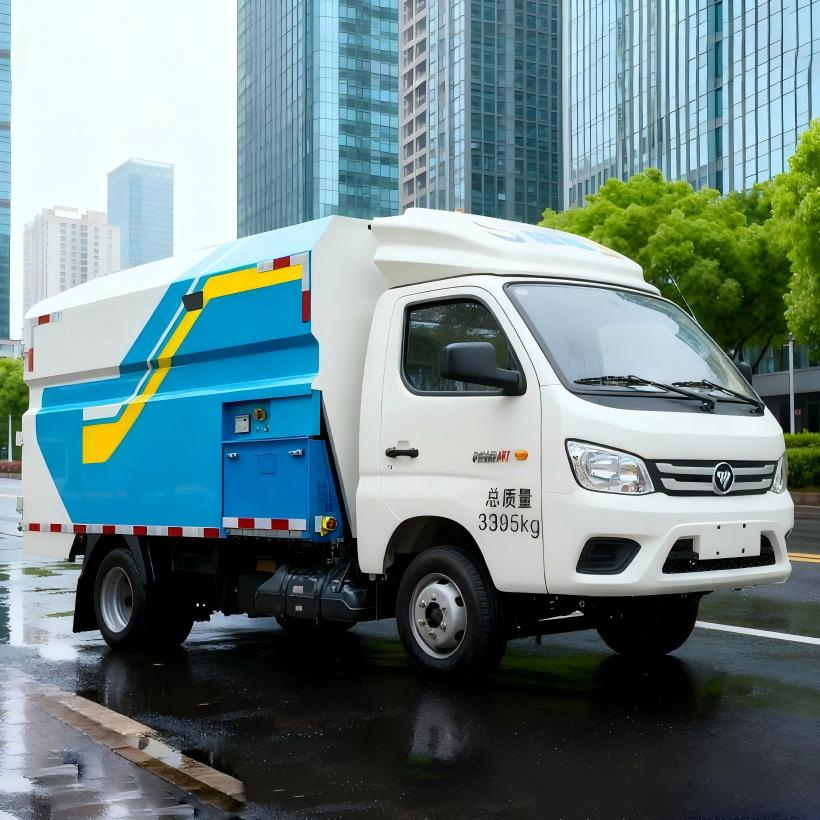

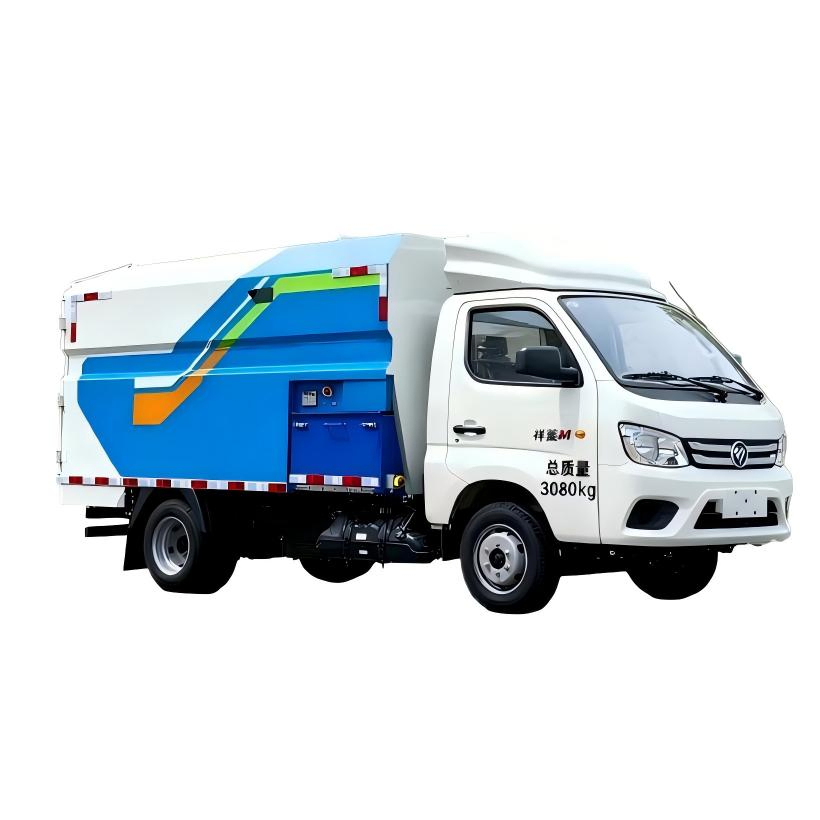

The material crushing truck (garden branch crusher) is an innovative vehicle designed for urban and rural landscaping maintenance. It integrates the crushing and transportation of garden waste, such as branches from typhoons or seasonal pruning, into a single efficient operation.
Driven by a high-tech transfer case on the chassis, the crusher eliminates the need for an auxiliary engine. The electronic control system intelligently manages feeding rates to prevent jamming, while the body volume ranging from 6m³ to 20m³ ensures significant load capacity.
Key Systems:
| Project | Sub-item | Unit | Data |
|---|---|---|---|
| Quality | Total Mass | kg | 9100 |
| Dimensions | Overall Size | mm | 6300×2230×3240 |
| Performance | Processing Diameter | mm | 200 |
| Performance | Feeding Speed | m/min | 0-32 |
| Performance | Bin Volume | m³ | 14 |
| Chassis | Engine Power | kW | 112 |
Our rigorous production flow ensures high-quality output: from chassis selection and design drawings to pipeline installation, sanding, rust removal, and final linkage debugging.
Traditional disposal is inefficient and costly. Our mobile processing model reduces branch volume by over 80%. These chips are transformed from waste into valuable resources like organic mulch, biomass fuel, and soil conditioners.
