| Model NO. | SZL | Installation | Packaged Boiler |
| Structure | Water Tube | Media | Hot Water |
| Water Circulation | Natural Circulation | Drum Placement | Horizontal Boiler |
| Pressure | Low Pressure | Manufacturing Level | A |
| Burning Style | Chamber Combustion Boiler | Usage | Industrial |
| Steam Capacity | 10t/H-40t/H | Thermal Efficiency | 85% |

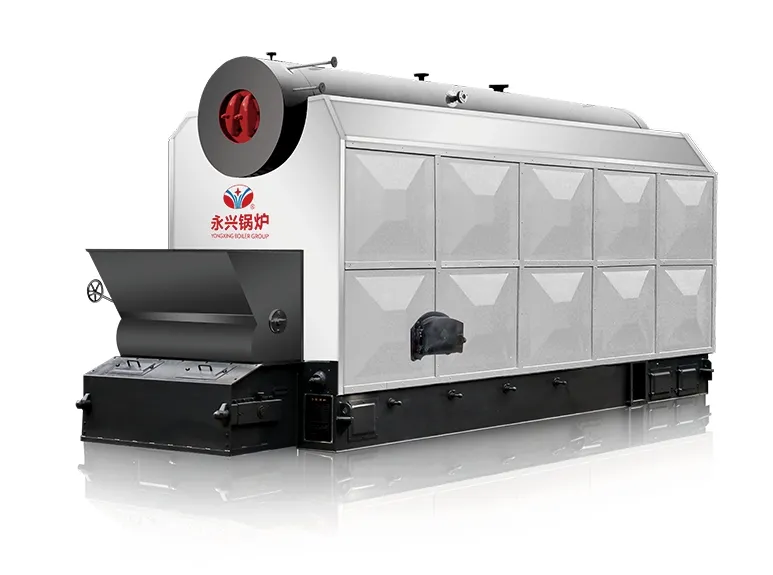

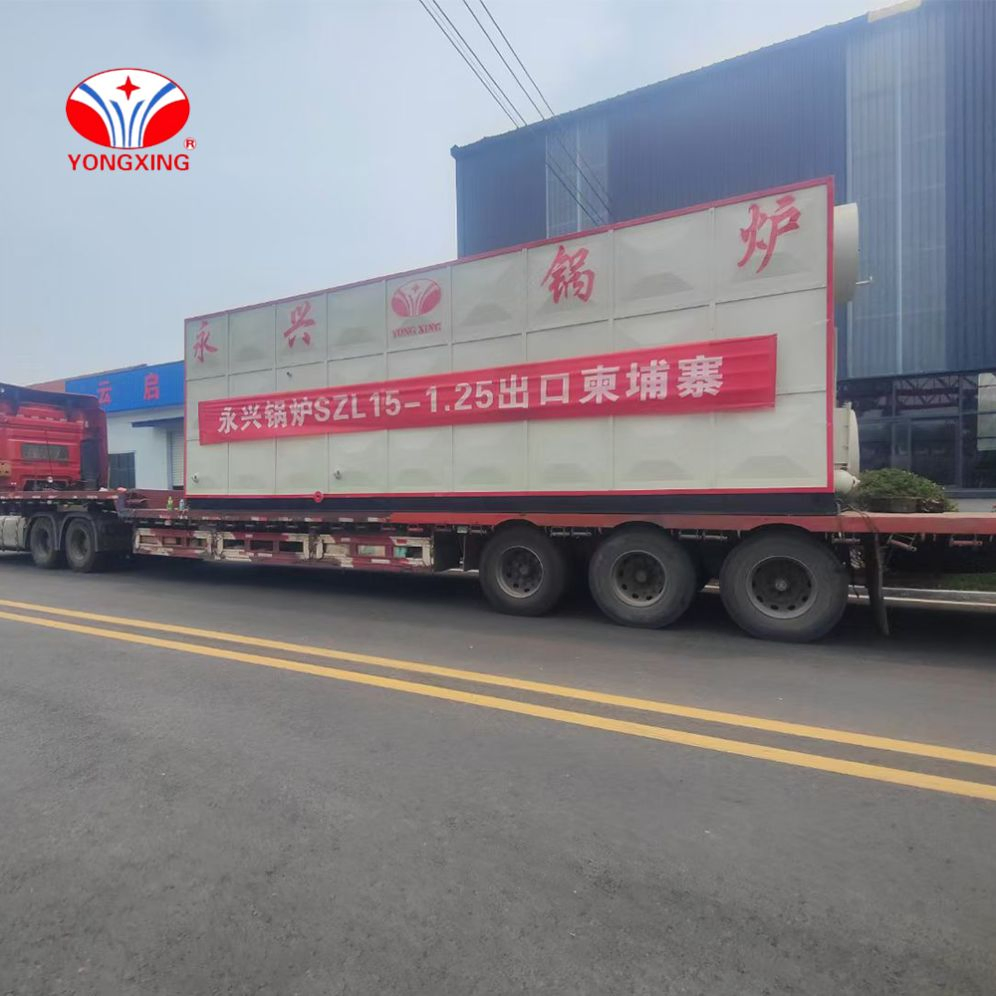

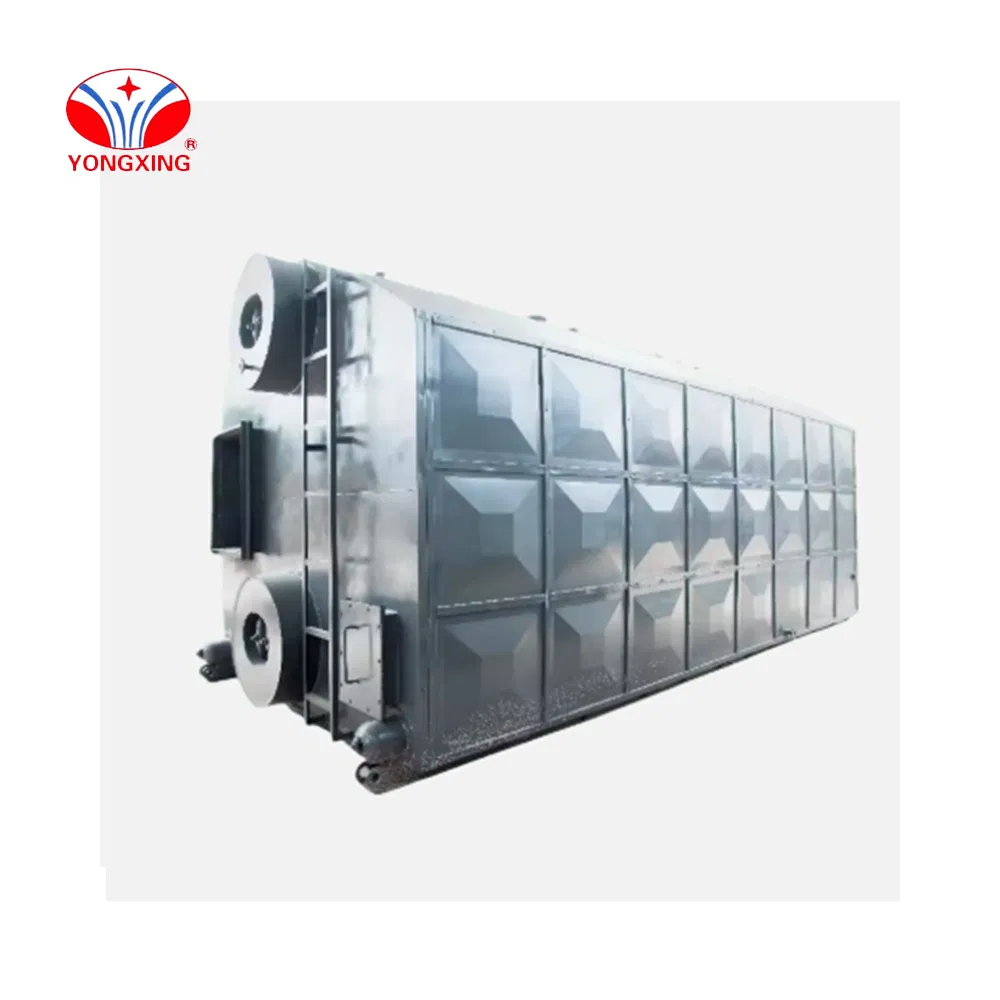

SZL Biomass (Coal-fired) Boiler
The SZL-type biomass-fired boiler adopts a double-drum longitudinal arrangement with a chain grate combustion method. Its fuel is biomass, a clean energy source. During combustion, it produces no waste gas, waste residue or smoke. Meanwhile, biomass features low cost, easy accessibility and realizes waste recycling.

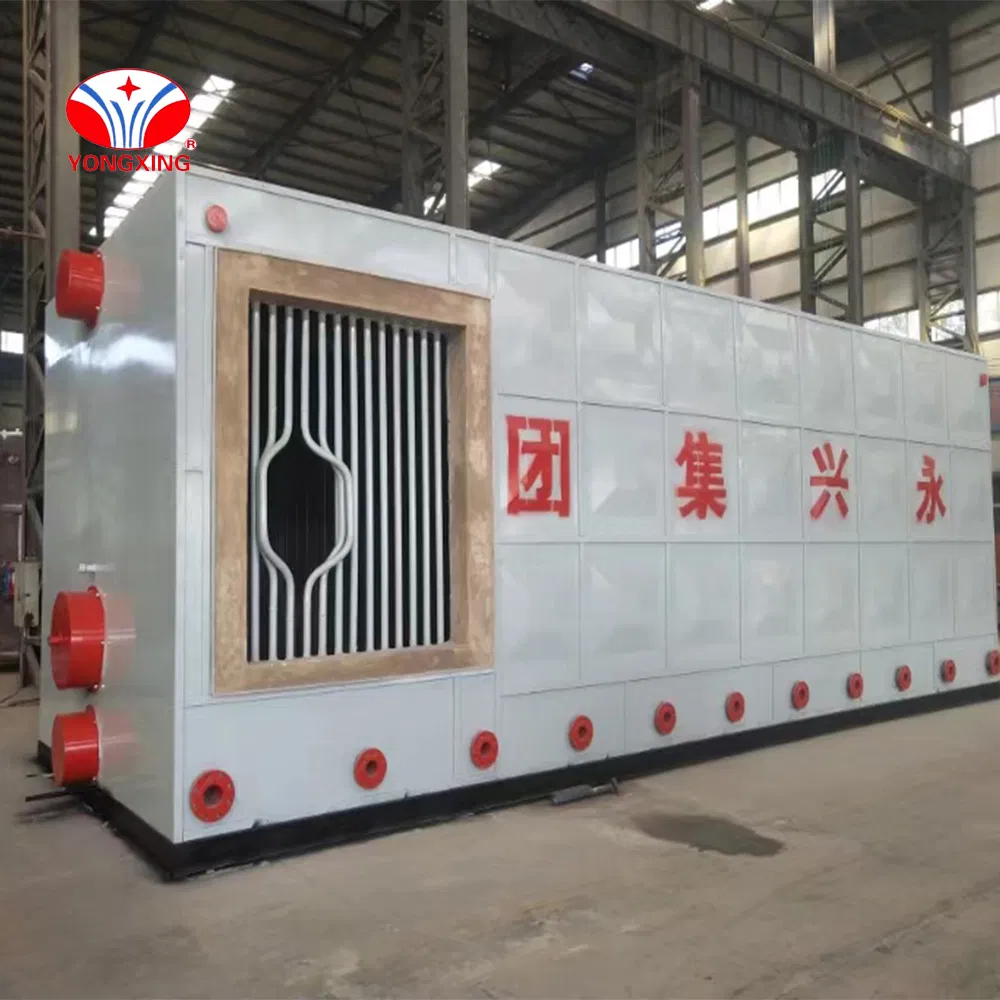

This boiler consists of two main components: the upper heating surface of the boiler body and the lower combustion equipment. The two sides of the furnace adopt a membrane water wall structure, which improves airtightness and increases heating surface area.

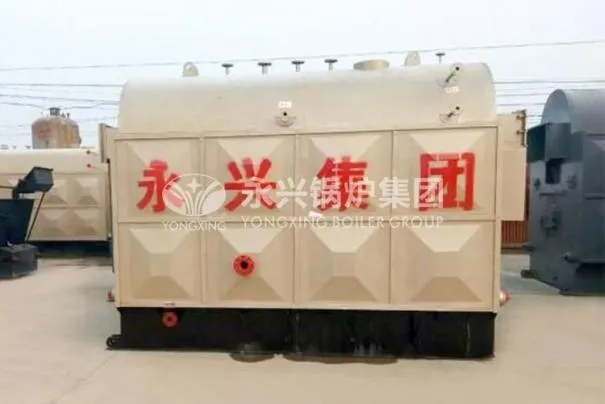

Heating Sector
Suitable for residential communities, schools, and hospitals providing a comfortable indoor environment.

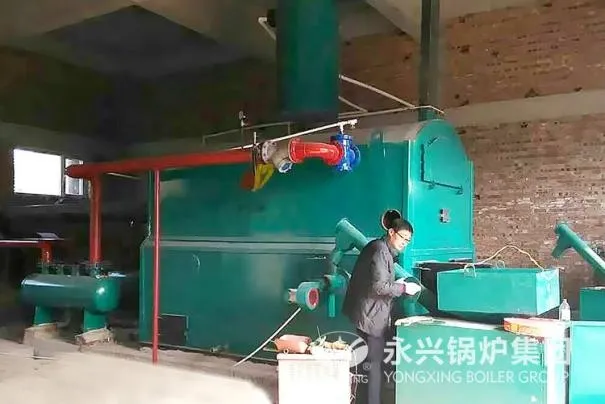

Industrial Production
Steam or hot water for chemical, food, textiles, and pharmaceutical industries.

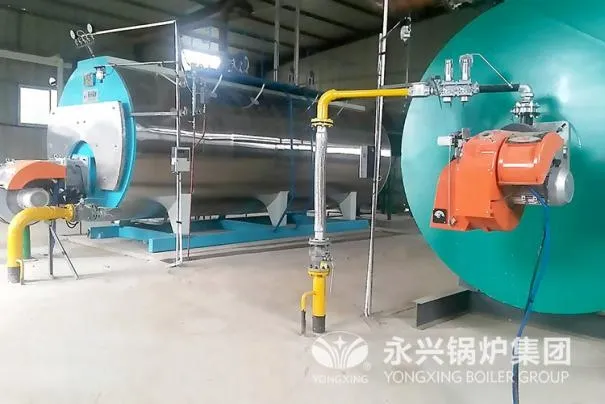

Agricultural Applications
Regulates indoor temperature in greenhouses and heats animal sheds for husbandry.

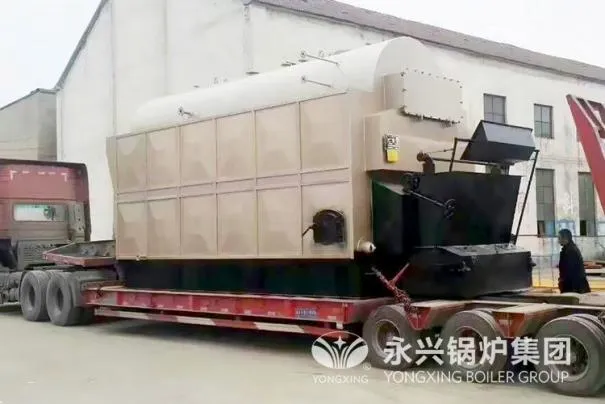

Power Generation
Core equipment for biomass power generation projects driving turbines to generate electricity.
| Boiler Model | Capacity (t/h) | Pressure (Mpa) | Steam Temp (ºC) | Gas Temp (ºC) | Efficiency (%) | Weight (ton) | Dimension (mm) |
|---|---|---|---|---|---|---|---|
| SZL10 | 10 | 1.25/1.6 | 194/204 | 152.7 | 86.2 | 24 | 7645×3180×3526 |
| SZL12 | 12 | - | - | 148.7 | 86.56 | 37 | 9258×3294×3524 |
| SZL15 | 15 | 2.5/3.82 | 226/450 | 149.86 | 86.29 | 24.7 | 11010×3300×2200 |
| SZL20 | 20 | - | - | 147.4 | 86.8 | 25.97 | 16680×6200×8420 |

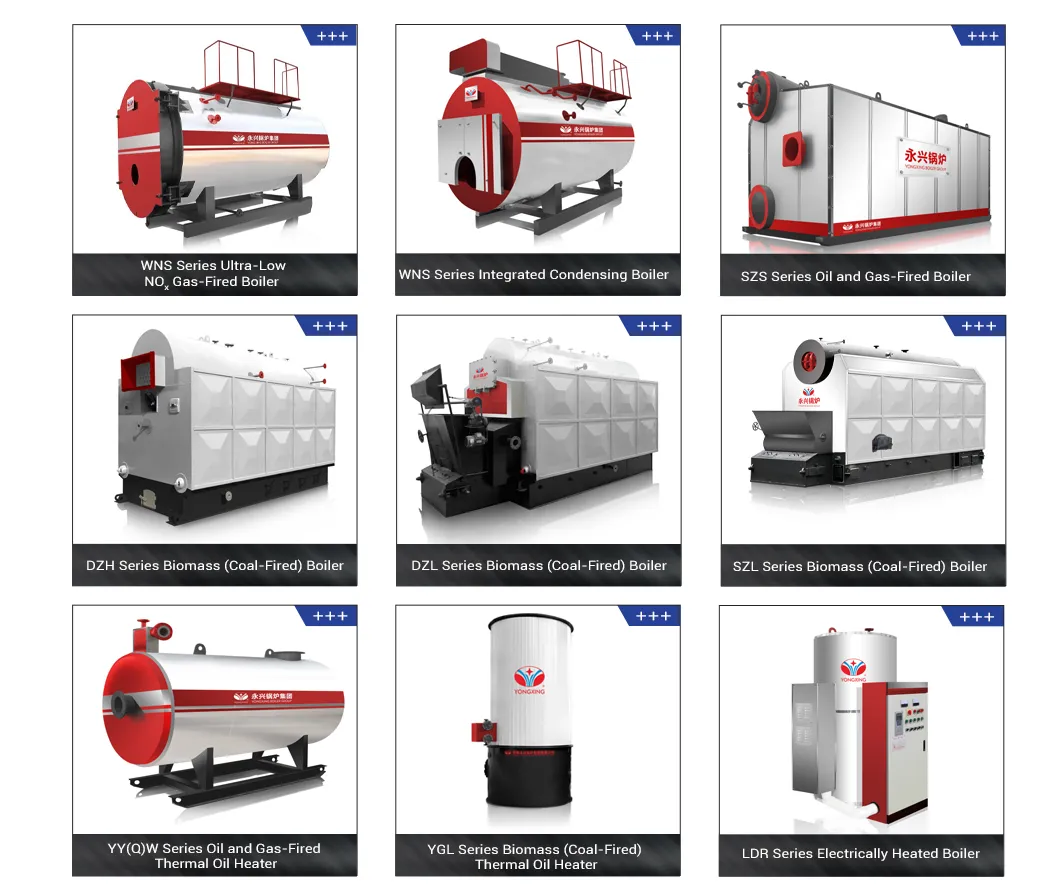

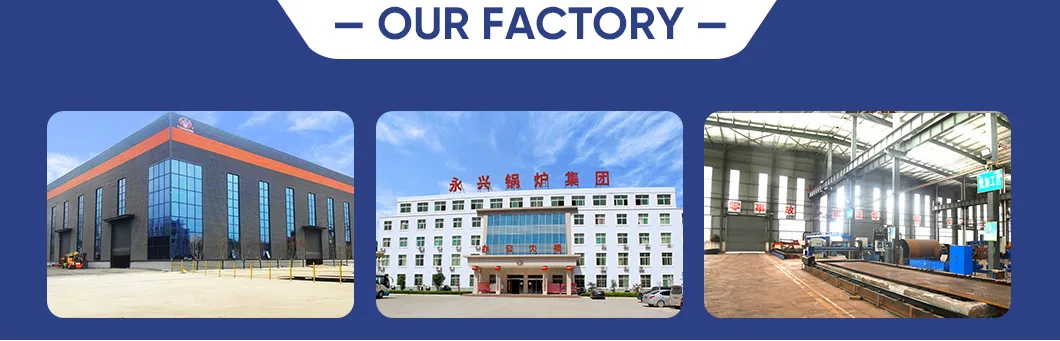

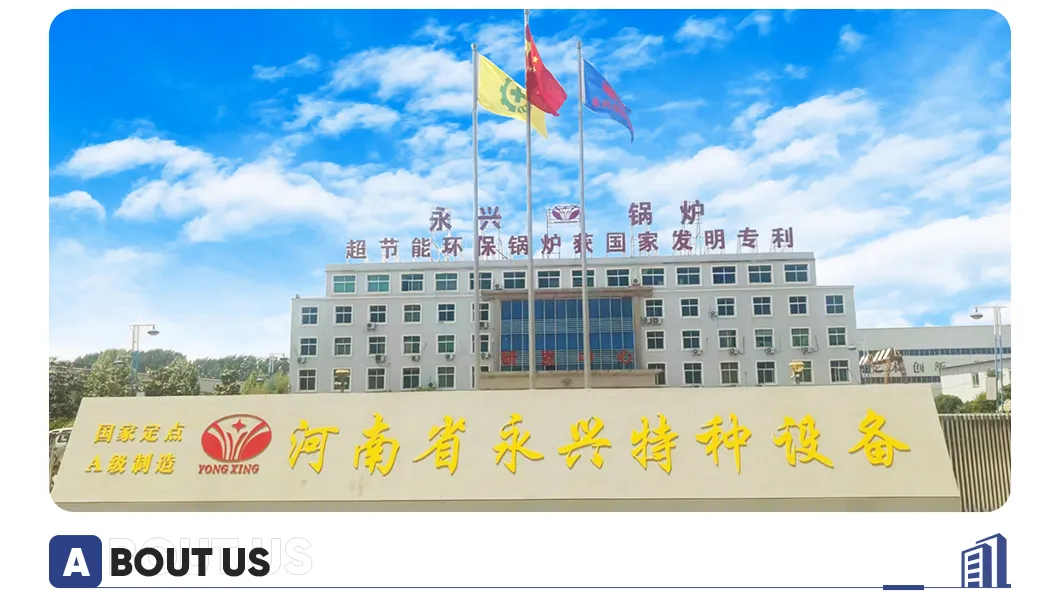

Founded in the early 1980s, we are a designated manufacturing enterprise for Grade A boilers and Category A1, A2 pressure vessels. Our product range covers 8 categories and 23 series, including oil-fired, gas-fired, and biomass boilers. With advanced technical performance and reliable quality, our boilers are used in over 130 countries and regions worldwide.
