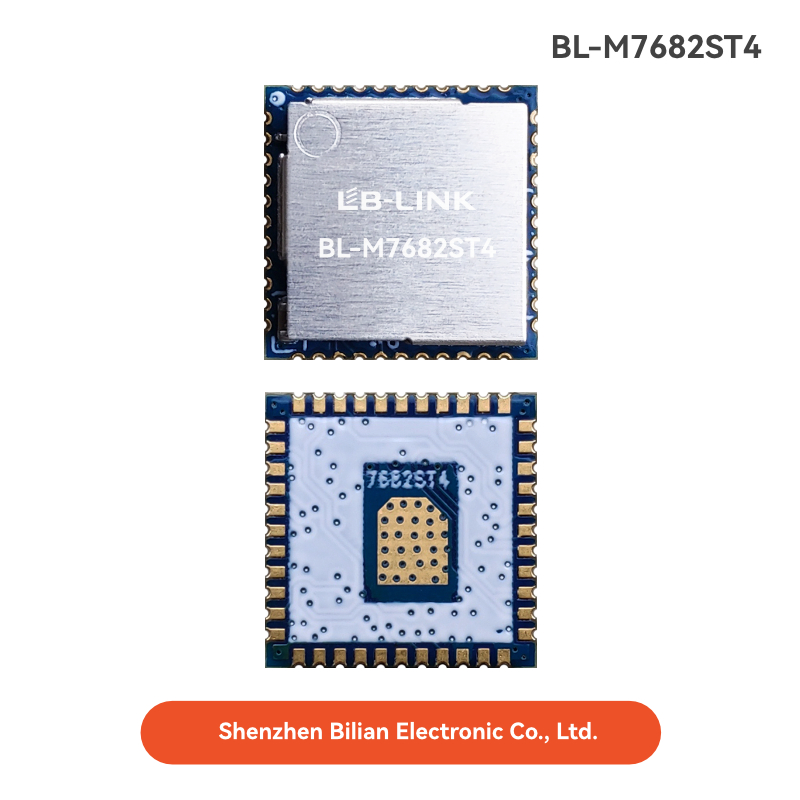

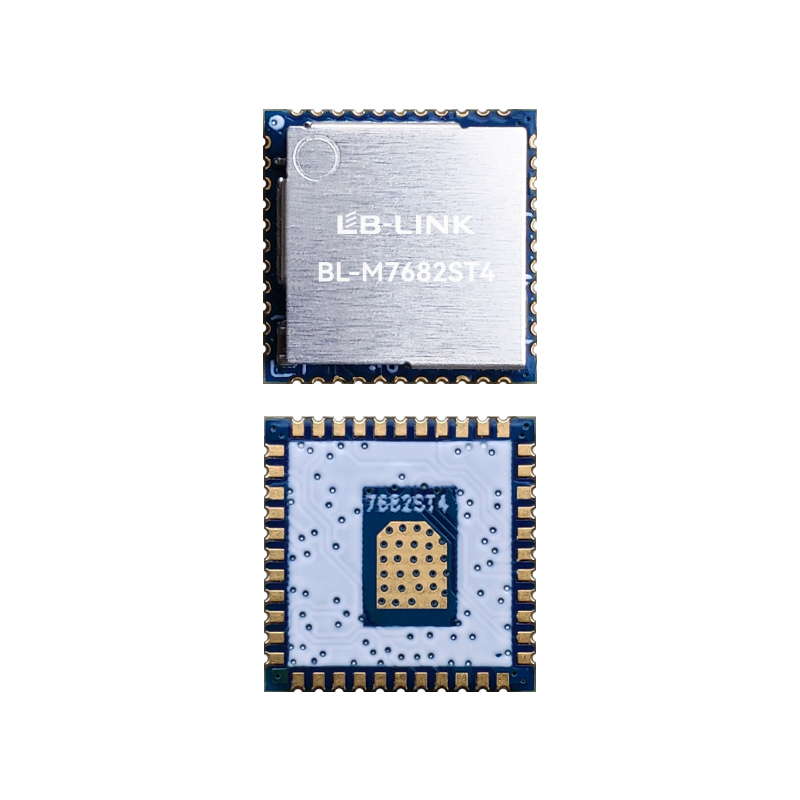

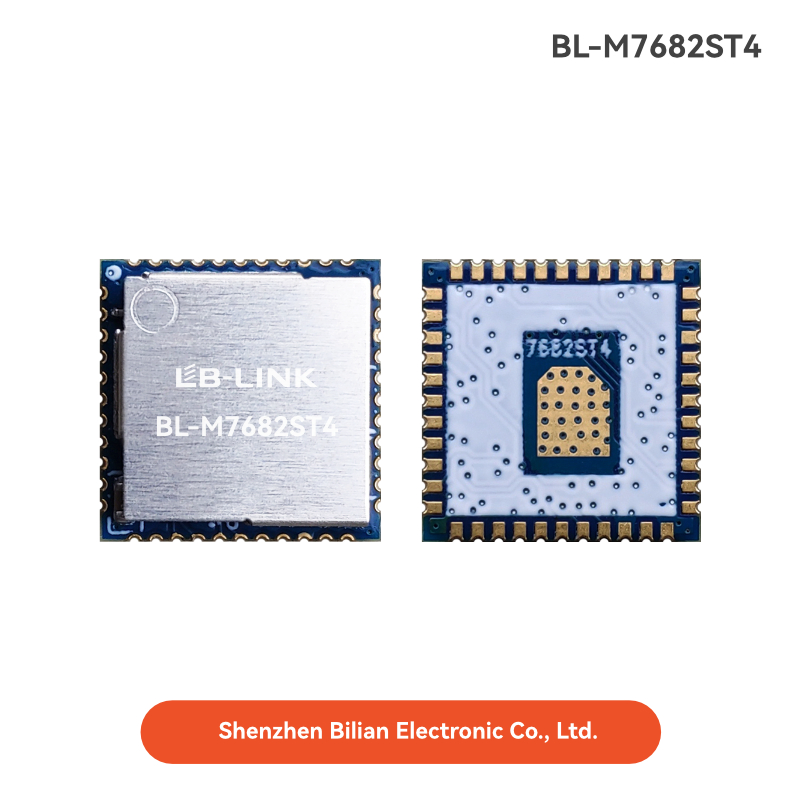

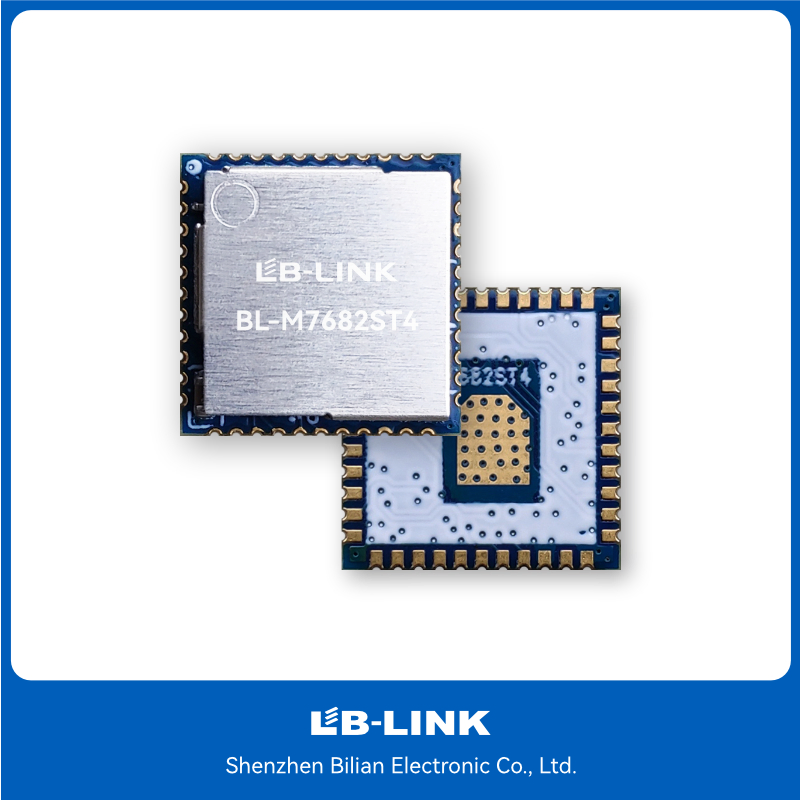

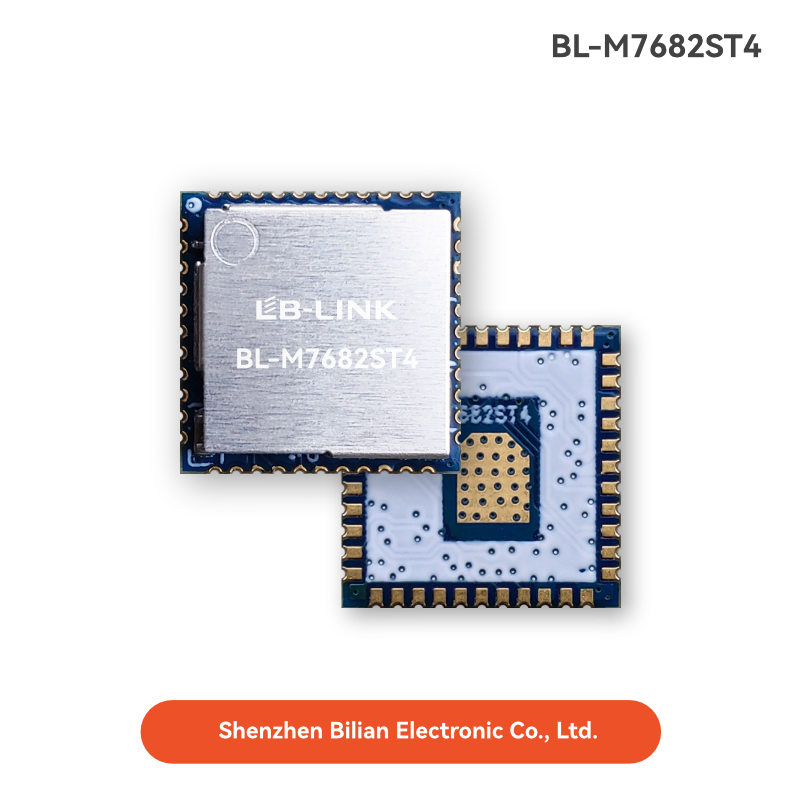

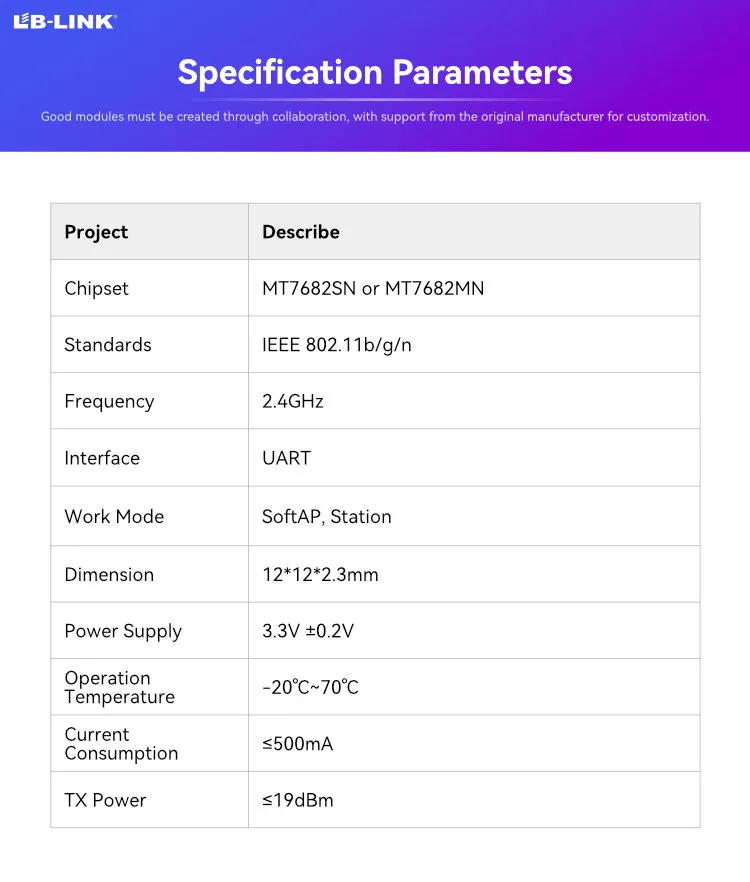

| Model NO. | BL-M7682ST4 |
| WiFi Antenna Type | External |
| Transmission Rate | 150Mbps |
| Voltage | 3.3V |
| Certification | ISO9001, RoHS, FCC, CE |
| Chipset | MT7682MN |
| WLAN Standards | IEEE 802.11b/g/n |
| Host Interface | UART |
| Dimension | 12*12*2.3mm (L*W*H) |
| Operation Temp. | -20℃ to +70℃ |

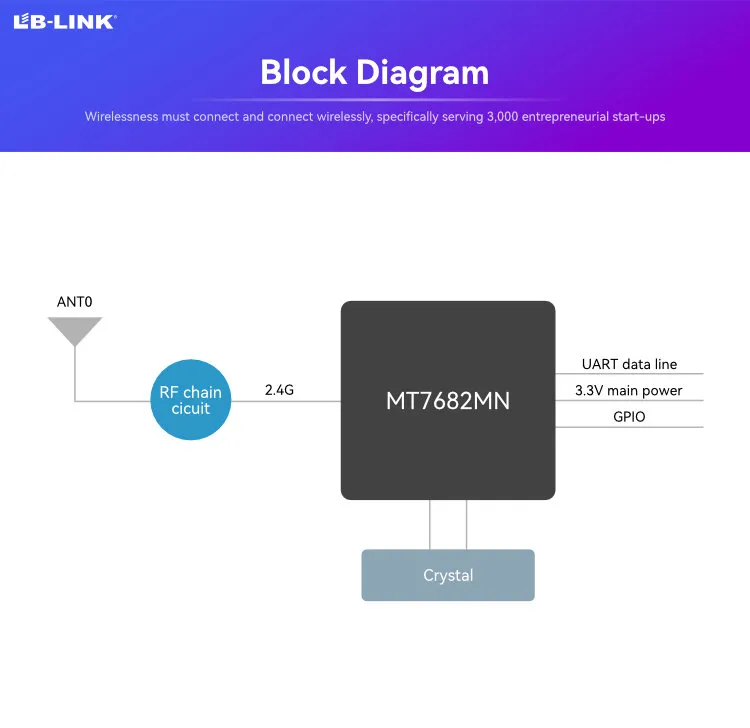

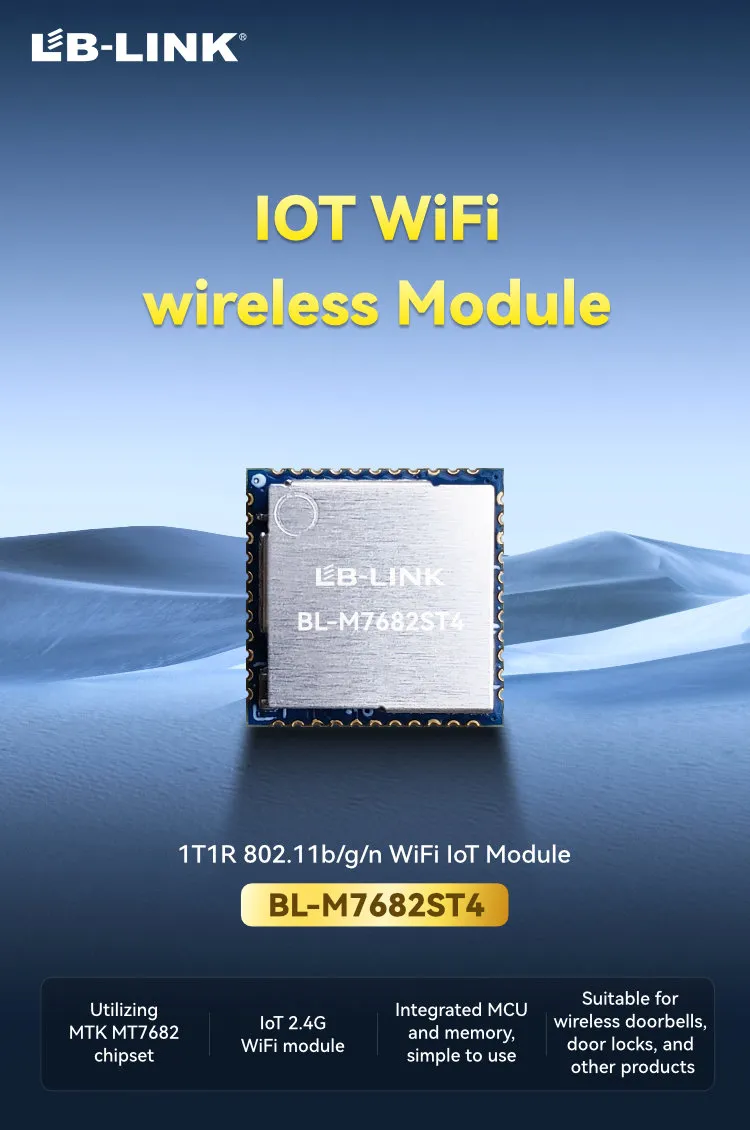

BL-M7682ST4 is a highly integrated module featuring an application processor, a low power 1x1 11n single-band Wi-Fi subsystem and a power management unit. It includes integrated 1MB flash memory and supports interfaces including UART, I2C, SPI, I2S, PWM, SDIO and ADC. The Wi-Fi subsystem is designed to meet low power and high throughput application requirements.
