Product Description

📊 Overview & Basic Information

Product Name

Venlo Style Glass Greenhouse

Size

Large

Cover Material

PC Sheet

Main Frame

Hot-Dipped Galvanized Tube

Transmittance Rate

>90%

Cooling System

Cooling Pad and Fan

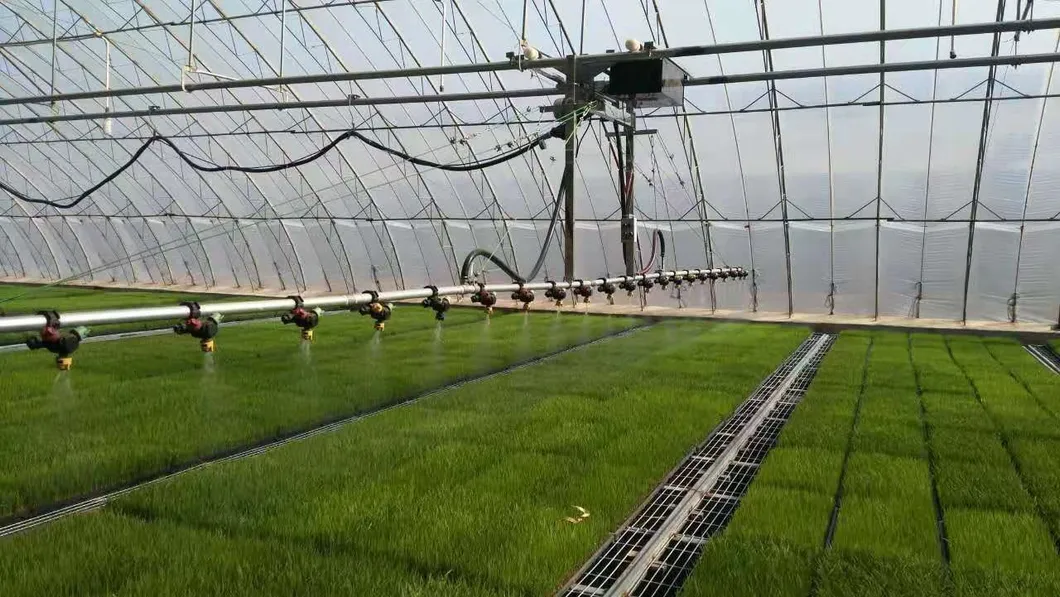

Irrigation

Drip Irrigation

Origin

China

🌱 Product Description

The Solar Panel Smart PC Vegetable Greenhouse with Hydroponic System is an eco-friendly solution for sustainable produce growth. Equipped with a state-of-the-art hydroponic system, this greenhouse ensures efficient plant growth while utilizing solar panel technology for renewable energy power.

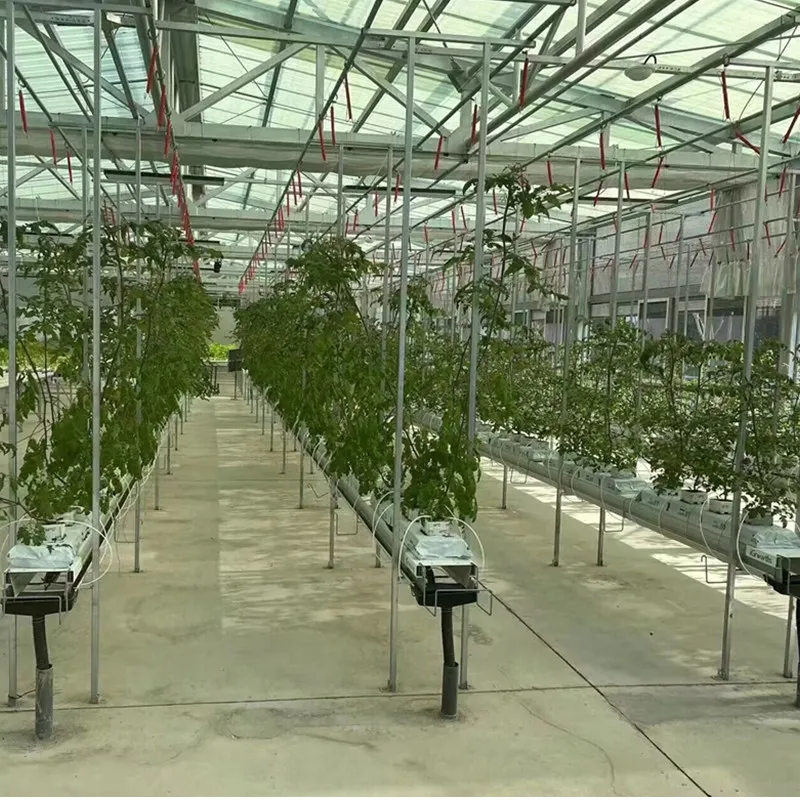

The greenhouse features advanced sun board technology that maximizes sunlight entry, resulting in healthier and more abundant crops. The integrated hydroponic system eliminates the need for soil, allowing precise control over nutrients and water.

1. Foundation Characteristics:

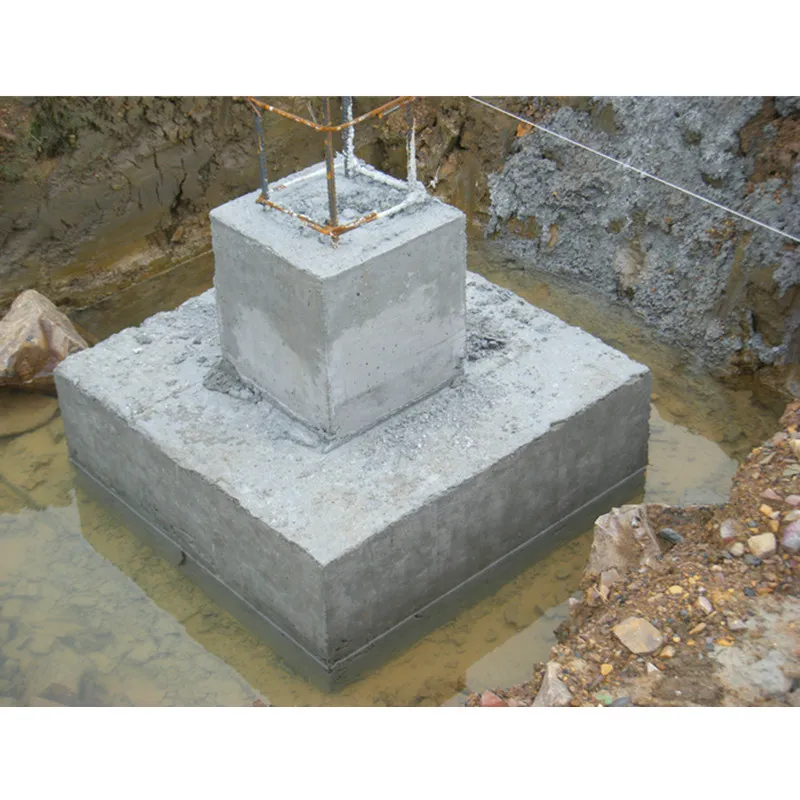

(1) Independent foundation: Reinforced concrete is typically used.

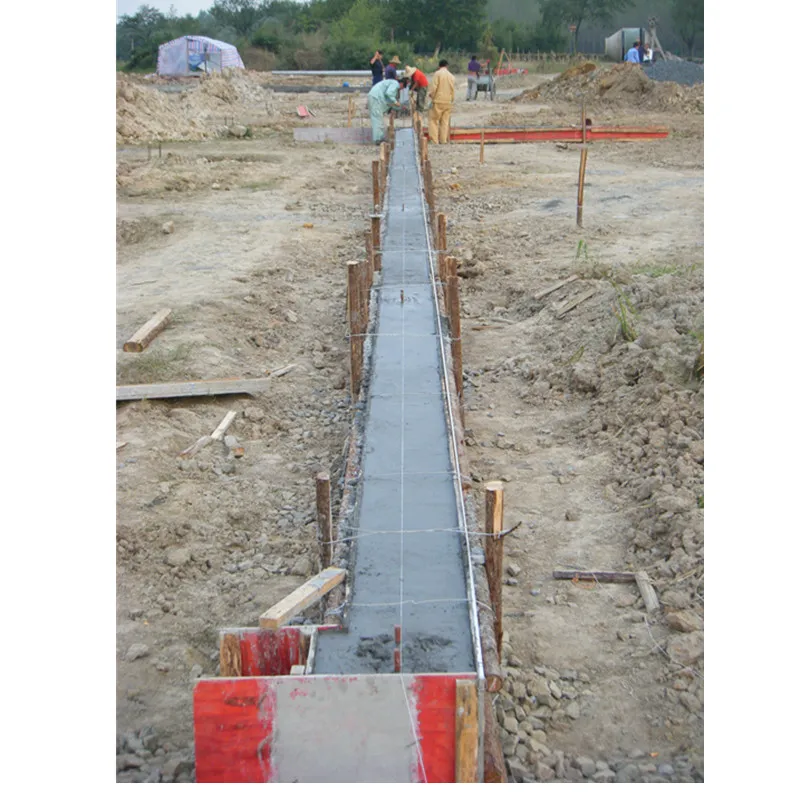

(2) Strip foundation: Masonry structure (brick, stone) with reinforced concrete ring beams for increased stiffness.

2. Greenhouse Structure:

Utilizes a small roof skeleton with multiple drainage grooves and a corridor light steel structure. All tubes are hot-dip galvanized for maximum corrosion resistance.

⚙️ Technical Systems

3. PC Solar Panel Advantages: Uniform illumination, long service life, high strength, and strong flame retardancy. Light transmittance remains above 90% over time.

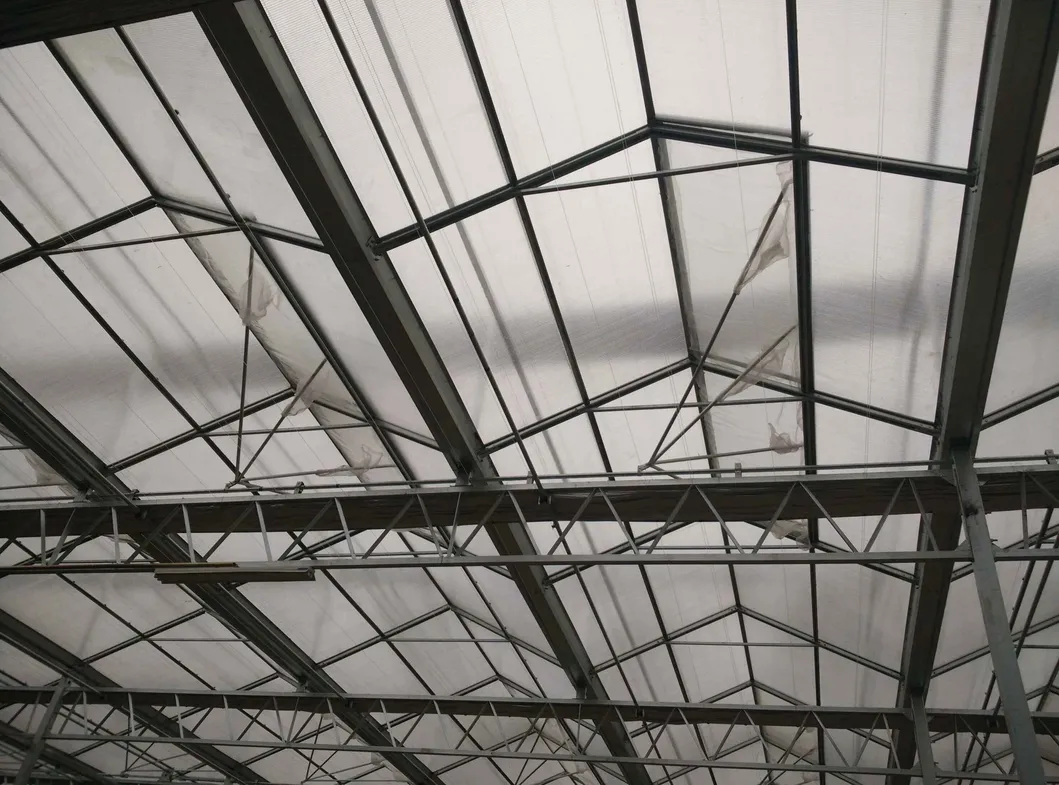

6. Outside Sunshade System: Regulates the ecological environment and protects crops from strong light burns in summer.

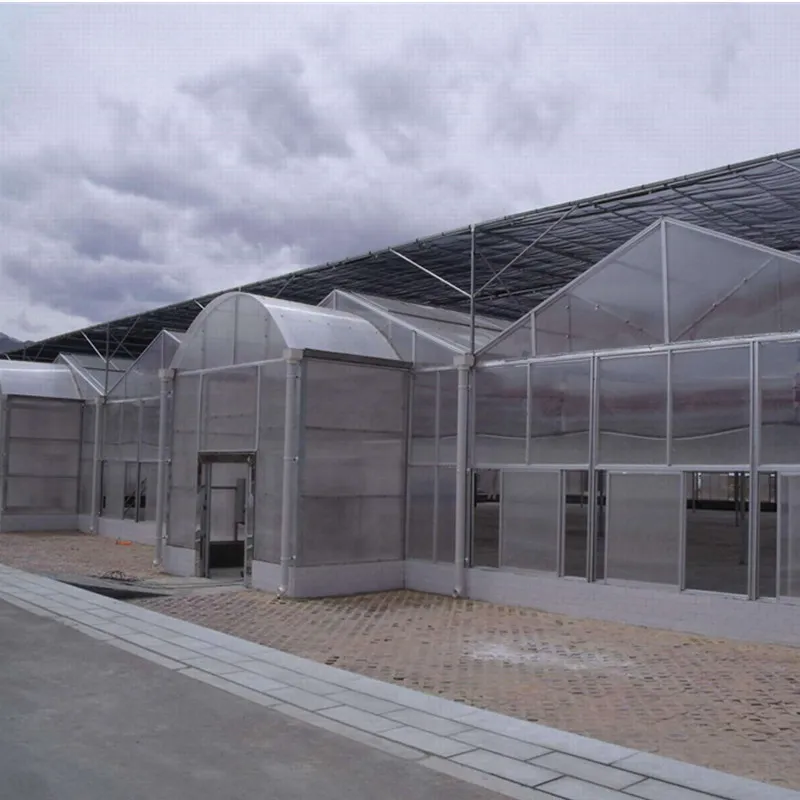

8. Forced Cooling System: Uses wet curtain and fan systems, capable of reducing temperatures by up to 10ºC.

⚡ Power Distribution Specifications

NO.	Name	Distribution	Power (KW)
1	Inner/Outer Sunshade Motors	380v 50Hz	0.75
2	Top Sunroof Motor	380v 50Hz	0.55
3	Ventilation Fan	380v 50Hz	1.1
4	Wet Curtain Water Pump	380v 50Hz	0.75
5	Everted Side Window Motor	380v 50Hz	0.75

🖼️ System Configurations & Applications

❓ Frequently Asked Questions

What are the main advantages of a PC solar panel greenhouse?

PC solar panels offer uniform lighting, high impact strength, excellent flame retardancy, and a light transmittance rate of over 90% that does not decay significantly over time.

How does the cooling system work in these greenhouses?

The system combines wet curtains and suction fans. As air passes through the wet pads, evaporation cools it, potentially reducing the internal temperature by up to 10°C compared to the exterior.

What kind of maintenance does the greenhouse frame require?

The frame is constructed from hot-dip galvanized steel, which provides superior protection against rust and corrosion, requiring minimal maintenance even in humid greenhouse environments.

Can the greenhouse be customized for specific crops?

Yes, the systems—including hydroponics, irrigation, and shading—can be configured to suit various vegetables, flowers, or scientific research needs.

What power supply is required for the automated systems?

Most of the drive motors (shading, sunroof, fans) operate on a standard industrial 380v 50Hz power supply.

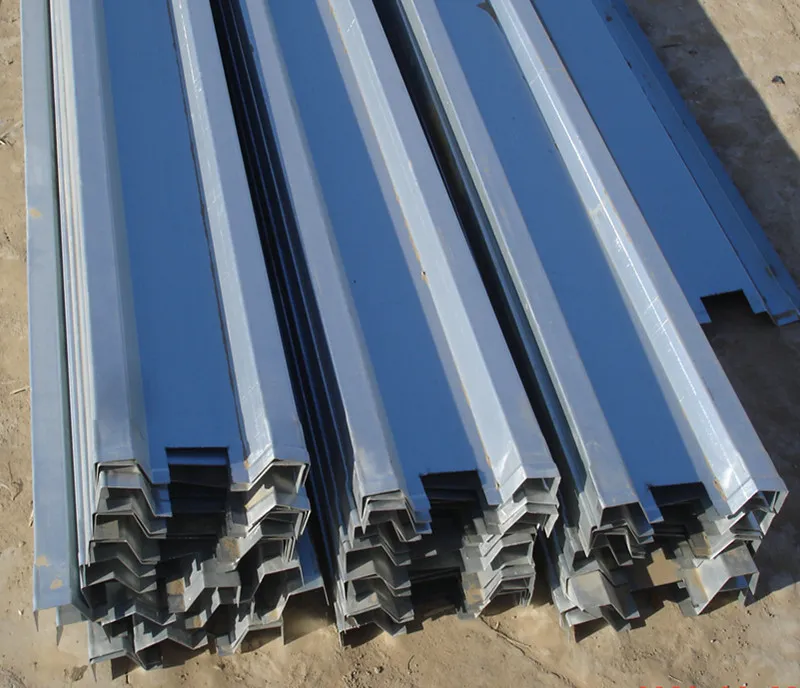

How is drainage handled in large multi-span structures?

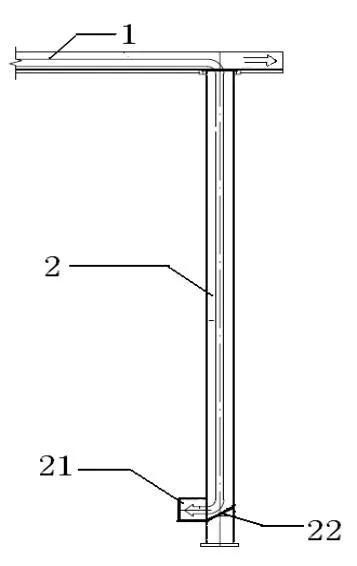

We use a dedicated rain trough system with a 2.5‰ slope. Water is collected and directed through PVC pipes, sometimes integrated into the end columns, into an underground drainage network.
