Advanced Multi-Span Greenhouse with Hydroponics System

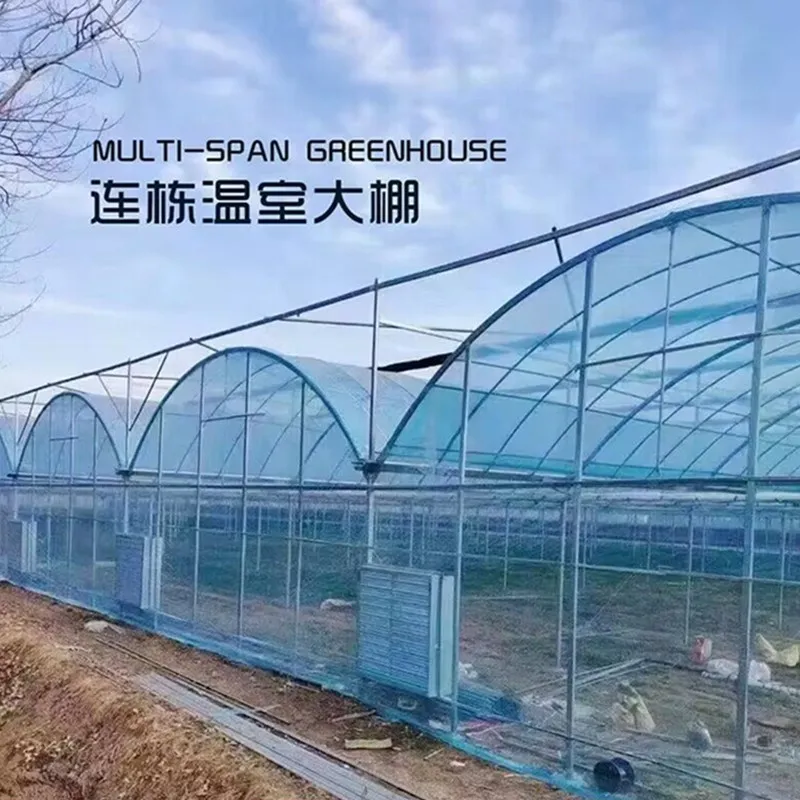

The multi-span greenhouse is an arch-shaped structure connecting multiple greenhouses, typically offering spans between 4 to 12 meters. These high-tech facilities are equipped with automated systems including external sunshades, internal thermal insulation, wet curtain cooling fans, and intelligent power distribution. Managers can input precise growth parameters into a computer system to achieve unmanned automatic operation, ensuring an optimal environment for crops.

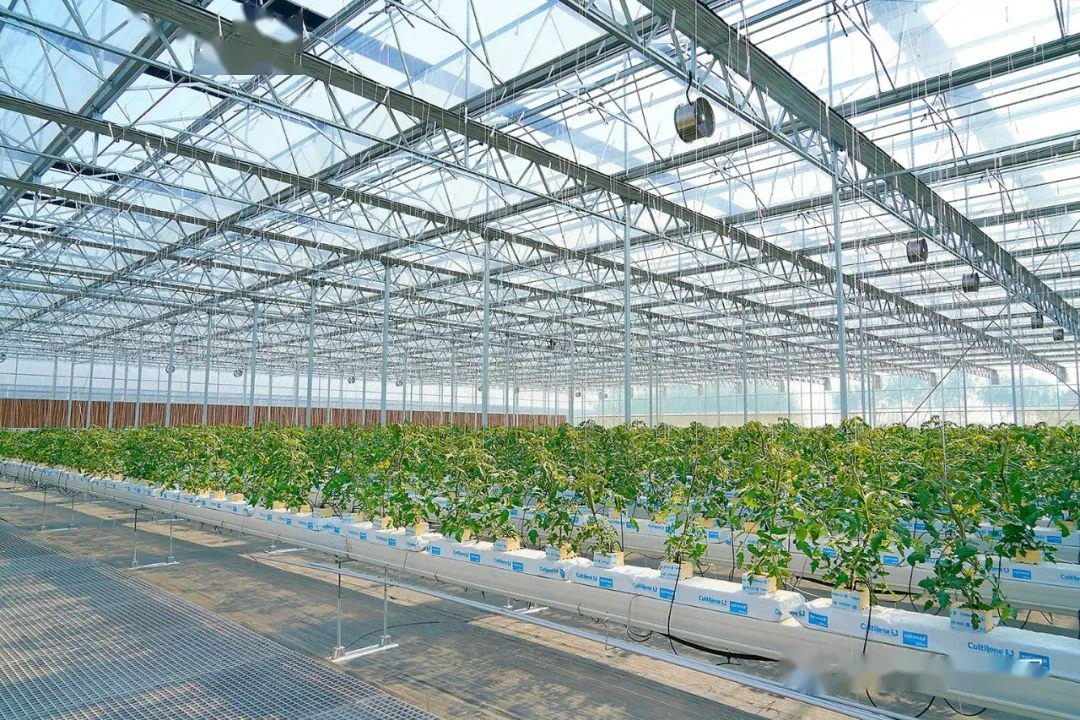

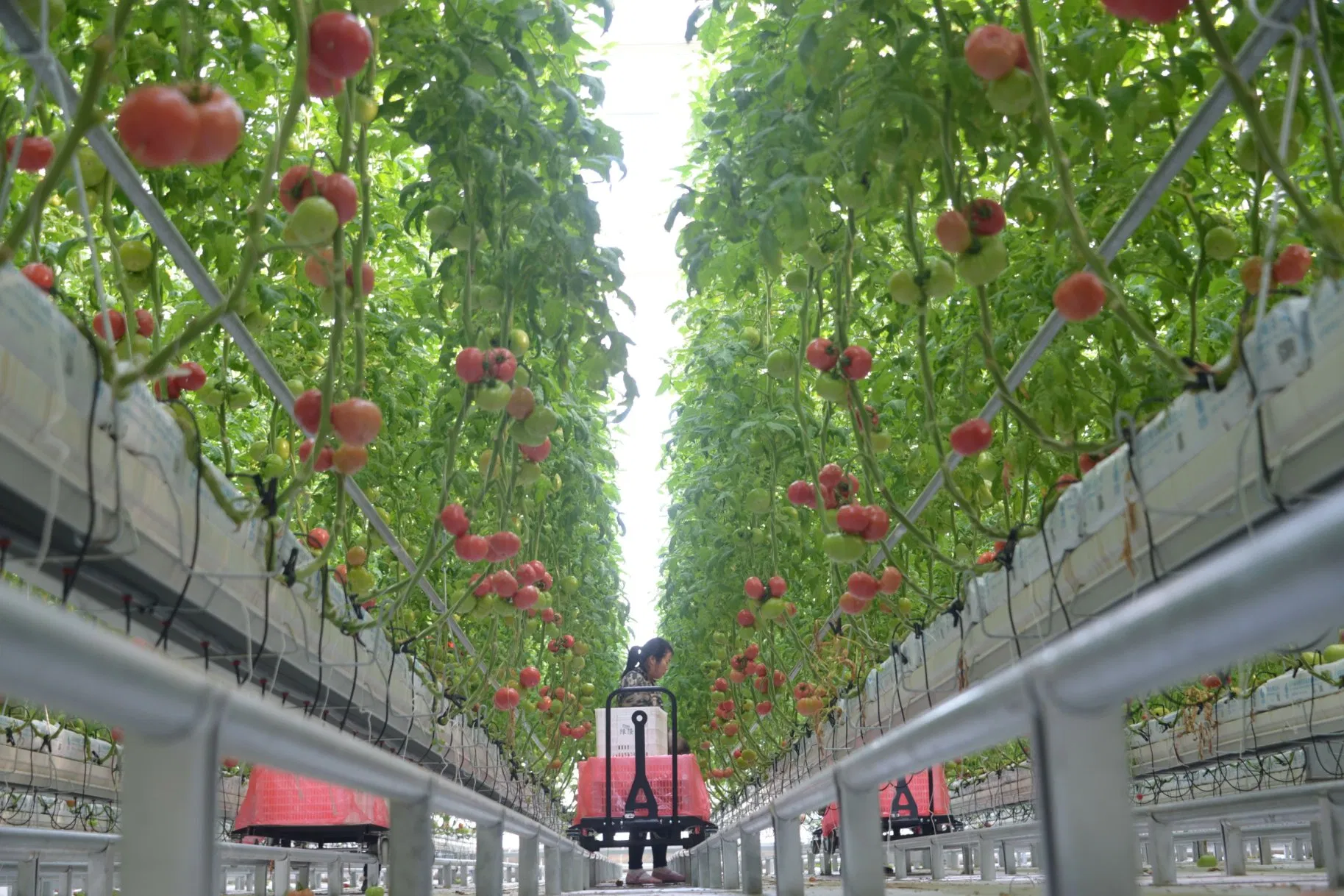

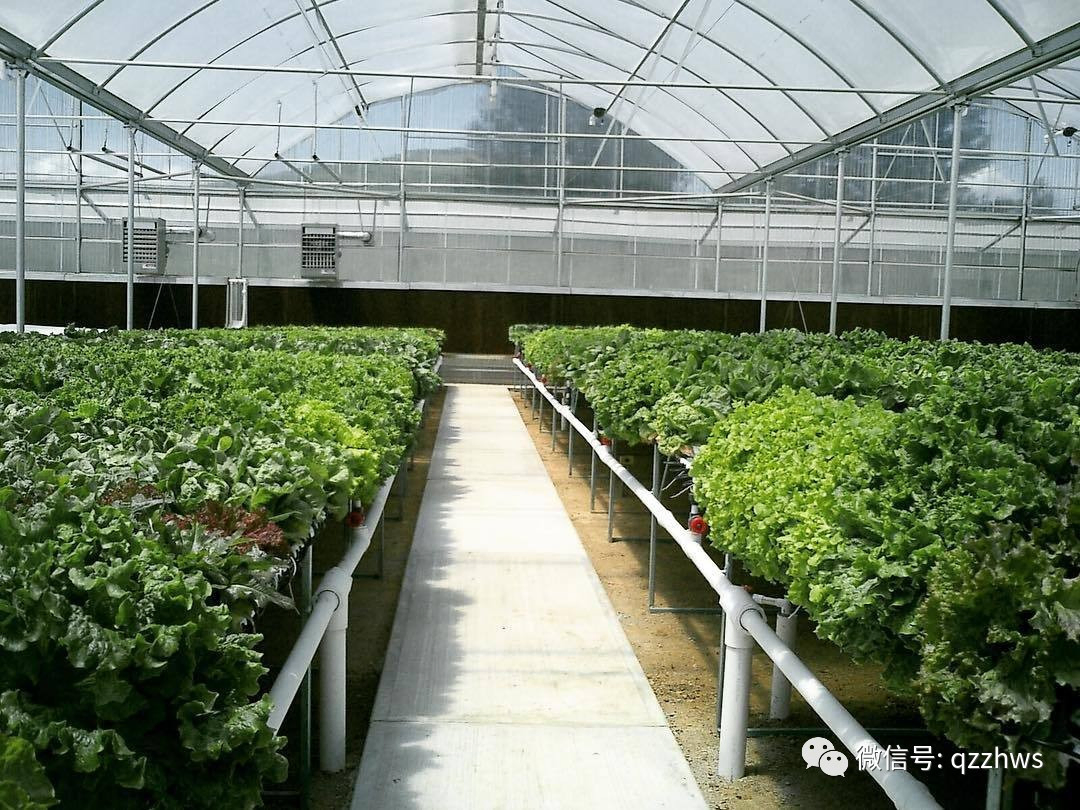

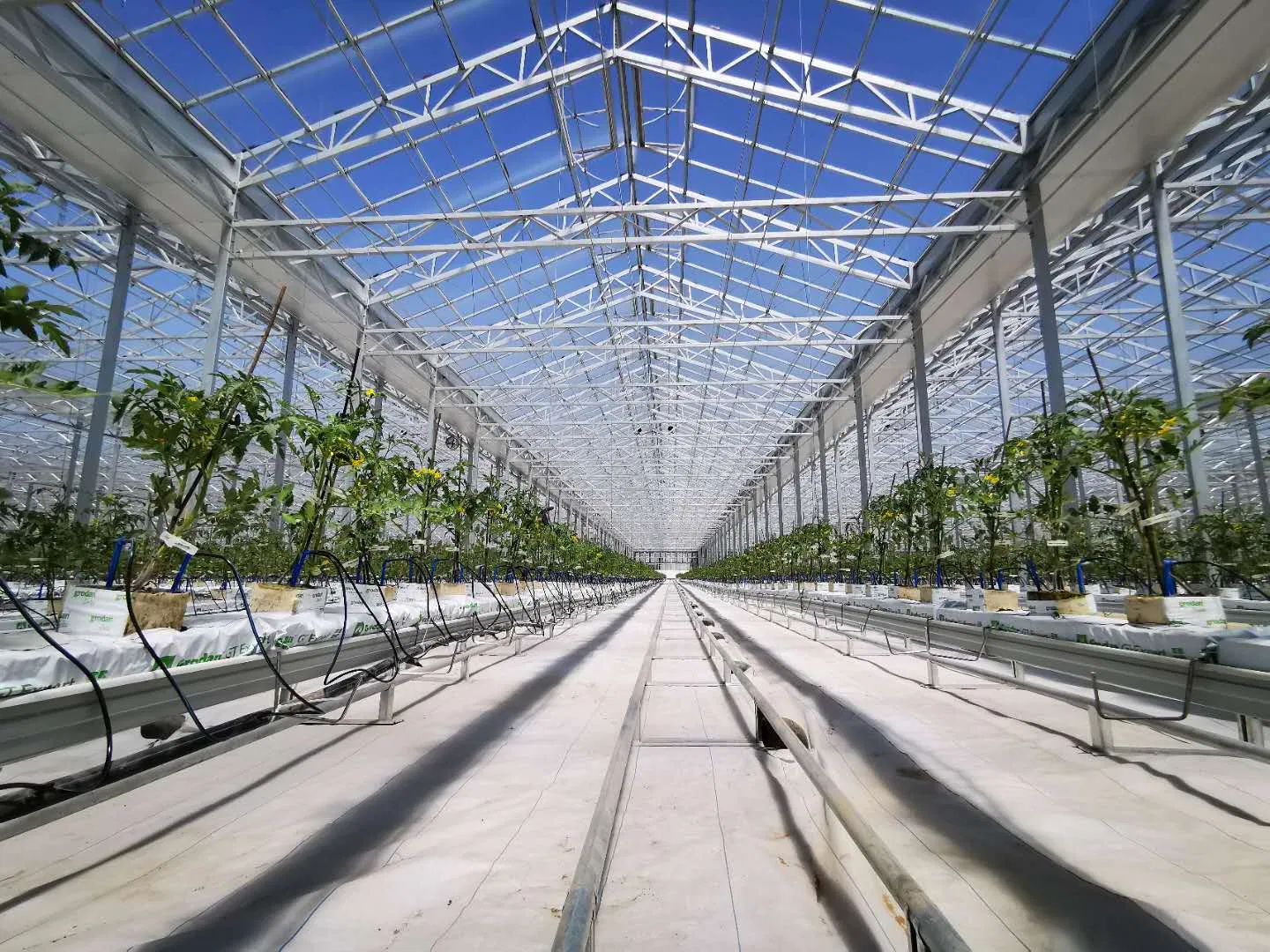

This state-of-the-art greenhouse is designed for hydroponic cultivation of tomatoes, cucumbers, peppers, eggplants, and strawberries. It utilizes high-quality UV-resistant plastic film for optimal light transmission and durability against harsh weather conditions.
| Item | Specification |
|---|---|
| Cover | Three layers co-extrusion PO/PE film (Anti-drop, insulation, anti-age) |
| Thickness | 0.12mm / 0.15mm / 0.20mm |
| Framework | Hot dip galvanized steel |
| Span | 6.8m / 8.0m / 9.6m / 10.8m |
| Wind Load | 0.45KN/m2 |
| Snow Load | 0.35KN/m2 |

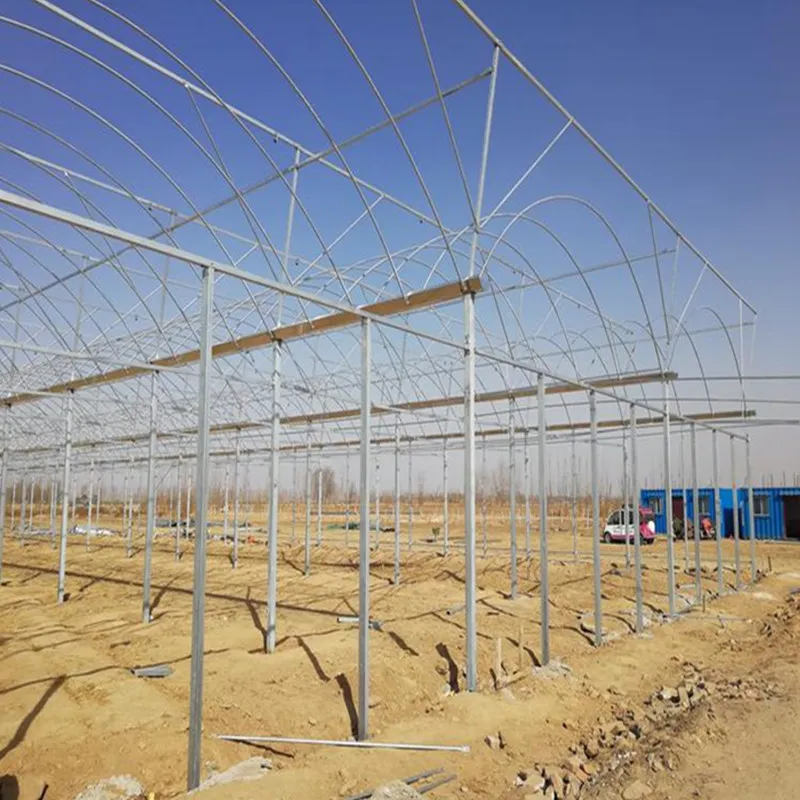

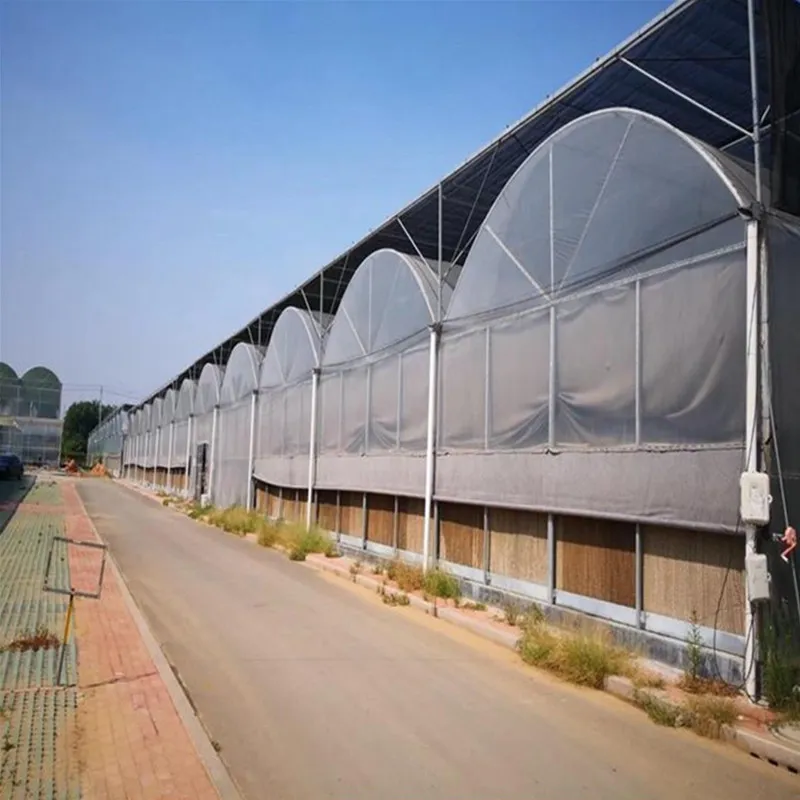

The skeleton adopts a double-sided hot-dip galvanized steel frame. Roof form is a double arc arch type. Shoulder height starts at 3.5m with external shading reaching up to 6m.

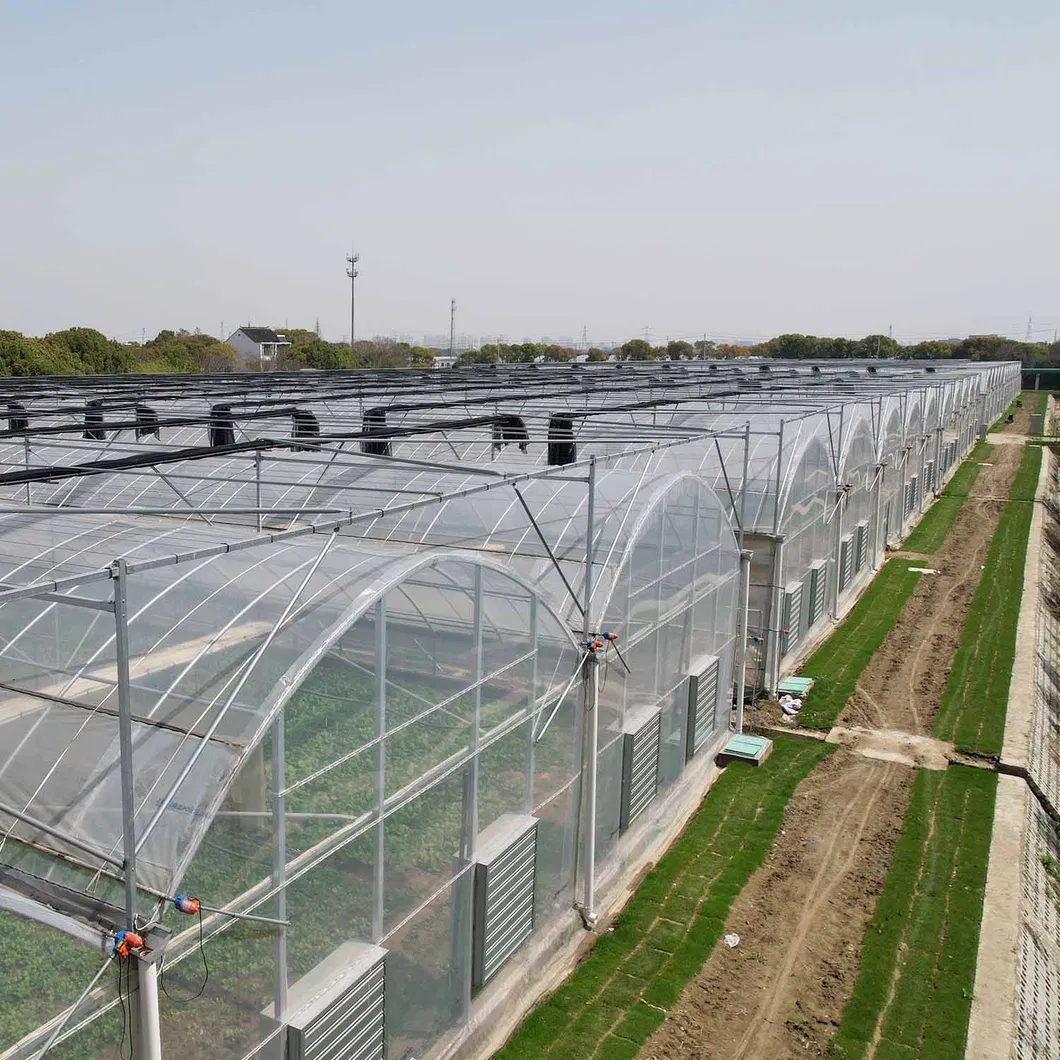

Both top and surrounding walls are covered with PEP Lide film (0.15mm thickness), ensuring superior environmental control.

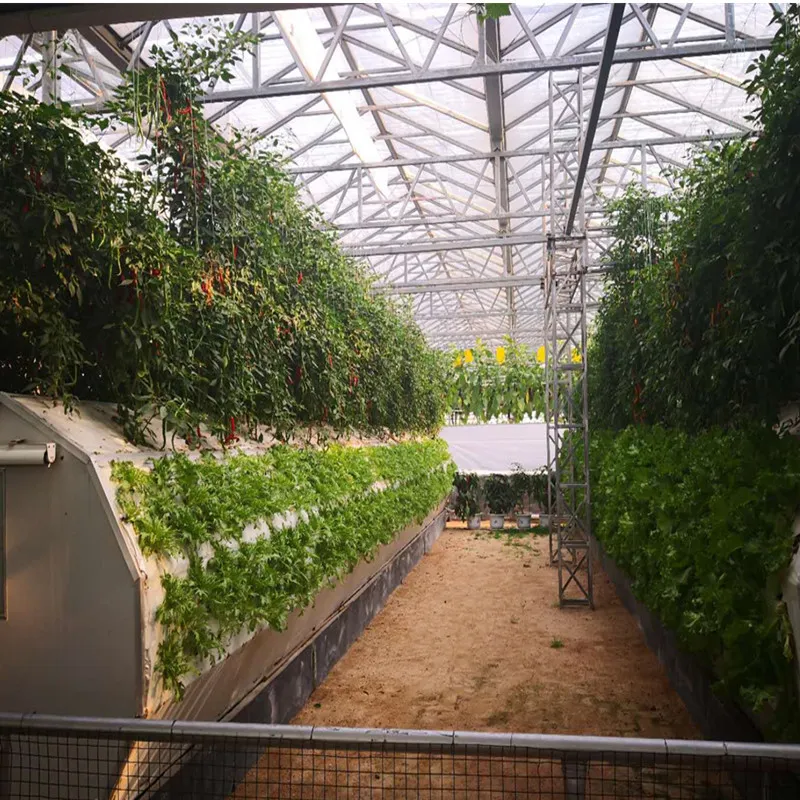

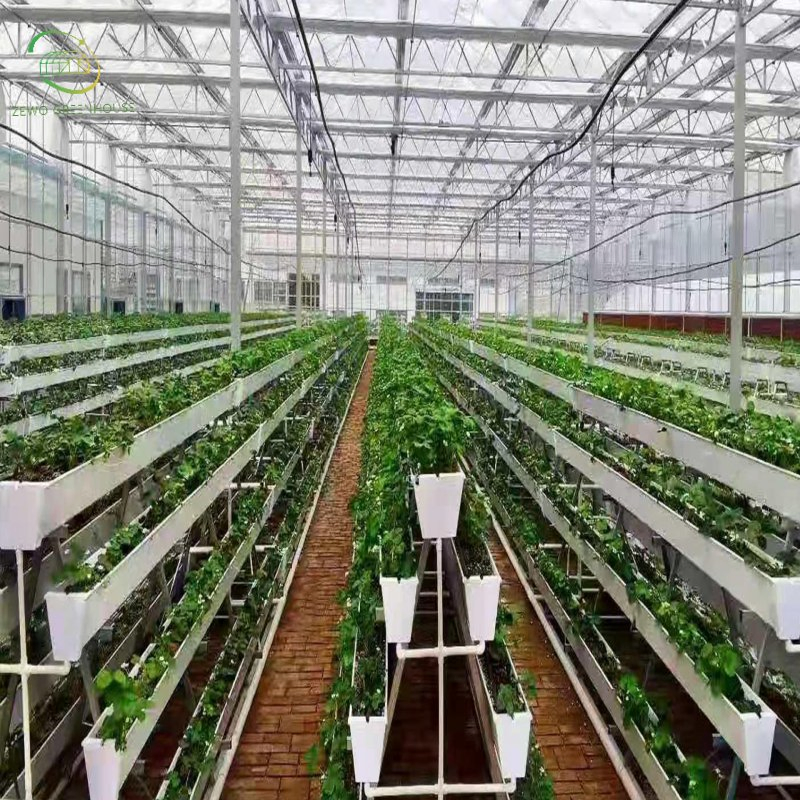

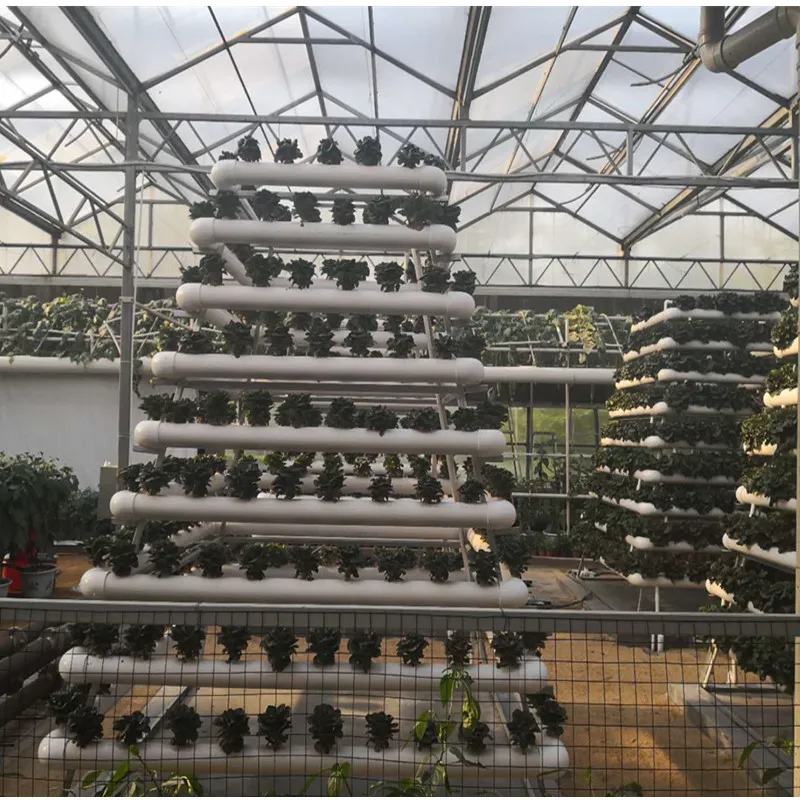

We utilize four common hydroponic techniques: DFT (Deep Flow), NFT (Nutrient Film), FCH (Floating Capillary), and Aeroponics (Fog culture). These are ideal for:
